tps5450_10-36v_to_5v

Overview

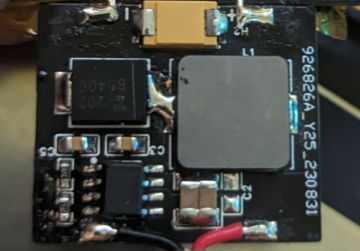

The TPS5450 DC-DC step-down module is designed to be as thin as possible while still being able to output 5A, so that it can be used as an internal power supply for mobile phones/tablets by modifying R2.
