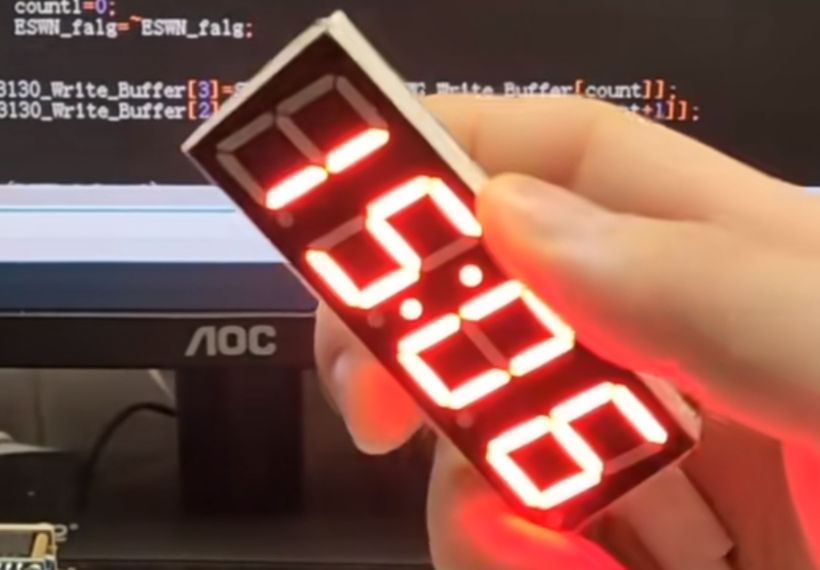

0.8-inch TM3130 Desktop Electronic Clock and Thermometer

Overview

//The source code and PCB layout for the above projects are publicly available. Search "Qiqi Loves Microcontrollers" on the "LCSC Open Source Hardware Platform".// Microcontroller model: STC8G1K08 1. When programming, be sure to select built-in IRC=30MHz. 2. Set the reset pin to the IO port. 3. Uncheck the option to erase the user EEPROM area when downloading the user program.
/*No technical support provided, just sharing for fun. This is an open-source blogger's work; it is for use only
and not for commercial purposes. Questions can be discussed in the comments section below. Designer of this solution: Qiqi Douyin: The Cutest Qiqi in the Universe Kuaishou ID: Qiqi Loves Microcontrollers Bilibili: Qiqi Loves Microcontrollers QQ: 1715755109 (For custom microcontroller programs and PCB designs, add as a friend and note your purpose; paid design, serious inquiries only). QQ Group: 499067314 (Welcome all microcontroller enthusiasts to join the group; group files are available for free download.)
*/
