CH340E-USB-TYPE-C to TTL

Overview

Product Introduction:

The CH340E USB-TYPE-C to TTL module uses the CH340E as its core, with an internal crystal oscillator and a maximum baud rate of 2Mbps. It is software-compatible with the CH341 driver, features backflow protection, and provides corresponding communication and power interfaces. The communication interface has indicator lights to show the working status, ensuring stable communication and a compact size.

Product Features:

USB TYPE-C Interface:
Full-speed USB device interface, compatible with USB V2.0.
Fully compatible with serial port applications under Windows operating systems on the computer side, requiring no modification.
Hardware full-duplex serial port with built-in transmit/receive buffers, supporting baud rates from 50bps to 2Mbps.
Built-in firmware; software compatible with CH341, allowing direct use of the CH341 VCP driver. This is a downloadable USB-to-serial driver for Windows,

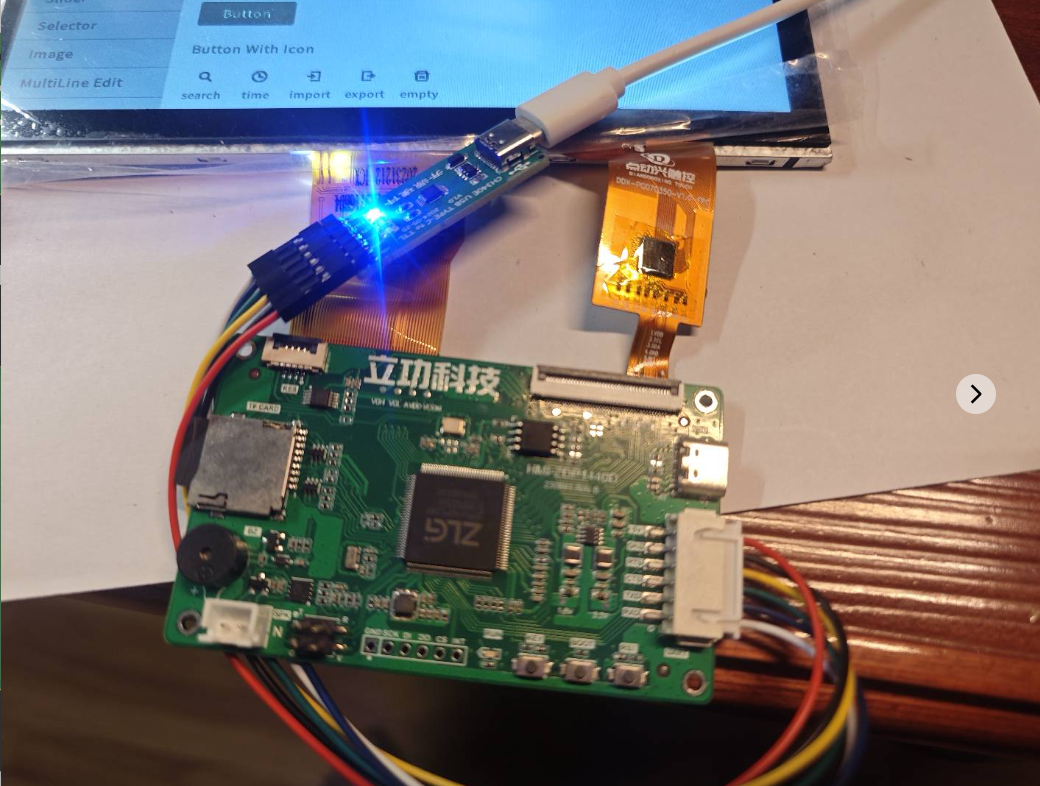

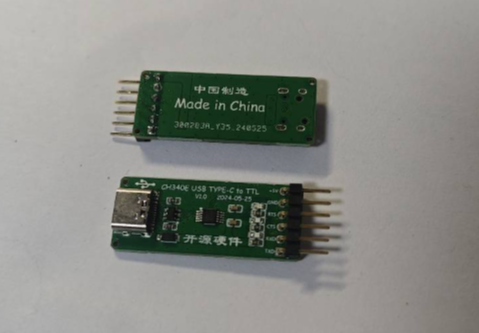

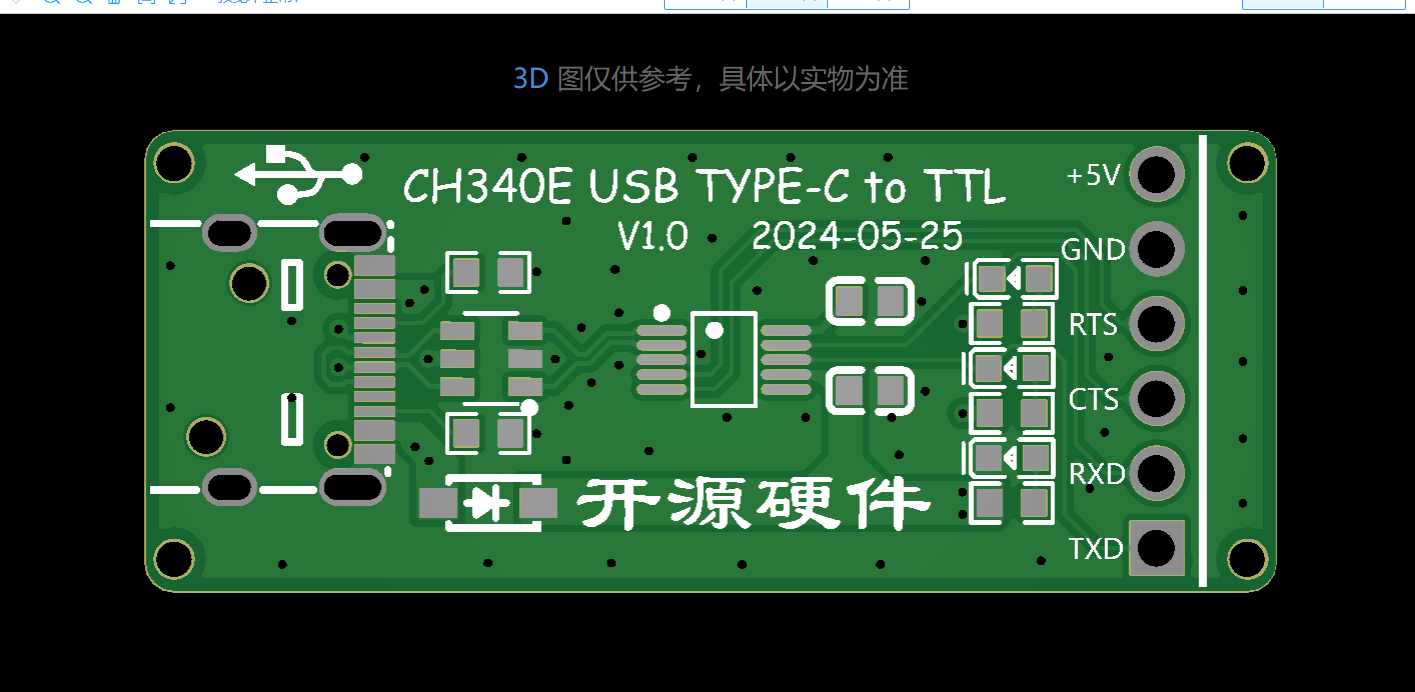

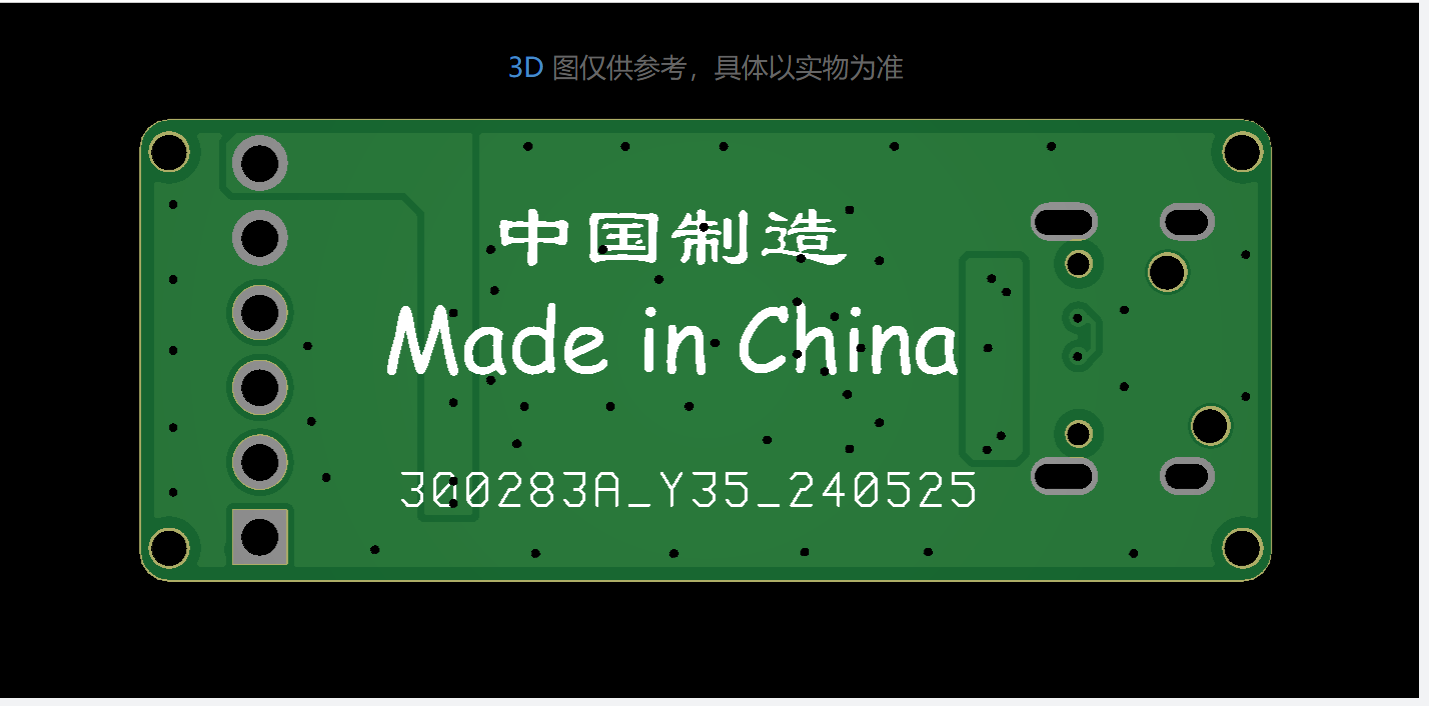

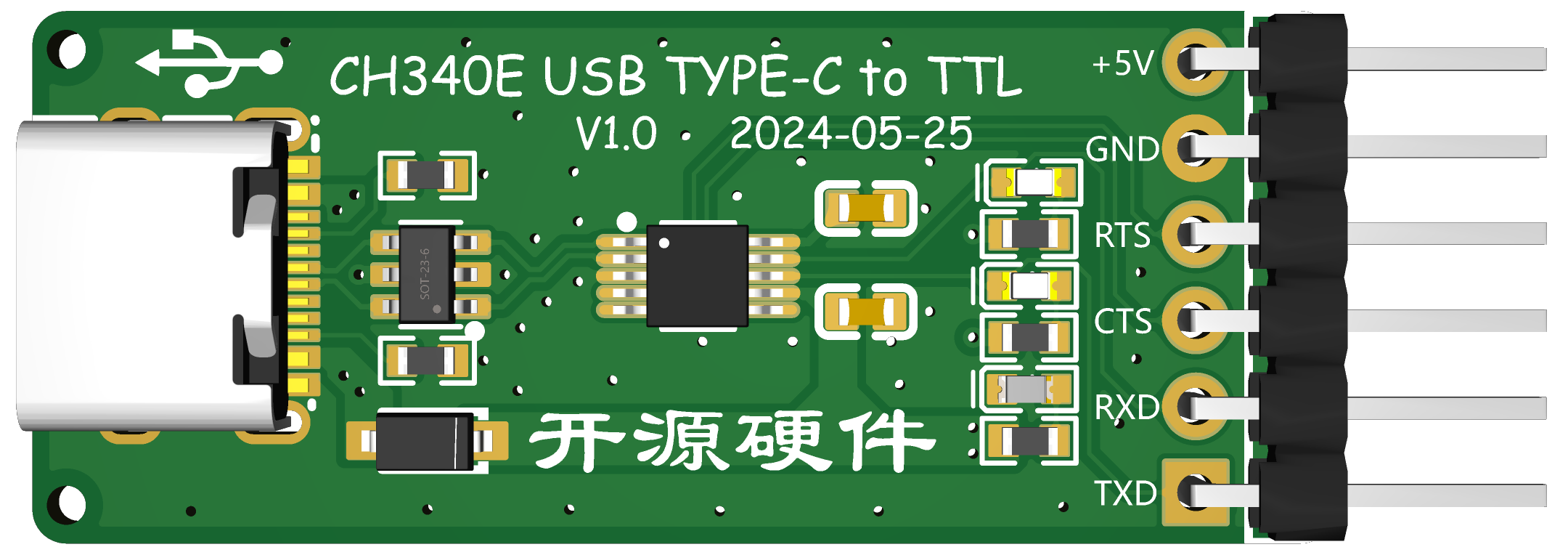

supporting TTL level 5V. It's a one-click installation driver for CH340 and CH341, compatible with 32/64-bit Windows 11/10/8.1/8/7/VISTA/XP, SERVER 2022/2019/2016/2012/2008/2003, 2000/ME/98, and is Microsoft digitally signed. It supports 3-wire and 9-wire USB-to-UART serial ports and is intended for distribution to end users with products. CH341SER.EXE: https://www.wch.cn/downloads/CH341SER_EXE.html Pin Function Table Symbol Description 5V 5V Power Supply Output Pin (Max 500mA) GND Ground Pin RTS# MODEM Handshake Output Signal, Request to Send, Active Low (High) CTS# MODEM Handshake Input Signal, Clear to Send, Active Low (High) RXD Serial Data Output Port TXD Serial Data Input Port PCB Image Actual Photo

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
