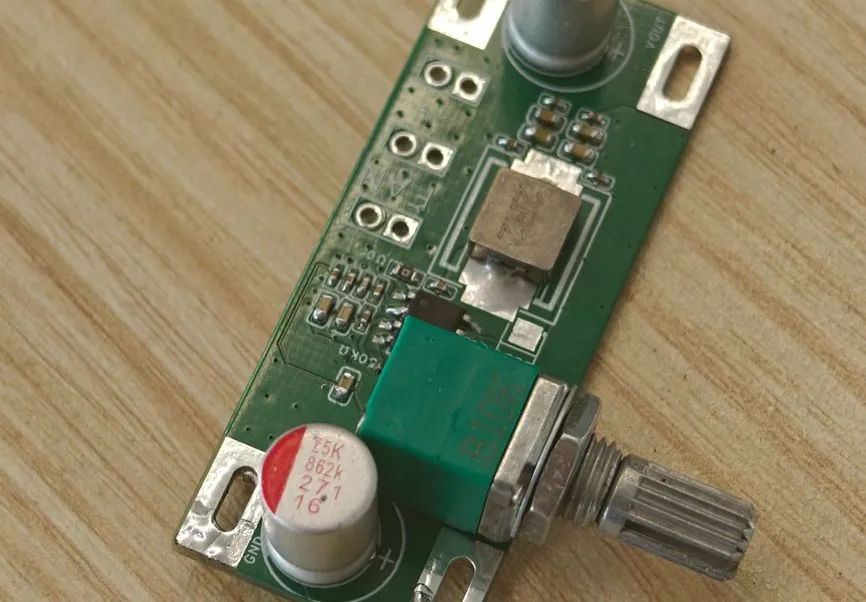

Synchronous BUCK Fine Voltage Regulating Buck Module (SCT)

Overview

Primarily uses ICs from Chipsys International, but can be replaced with other pin-to-pin components. Employs various compatible package designs, allowing for free design of different voltage-rated circuits and voltage regulation methods. Features excellent heat dissipation and supports free gold-plated prototyping (pads less than 20%). Follow the instructions during design and soldering. Components are freely selectable; for components with values marked on the PCB, it is recommended to solder those corresponding values. Other component values can be freely designed.
