TinyNES: Classic NES handheld game console, open source hardware (schematics, PCB, source code, etc.)

Overview

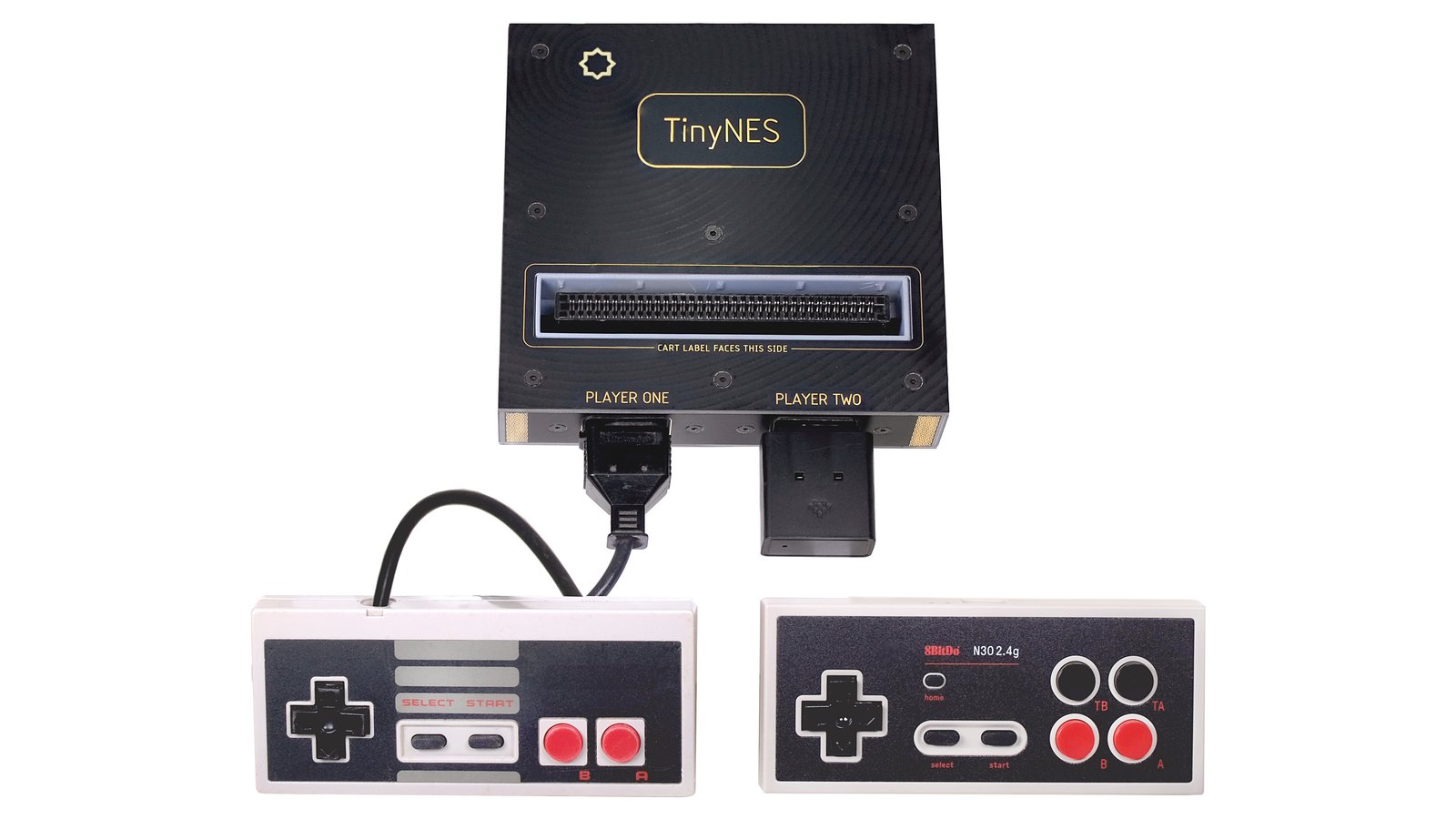

TinyNES (short for Tiny Nostalgia Evocation Square) is an open hardware video game console that plays original Nintendo Entertainment System (NES) video game cartridges without the use of emulation.

This tiny console was designed with size, simplicity, cost, modern manufacturability and component availability in mind. It has a sturdy little case made of FR-4 (circuit board material), and it can be powered by a simple USB Type-C cable, like the one you already use to charge your phone. It's cute, sturdy, and fun to play with.
