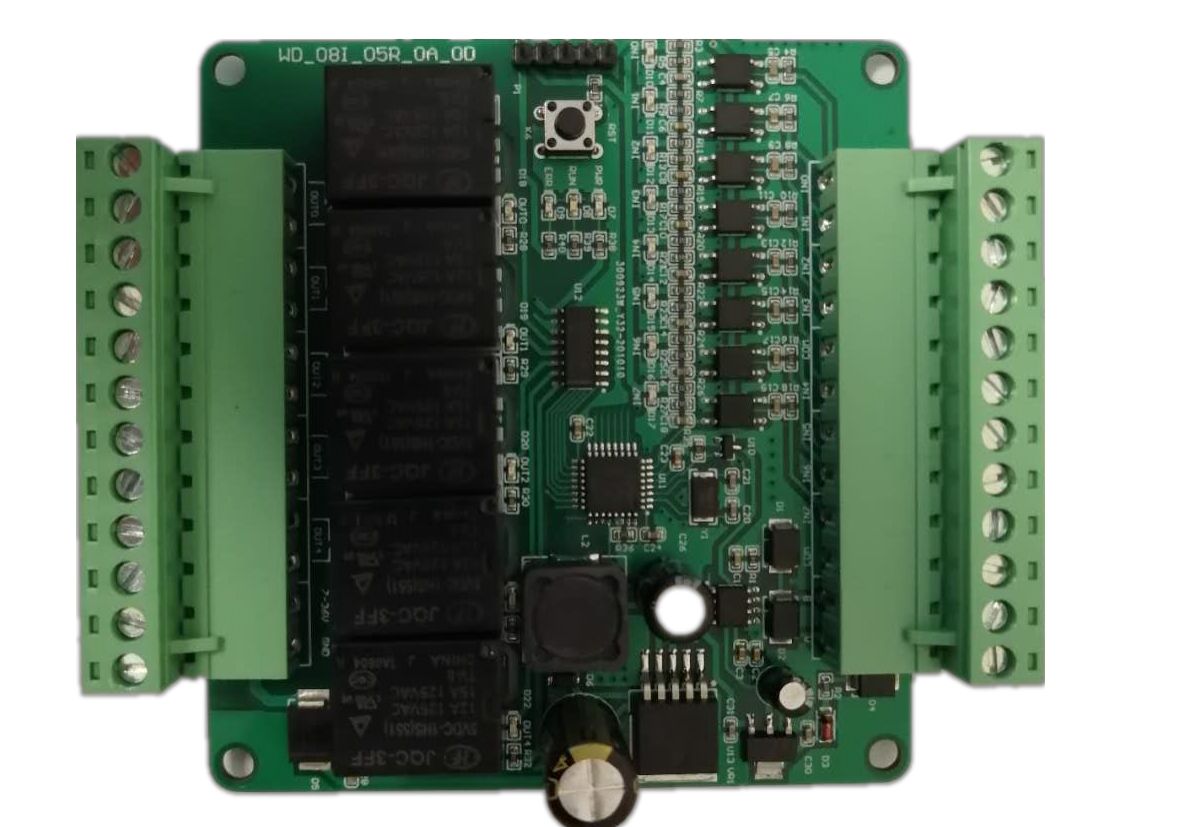

MODBUS Remote I/O Module


Features:




Multi-baud rate support


: Supports 9600, 19200, 38400, 57600, and 115200 baud rates.




Multi-station number support


: Supports broadcasting, with station numbers set from 1 to 255.




Dual watchdog timer





. Imported MCU


: Imported MCU main chip from a major international manufacturer, ensuring more stable performance. High




-quality relays


: Uses high-quality Hongfa relays for superior control.




Standard MODBUS


: Uses the standard MODBUS protocol, supporting Modbus Poll.




Intelligent host computer


: Intelligent host computer, easily handling function configuration and relay control.





Parameters




: Product Model:


WD_08D_05R_0A_0D.




Input signals:


8-channel dry contact input.




Operating power supply


: Wide voltage DC 7~36V,




maximum power consumption


2.5W.




Output method:


5-channel relay output, maximum load per channel 10A.




Communication interface


: RS485 standard Modbus RTU communication protocol .




Product dimensions:


95*90*40mm (L*W*H).




Installation dimension:


35mm standard DIN rail slot.





Controller address allocation




function :


Address


function


: Remarks :




 Input address :



0x0000


IN0







0x0001


IN1







0x0002


IN2







0x0003


IN3







0x0004


IN4







0x0005


IN5







0x0006


IN6







0x0007


IN7















Output Address


0x1000


OUT0







0x1001


OUT1







0x1002


OUT2







0x1003


OUT3







0x1004


OUT4












Read/Write Register


0x2000


Device ID Number


Range (1~255), Default is 1




0x2001


Baud Rate Setting


0x1000 Baud Rate 2400 0x2000
Baud Rate 4800
0x3000 Baud Rate 9600
0x4000 Baud Rate 19200
0x5000 Baud Rate 38400
0x6000 Baud Rate 57600
0x7000 Baud Rate 115200




0x2002


Control Mode


: 0: Remote control;
1: Local control.




0x2003


Input Mode


: 0: Normal contact;
1: Short contact.




0x2004


Reserved







; 0x2005


Reserved







; 0x2006


Reserved







; 0x2007


Reserved ;







0x2008


Reserved










; 0x2009


Reserved












Read-Only Register


. 0x6000


Controller Model:







0x6001







0x6002







0x6003







0x6004







0x6005







0x6006







0x6007







0x6008


Controller Software Version .









Mode Description:
 Input
Mode: There are two input modes: normal contact and short contact. In normal contact mode, the input is ON when closed and OFF when open. In short contact mode, the state reverses once when the input is closed.
 Control Mode:
There are two control modes: remote and local. In remote mode, inputs and outputs are independent; the user can control the opening and closing of the output via commands
. In local mode, the controller's first 5 input points (IN0~IN4) and 5 output points (OUT0~OUT4) are interconnected; commands cannot control the outputs in this mode. In
remote mode ,




the status is read via commands




: IN0


IN1 IN2 IN3


IN4 IN5 IN6 IN7 . Commands control OUT0 OUT1 OUT2 OUT3 OUT4. In local mode , the status is read via commands: IN0 IN1 IN2 IN3 IN4 IN5 IN6 IN7 OUT0 OUT1 OUT2 OUT3 OUT4. (Applicable enclosure)
