Data cable test

Overview

This project is licensed under a Creative Commons Attribution-BY-NC-SA 3.0 license. You must give appropriate attribution (retain the PCB attribution and provide a link to this project when reposting), and indicate whether modifications were made (to the original work). This work may not be used for any commercial purpose. You are free to copy, distribute, display, and perform this work; if you modify, transform, or alter this work, you may only distribute derivative works of this work under the same license terms. (The following appears to be unrelated and possibly machine-translated text: Modifying font style.

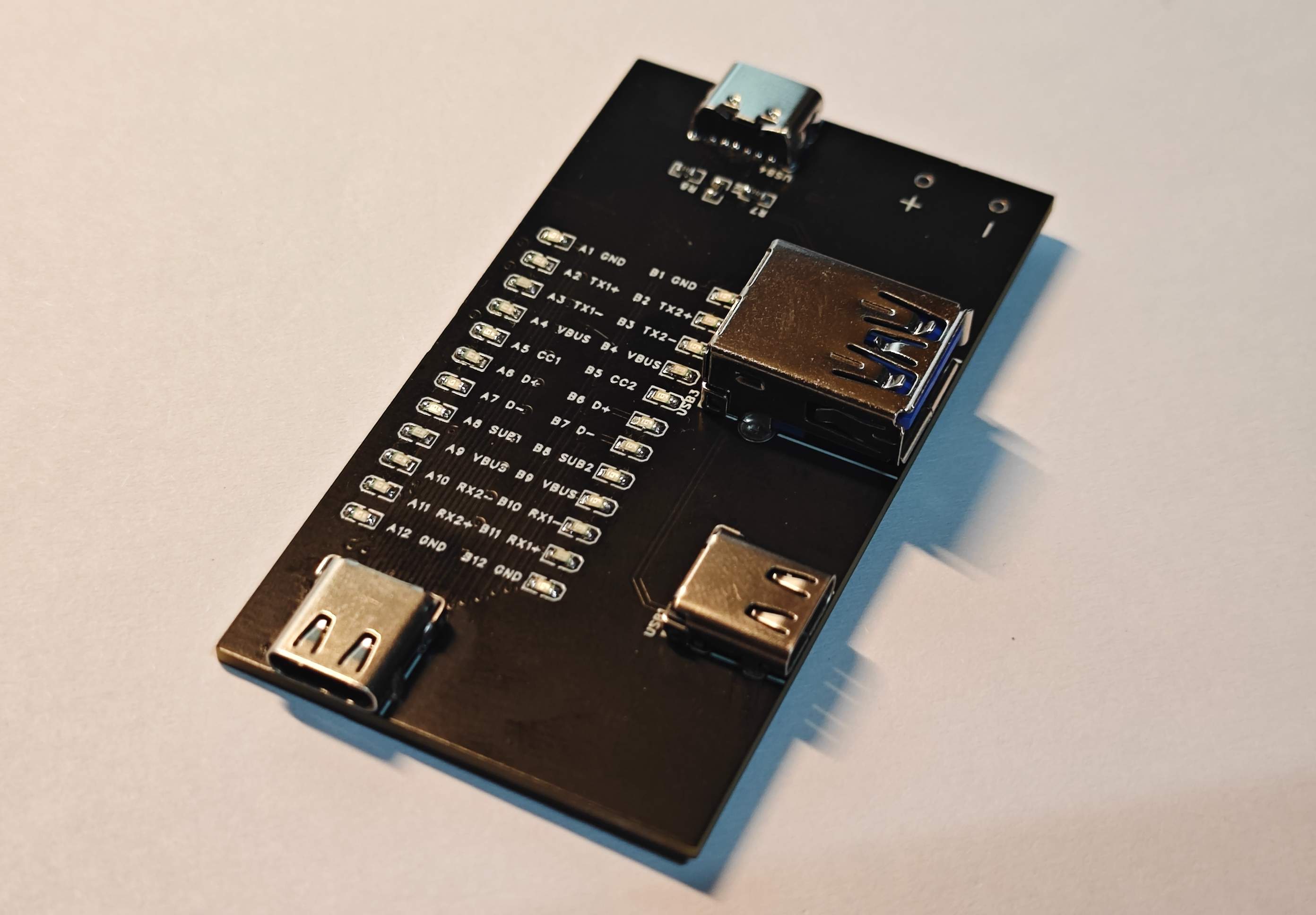

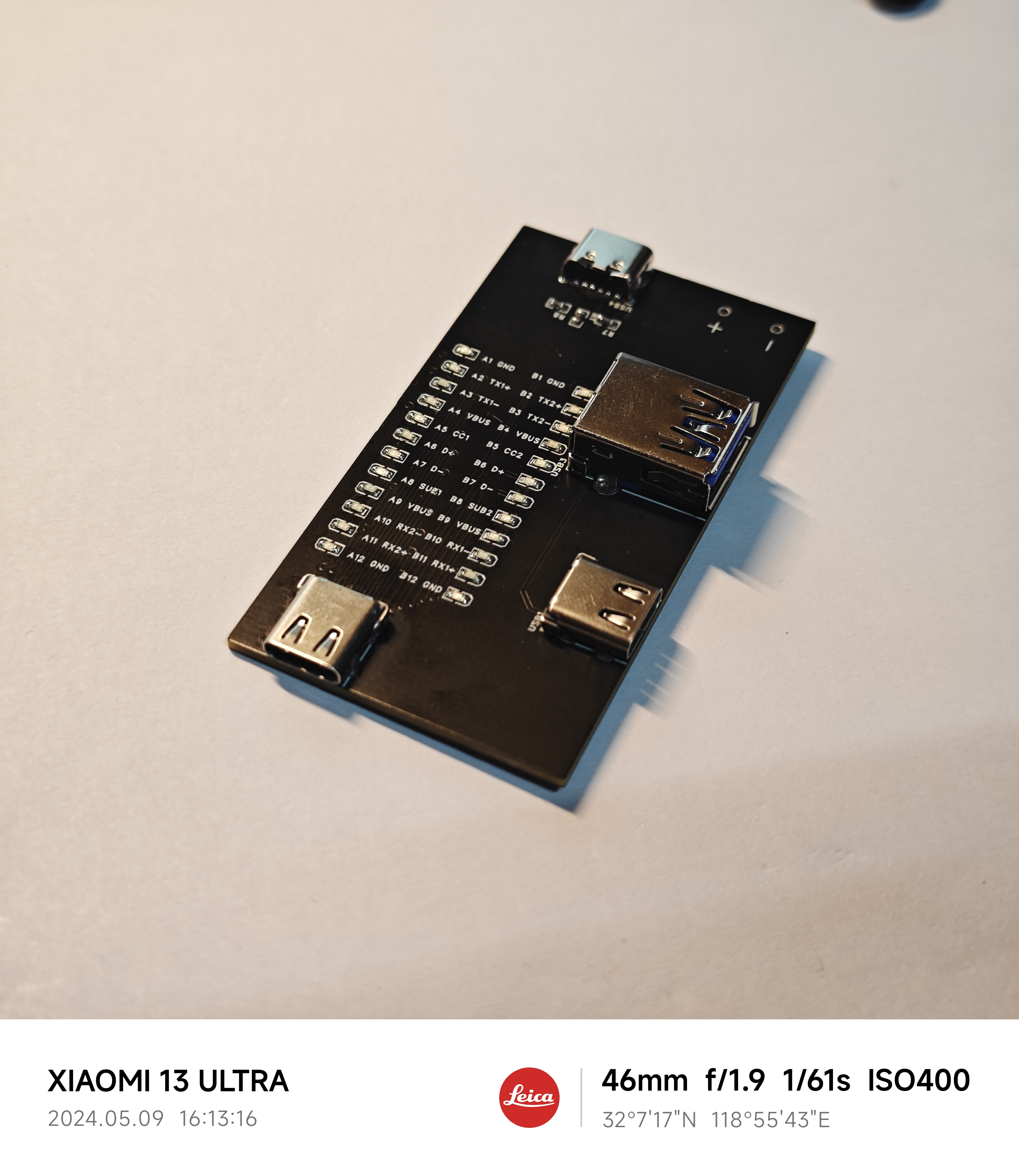

This is a personal project, simply implementing the functionality I wanted, mainly to identify whether a cable has the ability to transmit data or high-speed data transmission. Finished

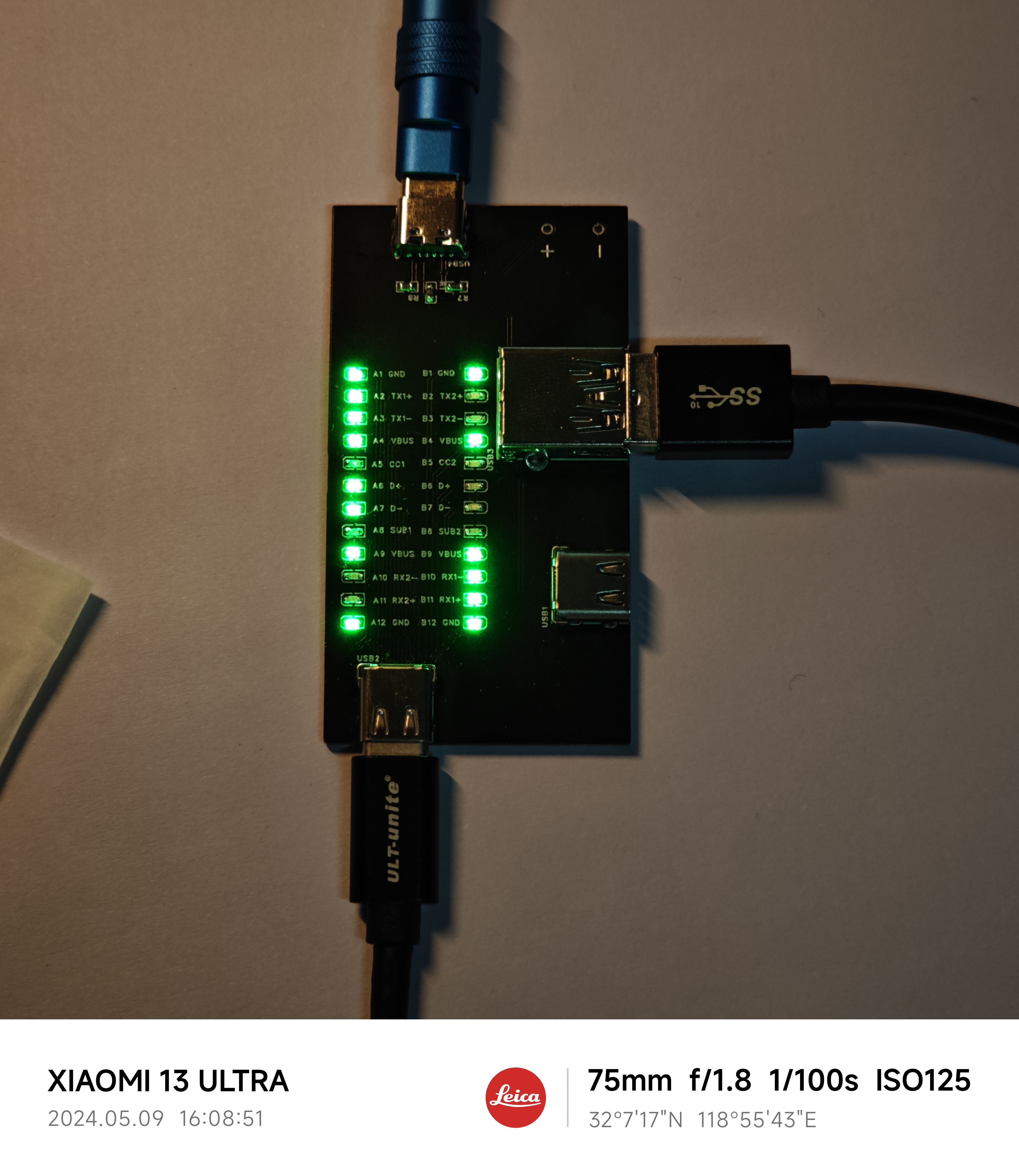

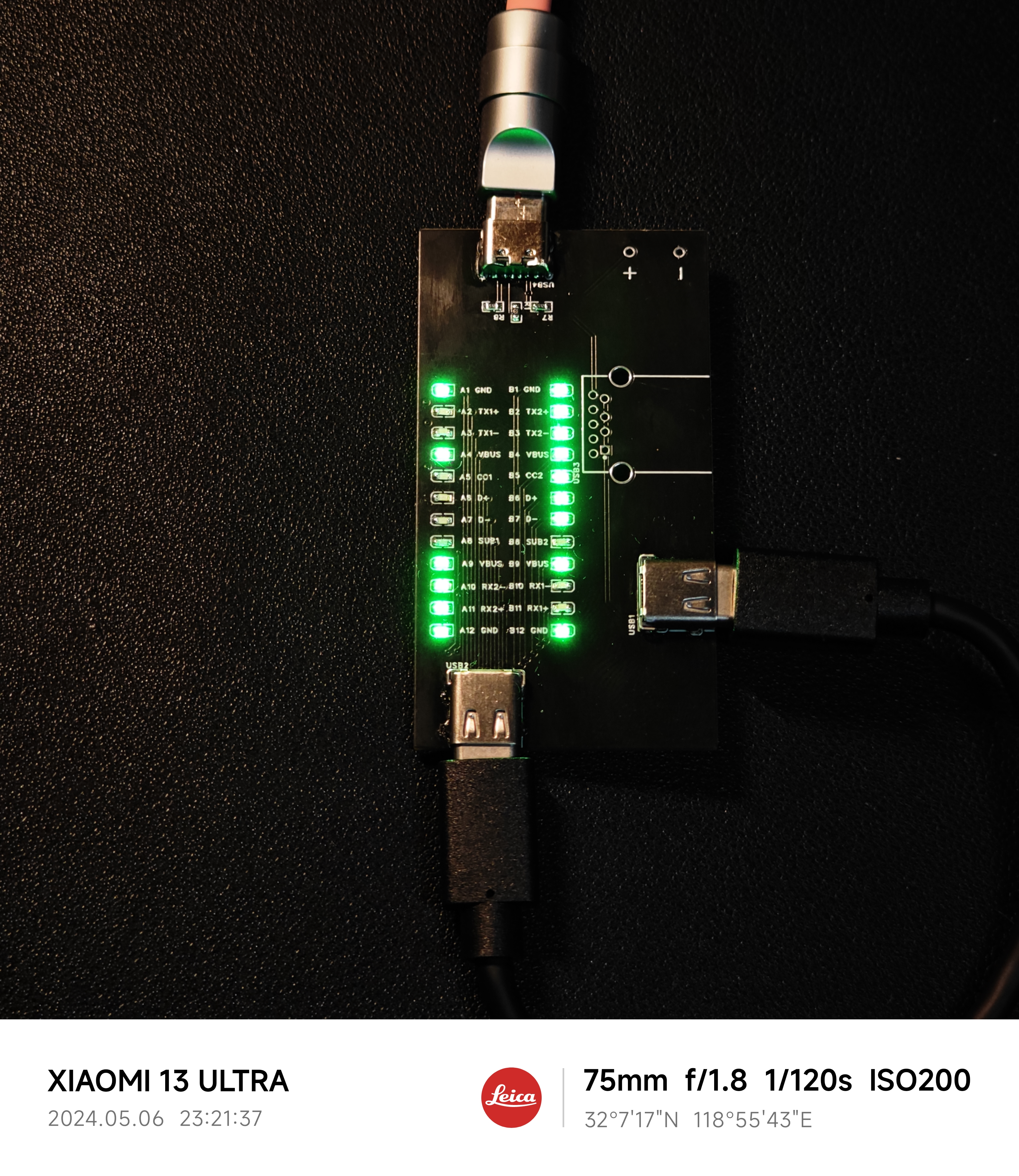

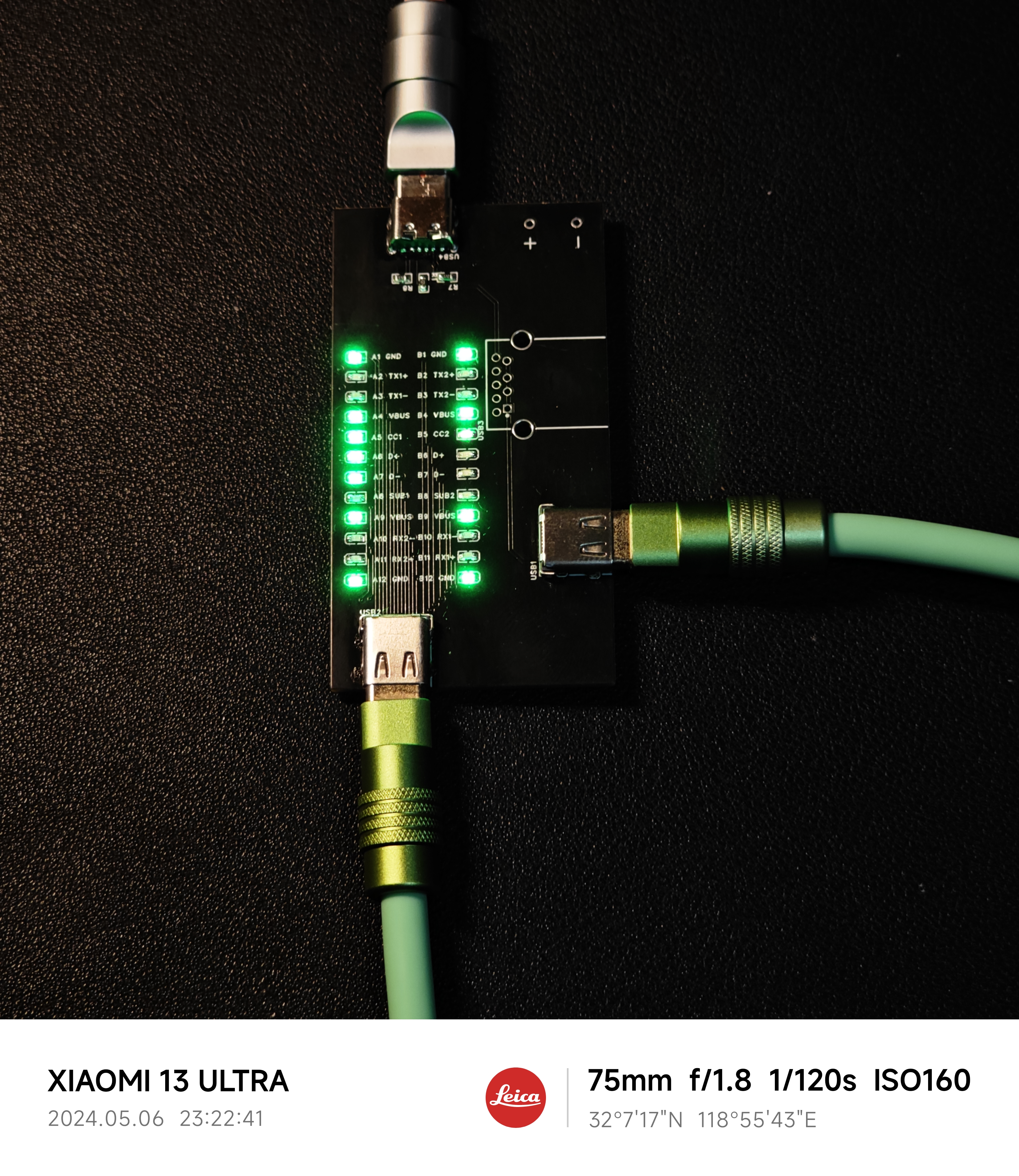

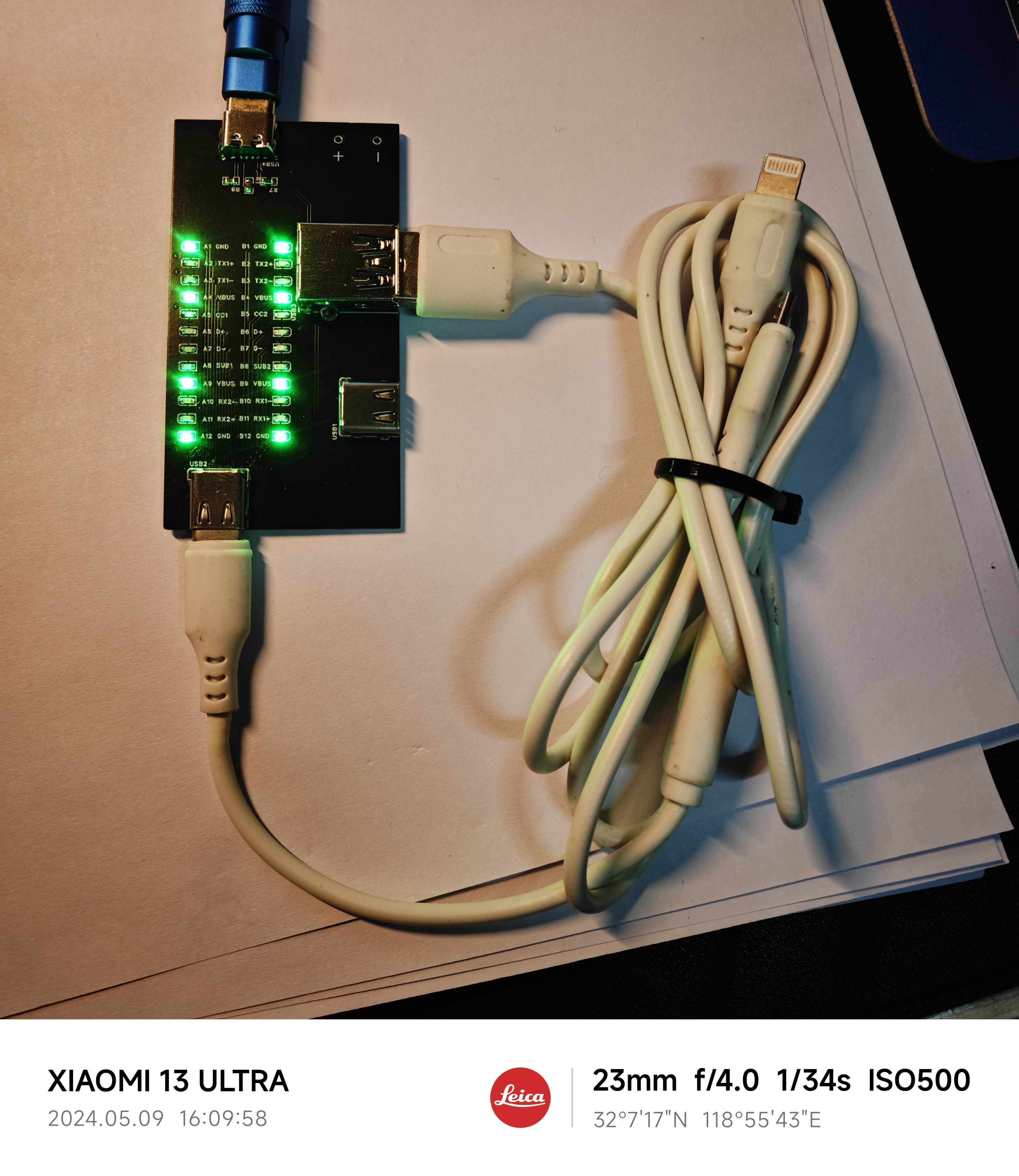

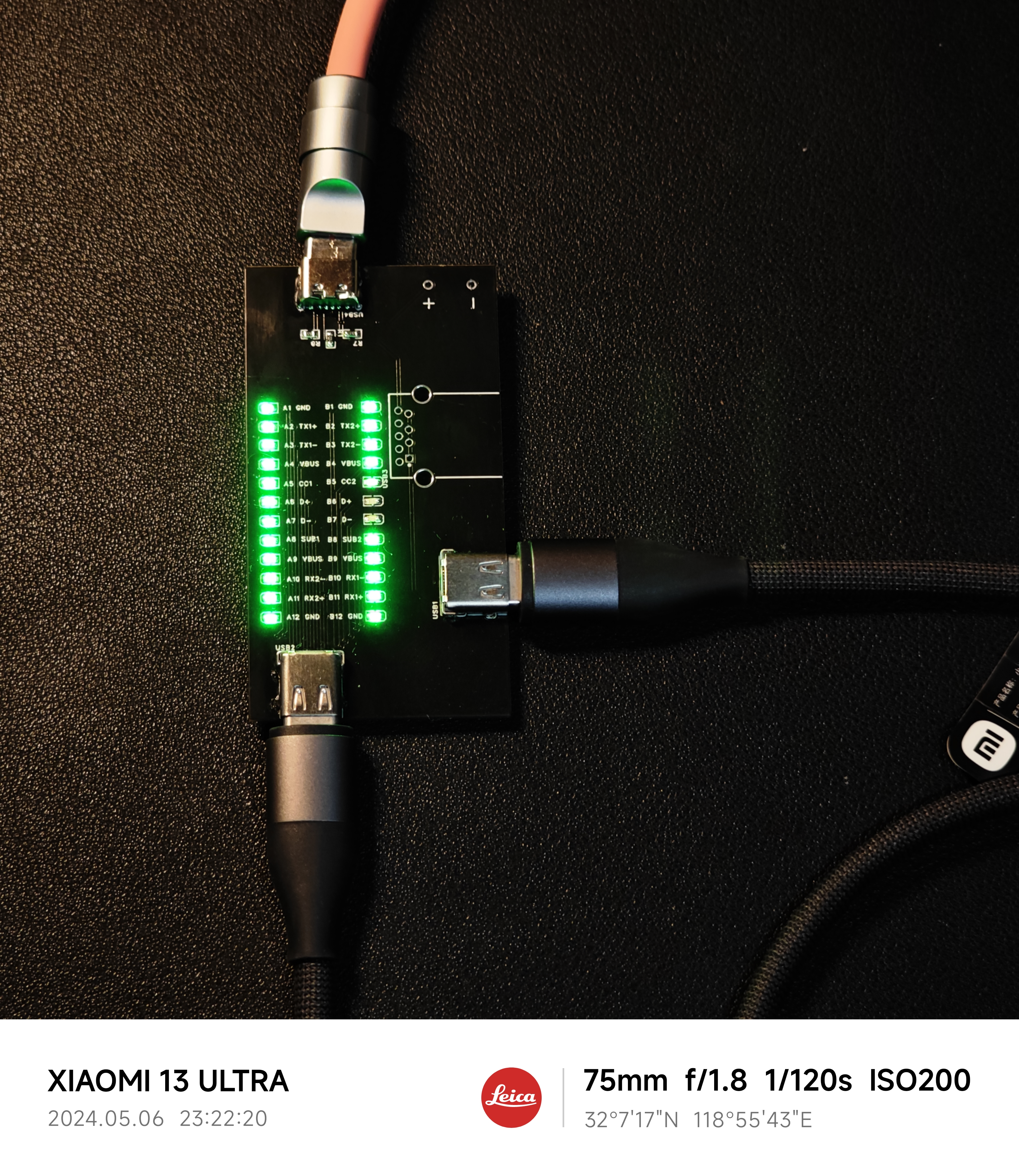

products are as follows:

Xiaomi 20G cable,

a 10G cable included with a hard drive enclosure,

USB 2.0 CC cable,

three-headed junk cable,

10G AC cable.)
