New definition of RD8G37Q48 core board

Overview

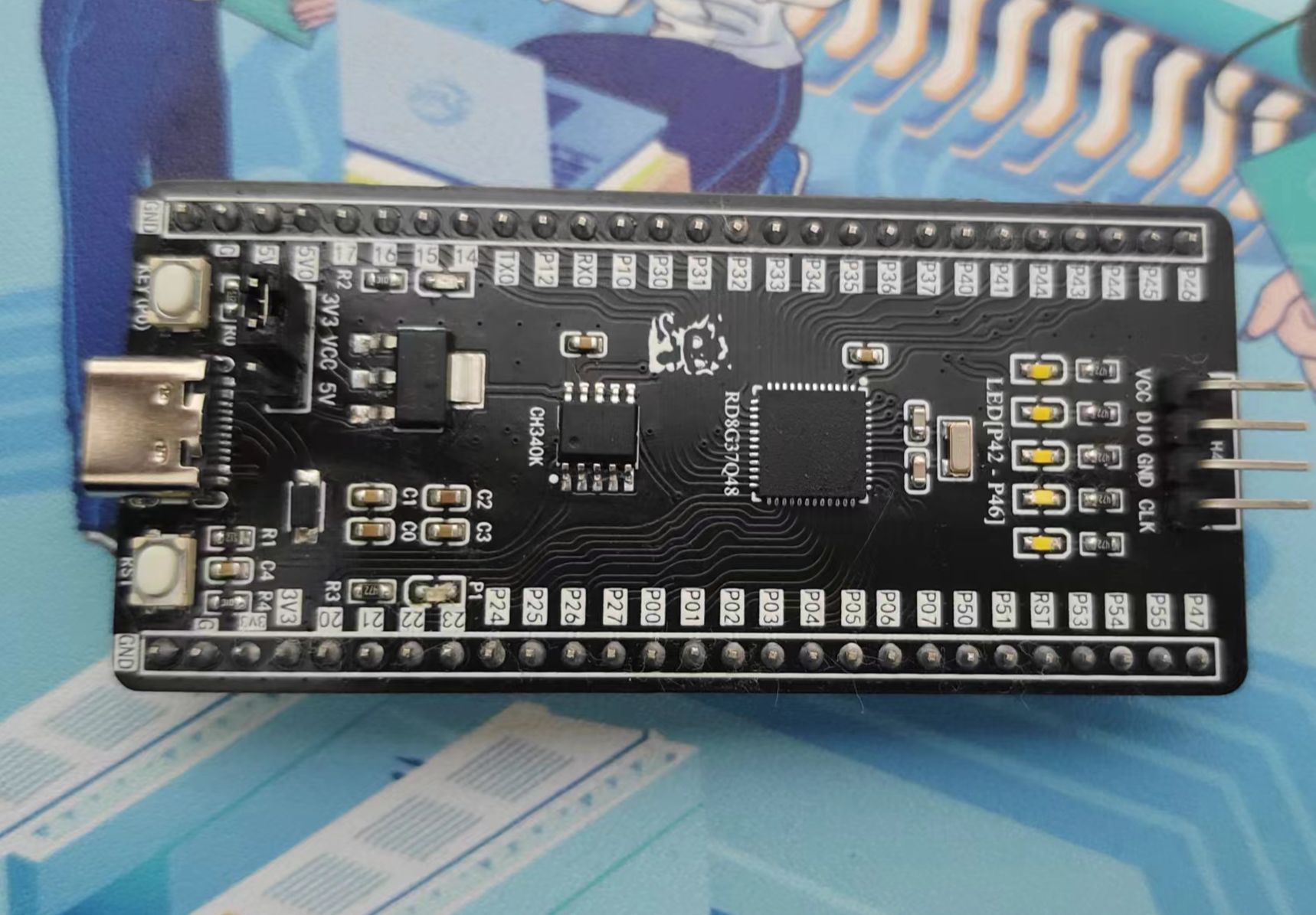

This is a newly defined RD8G37Q48 core board with all I/O pins exposed for easy functional verification. It features onboard buttons, a bunch of LEDs, and a power supply voltage selector (which can be adjusted via jumpers). The CH340 can be used to download and debug programs; enabling the RST pin allows for automatic program download via ISP.

The BOM is inaccurate; please refer to the schematic.

As usual, let's turn on an LED!
