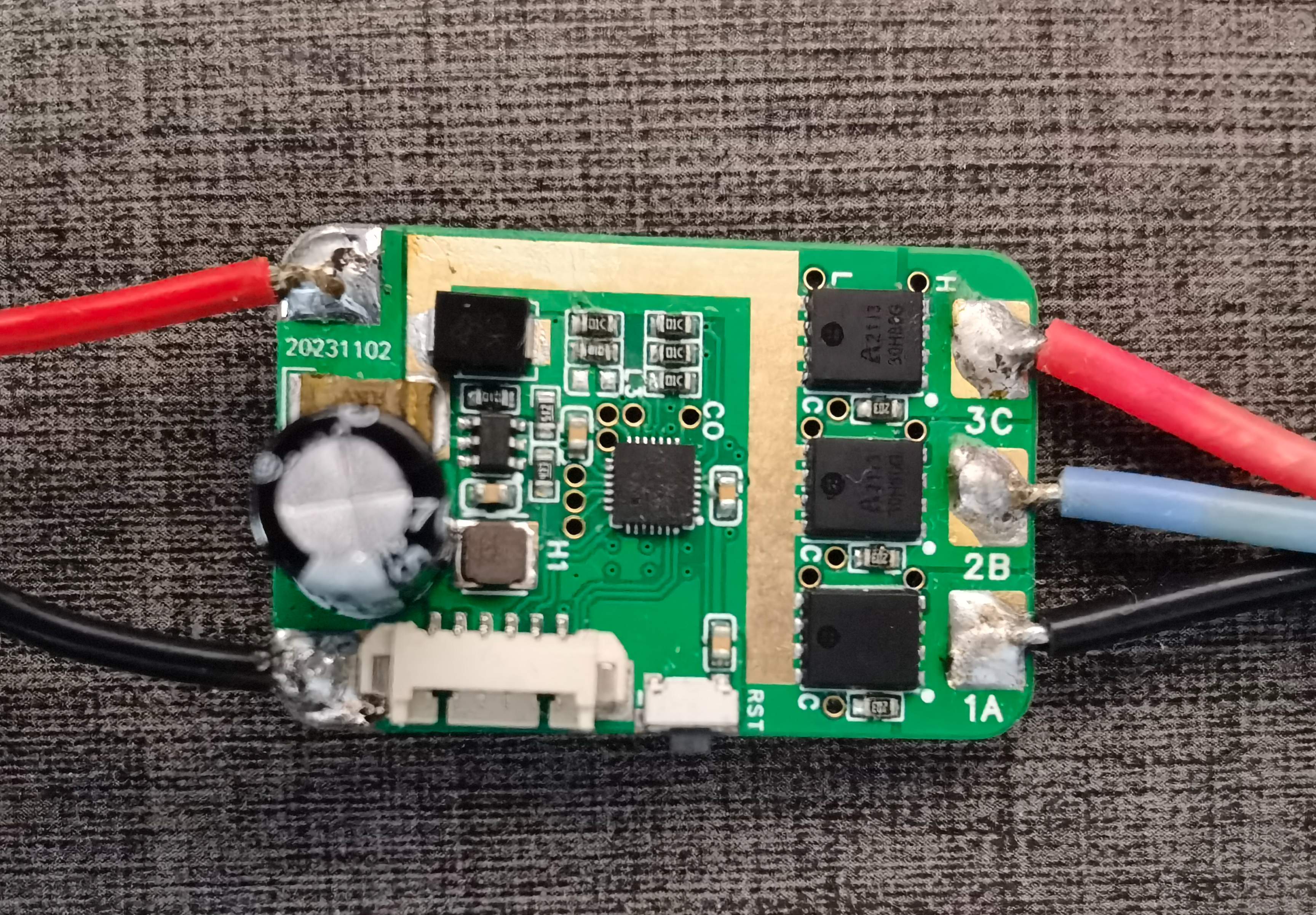

lax-esc-dev

Overview

Demo video: https://www.bilibili.com/video/BV1di421d7yH/?vd_source=43d9ea2f55b405b989b877e469b9fc2e Open source firmware address: https://github.com/lax-fly/lax-esc

Supports ESC protocols PWM, oneshot, multishot, and dshot 150-600.
Supports bidirectional DSHOT and EDT extended frame mode, enabling voltage, current, and temperature feedback. Supports 3D mode and bidirectional reverse.
Supports automatic protocol recognition (dynamic, no power interruption required).
Supports motor jamming protection to prevent motor burnout.
Supports a maximum electronic speed of 100kHz. Adaptive start throttle selection based on supply voltage and motor KV value. Throttle
response rate: 100kHz.
Theoretical input voltage range: 2S~6S (2s, 3s verified, others to be verified).

2024/3/18: Fixed DC-DC power chip diode connection error.
