Taishanpai USB Expansion Board

Overview

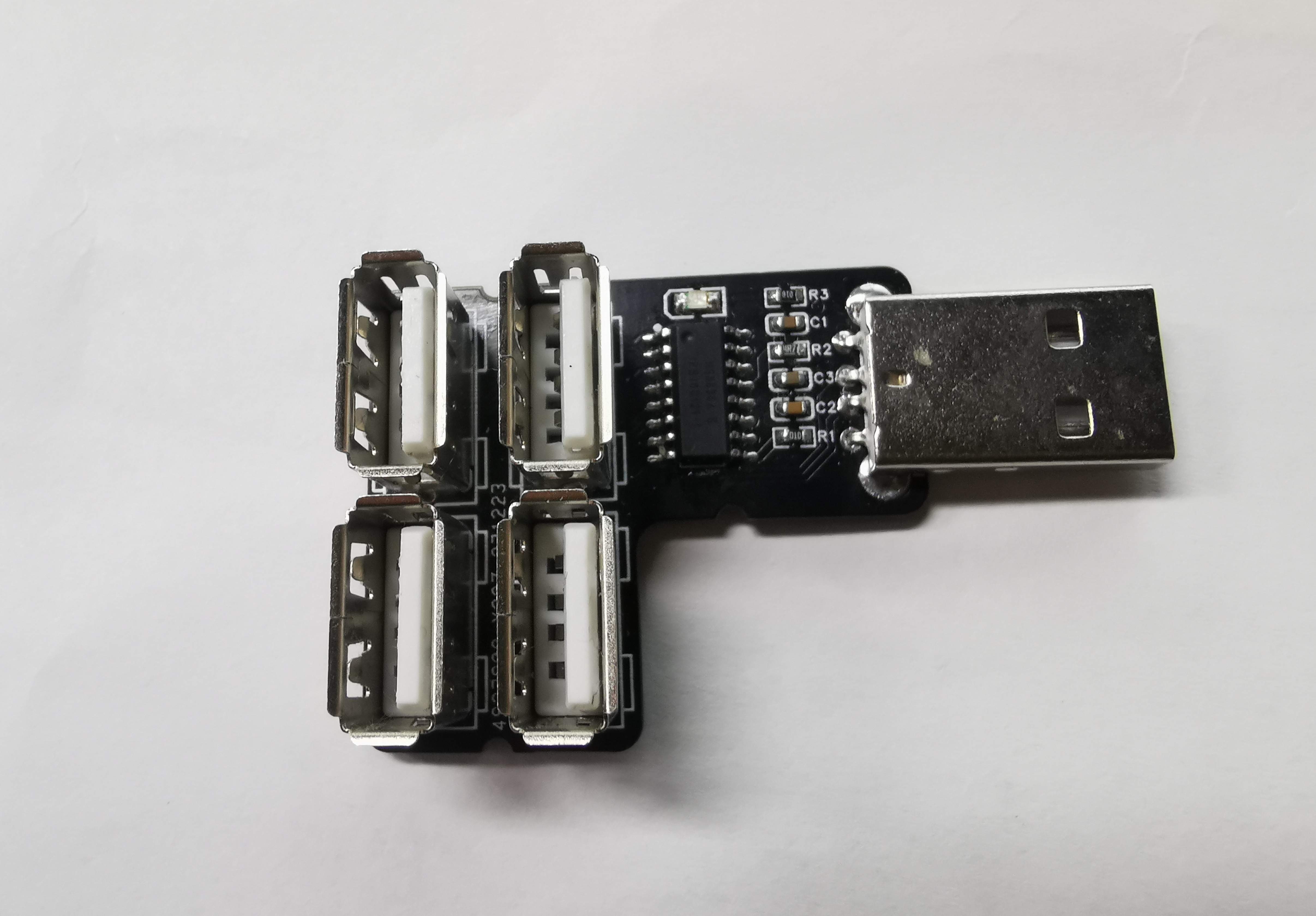

This USB expansion board is compatible with LCSC Taishanpai and has been tested and confirmed to work. It's used to connect mouse and keyboard USB receivers; a 2.4G wireless keyboard and mouse are recommended.
This expansion board is based on the HS8836A chip. Although it's USB 2.0 with a lower speed, it works very well for connecting mice and keyboards.
This is just a reference project; you can modify and adapt it to your specific needs.
