01-RTC_LEB10P_V1.0

Version 0 Update
Version Name: 01-RTC Screen Expansion Board V1.1
Update Time: 2023/11/16
Update Content:

The position of the FPC has been slightly adjusted for easier connection.
Zero-resistance wires have been added to important lines for easier maintenance and debugging.
Silkscreen printing has been optimized.











Version Name: Screen Expansion Board 2.8-inch 10P_V1.1, Screen Expansion Board 2.8-inch 10P_V1.2
Update Time: January 26, 2024
Update:


Optimized version naming;


Added version - Screen Expansion Board 2.8-inch 10P_V1.2.












I. Project Introduction:
Screen Parameters:

2.8-inch capacitive touchscreen;
Screen SPI protocol, 10P interface;
Touch IIC protocol, 6P interface;

Related Links :

01-RTC Project Materials;
Project Introduction Video;
01-RTC Project
2.8-inch Touchscreen Taobao Link.

Note:

The touch chip is GT911, the manufacturer's default touch chip is 6336U. If you cannot drive the default chip, remember to specify this to the seller when purchasing.

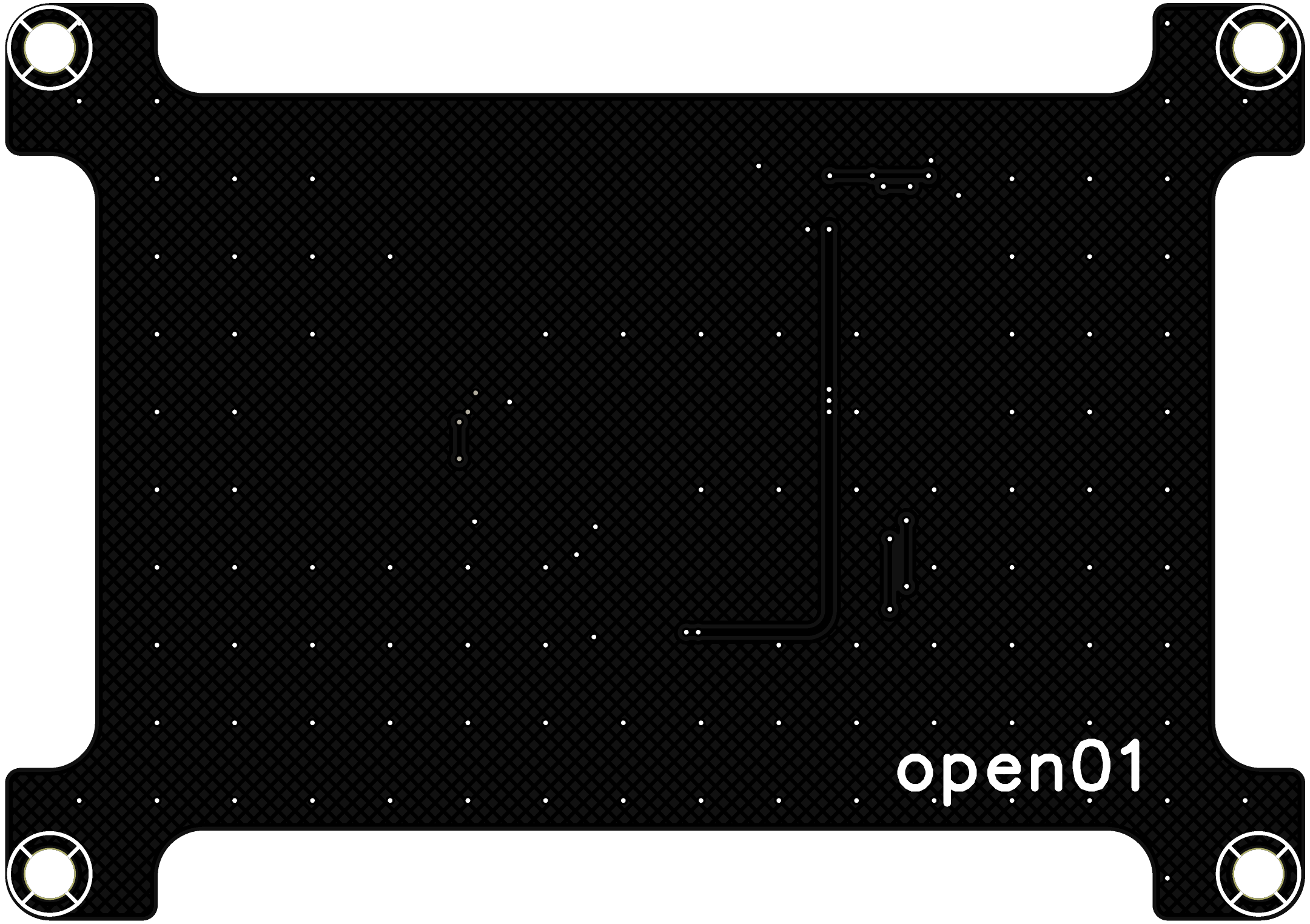

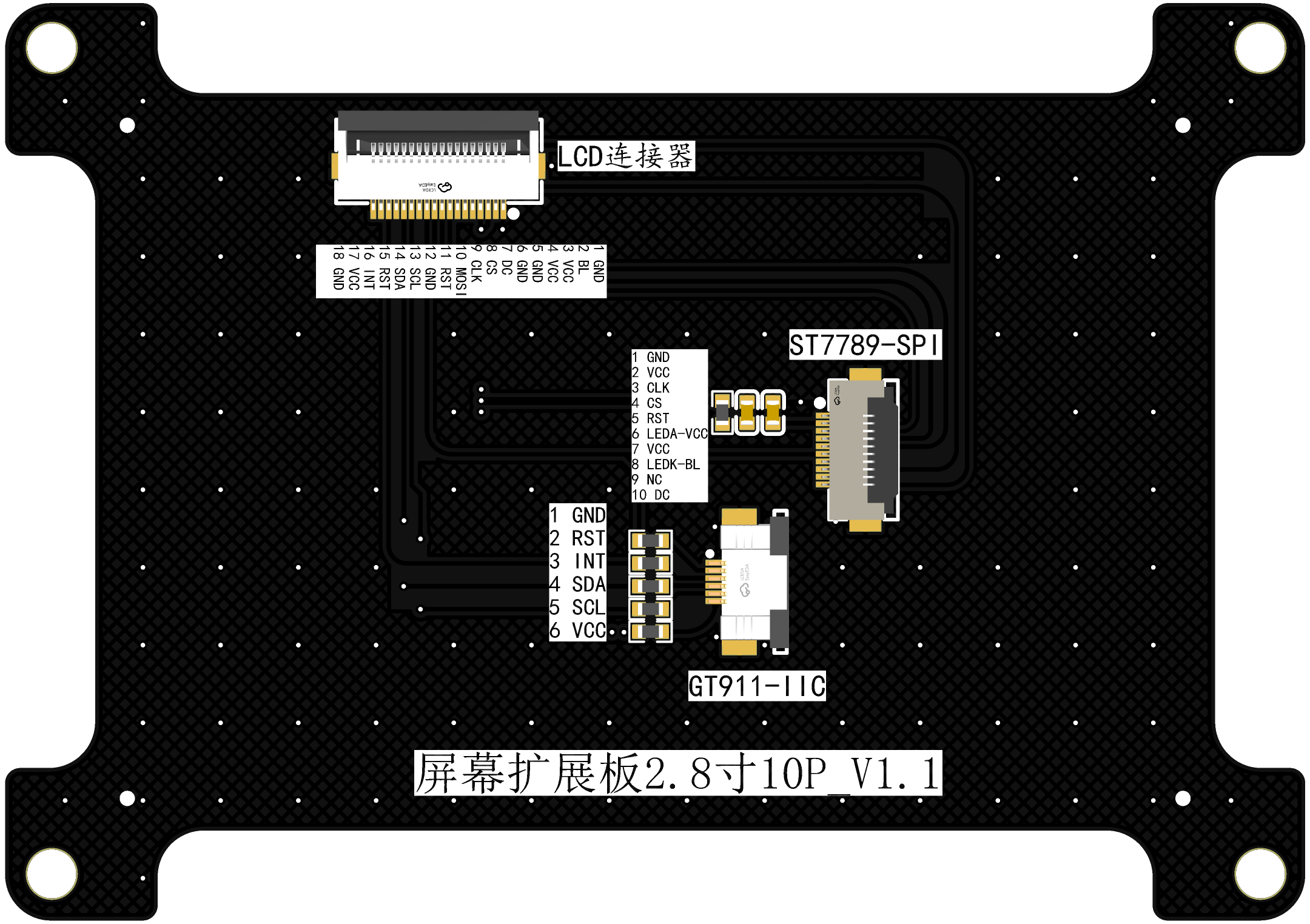

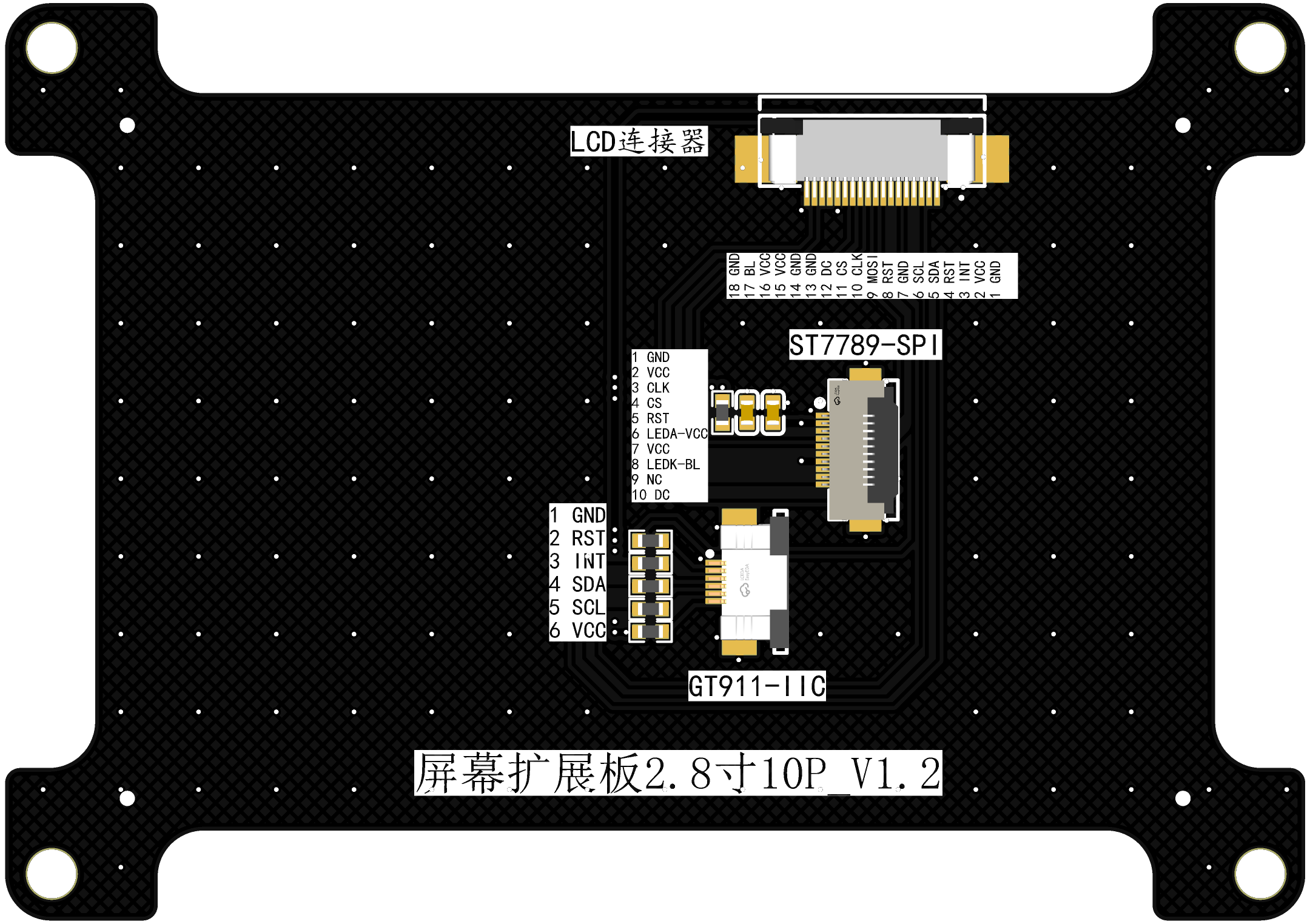

Version V1.1 is placed on top of the 01-RTC motherboard, and version V1.2 is placed on the bottom of the 01-RTC motherboard.
Please pay attention to the wiring sequence when connecting, and pay attention to the top and bottom connections of the FPC connector. I myself reversed it several times!

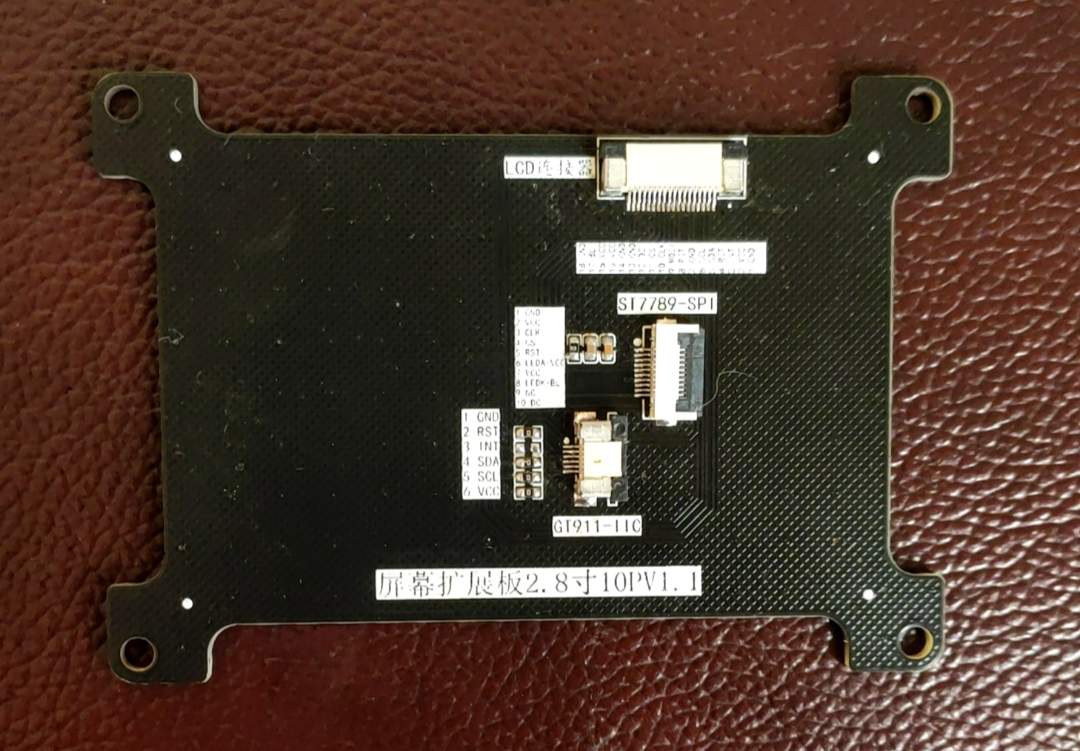

II. Effect Diagrams

III. Functional Modules:
1. Connector:
For compatibility, this connector is the same as the 1.69-inch touchscreen interface on the 01-RTC motherboard. On the screen expansion board, this interface serves as the connector for the touchscreen lead on the screen expansion board.

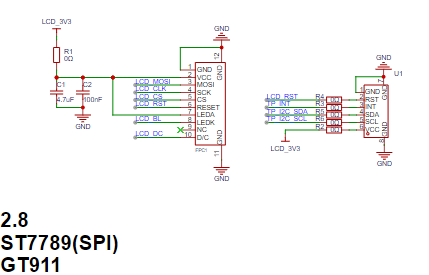

2. Screen and Touch Interface:
The screen uses an SPI interface, and the touch uses an IIC interface.
Fourthly,

this project will be continuously updated;
For information access:
UP: open01_T-Jupiter, duduvue
QQ group: 826793815
