ESP32 E-ink Screen Driver Board - Pro

Overview

1. Project Function Introduction:

Specific functions are as follows:
* Onboard ESP32-WROOM32, supports Arduino development
* Pin compatibility with MicroSnow, double-layer board design, compact size, with automatic download circuit
* Can download e-ink screen driver (open source), using Android mobile APP program, display content can be updated via Bluetooth
* Uses a highly advanced Type-C interface, supports input voltage from 3.6V to 6V
* Acrylic front panel, greatly reducing the risk of screen damage
* Uses power management, can be directly programmed without batteries.
2. Project Attributes:

This project is completely original and is being publicly released for the first time. Some code, PCB, and schematics are open source. Some materials are compiled from the internet. Please contact me if there is any infringement. All physical products and materials are prohibited from being sold; otherwise, the consequences will be borne by the seller.
3. Hardware Part

: • ESP32 e-ink screen driver board • IO Definitions:

IO

ESP32-S

BUSY

IO25

RST

IO26

DC

IO27

CS

IO15

SCK

IO13

SDA

IO14

GND

GND

5V

3.3V

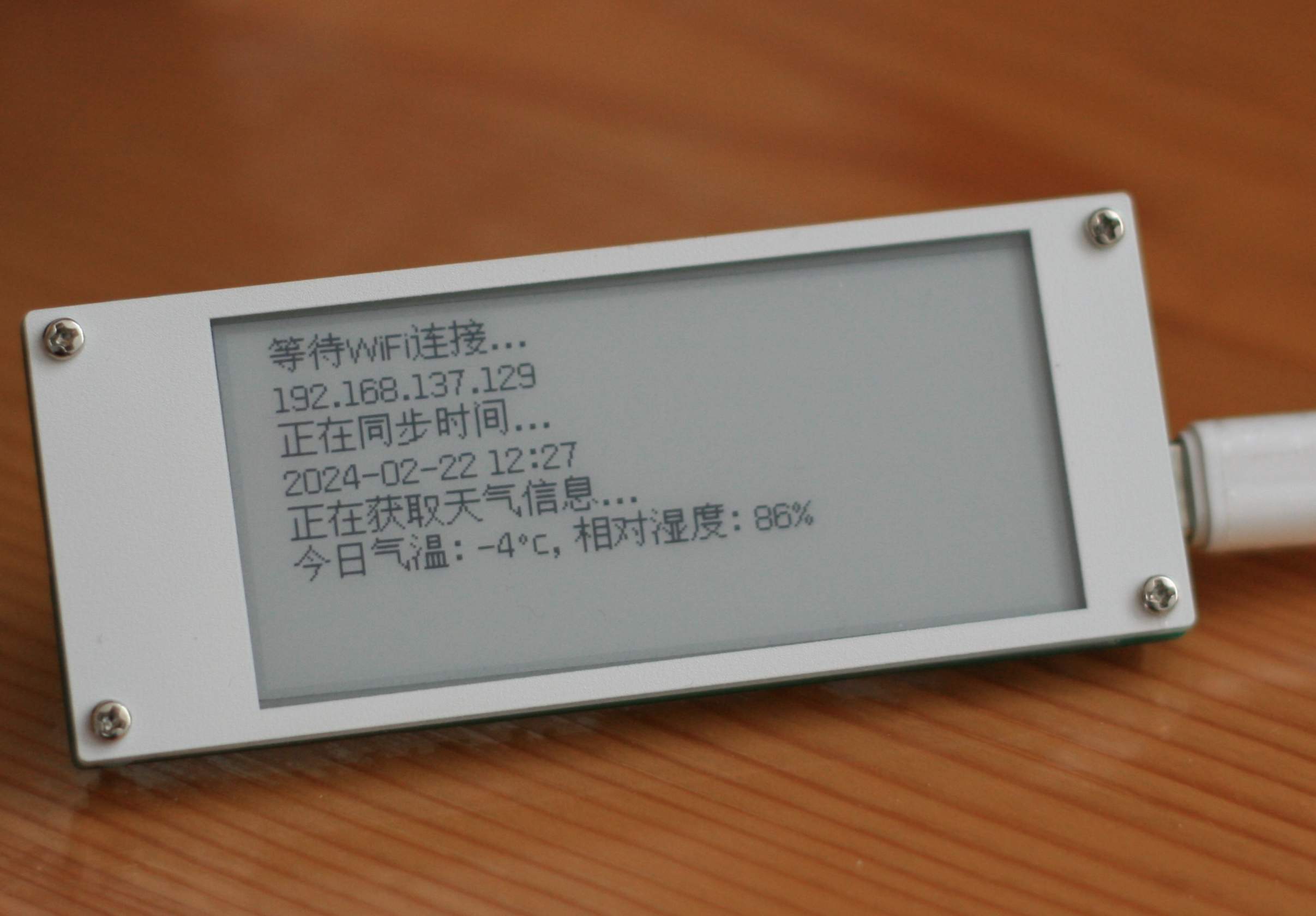

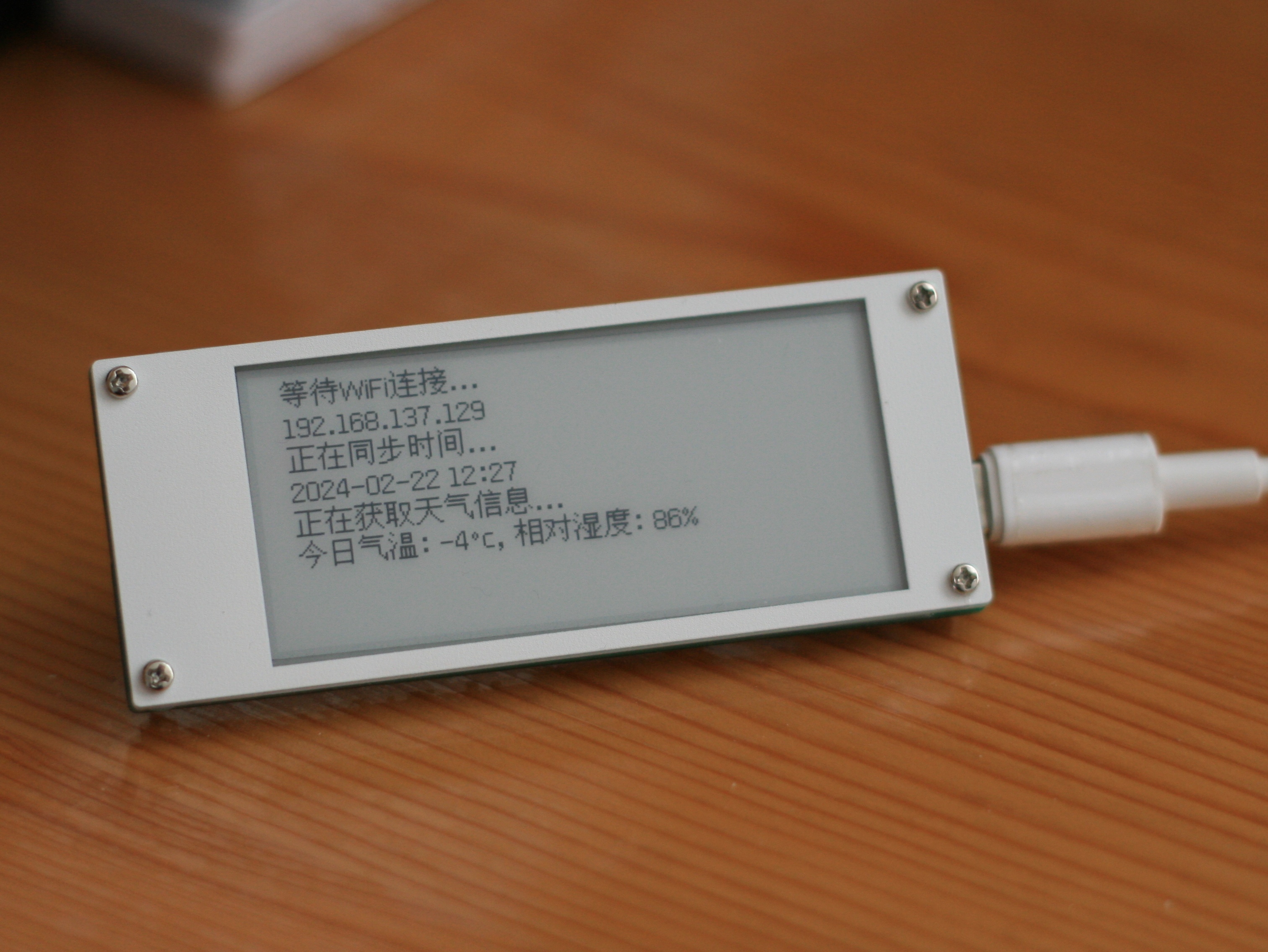

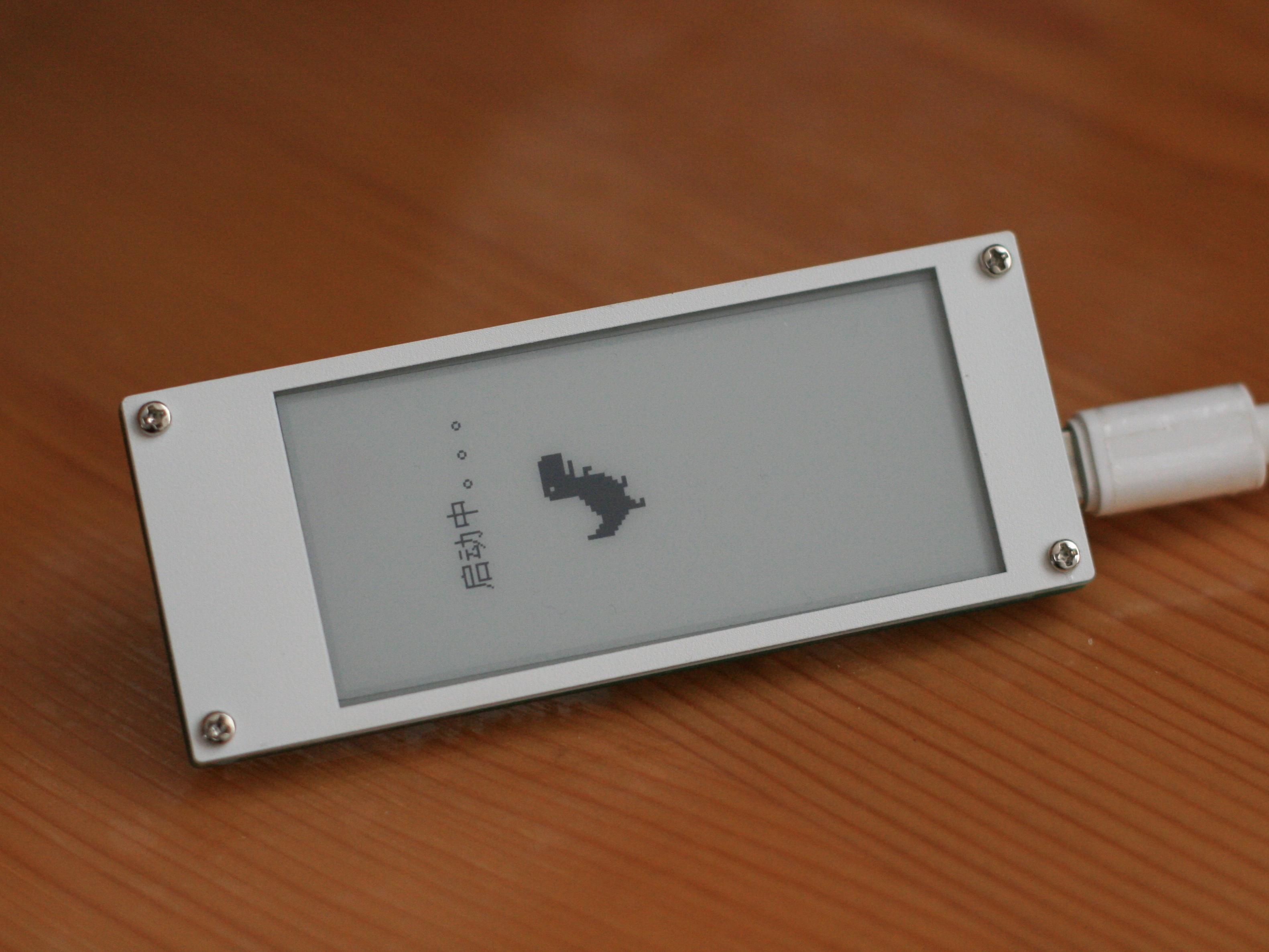

Image:
