STM32F103ZET6 Core Board Verification

Overview

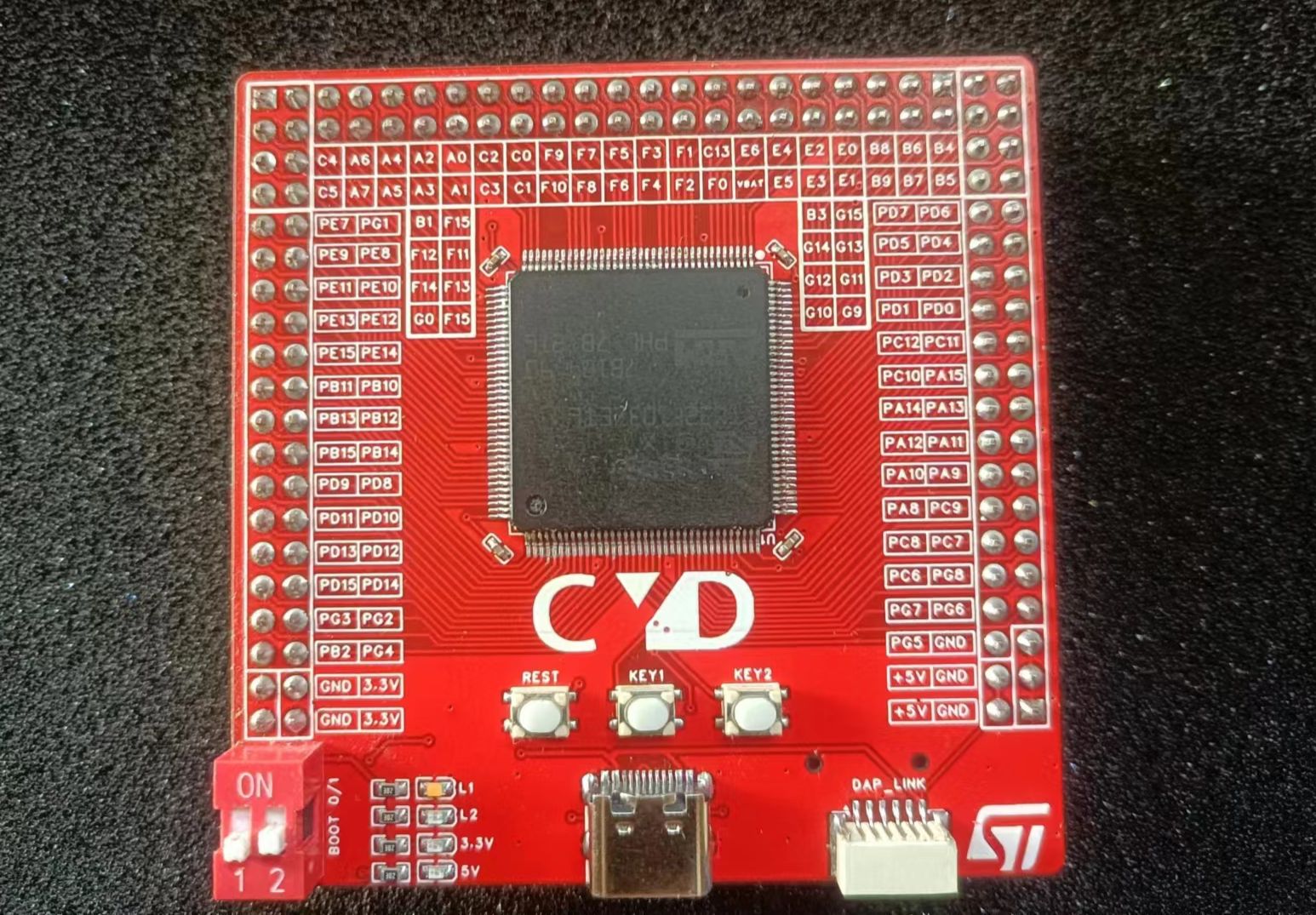

The STM32F103ZET6 core board features a download port and a serial port, using DAP-link for downloading.
It includes 3.3V and 5V power indicators, as well as two program running indicators.
The core board contains three buttons: a reset button, two function buttons, and EEPROM, FLASH, and SD card modules (not yet verified). Currently, program downloading works without issue.
The connection pins are the same as those on the Zhengdian Atomic Elite board.
