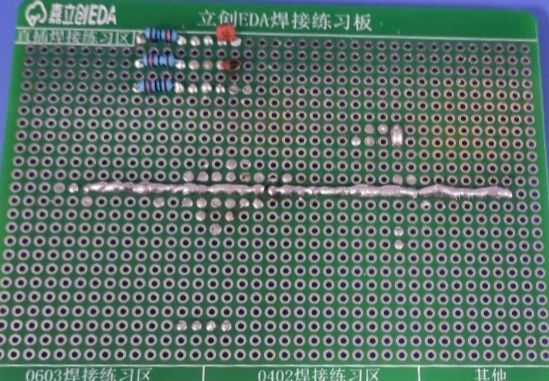

[Perforated Board] LCSC EDA Welding Practice Board

Overview

LCSC EDA Soldering Practice Board includes through-hole and surface mount packages for common basic components such as resistors, capacitors, and inductors. The board provides 0603/0402 and other packages for advanced challenges, comprehensively improving the soldering skills of solderers.
