STM32F103RCT6 Core Board Design

Overview

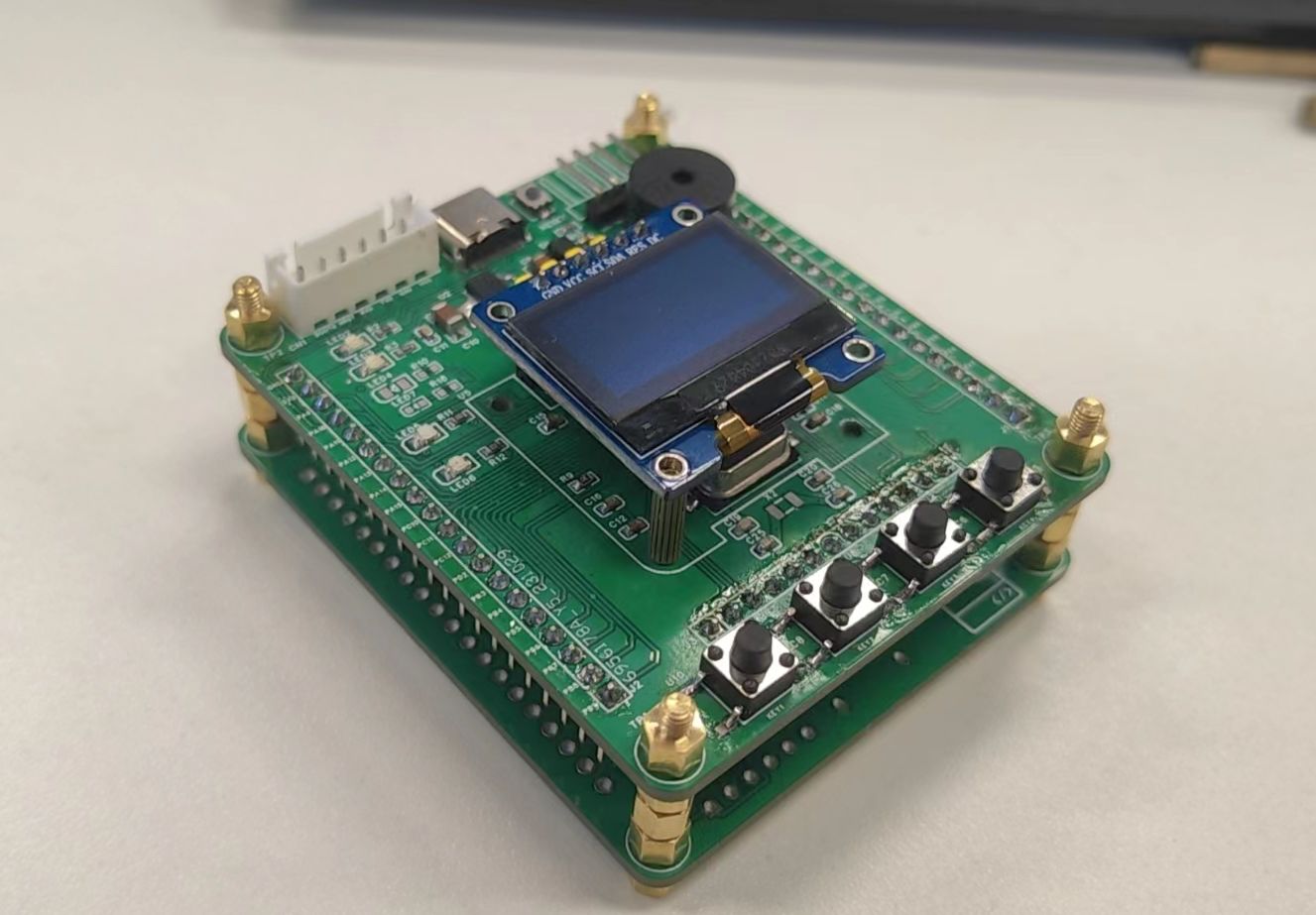

Onboard Resources:
1. Four-button module (common cathode) 2. ST-LINK interface 3. Type-C and XH connectors for serial communication and power supply 4. Built-in CH340 for serial ISP 5. External FLASH and EEPROM 6. LED controlled by 2 GPIOs 7. 0.96-inch OLED screen interface (7-wire) 8. Pull-out of almost all pins of STM32F103RCT6 9. Buzzer 10. External device startup control via jumpers and buttons
Physical Dimensions

: Overall board size: 7cm x 6cm Positioning holes: M3 OLED positioning holes: M2

Functionality verified.
