LT7911D MIPI Development Board

Overview

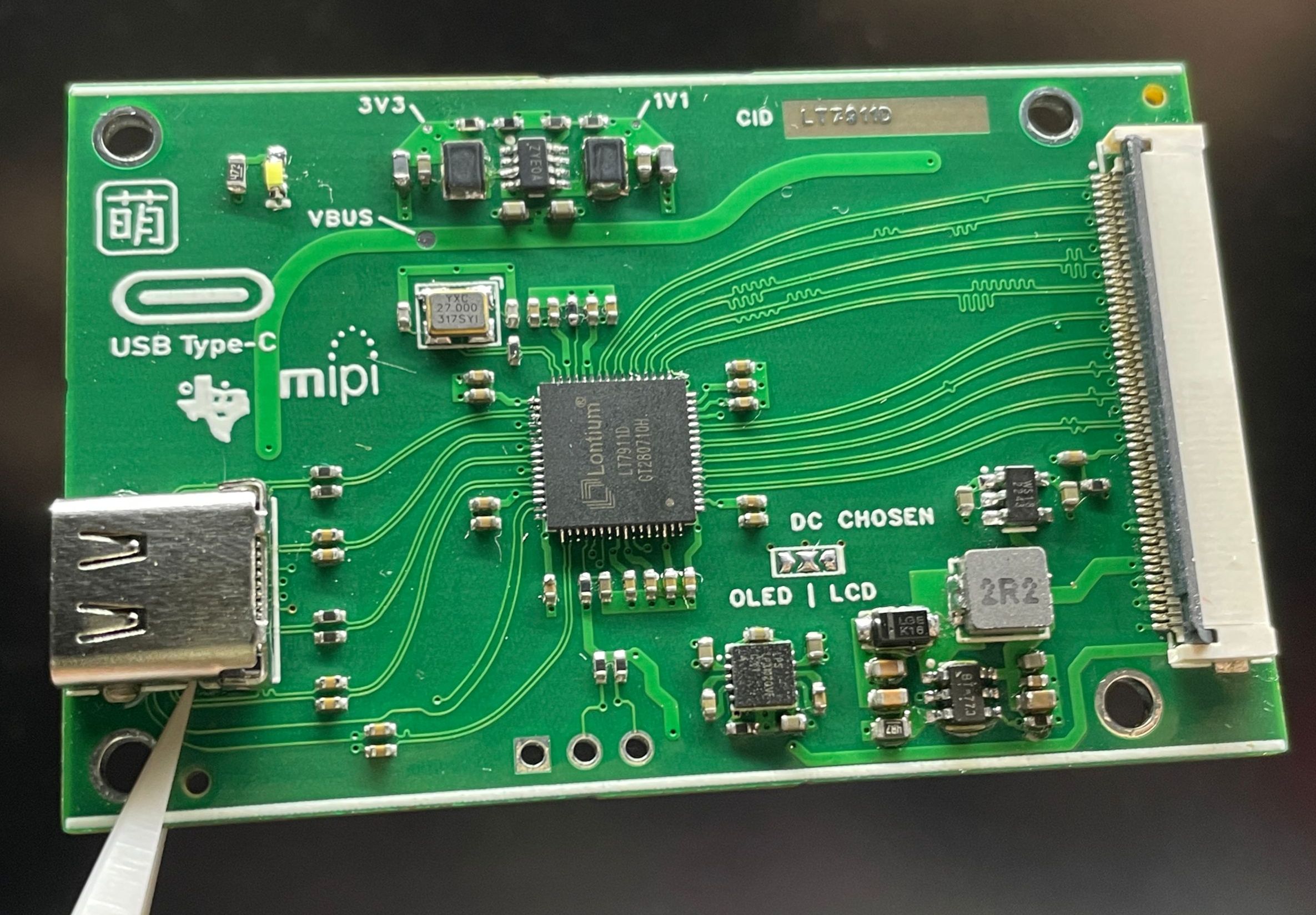

Longxun LT7911D MIPI Development Board
[Commercial Use Prohibited] [Adjustable Resolution]
[Supported Devices (Tested): PC, Raspberry Pi, etc.]
[Unsupported Devices (Untested): Switch]

Updated to V1, supports EDID name renaming

- Future Updates:

Planned support for

image sets (some are older images)

Notes

- 1. Requires a USB to I2C adapter for downloading. Refer to:
LT6911C Burning Instructions for detailed download steps.

- 2. The [J4] pad is used to adjust the LCD backlight driver or LCD positive/negative voltage backlight driver:
Default uses LCD backlight driver, jumper to the right.

- 3. Currently compatible screens:
[Amelin] [Discontinued]
[LT089CL02]

Design Files

All reference designs on this site are sourced from major semiconductor manufacturers or collected online for learning and research. The copyright belongs to the semiconductor manufacturer or the original author. If you believe that the reference design of this site infringes upon your relevant rights and interests, please send us a rights notice. As a neutral platform service provider, we will take measures to delete the relevant content in accordance with relevant laws after receiving the relevant notice from the rights holder. Please send relevant notifications to email: bbs_service@eeworld.com.cn.

It is your responsibility to test the circuit yourself and determine its suitability for you. EEWorld will not be liable for direct, indirect, special, incidental, consequential or punitive damages arising from any cause or anything connected to any reference design used.
