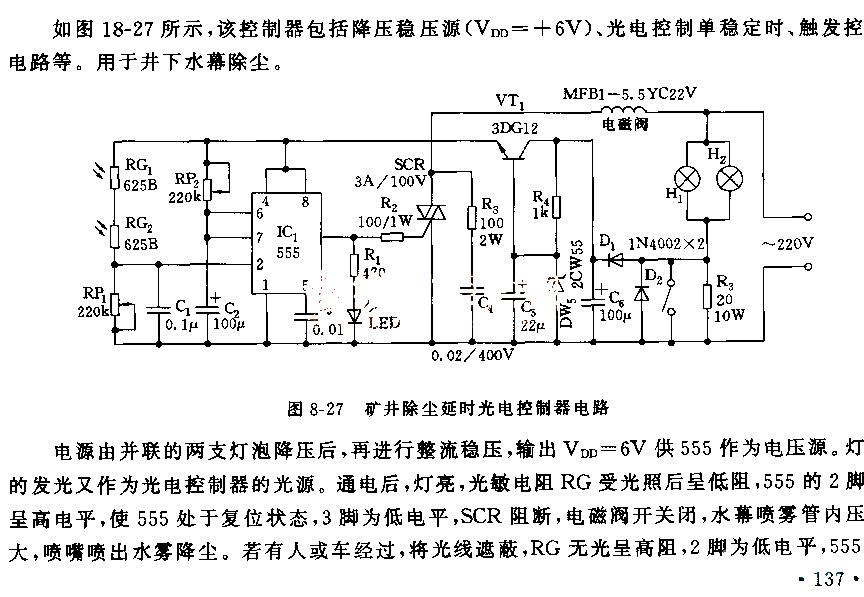

555 mine dust removal delay photoelectric controller circuit
Source: InternetPublisher:石榴姐 Updated: 2021/12/07
