O62.500-JOD75-B-2.5LF Overview

XO, Clock, 62.5MHz Min, 165MHz Max, 62.5MHz Nom

O62.500-JOD75-B-2.5LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Jauch
package instruction	DILCC6,.2
Reach Compliance Code	compliant
Installation features	SURFACE MOUNT
Number of terminals	6
Maximum operating frequency	165 MHz
Minimum operating frequency	62.5 MHz
Nominal operating frequency	62.5 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Package body material	CERAMIC
Encapsulate equivalent code	DILCC6,.2
power supply	2.5 V
Certification status	Not Qualified
Maximum slew rate	70 mA
Nominal supply voltage	2.5 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

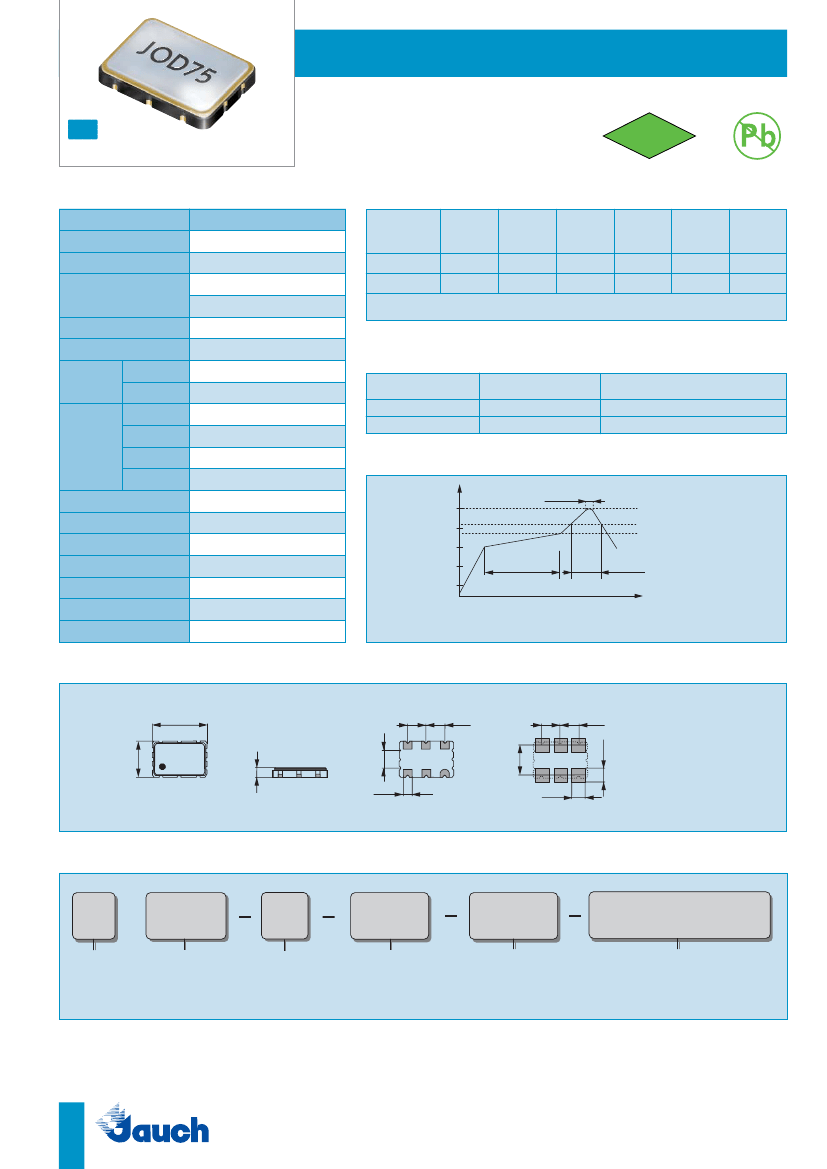

Oscillator · LVDS · JOD75

SMD Low Voltage LVDS Oscillator

7.5 x 5.2 mm

actual size

■

drives fast LVDS logic

complementary output, low EMI

reflow soldering temperature: 260 °C max.

ceramic/metal package

2002/95/EC

RoHS compliant

Pb free: pins / pads

RoHS

General Data

type

frequency range

higher frequencies on request

frequency stability over all*

JOD75 3.3 V & 2.5 V

62.5 ~ 165.0 MHz

187.5 / 200.0 / 212.5 MHz

± 25 ppm ~ ± 100 ppm

see table 1

current consumption

supply voltage V

temperature

operating

storage

output

rise & fall time

load nom.

swing min.

offset voltage

output enable time max.

output disable time max.

start-up time max.

standby function

standby current max.

phase jitter 12 kHz ~ 20.0 MHz

symmetry at 50% of Vpp

70mA max.

3.3 V ± 5% / 2.5 V ± 5%

-10 °C ~ +70 °C / -40 °C ~ +85 °C

-55 °C ~ +125 °C

1ns (20% ~ 80% of Vpp)

100Ω differential

0.3Vp-p / 0.25Vp-p

1.25 V

10ms

200ns

10ms

stop

30µA

< 5.0ps RMS

45% ~ 55% max.

Table 1: Frequency Stability Code

stability code

± 100 ppm

-10 °C ~ +70 °C

-40 °C ~ +85 °C

available

± 50 ppm

± 25 ppm

•

standard

* includes stability at 25 °C, operating temp. range, supply voltage change, shock and vibration, aging 1st year.

Enable / Disable Function

pin #1 (e/d control)

open or

≥

0.7 V

gnd or

≤

0.3 V

pin #4 / #5 (outputs)

enable

high impedance

Reflow Soldering Profile

temperature (°C)

260

200

150

100

60 ~180 s

60 s max.

10 s max.

260

°C

max.

220

±5 °C

180

±5 °C

time (s)

note: parts are also suitable for soldering systems with lead (Pb) content

Dimensions

7.5 max.

#6 #5 #4

5.2 max.

2.6

±0.1

1.65 max.

2 x 2.54

±0.1

4.2

±0.1

2 x 2.54

±0.1

2.0

±0.1

#1 #2 #

1.4

±0.1

1.8

±0.1

top view

side view

bottom view

pad layout

pin connection

# 1: e/d

# 2: nc

# 3: ground

# 4: output 1

# 5: output 2

# 6: V

in mm

Order Information

Oscillator

frequency

in MHz

62.5 ~ 165.0 MHz

type

frequency stability

code

see table 1

supply voltage

in Volt

3.3 = 3.3 V

2.5 = 2.5 V

option

JOD75

blank = -10 °C ~ +70 °C

T 1 = -40 °C ~ +85 °C on request

Example: O

155.520-JOD75

-B-3.3-T1

(Suffix LF = RoHS compliant / Pb free pins or pads)

Jauch Quartz GmbH

•

e-mail: info@jauch.de

full data can be found under: www.jauch.de / www.jauch.fr / www.jauchusa.com

All specifications are subject to change without notice
