507-059NF04L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 507-059NF04L

507-059NF04L: DescriptionHeaders u0026 Wire Housings EMI/RFI TAG RING BS STRAIN RELIEF; CategoryThe connector Connector bracket; File Size82KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric Compare View All

507-059NF04L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	507-059NF04L	-	-	View	Buy Now

507-059NF04L Overview

Headers u0026 Wire Housings EMI/RFI TAG RING BS STRAIN RELIEF

507-059NF04L Parametric

Parameter Name	Attribute value
Maker	Glenair
Reach Compliance Code	not_compliant
Factory Lead Time	17 weeks 1 day
Is Samacsys	N
Base Number Matches	1

Preview

Download Datasheet

View All

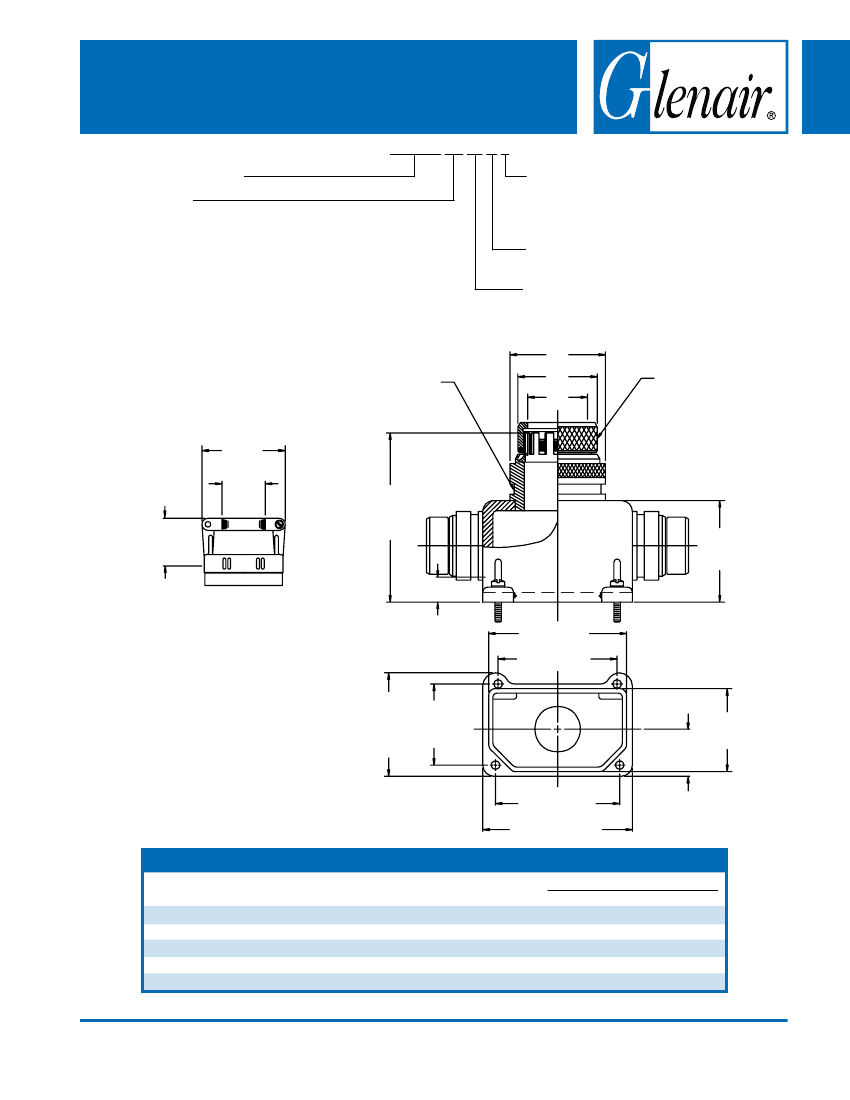

507-059

EMI/RFI TAG Ring

Backshell

for MIL-DTL-81659 Connectors

507-059 NF 06 G L

Basic Part No.

Finish

B = Cadmium Plate/Olive Drab

M = Electroless Nickel

N = Cadmium Plate/Olive Drab over Nickel Plate

NF = Cadmium Olive Drab over Electroless

Nickel (1000 Hour Salt Spray)

Entry Location

L = Left Side Entry

R = Right Side Entry

Omit for Top Entry

L = Strain Relief

G = Gland Nut

Dash No. (Table I)

G = Gland Nut

Dash No. (Table I)

Shrink Boot

Accomodation

See Note 3

J Max

Cable

Range

.850 (21.6)

Max

Style L Strain

Relief

2.50 (63.5)

Max Typ.

Note 3

L Left

Entry

Style G Nut

Knurl

Style Mfr.

Option (Typ)

T Top

Entry

1.50

(38.1)

R Right

Entry

1.500 (38.1)

1.377 (35.0)

.390 (9.1) Ref

1. Metric dimensions (mm) are indicated in

parentheses.

2. Material/Finish:

Backshell, Adapter, Clamp, Tag Ring

Body = Al Alloy/Finish Per Option

Tag Ring Nut = Al Alloy/Gold Iridite

Tag Ring Spring = Beryllium Copper/

Gold Plate

Friction Washer = Fluoropolymer/N.A.

Clamp Hardware = Cres/Passivate

3. Style “L” strain relief option will be supplied

less shrink boot accomodation and 2.50

max height will be 2.36 max.

Dash

1.195

.938

(30.4)

(23.8)

Max

Typ.

.875

.407 (22.2)

(10.3)

1.437 (36.5)

1.715 (43.6) Max

Entry

.25 (6.4)

.37 (9.4)

.50 (12.7)

.62 (15.7)

.75 (19.1)

F Dia

Max

.55 (14.0)

.67 (17.0)

.80 (20.3)

.92 (23.4)

1.05 (26.7)

TABLE I: CABLE ENTRY

G Dia

Max

.69 (17.5)

.79 (20.1)

.92 (23.4)

1.04 (26.4)

1.17 (29.7)

Max

.97 (24.6)

1.05 (26.7)

1.16 (29.5)

1.22 (31.0)

1.34 (34.0)

Cable Range

Min

Max

.125 (3.2) .250 (6.4)

.250 (6.4) .375 (9.5)

.250 (6.4) .500 (12.7)

.375 (9.5) .625 (15.9)

.500 (12.7) .750 (19.1)

Printed in U.S.A.

CAGE Code 06324

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

B-9

MIL-DTL-81659
