3-1744319-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3-1744319-9

3-1744319-9: Description09P MTA156 POL HDR ASSY LF OMIT 6&8; CategoryThe connector; File Size133KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-1744319-9 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1744319-9	-	-	View	Buy Now

3-1744319-9 Overview

09P MTA156 POL HDR ASSY LF OMIT 6&8

3-1744319-9 Parametric

Parameter Name	Attribute value
Connector type	without hood
Housing type	plug
Connector System	wire to board
Sealable	no
Connectors and terminals terminate to	A printed circuit board
Terminal type	Public end
Number of Positions	9
PCB mounting direction	vertical
Number of power supply locations	9
Rows	1
Backwall/Post Interruptions	Without
Operating voltage (VAC)	600
Terminal base material	copper alloy
Contact Current Rating (Max) (A)	7
Terminal retention	Without
Terminal termination area plating material	tin
Terminal contact plating material	tin
Plating thickness of terminal contact parts	150 µm [ 3.81 µin ]
Plating thickness of terminal termination area	3.81 µm [ 150 µin ]
Terminal contact part plating material surface coating	matte
Terminal layout	Direct plug-in
PCB Termination Methods	Through Hole - Solder
Termination post and tail length	3.17 mm [ .125 in ]
PCB mounting fixation type	Public end
PCB installation and fixation	with
Panel mount features	Without
PCB mounting alignment	with
Connector mounting type	board mounting
PCB Mount Alignment Type	nail
joint alignment	Without
stress relief	Without
joint fixation	with
Joint fixation type	Polar position lock
Centerline (Pitch)	3.96 mm [ .156 in ]
UL fire rating	UL 94V-0
Shell color	Natural
Shell material	Polyester-GF
length	35.53 mm [ 1.39 in ]
high	13.84 mm [ .545 in ]
Joint post length	11.43 mm [ .449 in ]
width	10.8 mm [ .425 in ]
PCB thickness (recommended)	.061 mm [ 1.57 in ]
Working group temperature range	-55 – 105 °C [ -67 – 221 °F ]
Circuit Application	Power
Glow Wire Ratings	Standard parts - non-glow wire
Encapsulation method	bag
Package quantity	500
Applicable to	female end sheath

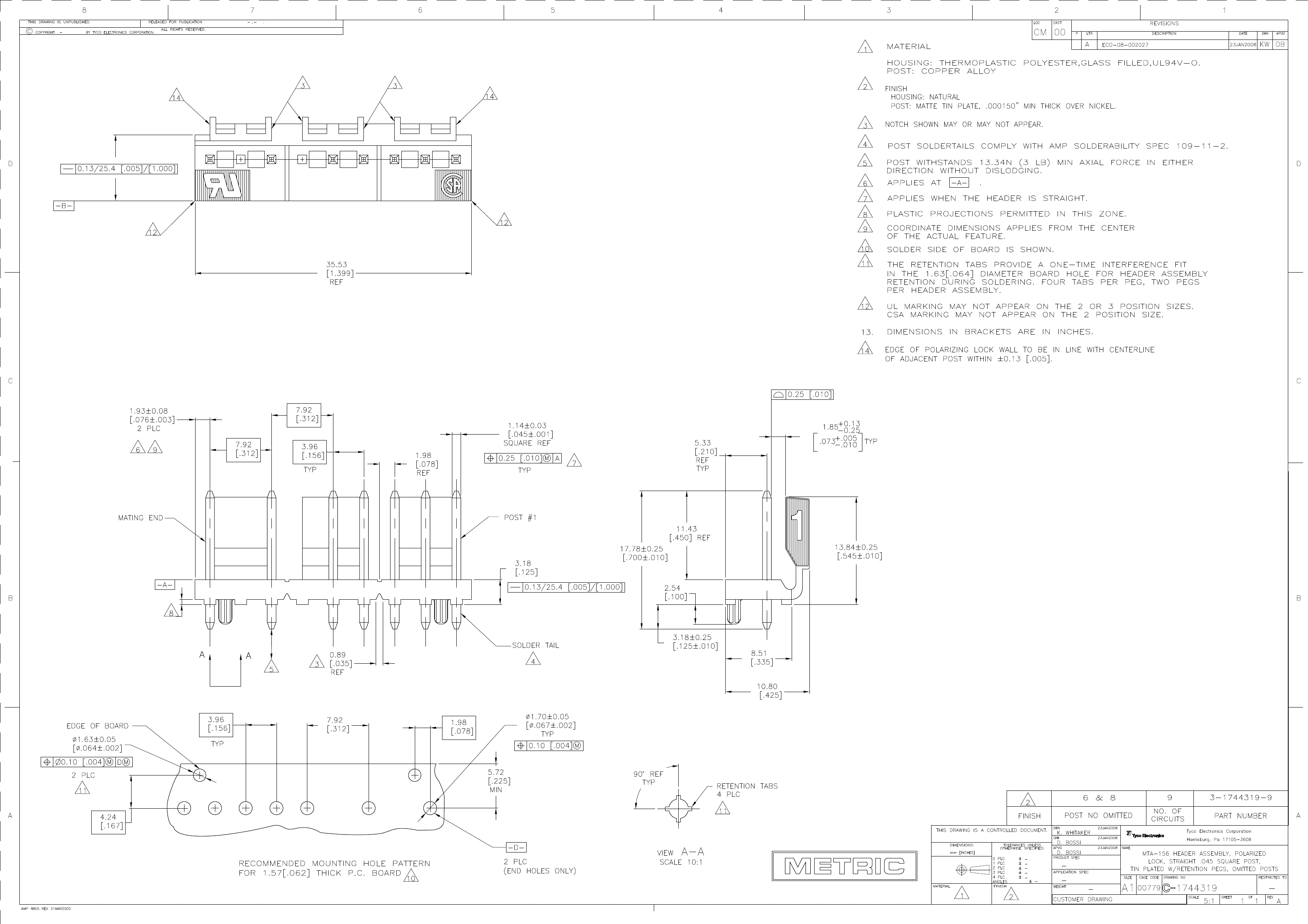

Preview

Download Datasheet
