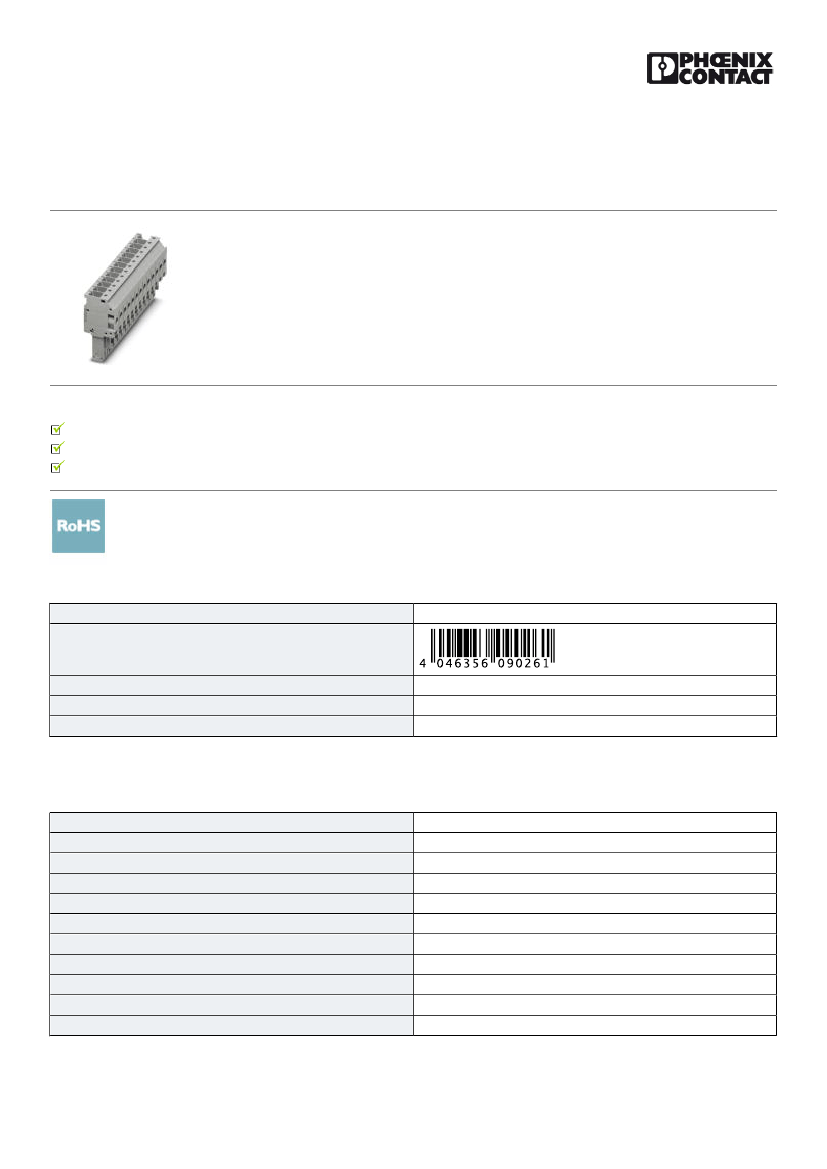

Plug - UP 4/13 - 3060238
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug, Connection method: Screw connection, Number of positions: 13, Cross section: 0.2 mm² - 6 mm²,
AWG: 24 - 10, Width: 80.6 mm, Height: 41.2 mm, Color: gray
Why buy this product
Screw actuation from the side
Conductor connection from above
The plug design enables space-saving potential distribution by using four-conductor terminal blocks with two slots
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356090261
85366990
Made to Order (non-returnable)
10 STK
Technical data
General
Number of positions
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Maximum load current
Rated surge voltage
Degree of pollution
13
1
13
1
4 mm²
gray
PA
V0
32 A (with 6 mm² conductor cross section)
8 kV
3
11/15/2016 Page 1 / 5
https://www.phoenixcontact.com/hq/products/3060238
Plug - UP 4/13 - 3060238
Technical data
General
Overvoltage category
Insulating material group
Maximum load current
Nominal current I
N
Nominal voltage U
N
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
III
I
32 A (with 6 mm² conductor cross section)
32 A
800 V
130 °C
125 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
27,5 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
Length
Height
Pitch
80.6 mm
21 mm
41.2 mm
24.8 mm
6.2 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Screw connection
IEC 61984
0.2 mm²
6 mm²
24
10
0.2 mm²
6 mm²
24
10
0.25 mm²
11/15/2016 Page 2 / 5
https://www.phoenixcontact.com/hq/products/3060238
Plug - UP 4/13 - 3060238
Technical data
Connection data
Conductor cross section flexible, with ferrule without plastic sleeve max. 4 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
0.25 mm²
4 mm²
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.5 mm²
1.5 mm²
0.25 mm²
1.5 mm²
9 mm
A4
M3
0.6 Nm
0.8 Nm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CUL
IEC 61984
V0
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Circuit diagram
Current strength [A]
30
25
20
15
10
5
0
0
20
40
60
80
100
Ambient temperature [°C]
= 2-pos.
= 5-pos.
= 10-pos.
= 15-pos.
Diagram
Approvals
Approvals
11/15/2016 Page 3 / 5
https://www.phoenixcontact.com/hq/products/3060238
Plug - UP 4/13 - 3060238
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / CSA / KEMA-KEUR / IECEE CB Scheme / cULus Recognized
Ex Approvals
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
26-10
30 A
600 V
C
26-10
30 A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425
B
26-10
30 A
600 V
C
26-10
30 A
600 V
EAC 7500651.22.01.00246
CSA
http://www.csagroup.org/services/testing-and-certification/certified-product-listing/ 13631
B
26-10
30 A
600 V
C
26-10
30 A
600 V
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
KEMA-KEUR
Nominal current IN
Nominal voltage UN
http://www.dekra-certification.com 2175778.01
32 A
800 V
11/15/2016 Page 4 / 5
https://www.phoenixcontact.com/hq/products/3060238
Plug - UP 4/13 - 3060238
Approvals
IECEE CB Scheme
Nominal current IN
Nominal voltage UN
http://www.iecee.org/ NL-34722
32 A
800 V
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
11/15/2016 Page 5 / 5
