FSAV332 Wide Bandwidth Video Switch
April 2004
Revised January 2005
FSAV332
Wide Bandwidth Video Switch
General Description
The Fairchild video switch FSAV32 is a quad high speed
video switch. Low On Resistance allows inputs to be con-
nected to outputs without adding propagation delay or gen-
erating additional ground bounce noise.
The device is organized as four 1-bit switches with sepa-
rate output enable (OE) pins. When OE is LOW, the switch
is ON and Port A is connected to Port B. When OE is
HIGH, the switch is OPEN and a HIGH-Impedance state
exists between the two ports.
Features
s
Wide bandwidth: 368 MHz
s
−
84 dB non adjacent channel crosstalk at 10MHz
s
−
49 dB Off Isolation at 10MHz
s
3
Ω
typical On Resistance (R
ON
)
s
Low power consumption (3uA maximum)
s
Control input: TTL compatible
Applications
• Y/C video or CVBS video switch in LCD, plasma, and
projector displays
Ordering Code:
Order Number
FSAV332QSC
FSAV332MTC
FSAV332MTC_NL
Package Number
MQA16
MTC14
MTC14
Package Description
16-Lead Quarter Size Outline Package (QSOP), JEDEC MO-137, 0.150" Wide
14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
Pb-Free 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153,
4.4mm Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Pb-Free package per JEDEC J-STD-020B.
Logic Diagram
© 2005 Fairchild Semiconductor Corporation
DS500803
www.fairchildsemi.com
FSAV332
Absolute Maximum Ratings
(Note 1)
Supply Voltage (V
CC
)
DC Switch Voltage (V
S
) (Note 2)
DC Input Voltage (V
IN
) (Note 2)
DC Input Diode Current
DC Output Current
Storage Temperature Range (T
STG
)
ESD (Human Body Model)
−
0.5V to
+
7.0V
−
0.5V to V
CC
+
0.5V
−
0.5V to
+
7.0V
−
50 mA
128 mA
Recommended Operating
Conditions
(Note 3)
Supply Voltage (V
CC
)
Control Input Voltage
Switch Input Voltage
Operating Temperature
Thermal Resistance
(TSSOP)
(TSSOP)
115
°
C/W
127
°
C/W
4.75V to 5.25V
0V to V
CC
0V to V
CC
−
40
°
C to
+
85
°
C
−
65
°
C to
+
150
°
C
4000V
Note 1:
The “Absolute Maximum Ratings” are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the Electrical
Characteristics tables are not guaranteed at the absolute maximum rating.
The “Recommended Operating Conditions” table will define the conditions
for actual device operation.
Note 2:
The input and output negative voltage ratings may be exceeded if
the input and output diode current ratings are observed.
Note 3:
Unused control inputs must be held HIGH or LOW. They may not
float.
DC Electrical Characteristics
All typical values are for V
CC
=
5V @ 25
°
C unless otherwise specified.
Symbol
V
ANALOG
V
IK
V
IH
V
IL
I
IN
I
OZ
R
ON
I
CC
Parameter
Analog Signal Range
Clamp Diode Voltage
Input Voltage HIGH
Input Voltage LOW
Control Input Leakage
OFF State Leakage Current
Switch On Resistance
(Note 4)
Quiescent Supply Current
V
CC
(V)
4.75 to 5.25
4.75
4.75 to 5.25
4.75 to 5.25
5.25
5.25
4.75
4.75
5.25
3.0
7.0
2.0
0.8
±1.0
±1.0
7.0
10.0
3.0
Min
0
T
A
= −40 °C
to
+85 °C
Typ
Max
2.0
−1.2
Units
V
V
V
V
µA
µA
Ω
µA
V
IN
=
0V to V
CC
0
≤
A, B
≤
V
CC
V
IN
=
1V, R
L
=
75Ω, I
ON
=
13 mA
V
IN
=
2V, R
L
=
75Ω, I
ON
=
26 mA
V
IN
=
0V V
CC
or I
OUT
=
0
I
IN
= −18
mA
Conditions
Note 4:
Measured by the voltage drop between A and B pins at the indicated current through the switch. On Resistance is determined by the lower of the
voltages on the two (A or B Ports).
3
www.fairchildsemi.com
FSAV332
AC Electrical Characteristics
All typical value are for V
CC
=
5V @ 25
°
C unless otherwise specified.
Symbol
t
ON
t
OFF
t
PLH
t
PHL
DG
DP
O
IRR
X
TALK
BW
Parameter
Turn ON Time
Turn OFF Time
Propagation Delay
(Note 5)
Differential Gain
Differential Phase
OFF-Isolation
−3dB
Bandwidth
V
CC
(V)
4.75 to 5.25
4.75 to 5.25
T
A
= −40°C
to
+85°C
Min
1.0
1.0
Max
5.0
5.0
Units
ns
ns
Conditions

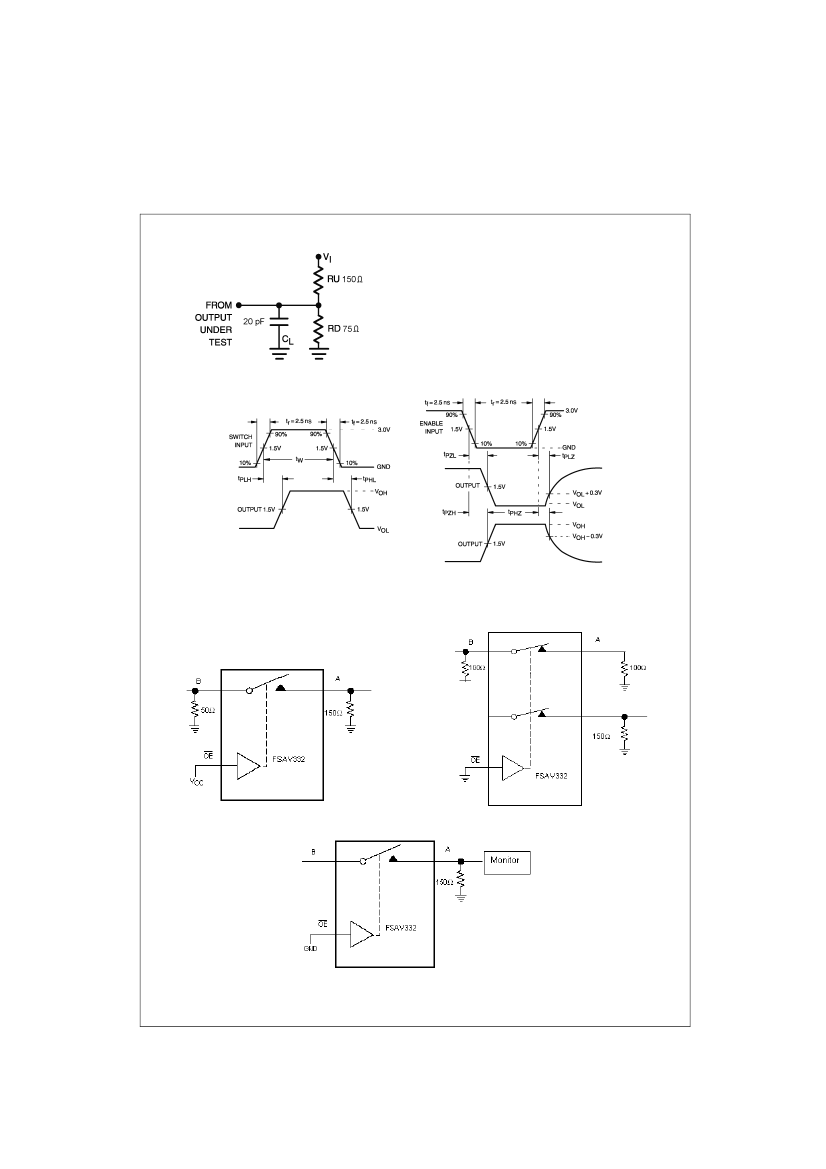

Figure
Number
V
I
=
7V for t
PZL
and V
I
=
OPEN for t
PZH
Figures
1, 2
V
I
=
7V for t
PLZ
and V
I
=
OPEN for t
PHZ
Figures
1, 2
V
I
=
OPEN
R
L
=
150Ω, f
=
3.58MHz
f
=
10MHz, RL
=
150Ω
R
L
=
150Ω, f
=
10MHz
R
L
=
150Ω
Figure 3
Figure 4
Figure 5
Figures
1, 2
4.75 to 5.25
4.75 to 5.25
4.75 to 5.25
4.75 to 5.25
4.75 to 5.25
0.29
0.10
−84.0
−54.0
368
0.1
ns
%
dB
dB
MHz
Degree R
L
=
150Ω, f
=
3.58MHz
Non Adjacent Channel Crosstalk 4.75 to 5.25
Note 5:
This specification is guaranteed by design.
Capacitance
Symbol
C
IN
C
ON
C
OFF
Parameter
Control Pin Input Capacitance
A/B ON Capacitance
Port B OFF Capacitance
T
A
= −40°C
to
+85°C
Typ
3.0
30.0
5.0
Units
pF
pF
pF
V
CC
=
5.0V
V
CC
=
5.0V, OE
=
0V
V
CC
and OE
=
5.0V
Conditions
www.fairchildsemi.com
4
