SY89833LMG datasheet, PDF - EEWORLD Datasheet

SY89833LMG: DescriptionClock Fanout Buffer 4-OUT 1-IN 1:4 16-Pin QFN EP Tube; File Size590KB，13 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SY89833LMG Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SY89833LMG	-	-	View	Buy Now

SY89833LMG Overview

Clock Fanout Buffer 4-OUT 1-IN 1:4 16-Pin QFN EP Tube

SY89833LMG Parametric

Parameter Name	Attribute value
EU restricts the use of certain hazardous substances	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Type	Fanout Buffer
Fanout	1:4
Number of Outputs per Chip	4
Maximum Propagation Delay Time @ Maximum CL (ns)	0.6@3.3V
Absolute Propagation Delay Time (ns)	0.6
Output Logic Level	LVDS
Minimum Operating Supply Voltage (V)	3
Typical Operating Supply Voltage (V)	3.3
Maximum Operating Supply Voltage (V)	3.6
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Supplier Temperature Grade	Industrial
Packaging	Tube
Pin Count	16
Standard Package Name	QFN
Supplier Package	QFN EP
Mounting	Surface Mount
Package Height	0.85(Max)
Package Length	3
Package Width	3
PCB changed	16
Lead Shape	No Lead

Preview

Download Datasheet

View All

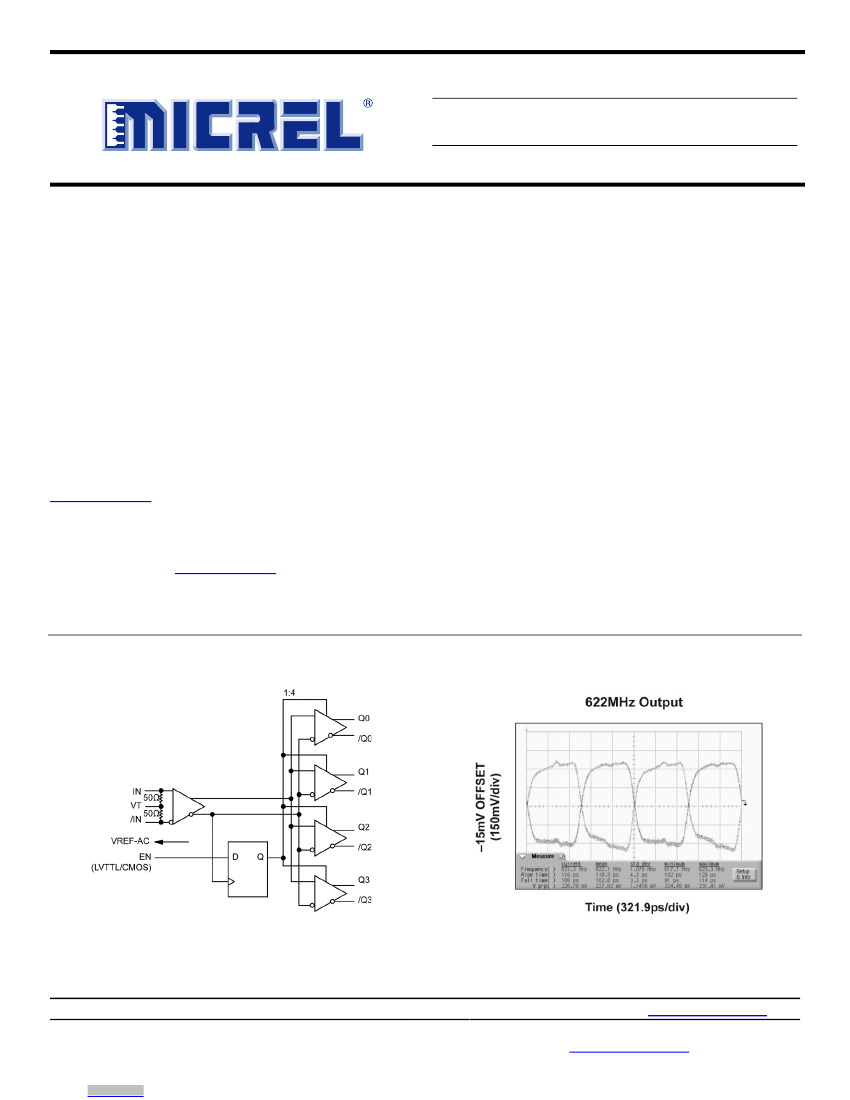

SY89833L

3.3V Ultra-Precision 1:4 LVDS Fanout

Buffer/Translator with Internal Termination

General Description

The SY89833L is a 3.3V, high-speed 2GHz differential low

voltage differential swing (LVDS) 1:4 fanout buffer

optimized for ultra-low skew applications. Within device

skew is guaranteed to be less than 20ps over supply

voltage and temperature.

The differential input buffer has a unique internal

termination design that allows access to the termination

network through a VT pin. This feature allows the device to

easily interface to different logic standards. A VREF-AC

reference is included for AC-coupled applications.

The SY89833L is part of Micrel’s high-speed clock

synchronization family. For 2.5V applications, the

SY89832U provides similar functionality while operating

from a 2.5V ±5% supply. For applications that require a

different I/O combination, consult the Micrel website at

www.micrel.com,

and choose from a comprehensive

product line of high-speed, low-skew fanout buffers,

translators and clock generators.

Datasheets and support documentation are available on

Micrel’s web site at:

www.micrel.com.

Features

•

Guaranteed AC performance over temperature and

voltage:

−

DC-to > 2GHz throughput

−

<600ps propagation delay (IN-to-Q)

−

<20ps within-device skew

−

<150ps rise/fall times

•

Ultra-low jitter design:

−

98fs

RMS

phase jitter

•

Patented Any-In input termination and VT pin accepts

DC- and AC-coupled inputs

•

High-speed LVDS outputs

•

3.3V power supply operation:

−

Industrial temperature range: -40°C to +85°C

•

Available in 16-pin (3mm × 3mm) QFN package

Applications

•

Processor clock distribution

SONET clock distribution

Fibre Channel clock distribution

Gigabit Ethernet clock distribution

Functional Block Diagram

Typical Performance

Precision Edge is a registered trademark of Micrel, Inc.

Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (408) 944-0800 • fax + 1 (408) 474-1000 •

http://www.micrel.com

September 10, 2014

Revision 3.0

hbwhelp@micrel.com

or (408) 955-1690

SY89833LMG Related Products

	SY89833LMG	SY89833LMG TR
Description	Clock Fanout Buffer 4-OUT 1-IN 1:4 16-Pin QFN EP Tube	Clock Fanout Buffer 4-OUT 1-IN 1:4 16-Pin QFN EP T/R
EU restricts the use of certain hazardous substances	Compliant	Compliant
ECCN (US)	EAR99	EAR99
Part Status	Active	Active
HTS	8542.39.00.01	8542.39.00.01
Type	Fanout Buffer	Fanout Buffer
Fanout	1:4	1:4
Number of Outputs per Chip	4	4
Maximum Propagation Delay Time @ Maximum CL (ns)	0.6@3.3V	0.6@3.3V
Absolute Propagation Delay Time (ns)	0.6	0.6
Output Logic Level	LVDS	LVDS
Minimum Operating Supply Voltage (V)	3	3
Typical Operating Supply Voltage (V)	3.3	3.3
Maximum Operating Supply Voltage (V)	3.6	3.6
Minimum Operating Temperature (°C)	-40	-40
Maximum Operating Temperature (°C)	85	85
Supplier Temperature Grade	Industrial	Industrial
Packaging	Tube	Tape and Reel
Pin Count	16	16
Standard Package Name	QFN	QFN
Supplier Package	QFN EP	QFN EP
Mounting	Surface Mount	Surface Mount
Package Height	0.85(Max)	0.85(Max)
Package Length	3	3
Package Width	3	3
PCB changed	16	16
Lead Shape	No Lead	No Lead
