Photo: Coupling nut shown removed from plug. Connector can be ordered with or without coupling nut.
Amphenol
®
RPT Rugged Miniature
Cylindrical Connectors
Amphenol RPT Ruggedized Miniature Connectors
Designed with a stronger shell and reinforced keyway to
perform in the harsh environments of the Geophysical
Market.
• Machined shells for increased strength; 3 point bayonet
coupling
• IP67 rated
• Anodized (nonconductive) shells for greater salt, corrosion
and abrasion resistance
• Coupling nuts with or without round detent holes
• Solder contacts
• Available currently in shell sizes 16 & 20
®
RPT Connector Performance
Temperature rating: –55°C min., 125°C max.
Salt spray: 48 hr. unmated
Meets environmental requirements of MIL-C-26482G
Not intermateable with MIL-C-26482, Series 1
www.amphenol-industrial.com
RPT Connector How to Order
Ordering procedure is illustrated by coded part
number RPT05E16-8S(005) as shown below:
RPT
1
05
2
E
3
16-8
4
S
5
(005)
6
3.
4.
1. Connector Type
RPT designates Amphenol Rugged Miniature
Cylindrical Connectors with bayonet coupling
2. Shell Style
04 designates in-line receptacle
05 designates cable plug with coupling nut, less
hardware
45 designates cable plug without coupling nut, less
hardware
5.
6.
(consult Amphenol Industrial for availability of
other shell styles)
Service Class
“E” designates environmental resisting connector
Shell Size and Insert Arrangement
16-8 (Shell size 16 with 8 size. 16 contacts)
20-16 (Shell size 20 with 16 size. 16 contacts)
(consult Amphenol Industrial for availability of
other insert arrangements)
Contact Type
P designates pin, S designates socket
Plating Suffix
(Anodized)

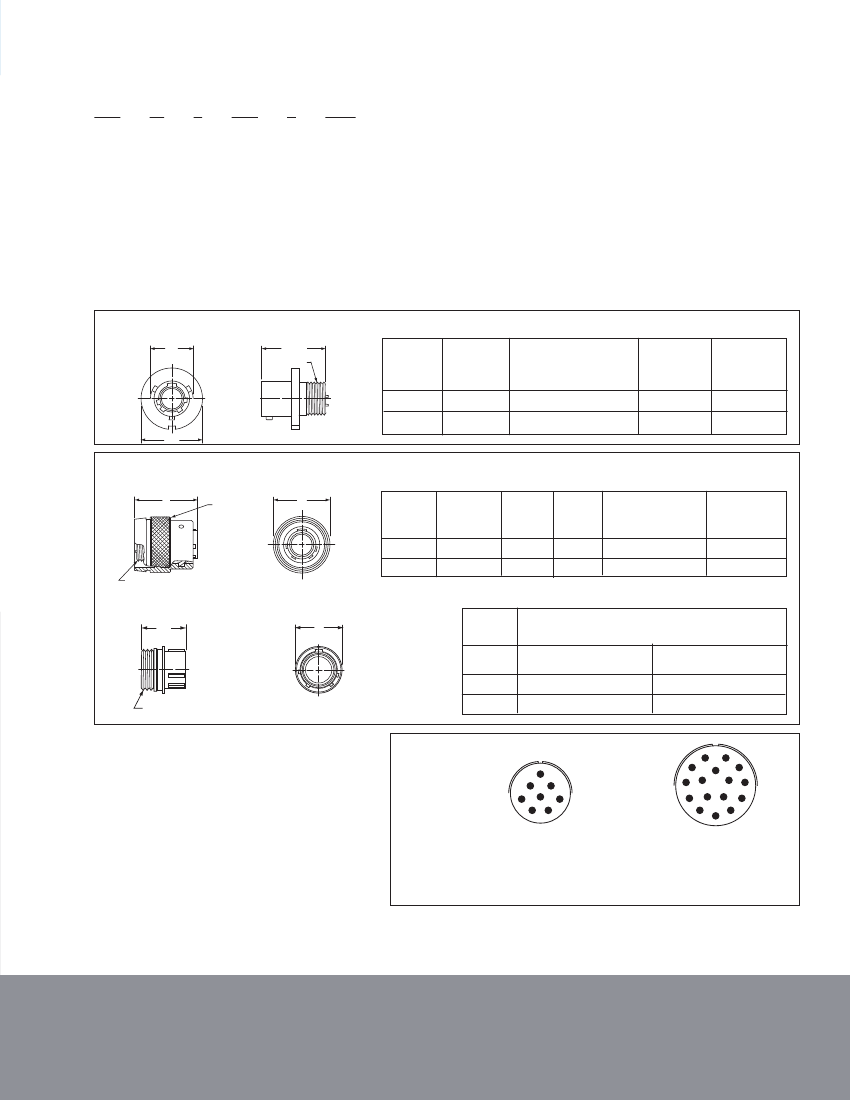

RPT Connector Shell Styles
In-Line Receptacle..............RPT04*
SS
L Max.
V Thread
Shell
Size
16
20
L
Max.
1.031
1.188
V Thread
Plated
Class 2A
1.000-20 UNEF
1.250-18 UNEF
S
±.016
1.410
1.630
SS Dia.
+.000
–.016
1.297
1.510
S
Cable Plug with Coupling Nut........RPT05*
L
Coupling Nut
Assembled
to Plug
S
Shell
Size
16
20
A
+.000
–.005
1.174
1.390
L
Ref.
.916
1.069
Q
Ref.
.947
1.099
V Thread
Plated
Class 2A
1.000-20 UNEF
1.250-18 UNEF
S
Dia.
Max.
1.500
1.700
V
Thread
Cable Plug without Coupling Nut... RPT45*
Q
A
Coupling Nut Part Number
Purchased Separately
Shell
Size
16
Without
Detent Holes
RPTCN-165
RPTCN-205
With
Detent Holes
RPTCN-H165
RPTCN-H205
V Thread
20
*To complete order number see how to order on
front.
All dimensions for reference only.
For availability of wall mount receptacle style or jam
nut receptacle style connectors, and additional
insert arrangements, consult Amphenol Industrial.
Insert Availability
K
A
G
H
F
C
H
E
D
G
B
J
L
M
S
A
B
N
C
R
P
D
E
F
I
nsert Arrangement
Service Rating
Number of Contacts
Contact Size
16-8
11
8
16
I
nsert Arrangement
Service Rating
Number of Contacts
Contact Size
20-16
11
16
16
Also see Amphenol Miniature Cylindrical Connectors, MIL-C-26482, Series 1 (catalog 12-070-15).
Also see Amphenol Aerospace and Industrial Product Overview catalog SL-100.
