REVISIONS
REV
01
ECO
DESCRIPTION
PERLIMINARY DESIGN
DATE
03/NOV/14
BY
ORION
APPR
TITLE:

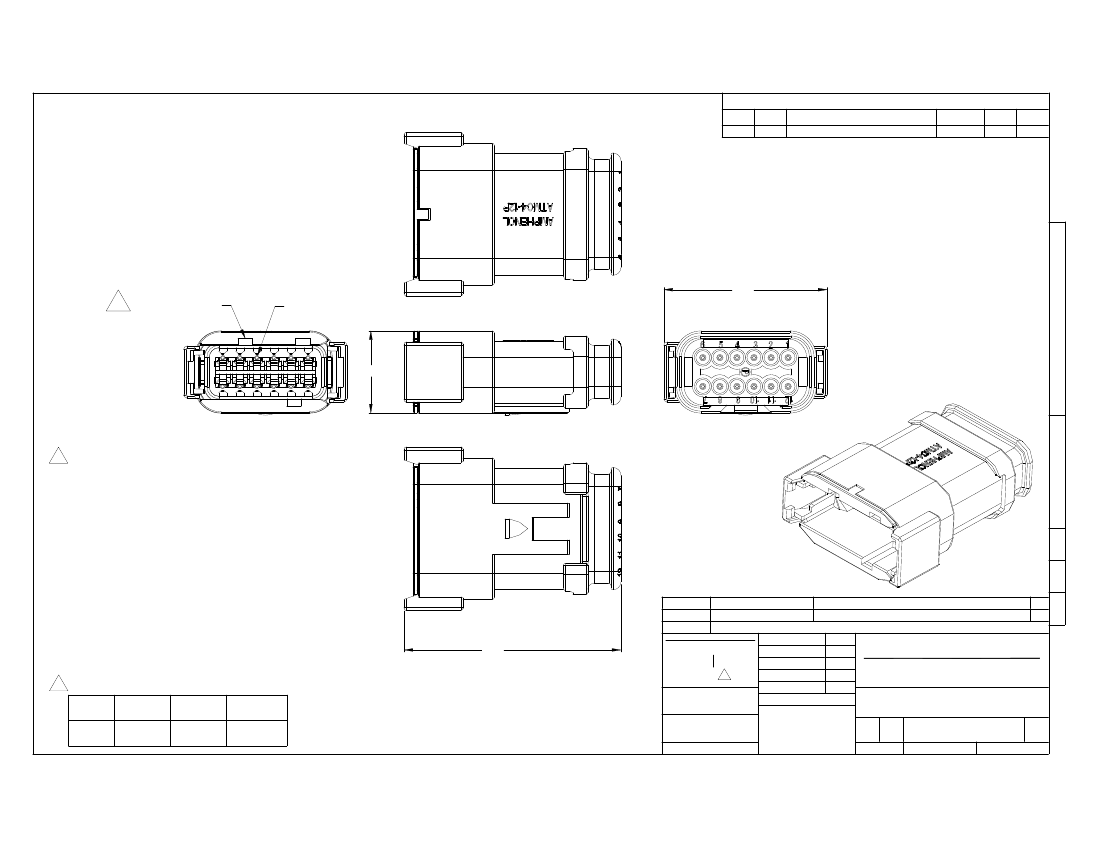

RECEPTACLE, KEYED, 12 PIN,STRAIN RELIEF, ATM SERIES
1
KEYWAY (3) PLACES
REQUIRES CONTACT
RETENTION WEDGE AWM-12P
40.2
20.2
DWG NO:
NOTES: UNLESS OTHERWISE SPECIFIED
1 SEE SHEET 2 FOR KEY ARRANGEMENTS AND COLORS.
2. MATERIAL:
HOUSING: THERMOPLASTIC
SEAL: SILICONE RUBBER
3. MODIFICATIONS: STRAIN RELIEF END CAP
4. SPECIFICATIONS:
4.1 CURRENT RATING: 7.5 AMPS
4.2 OPERATING TEMPERATURE: -55°C TO +125°C.
4.3 DIELECTRIC WITHSTANDING VOLTAGE: LESS THAN 2
MILLIAMPS CURRENT LEAKAGE @ 1500 VOLTS AC.
4.4 INSULATION RESISTANCE: 1000 MEGOHMS MIN @ 25°C.
4.5 MOISTURE RESISTANCE: IP67 ( MATED CONDITION )
4.6 MATING CYCLE DURABILITY: 100 CYCLES
4.7 RoHS COMPLIANT
QUANTITY
ATM04-12PX-SR1XX
REV:
01
SH:
1
OF:
SEE SHEET 2
PART NUMBER
DESCRIPTION
MATERIALS LIST
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
ITEM
2
5. MATING PART: ATM06-12SX* PLUG.
( X = A,B,C,D KEYS; * = MODIFICATIONS AND COLORS )
6. ALL DIMENSIONS ARE FOR REFERENCE USE ONLY.
7 CONTACT SIZE AND REAR SEAL WIRE RANGE:
CONTACT
SIZE
20
MIN. INSUL
O.D.
1.35 mm
(.053 in)
MAX. INSUL
O.D.
3.05 mm
(.120 in)
TYPICAL
WIRE RANGE
16 - 22 AWG
UNLESS OTHERWISE SPECIFIED
DATE
43.7
1)
2)
1
2
3
All dimensions are in metric(mm).
Tolerances are as follows:
PL DEC
±0.30
Fractions
±1/64
PL DEC
±0.15
Angles
±1°
PL DEC
±0.08
ORION.LI
03/NOV/14
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
3) Note reference =
X
MATERIAL SPECIFICATIONS:
CUSTOMER:
PROCESS SPECIFICATIONS:
NEXT ASS'Y:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
RECEPTACLE, KEYED, 12 PIN, STRAIN RELIEF
ATM SERIES
TYPE
DWG NO:
REVISION
B C- ATM04-12PX-SR1XX 01
NONE
SHEET
1
OF
2
REVISIONS
REV
ECO
DESCRIPTION
DATE
BY
APPR

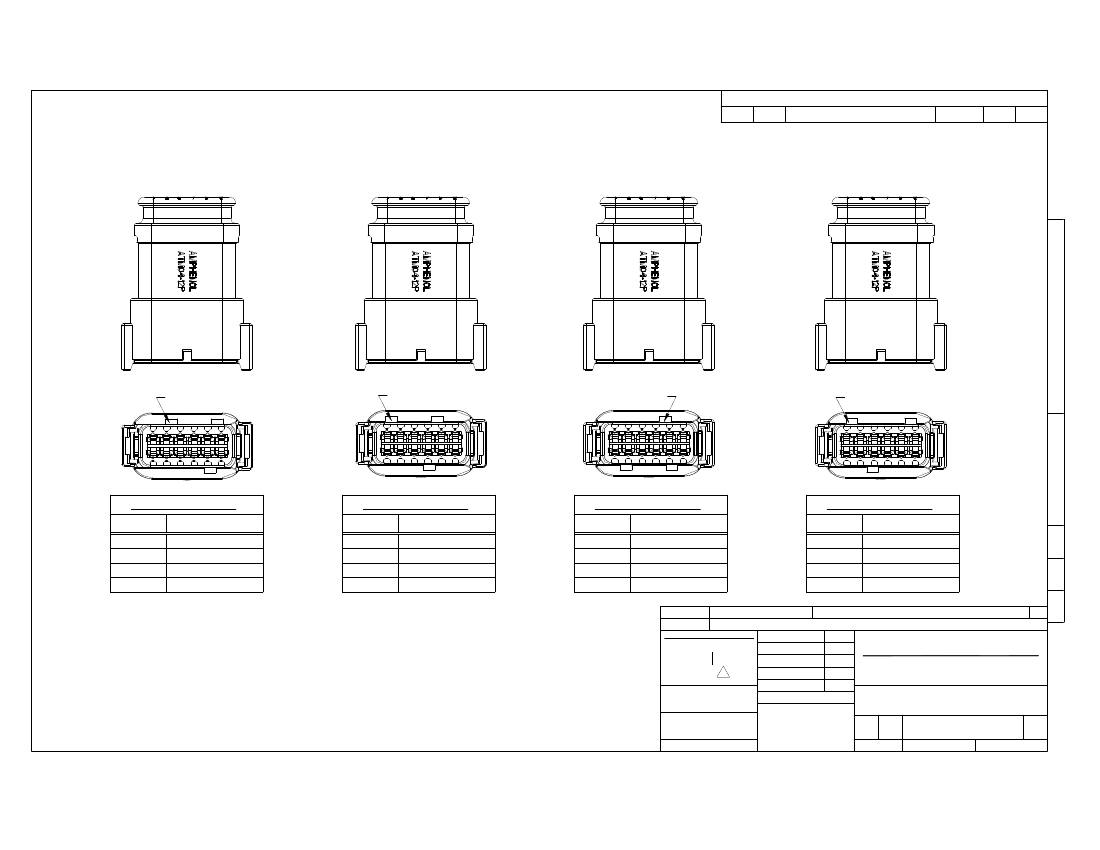

P/N ATM04-12PA-SR1GY
KEY-A CONFIGURATION
STANDARD COLOR: GREY
P/N ATM04-12PB-SR1BK
KEY-B CONFIGURATION
STANDARD COLOR: BLACK
P/N ATM04-12PC-SR1GN
KEY-C CONFIGURATION
STANDARD COLOR: GREEN
P/N ATM04-12PD-SR1BN
KEY-D CONFIGURATION
STANDARD COLOR: BROWN
TITLE:
RECEPTACLE, KEYED, 12 PIN,STRAIN RELIEF, ATM SERIES
KEYWAY (3) PLACES
KEYWAY (3) PLACES
KEYWAY (3) PLACES
KEYWAY (3) PLACES
DWG NO:
ATM04-12PX-SR1XX
KEY-A CONFIGURATION
COLOR
GREY
*
BLACK
GREEN
BROWN
PART NUMBER
ATM04-12PA-SR1GY
ATM04-12PA-SR1BK
ATM04-12PA-SR1GN
ATM04-12PA-SR1BN
KEY-B CONFIGURATION
COLOR
GREY
PART NUMBER
ATM04-12PB-SR1GY
ATM04-12PB-SR1BK
ATM04-12PB-SR1GN
ATM04-12PB-SR1BN
KEY-C CONFIGURATION
COLOR
GREY
BLACK
GREEN
*
BROWN
PART NUMBER
ATM04-12PC-SR1GY
ATM04-12PC-SR1BK
ATM04-12PC-SR1GN
ATM04-12PC-SR1BN
KEY-D CONFIGURATION
COLOR
GREY
BLACK
GREEN
PART NUMBER
REV:
ATM04-12PD-SR1GY
ATM04-12PD-SR1BK
ATM04-12PD-SR1GN
ATM04-12PD-SR1BN
01
*
GREEN
BROWN
BLACK
SH:
2
*
BROWN
OF:
NOTE:
AN ASTERISKS (
*
) PLACED BEFORE THE COLOR DENOTES THE STANDARD
MOLDED COLOR OF THE CONNECTORS SHOWN ABOVE.
OTHER COLORS SHOWN ARE AVAILABLE VIA SPECIAL ORDER.
QUANTITY
1)
2)
1
2
3
DESCRIPTION
PART NUMBER
MATERIALS LIST
SIGNATURES
DRAWN:
CHECKED:
ENGINEER:
APPROVAL:
ITEM
2
UNLESS OTHERWISE SPECIFIED
All dimensions are in metric(mm).
Tolerances are as follows:
PL DEC
±0.30
Fractions
±1/64
PL DEC
±0.15
Angles
±1°
PL DEC
±0.08
DATE
ORION.LI
03/NOV/14
Amphenol
Sine Systems - www.amphenol-sine.com
44724 Morley Drive
Clinton Township, MI 48036
3) Note reference =
X
MATERIAL SPECIFICATIONS:
CUSTOMER:
THIS DRAWING IS SUPPLIED FOR
INFORMATION ONLY. DESIGN FEATURES,
SPECIFICATIONS AND PERFORMANCE DATA SIZE
SHOWN HEREON ARE THE PROPERTY OF
THE AMPHENOL CORPORATION. NO RIGHTS
OF REPRODUCTION ARE IMPLIED. ALL
DIMENSIONS ARE SUBJECT TO NORMAL
SCALE:
MANUFACTURING VARIATIONS.
RECEPTACLE, KEYED, 12 PIN,
STRAIN RELIEF, ATM SERIES
TYPE
DWG NO:
PROCESS SPECIFICATIONS:
REVISION
B C- ATM04-12PX-SR1XX 01
NONE
SHEET
NEXT ASS'Y:
2
OF
2
