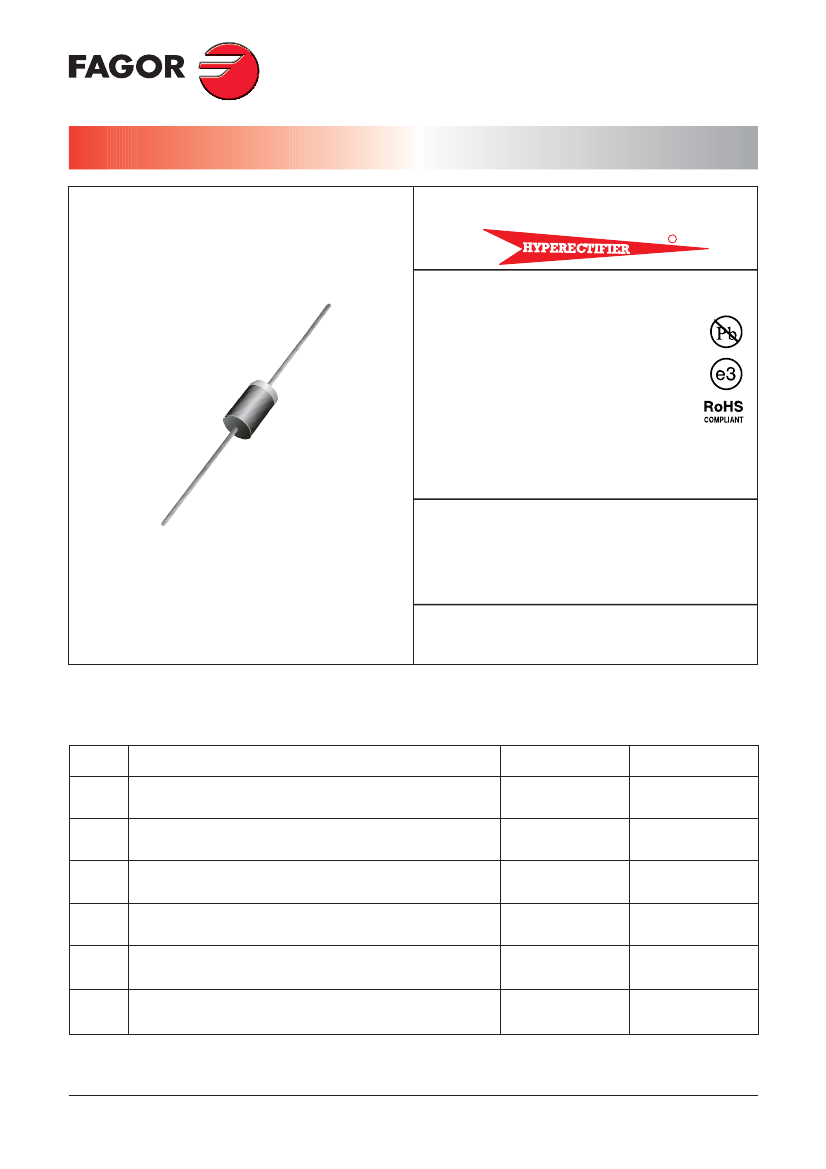

1N5343B........ 1N5388B
5.0 W Glass Passivated Zener Diodes
Voltage
7.5 to 200 V
Power Dissipation
5.0 W
R
DO-201AE
FEATURES
Glass passivated chip junction
Hyperectifier structure for high reliability
Cavity-free glass-passivated junction
Low leakage current
High surge current and zener capability
Low differential resistance
Tolerance series ± 5%
Low forward voltage drop
Solder dip 260ºC, 10s
AEC-Q101 qualified
Component in accordance to RoHS 2011/65/EU
and WEEE 2002/96/EC
MECHANICAL DATA
Case
:
DO-201AE. Epoxy meets UL 94V-0 flammability
rating.
Polarity
:
Color band denotes cathode end.
Terminals
:
Matte tin plated leads, solderable per
MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102.
Consumer grade, meets JESD 201 class 1A whisker test
TYPICAL APPLICATIONS
Used for basic regulation functions in most electronic
applications, Zener diodes offer a cheaper alternative to IC
solutions.
Maximum Ratings and Electrical Characteristics at 25 ºC
SYMBOL
TYPE NUMBER
Power dissipation at Tamb = 75 °C
Non repetitive peak zener dissipation (t = 8.3 ms)
Operating Temperature Range
Storage Temperature Range
Value
5.0
180
-55 to + 175
-55 to + 175
1.2
20
Unit
W
W
°C
°C
V
°C/W
P
tot
P
ZSM
T
j
T
stg
V
F
R
thj-a
Max. forward voltage drop at I
F
= 3.0 A
Max. thermal resistance at 10 mm. lead length
