801-023-07M5-3PA: DescriptionCircular MIL Spec Connector MIGHTY MOUSE CONNECTOR; CategoryThe connector The connector; File Size351KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

801-023-07M5-3PA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	801-023-07M5-3PA	-	-	View	Buy Now

801-023-07M5-3PA Overview

Circular MIL Spec Connector MIGHTY MOUSE CONNECTOR

801-023-07M5-3PA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SHIELDED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	ENVIRONMENT/IMMERSION RESISTANT
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	ALUMINUM ALLOY
Housing size	5
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

803-006

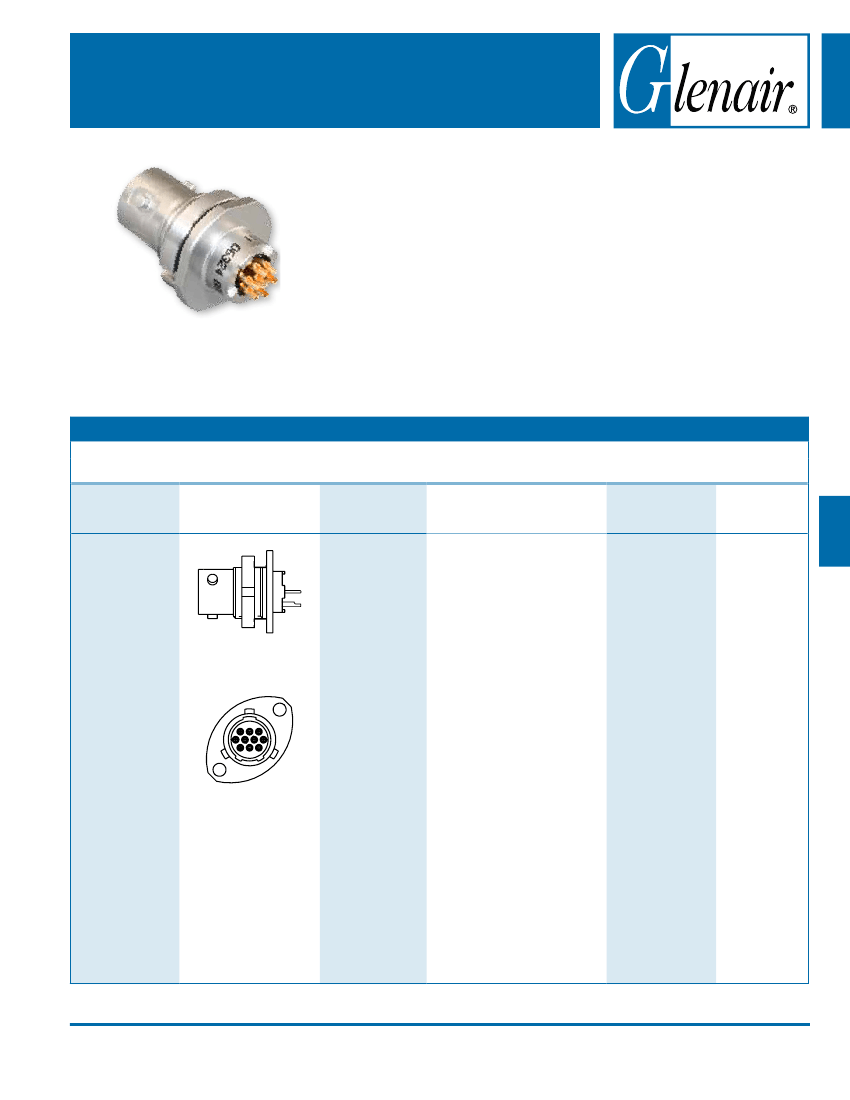

Series 803 Hermetic Receptacles

feature

304L stainless steel shells, fused vitreous

glass insulators and gold-plated Alloy 52

iron alloy contacts.

1 X 10

-7

cc/second

maximum helium

leak rate when tested at 1 atmosphere

vacuum.

1000 PSI Pressure Rating

in open face

(unmated) condition.

Solder Cup Or PCB Contacts

Series 803 Hermetic

Jam Nut Mount

Two Shell Styles

are available:

Jam Nut and Flange Mount.

hoW to oRDER

803-006

Series

803-006

-07

Shell Style

Z1

Sample Part Number

9-19

P

Contact type

P

N

Shell Key

Position

N

Normal

Shell Material /

Finish

Z1

Shell Size/Insert

SEE

Hermetic

Receptacles with

Printed Circuit

Board Contacts or

Solder Cup

Contacts

Stainless Steel /

Passivated

CoNTaCT

arraNgeMeNTS

PAGE F-2

Pin, Solder Cup

Jam Nut

- 07

Stainless Steel/

Nickel Plated

ZL

C

Pin, PC Tail

Alternate

Key

Positions:

X

Y

Z

S

Socket,

Solder Cup

D

Socket, PC Tail

Flange Mount

- 02

www.glenair.com

Dimensions in inches (millimeters) and are subject to change without notice.

CAGE Code 06324

Printed in U.S.A.

E-Mail: sales@glenair.com

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

F-13

14-SEPTEMBER-2011

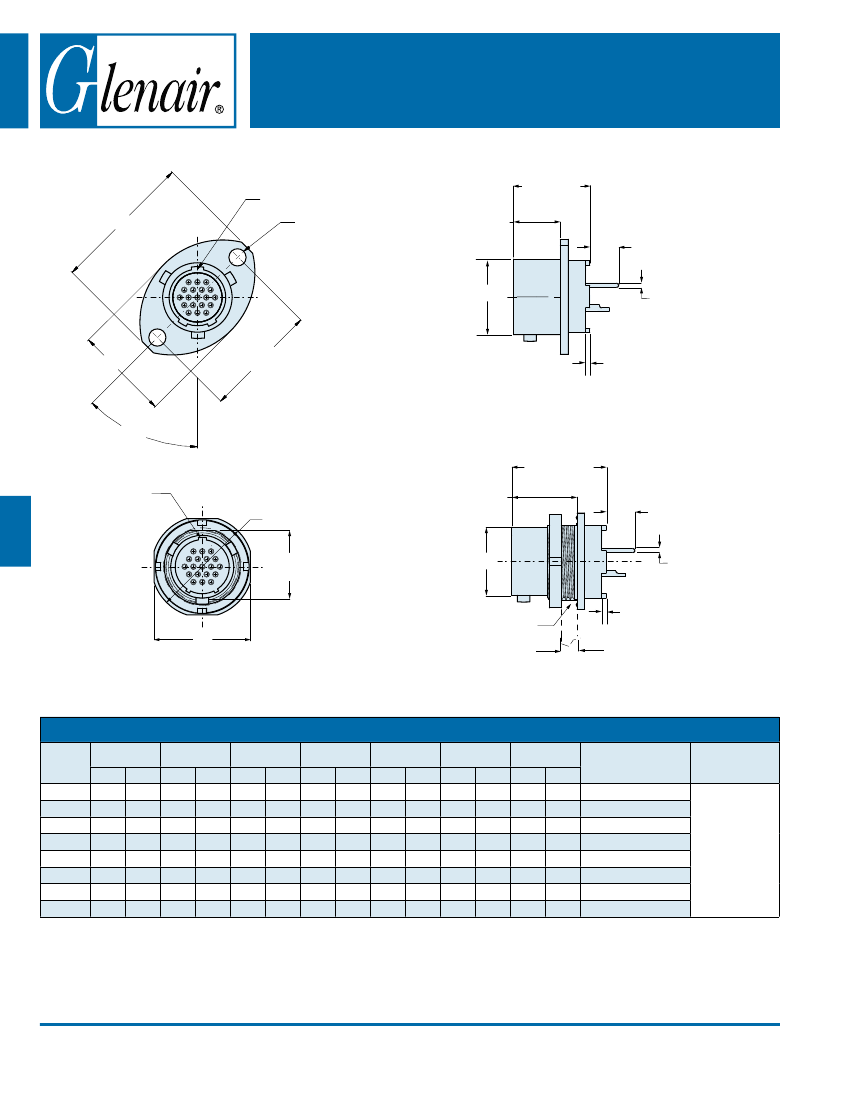

Series 803

Series 803 Mighty Mouse ¼ turn Bayonet Coupling

hermetic Receptacle Connector ordering Information

A

F

G

J

K

L

M
