38-00-4749 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 38-00-4749

38-00-4749: DescriptionHeaders u0026 Wire Housings 2.5mm KK Hdr Vt VrA r Vt VrA FL Vd3 4Ckt; CategoryThe connector The connector; File Size49KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

38-00-4749 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	38-00-4749	-	-	View	Buy Now

38-00-4749 Overview

Headers u0026 Wire Housings 2.5mm KK Hdr Vt VrA r Vt VrA FL Vd3 4Ckt

38-00-4749 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	ROHS COMPLIANT & BAG PACKAGE
body width	0.228 inch
subject depth	0.461 inch
body length	0.4 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.946 N
Insulation resistance	1000000000 Ω
Insulator color	WHITE
insulator material	POLYAMIDE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	FRICTION LOCK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	75 °C
Minimum operating temperature
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	200u inch
Rated current (signal)	4 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.139 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0
Evacuation force-minimum value	.556 N
Base Number Matches	1

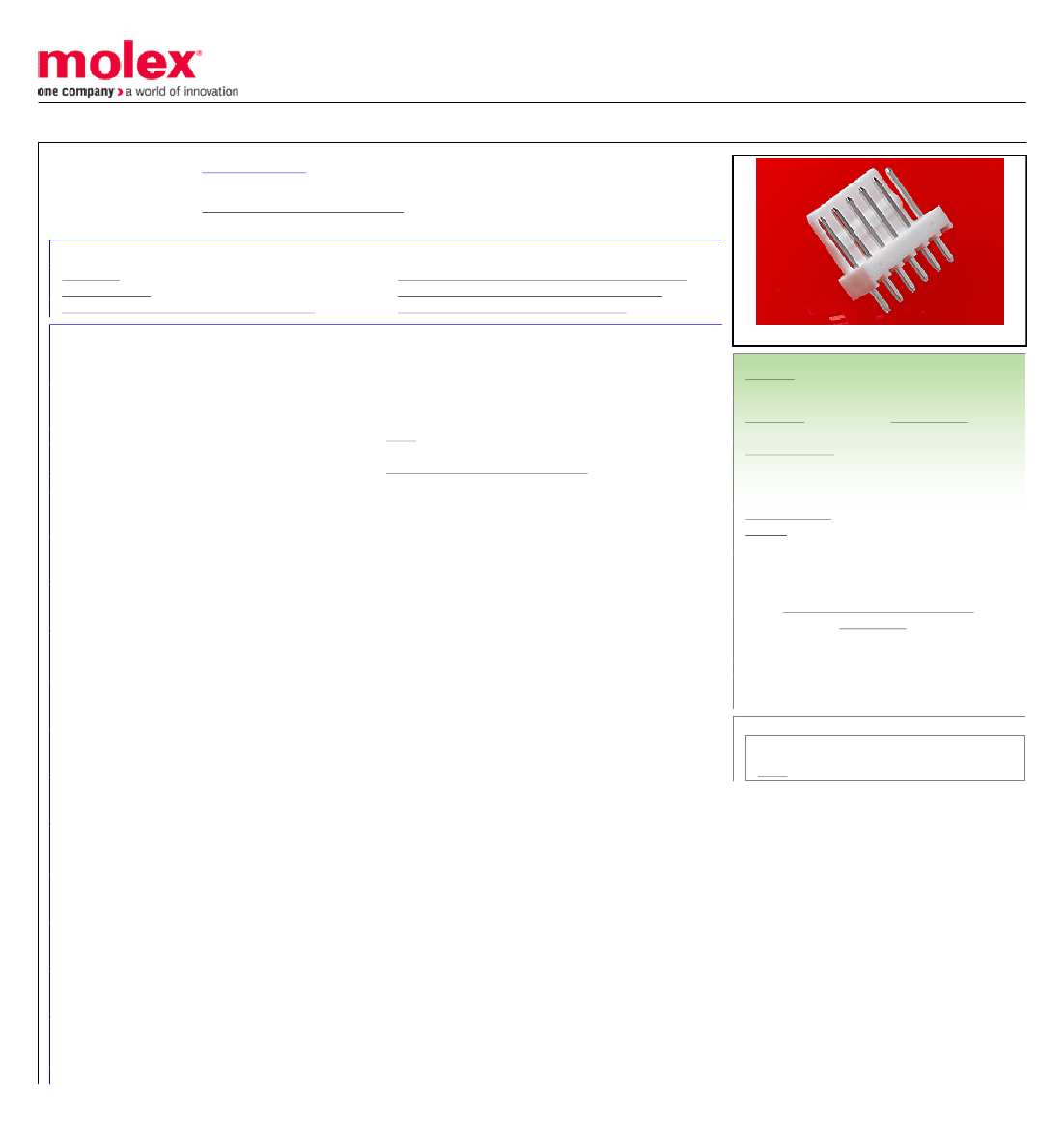

Preview

Download Datasheet

View All

This document was generated on 12/04/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0038004749

Active

KK® Interconnect System - Molex

KK 254 Wire-to-Board Header, Vertical Square Pin, 4 Circuits, Circuit 3 Voided

Documents:

3D Model

Drawing (PDF)

Product Specification PS-10-07-001 (PDF)

Agency Certification

CSA

General

Product Family

Series

Application

Overview

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Flammability

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to Mating Part

Polarized to PCB

Shrouded

Stackable

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Product Specification PS-99020-0088-001 (PDF)

Packaging Specification PK-6410-002 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

LR19980

E29179

PCB Headers

6410

Board-to-Board, Signal

KK® Interconnect System - Molex

KK 254

800754595339

Natural (White)

94V-0

None

Brass

Tin

Nylon

0.411/g

Vertical

3.53mm

None

1.60mm

Bag

2.54mm

5.080µm

Yes

Partial

Yes

-40°C to +105°C

Through Hole

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

6410 Series
