53309-1470 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53309-1470

53309-1470: DescriptionBoard to Board u0026 Mezzanine Connectors 0.8 BtB Wafer Assy R RA 20Ckt EmbsTp Pkg; CategoryThe connector The connector; File Size27KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

53309-1470 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	53309-1470	-	-	View	Buy Now

53309-1470 Overview

Board to Board u0026 Mezzanine Connectors 0.8 BtB Wafer Assy R RA 20Ckt EmbsTp Pkg

53309-1470 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Samacsys Description	Molex 53309, 0.8mm Pitch, 14 Way, 2 Row, Right Angle PCB Header, Surface Mount
body width	0.185 inch
subject depth	0.165 inch
body length	0.291 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	TIN OVER NICKEL
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	NATURAL
insulator material	POLYPHENYLENE SULPHIDE
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.031 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	14
Base Number Matches	1

Preview

Download Datasheet

View All

This document was generated on 12/06/2017

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Description:

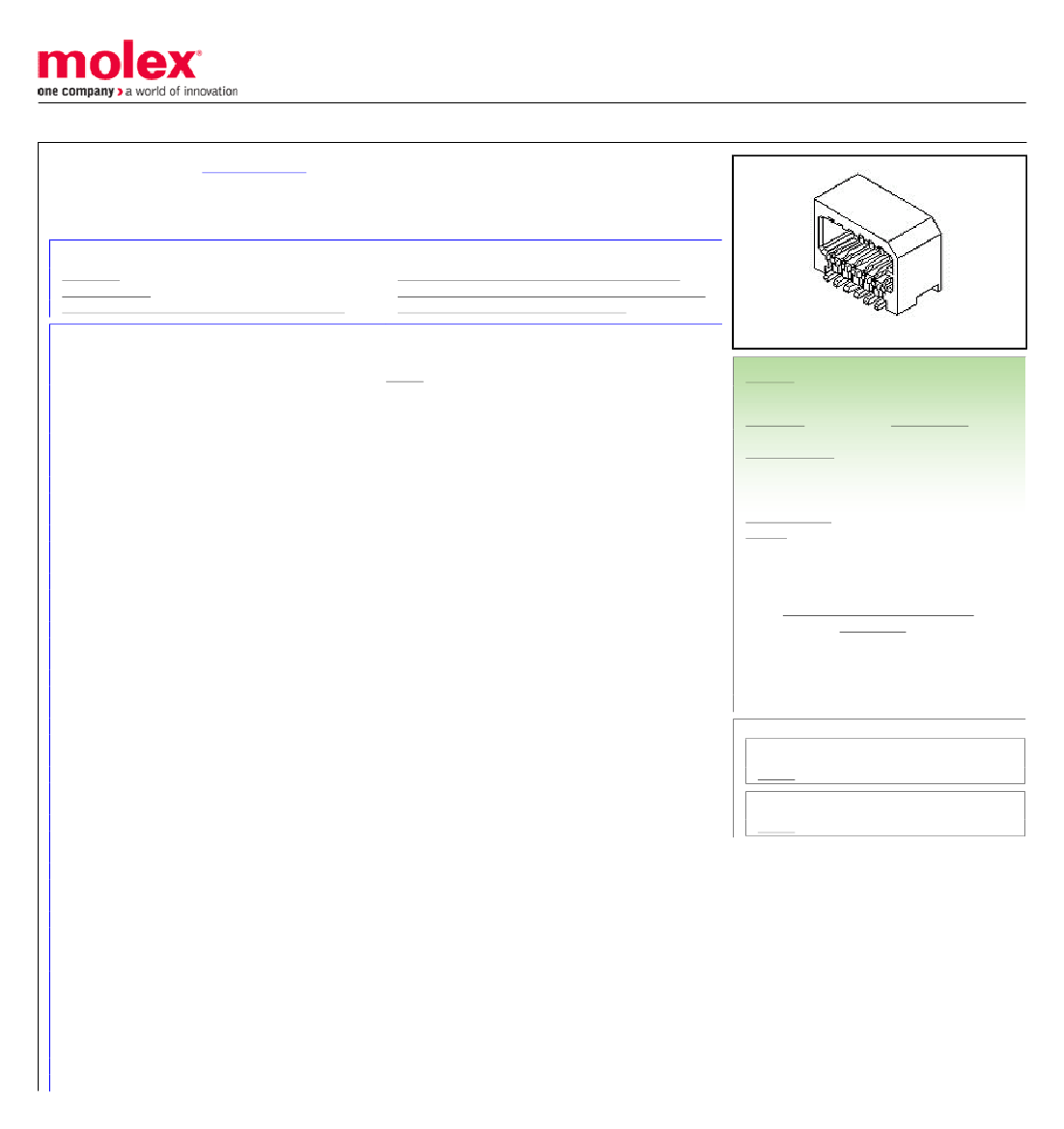

0533091470

Active

0.80mm Pitch Board-to-Board Header, Surface Mount, Dual Row, Right Angle, 14

Circuits

Documents:

3D Model

Drawing (PDF)

Product Specification PS-52465-014-001 (PDF)

General

Product Family

Series

Application

Product Name

UPC

Physical

Breakaway

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Glow-Wire Compliant

Guide to Mating Part

Keying to Mating Part

Lock to Mating Part

Mated Height

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

Packaging Type

Pitch - Mating Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Shrouded

Stackable

Temperature Range - Operating

Termination Interface: Style

Electrical

Current - Maximum per Contact

Voltage - Maximum

Material Info

Reference - Drawing Numbers

Packaging Specification

Product Specification

Product Specification PS-52588-031-001 (PDF)

Packaging Specification SPK-53309-001-001 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

PCB Headers

53309

Board-to-Board, Signal

N/A

822348124251

Natural

None

Yes

5.65mm

Phosphor Bronze

Tin

High Temperature Thermoplastic

258.815/mg

Right Angle

0.40mm, 0.50mm

None

Embossed Tape on Reel

0.80mm

1.016µm

Fully

-40°C to +105°C

Surface Mount

0.5A

50V

EU ELV

Not Relevant

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/30/2017 (7 July

2017)

Halogen-Free

Status

Not Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

RoHS Phthalates

Green Image

Not Relevant

Not Contained

Search Parts in this Series

53309 Series

Mates With

52465 Board-to-Board Receptacle

SPK-53309-001-001

PS-52465-014-001, PS-52588-031-001
