EKI-6340 Series
IEEE 802.11 a/b/g/n Outdoor Wi-Fi AP
Features
High throughput multiple hopping (≥100 Mbps @10 hops)
Ease of use installation utilities: antenna alignment, distance calculation and
site survey tools
Compliant with IEEE 802.11 a/b/g/n
Up to 3 radios for wireless back haul and Access Point
MIMO 2 x 2, up to 300 Mbps data rate
Dual 12 ~ 48 V redundant DC input power
802.3 at PoE input
Gigabit Ethernet support
WEP, WPA, WPA2-PSK/EAP (IEEE 802.1X/RADIUS, TKIP and AES)
IP67 enclosure, wide operating temperature range
EN50155 compliant

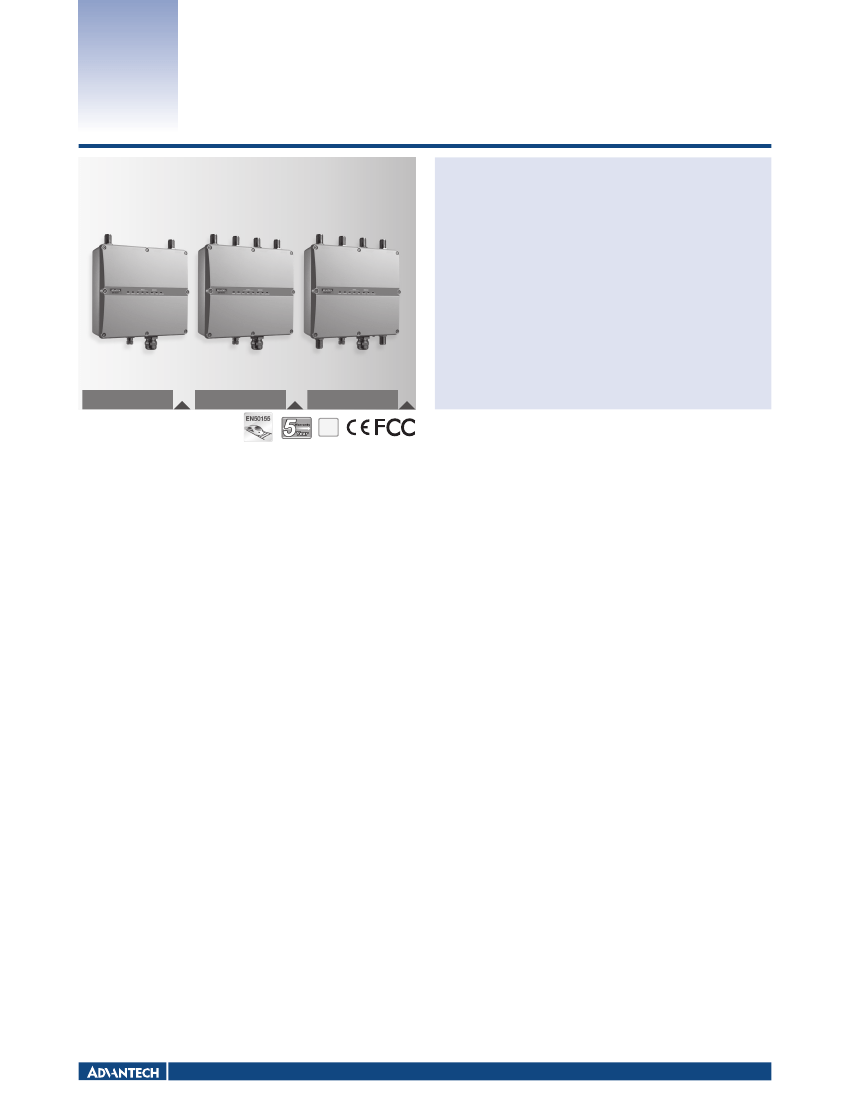

EKI-6340-1
EKI-6340-2
EKI-6340-3
RoHS
COMPLIANT
2011/65/EU
Introduction
The EKI-6340 series are perfect wireless APs for outdoor deployment. It’s especially critical for infrastructures where wired solutions are hard to deploy. The low latency and high
throughput multiple hopping features greatly enables the extension of network coverage. This high throughput network perfectly covers the growing number of data demands such
as video security, surveillance and entertainment. Comprehensive security features prevent system from intrusion. IP67 sturdy waterproof enclosure with wide-temperature design
enables excellent performances under all harsh outdoor environments.
Specifications
Standard Support
Wireless
Ethernet
Data Rates
IEEE 802.11a/b/g/n compliant
IEEE 802.11i, IEEE 802.3/802.3u/802.3ab,
IEEE 802.3at PoE, 802.1d, 802.1w, 802.1q, 802.1p
IEEE 802.11b: 1, 2, 5.5, 11 Mbps
IEEE 802.11a, g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
IEEE 802.11n: @ 800ns (400ns) GI
20 MHz BW
1 Nss: 65 (72.2) Mbps maximal
2 Nss: 130 (144.4) Mbps maximal
40 MHz BW
1 Nss: 135 (150) Mbps maximal
2 Nss: 270 (300) Mbps maximal
Interface
Antenna
N-type female connector
EKI-6340-1: 2 connectors
EKI-6340-2: 4 connectors
EKI-6340-3: 6 connectors
M12 D-code connector
M25 cable gland
Power
LAN
System Operation Mode
Bridge/ Router
Other Features
DHCP Client/Server, Statistic routing table, RIP v1&v2, WMM, Multi-SSID (up
to 16x ESSID for each radio), traffic limitation, IEEE 802.11h DFS, Syslog, L2
management utility, HTTP (s), Telnet, SSH, CLI, SNMP, installation utilities.
Physical Specifications
Power
Dual redundant 12 ~ 48 V
DC
IEEE 802.3at PoE
Power Consumption
Normal operation:
EKI-6340-1 Max. 17 W
EKI-6340-2 Max. 21W
EKI-6340-3 Max. 25 W
Cold start:
EKI-6340-1 Max. 13W
EKI-6340-2/3 Max. 25 W
Dimensions (W x H x D)
225 x 242 x 65 (8.86" x 9.53" x 2.56")
Weight
2.25 Kg
Enclosure
Metal, IP67 protection
Mounting
Pole, Wall, VESA
Modulation Techniques
IEEE 802.11a/n
IEEE 802.11b
IEEE 802.11g/n
OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
DSSS (DBPSK, DQPSK, CCK)
OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
Frequency Range
USA
2.400 ~ 2.483 GHz, 5.725 ~ 5.825 GHz
Europe
2.400 ~ 2.483 GHz, 5.15 ~ 5.35 GHz, 5.47 ~ 5.725 GHz
China
2.400 ~ 2.483 GHz, 5.725 ~5.85 GHz
Note: radio is capable to be operated within FCC DFS2 band or ETSI/EC DFS band, or
other countries which is regulating or is planning to regulate mid -5 GHz band. The usage
of mid -5 GHz band is subject to the regulatory approval status.
Environment
Operating Temperature
-35 ~ 75°C (-31 ~ 167°F)
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Ambient Relative
5% ~ 100% (non-condensing)
Humidity
Certificates
EMC
Radio
Rail Traffic
Safety
US FCC Part 15 Class B & C & E, Europe ETSI 301
489-1&17
ETSI 300 328, ETSI 301 893, FCC 15.247
EN50155, EN50121-1/-4
EN 60950
Industrial Wireless Solutions
All product specifications are subject to change without notice
Last updated : 2-Jun-2015
EKI-6340 Series
Dimensions
242 [9.53]
62 [2.44]
Unit: mm
Panel Cut-out Dimensions: 242 x 225 x 62 mm (9.53" x 8.86" x 2.44")
Ordering Information
EKI-6340-1A
EKI-6340-2A
EKI-6340-3A
802.11 a/b/g/n Outdoor Single Radio AP
802.11 a/b/g/n Outdoor Dual Radio AP
802.11 a/b/g/n Outdoor Triple Radio AP
225 [8.86]
EKI-6340-1U
EKI-6340-2U
EKI-6340-3U
802.11 a/b/g/n Outdoor Single Radio AP (EU)
802.11 a/b/g/n Outdoor Dual Radio AP (EU)
802.11 a/b/g/n Outdoor Triple Radio AP (EU)
Transmit Power Settings (Typical Composite Power) Tolerance: +2/-2 dB
802.11a
+19 dBm @ 6, 9, 12, 18, 24 Mbps
+18 dBm @ 36 Mbps
+17 dBm @ 48 Mbps
+15 dBm @ 54 Mbps
-
-
-
-
802.11b
+19 dBm
-
-
-
-
-
-
-
802.11g
+22 dBm @ 6, 9, 12, 18,
24 Mbps
+21 dBm @ 36 Mbps
+20 dBm @ 48 Mbps
+18 dBm @ 54 Mbps
-
-
-
-
802.11n 2.4GHz/HT20
+20 dBm @ MCS 0/8
+20 dBm @ MCS 1/9
+20 dBm @ MCS 2/10
+20 dBm @ MCS 3/11
+20 dBm @ MCS 4/12
+20 dBm @ MCS 5/13
+18 dBm @ MCS 6/14
+16 dBm @ MCS 7/15
802.11n 2.4GHz/HT40
+20 dBm @ MCS 0/8
+20 dBm @ MCS 1/9
+20 dBm @ MCS 2/10
+20 dBm @ MCS 3/11
+19 dBm @ MCS 4/12
+19 dBm @ MCS 5/13
+17 dBm @ MCS 6/14
+15 dBm @ MCS 7/15
802.11n 5GHz/HT20
+18 dBm @ MCS 0/8
+18 dBm @ MCS 1/9
+18 dBm @ MCS 2/10
+18 dBm @ MCS 3/11
+18 dBm @ MCS 4/12
+18 dBm @ MCS 5/13
+17 dBm @ MCS 6/14
+13 dBm @ MCS 7/15
802.11n 5GHz/HT40
+17 dBm @ MCS 0/8
+17 dBm @ MCS 1/9
+17 dBm @ MCS 2/10
+17 dBm @ MCS 3/11
+17 dBm @ MCS 4/12
+17 dBm @ MCS 5/13
+16 dBm @ MCS 6/14
+12 dBm @ MCS 7/15
Receiver Sensitivity
Data Rate
802.11a
6M
9M
12M
18M
24M
36M
48M
54M
5.5M
11M
6M
9M
12M
18M
24M
36M
54M
MCS0
MCS1
MCS2
MCS3
MCS4
MCS5
MCS6
MCS7
IEEE Spec
(1 Rx dBm)
-80
-79
-77
-75
-72
-68
-64
-63
-79
-75
-81
-80
-78
-76
-73
-69
-64
-80
-77
-75
-72
-68
-64
-63
-62
Typical/Maximum
(2 Rx dBm)
-93/-89
-93/-89
-92/-88
-90/-86
-86/-82
-83/-79
-79/-75
-77/-73
-94/-90
-90/-86
-94/-90
-94/-90
-93/-89
-92/-88
-89/-85
-85/-81
-79/-75
-93/-89
-91/-87
-88/-84
-85/-81
-82/-78
-78/-74
-77/-73
-75/-71
Data Rate
802.11a/n HT40
MCS0
MCS1
MCS2
MCS3
MCS4
MCS5
MCS6
MCS7
MCS0
MCS1
MCS2
MCS3
MCS4
MCS5
MCS6
MCS7
MCS0
MCS1
MCS2
MCS3
MCS4
MCS5
MCS6
MCS7
-77
-74
-72
-69
-65
-61
-60
-59
-81
-78
-76
-73
-69
-65
-64
-63
-78
-75
-73
-70
-66
-62
-61
-60
IEEE Spec
(1 Rx dBm)
Typical/Maximum
(2 Rx dBm)
-89/-85
-88/-84
-85/-81
-82/-78
-80/-76
-76/-72
-74/-70
-72/-68
-94/-90
-93/-89
-91/-87
-87/-83
-84/-80
-79/-75
-78/-74
-76/-72
-89/-85
-89/-85
-88/-84
-84/-80
-81/-77
-77/-73
-76/-72
-73/-70
802.11b
802.11g
802.11b/g/n HT20
802.11b/g/n HT40
802.11a/n HT20
Online Download
www.advantech.com/products
