W038-0620-400-Z datasheet, PDF

Datasheet> All Categories > The connector> The connector> W038-0620-400-Z

W038-0620-400-Z: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size243KB，1 Pages; ManufacturerSMP Technology Inc.

Download Datasheet Parametric View All

W038-0620-400-Z Overview

Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle

W038-0620-400-Z Parametric

Parameter Name	Attribute value
Maker	SMP Technology Inc.
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
body width	0.201 inch
subject depth	0.366 inch
body length	0.55 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	W038
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	6
Base Number Matches	1

Preview

Download Datasheet

View All

# of Contacts

ELECTRICAL:

CURRENT RATING: 3A AC/DC

VOLTAGE RATING: 250V AC/DC

CONTACT RESISTANCE: 30 m

Ω

max.

WITHSTANDING VOLTAGE: 1000V AC for 1 min.

INSULATION RESISTANCE: 1000 M

Ω

min.

TEMPERATURE RANGE: -25°C to 85°C

HOW TO ORDER:

MATERIAL:

# OF POSITIONS:

02 - 16 Position

PACKAGING:

4 - Plastic Bag (1000 pcs)

RoHS

COMPLIANT

CONTACT: Copper Alloy, Tin Plated

INSULATOR: Nylon 66 UL94V-0

HOUSING & TERMINATION TYPE:

2 - Right Angle Header Thru Hole

Drawn Checked Approved

S.M.

B.S.

Date

5/7/07

Rev

0 Issued

SMP TECHNOLOGY, INC.

SCALE:n/a

TOL. DEC.

.X +/- 0.3

.XX +/- 0.2

.XXX +/- 0.1

ANGLE +/-

UNIT: mm

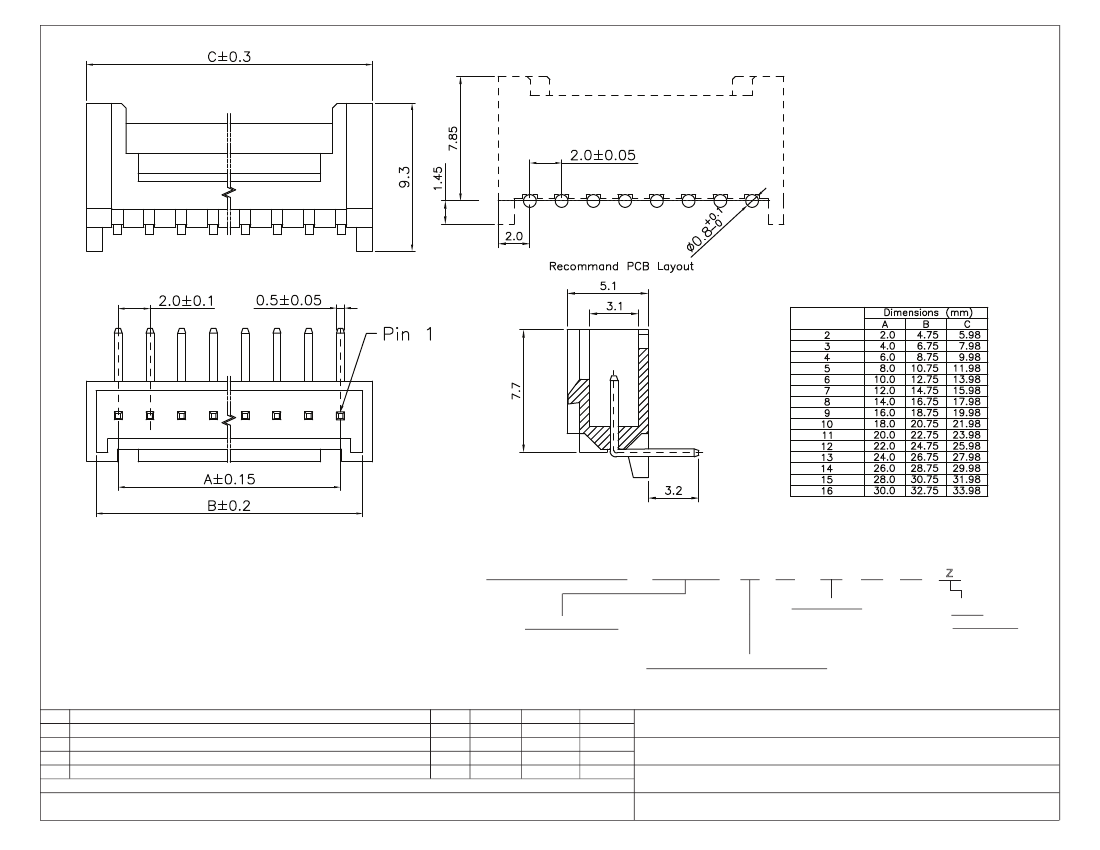

Header, 2.0mm Pitch, Right Angle, Thru Hole, Yeonho SM Type

P/N:W038-XX20-400-Z

Pg: 1
