DM160211 Overview

Touch Sensor Development Tools mTouch Projected Cap Dev Kit

DM160211 Parametric

Parameter Name	Attribute value
Product Category	Touch Sensor Development Tools
Manufacturer	Microchip
RoHS	Details
Operating Supply Voltage	1.8 V to 5.5 V
Interface Type	UART, USB
Factory Pack Quantitycutbxffzwdxyzbeeyvfdv	1
Unit Weight	8.818490 oz

Preview

Download Datasheet

View All

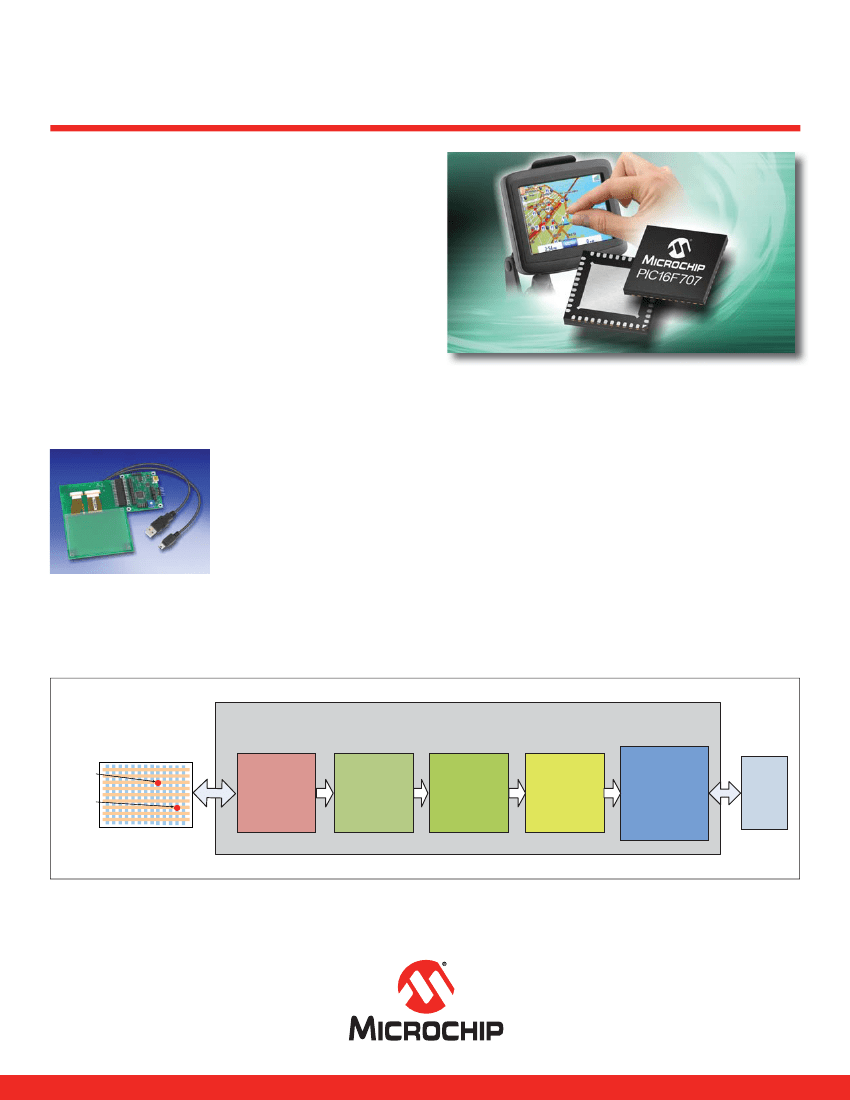

mTouch

™

Projected Capacitive

Touch-Screen Sensing Technology

Microchip’s mTouch™ Projected Capacitive Touch-Screen

Sensing Technology and development kit provide a royalty-

free solution with GUI-based tools. This ﬂexible, low cost,

low power solution facilitates the design and integration of

projected capacitive touch-screen applications.

Beneﬁts of mTouch Projected Capacitive

Touch-Screen Sensing Technology

■

High Flexibility

–

Easily accessible solution via royalty-free source code

license

■

Low-Cost PIC16F707 Microcontroller

– < $0.99 each in volume

■

Low Power

–

Wide operating voltage range of 1.8V-5.5V

–

Operating Current 1.5 mA at 5V typical

Key Performance Characteristics

(Based on development kit DM160211)

Touch Screen Support:

up to 3.5" diagonal, independent XY

tracking for 2 touches in real time

Number of Channels:

dev kit channels 12 x 9, 108 nodes;

software expandable to 24 channels & 144 nodes

Response Time:

<15 ms typical

Report Rate:

Single Point: 65 pps, Two Points: 55 pps

Power Consumption:

operating 1.5 mA typical, sleep 20

μA

Resolution:

128 bar-to-bar, scaled to 1024 x 1024

Package Size:

44-pin 8 x 8 mm QFN & TQFP

Communication:

UART to USB convertor on dev kit for easy

connection to any PC

Technology:

Gesture Capable, Auto adjusts for

environmental changes (baseline, calibrate, drift)

mTouch Projected Capacitive Development Kit

(DM160211)

The mTouch Projected

Capacitive Development

Kit includes a 3.5” sensor

mounted on a sensor board,

a projected-capacitive board

with the PIC16F707 MCU and

fully functional firmware. The

kit enables users to connect

sensors to up to 24 channels

without modifying the firmware.

Web Links

Touch Sensing Design Center:

www.microchip.com/mtouch

Projected Capacitive

Touch Sensor

Touch #1

PIC16F707 with Projected Capacitive

Royalty-Free Code

Capacitive

Sense Module

(CSM)

C™

(Synchronous

Serial Port)

UART

(AUSART)

Touch #2

Baseline

Detection

Touch Position

Interpolation

Multi-Touch

Processing

Host

CPU

Microchip Technology Incorporated
