AP-FM0512D5605S-TW1M datasheet, PDF

Datasheet> All Categories > storage> AP-FM0512D5605S-TW1M

AP-FM0512D5605S-TW1M: DescriptionSolid State Drives - SSD ATA Disk Module SLC 40P/180D 5V 512MB; Categorystorage; File Size561KB，19 Pages; ManufacturerApacer

Download Datasheet Parametric View All

AP-FM0512D5605S-TW1M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AP-FM0512D5605S-TW1M	-	-	View	Buy Now

AP-FM0512D5605S-TW1M Overview

Solid State Drives - SSD ATA Disk Module SLC 40P/180D 5V 512MB

AP-FM0512D5605S-TW1M Parametric

Parameter Name	Attribute value
Product Category	Solid State Drives - SSD
Manufacturer	Apacer
RoHS	Details
Configuration	SLC
Packaging	Bulk
Factory Pack Quantity	1

Preview

Download Datasheet

View All

RoHS Recast Compliant

ATA Disk Module 5S

ADM5S 40P/180D Specifications

November 26, 2015

Version 1.1

Apacer Technology Inc.

1F, No.32, Zhongcheng Rd., Tucheng Dist., New Taipei City, Taiwan, R.O.C

Tel: +886-2-2267-8000

www.apacer.com

Fax: +886-2-2267-2261

ADM5S

AP-FMxxxxD560XS-XTXXX

Table of Contents

1. General Description .............................................................................. 3

1.1 Performance-Optimized Controller ...................................................................................................... 3

1.1.1 Power Management ...................................................................................................................... 3

1.1.2 DATA Buffer .................................................................................................................................. 3

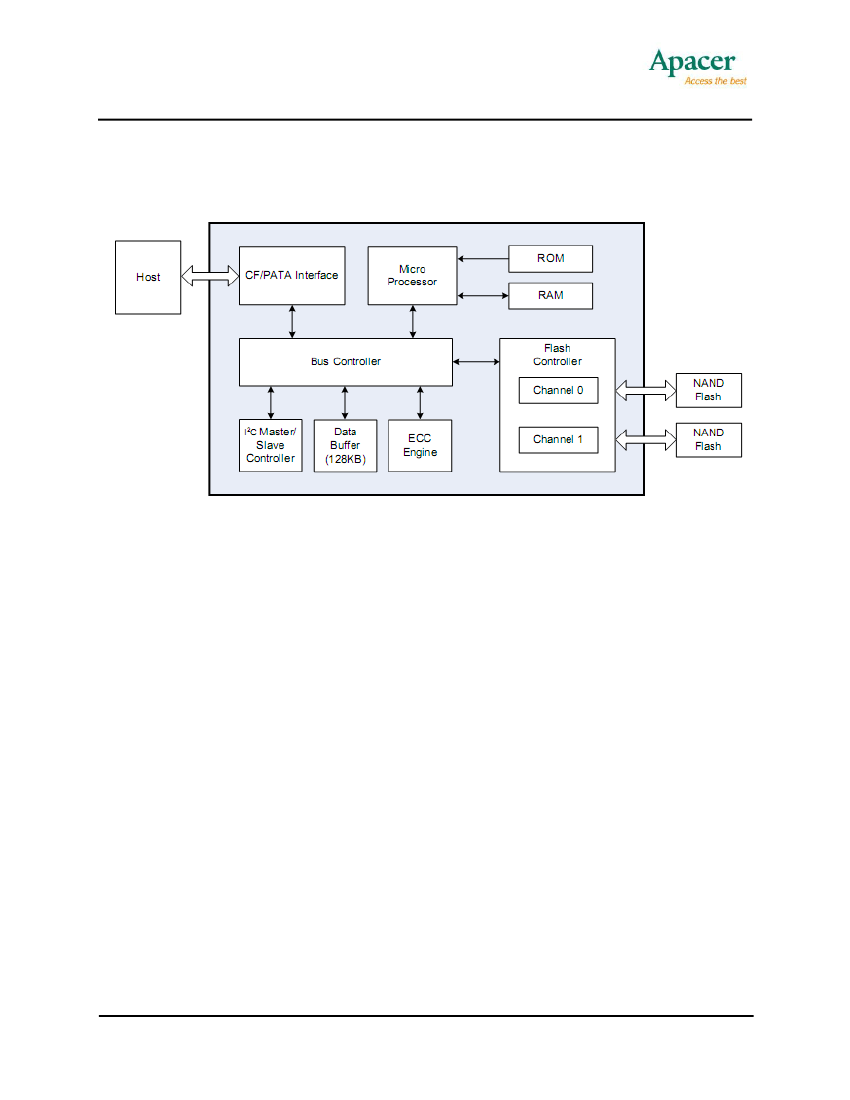

2. Functional Block ................................................................................... 4

3. Pin Assignments .................................................................................... 5

4. Product Specifications.......................................................................... 6

4.1 Capacity ............................................................................................................................................... 6

4.2 Performance ........................................................................................................................................ 6

4.3 Environmental Specifications .............................................................................................................. 7

5. Flash Management ................................................................................ 8

5.1 Advanced wear-leveling algorithms..................................................................................................... 8

5.2 Built-in Hardware ECC ........................................................................................................................ 8

5.3 Flash Block Management .................................................................................................................... 8

5.4 Power Failure Management ................................................................................................................ 8

6. Software Interface ................................................................................ 9

7. Electrical Specifications..................................................................... 11

8. Mechanical Specifications ................................................................. 12

8.1 Without Housing ................................................................................................................................ 12

8.2 With Housing ..................................................................................................................................... 13

9. Product Ordering Information ............................................................. 14

Rev. 1.1

ADM5S

AP-FMxxxxD560XS-XTXXX

1. General Description

Apacer ATA Disk Module 5S (ADM5S) SSD delivers ultra smooth performance and extremely low power

consumption. This device supports DMA mode up to UDMA 6 that offers advanced data transfer

technology and internal memory efficiency, which effectively decreases the loading for the microprocessor.

Compliant with ATA/ATAPI-8 standards, our ADM5S supports data transfer modes up to PIO 4, Multiword

DMA 2, and Ultra DMA 6. Equipped with power Error Correction Coding (ECC) up to 72 bit/1KB, the

ADM5S can provide high data integrity. Aside from data efficiency, the ADM5S also comes with power

management. The device can work at 3.3V or 5V power supply, with the output voltage automatically

adjusted by the voltage regulator in the core. In addition, the built-in ECC engine can support multi-mode

correction capability up to 72 bits and perform effective decoding throughput with high reliability.

Well suited for embedded flash storage applications by offering new and expanded functionalities as well

as more cost-effective designs, better performance and increased reliability, ADM is designed to work at

either 5 or 3.3 Volts, and supports the standard ATA driver complying with all major operating systems

such as Microsoft’s Windows series, Apple’s Mac OS family, and Unix variants. Featuring technologies as

Advanced Wear-leveling algorithms, S.M.A.R.T, Intelligent Power Failure Recovery, and ATA Secure

Erase, Apacer’s ADM assures users of a versatile device on data storage.

1.1 Performance-Optimized Controller

The heart of an ATA-Disk Module is the ATA controller, which translates standard ATA signals into the

data and controls of the flash media. This proprietary ATA controller is specifically designed to attain high

data throughput from the host to the flash.

1.1.1 Power Management

The controller unit of this ADM storage device is made for power efficiency. It comes with built-in 2.7V

voltage detectors for power fail prevention. In addition, it also supports 1.2V power-on reset.

1.1.2 DATA Buffer

The ATA-Disk Module Controller is programmed with a 128KB data buffer to optimize the host’s data

transfer to and from the flash media.

Rev. 1.1
