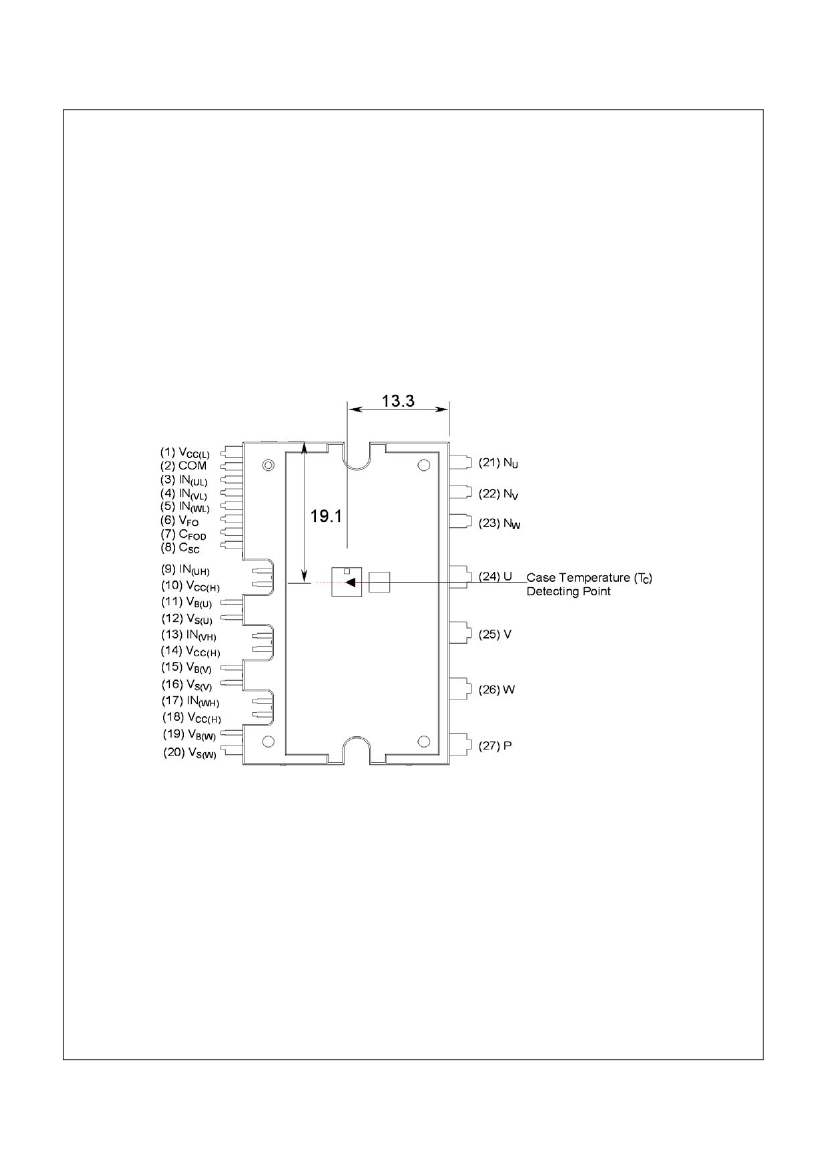

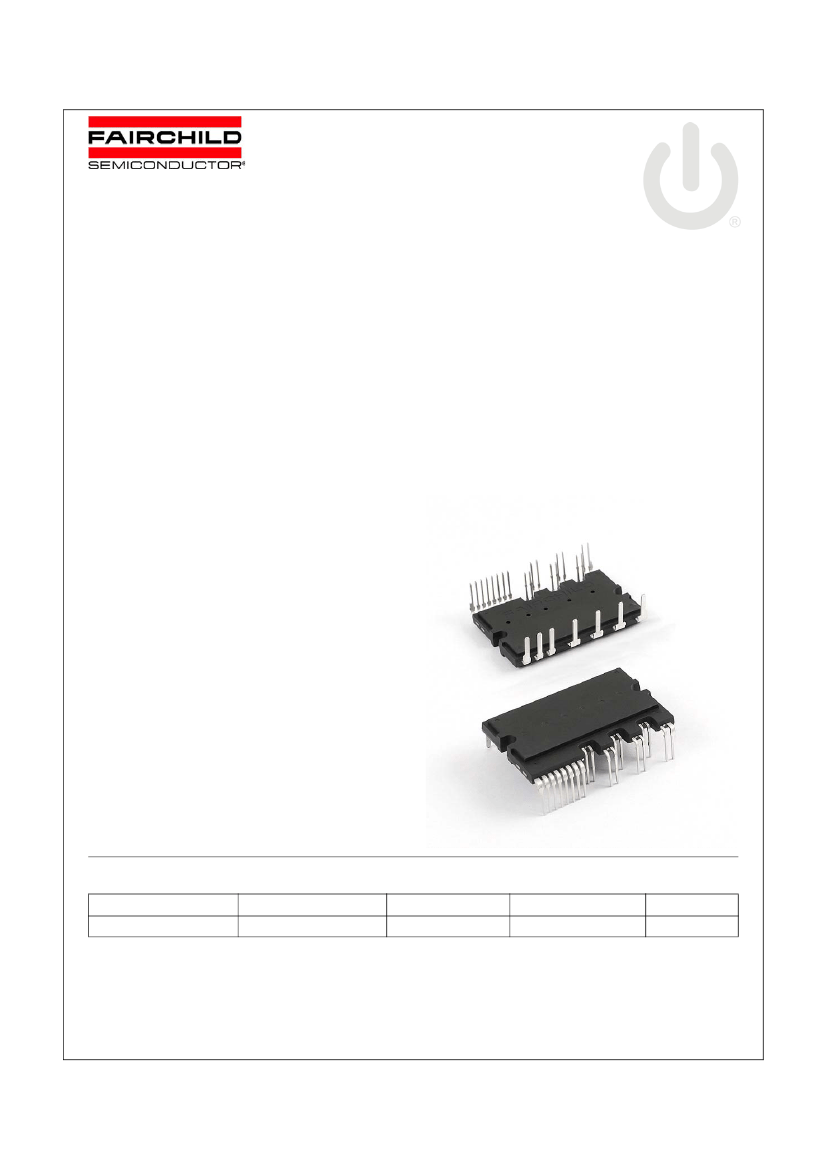

FSBF15CH60BT Motion SPM® 3 Series
January 2014
FSBF15CH60BT
Motion SPM
®
3 Series
Features
• UL Certified No. E209204 (UL1557)
• 600 V - 15 A 3-Phase IGBT Inverter with Integral Gate
Drivers and Protection
• Low-Loss, Short-Circuit Rated IGBTs
• Built-In Bootstrap Diodes and Dedicated Vs Pins Sim-
plify PCB Layout
• Separate Open-Emitter Pins from Low-Side IGBTs for
Three-Phase Current Sensing
• Single-Grounded Power Supply
• Isolation Rating: 2500 V
rms
/ min.
General Description
FSBF15CH60BT is an advanced Motion SPM
®
3 module
providing a fully-featured, high-performance inverter out-
put stage for AC Induction, BLDC, and PMSM motors.
These modules integrate optimized gate drive of
the built-in IGBTs to minimize EMI and losses, while also
providing multiple on-module protection features includ-
ing under-voltage lockouts, over-current shutdown, and
fault reporting. The built-in, high-speed HVIC requires
only a single supply voltage and translates the incoming
logic-level gate inputs to the high-voltage, high-current
drive signals required to properly drive the module's
internal IGBTs. Separate negative IGBT terminals are
available for each phase to support the widest variety of
control algorithms.
Applications
• Motion Control - Home Appliance / Industrial Motor
