93LC46B/PA26 datasheet, PDF - EEWORLD Datasheet

93LC46B/PA26: Description64 X 16 MICROWIRE BUS SERIAL EEPROM, PDIP8, 0.300 INCH, PLASTIC, DIP-8; Categorystorage storage; File Size306KB，12 Pages; ManufacturerMicrochip; Websitehttps://www.microchip.com; Environmental Compliance

Download Datasheet Parametric View All

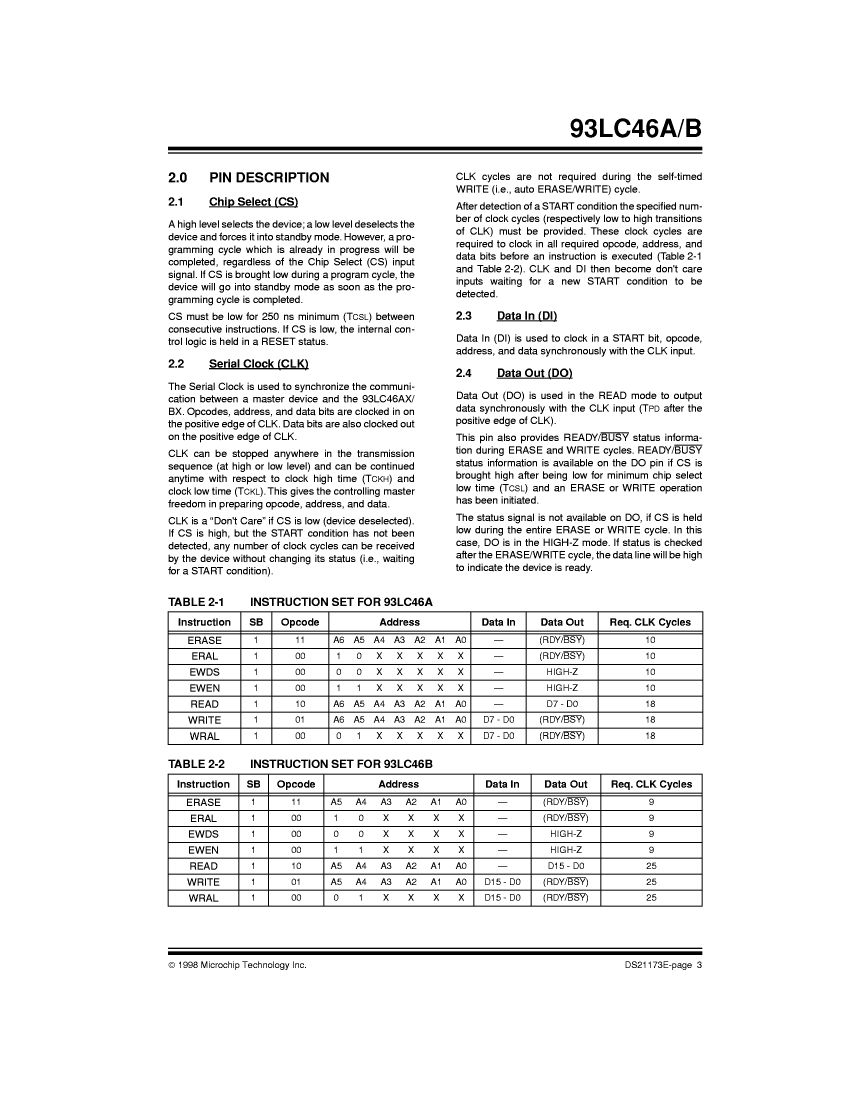

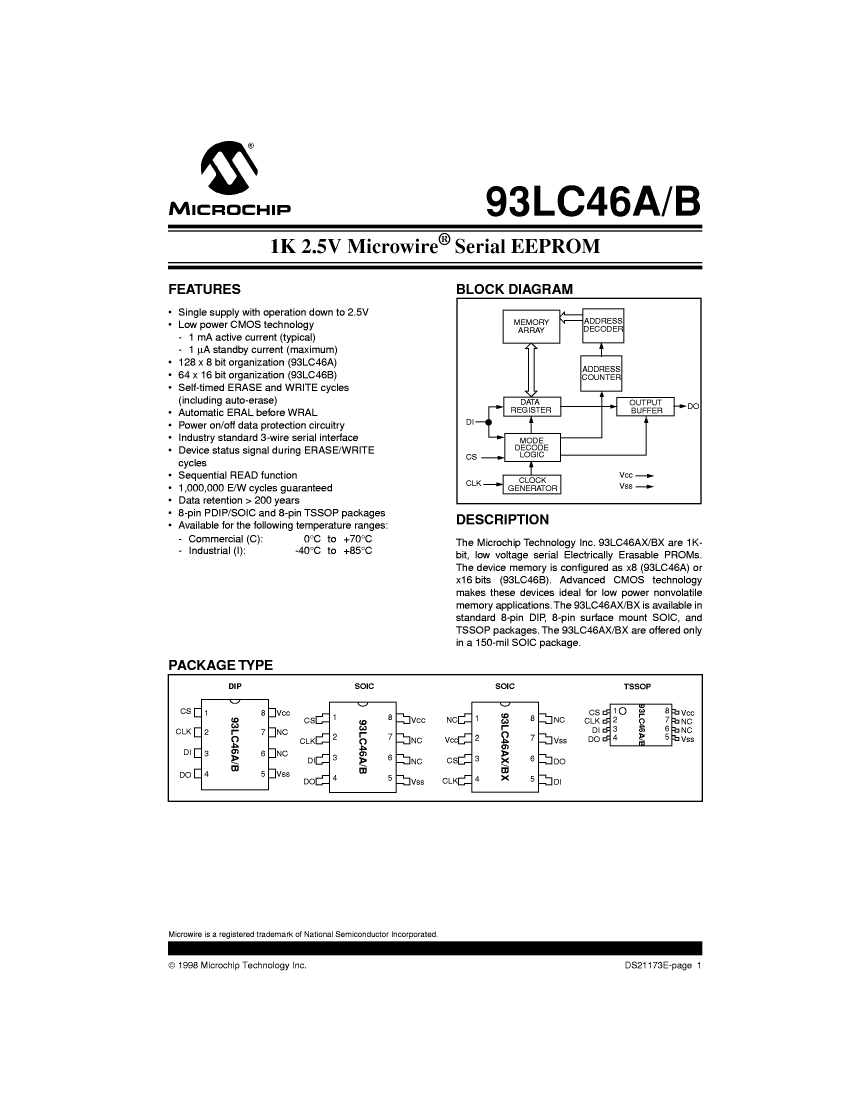

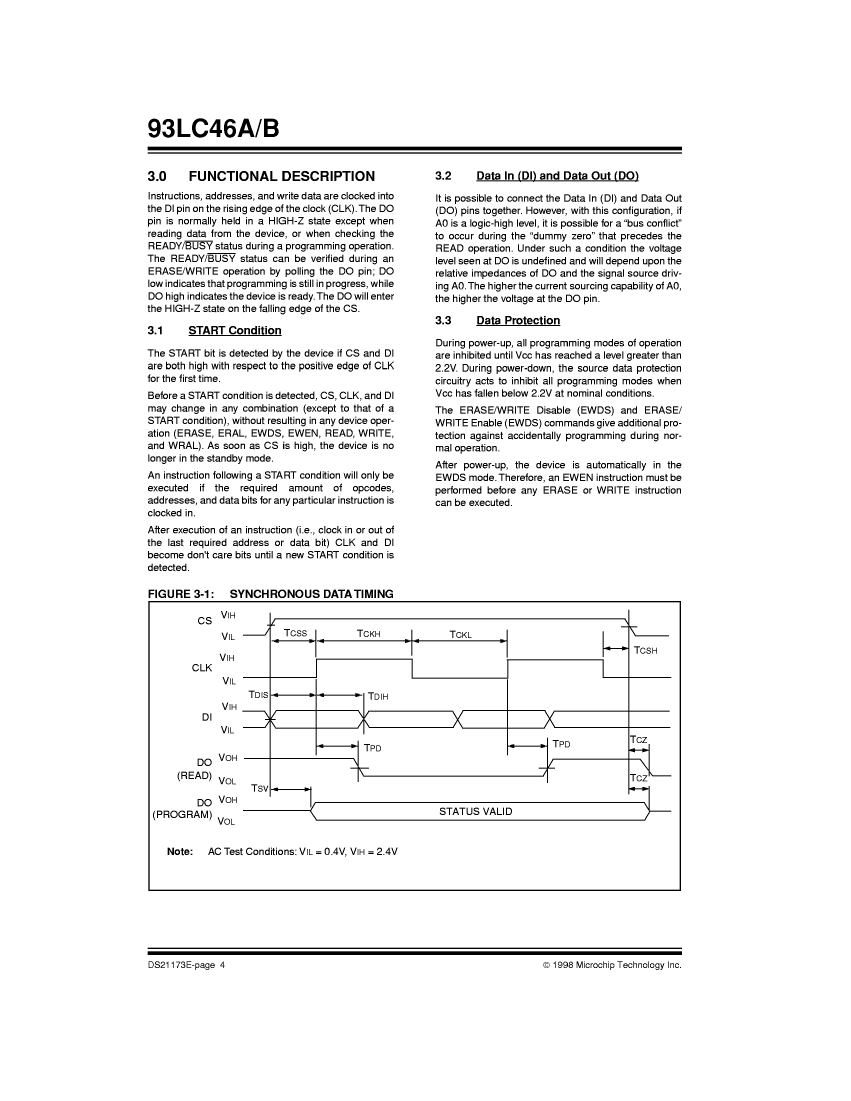

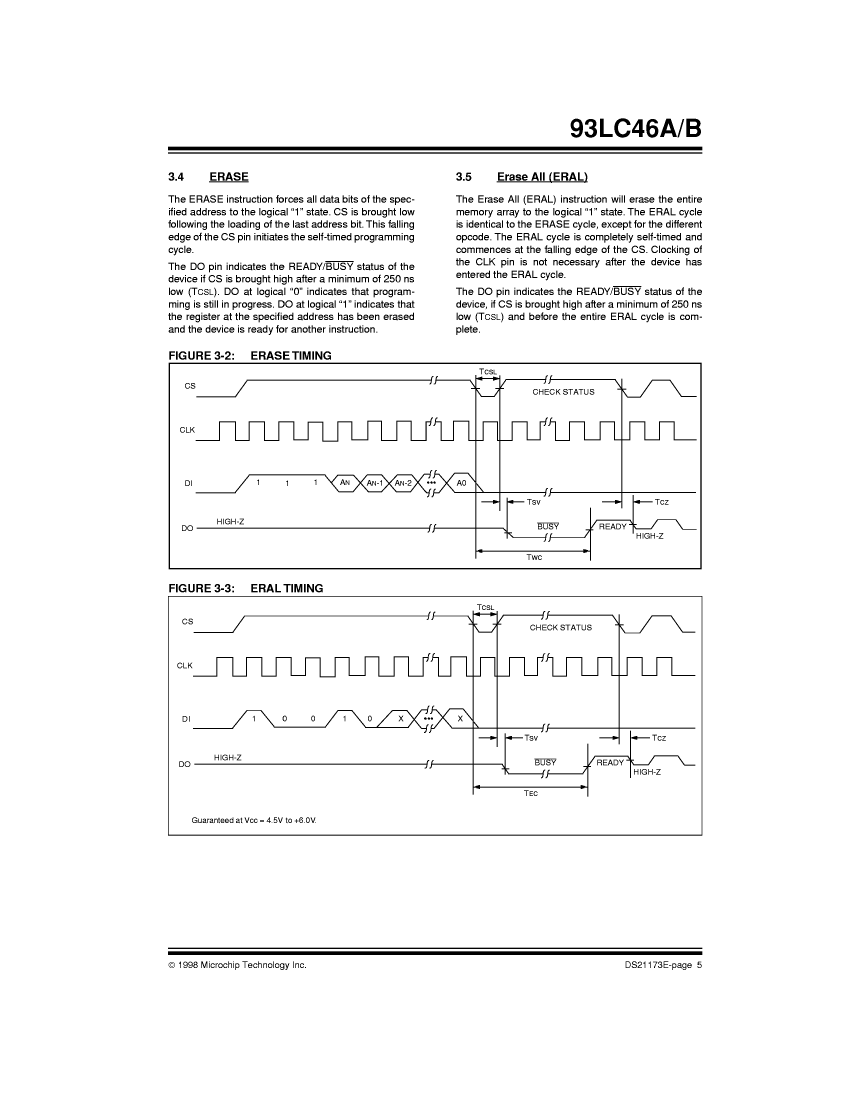

93LC46B/PA26 Overview

64 X 16 MICROWIRE BUS SERIAL EEPROM, PDIP8, 0.300 INCH, PLASTIC, DIP-8

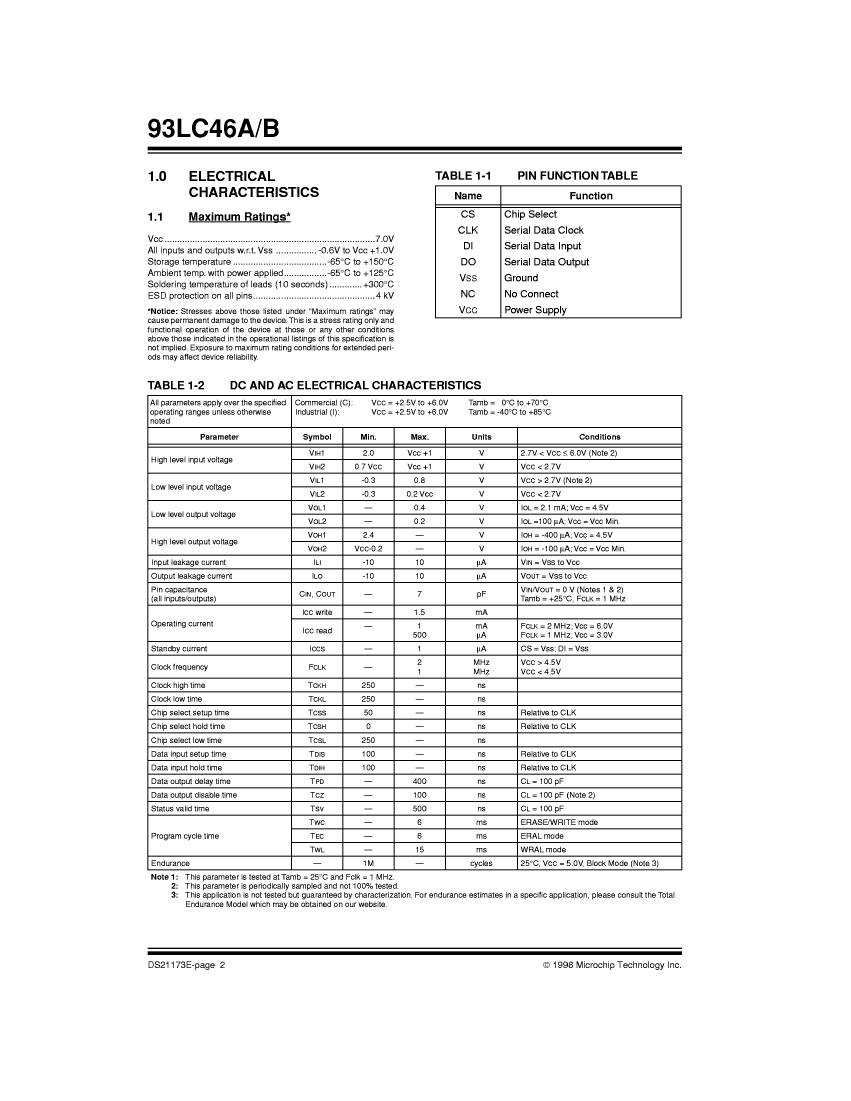

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	DIP
package instruction	DIP,
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	1000000 ERASE/WRITE CYCLES MIN; DATA RETENTION > 200 YEARS
Maximum clock frequency (fCLK)	2 MHz
Data retention time - minimum	200
JESD-30 code	R-PDIP-T8
JESD-609 code	e3
memory density	1024 bit
Memory IC Type	EEPROM
memory width	16
Number of functions	1
Number of terminals	8
word count	64 words
character code	64
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	64X16
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	SERIAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Serial bus type	MICROWIRE
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2.5 V
Nominal supply voltage (Vsup)	2.7 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum write cycle time (tWC)	6 ms
Base Number Matches	1
