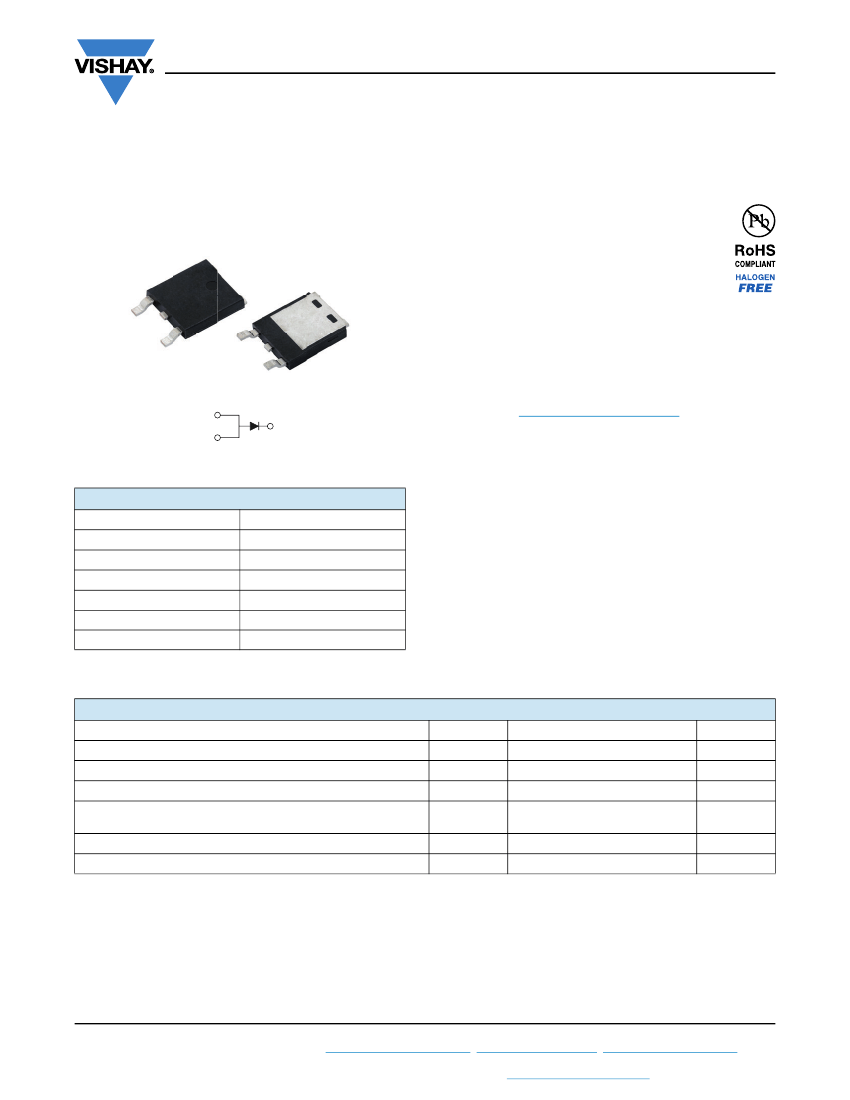

V35PW45

www.vishay.com

Vishay General Semiconductor

High Current Density Surface Mount

Trench MOS Barrier Schottky Rectifier

Ultra Low V

= 0.27 V at I

= 5 A

FEATURES

• Very low profile - typical height of 1.3 mm

TMBS

eSMP

Series

• Trench MOS Schottky technology

• Ideal for automated placement

• Low forward voltage drop, low power losses

• High efficiency operation

• Meets MSL level 1, per J-STD-020, LF maximum peak

of 260 °C

SlimDPAK

(TO-252AE)

PIN 1

PIN 2

HEATSINK

• AEC-Q101 qualified available

- Automotive ordering code: base P/NHM3

• Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

TYPICAL APPLICATIONS

For use in low voltage high frequency DC/DC converters,

freewheeling diodes, and polarity protection applications.

PRIMARY CHARACTERISTICS

F(AV)

RRM

FSM

at I

= 35 A (T

= 125 °C)

max.

Package

Circuit configuration

35 A

45 V

260 A

0.46 V

150 °C

SlimDPAK (TO-252AE)

Single

MECHANICAL DATA

Case:

SlimDPAK (TO-252AE)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-M3 - halogen-free, RoHS-compliant

Base P/NHM3 - halogen-free, RoHS-compliant, and

AEC-Q101 qualified

Terminals:

matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

M3 and HM3 suffix meets JESD 201 class 2 whisker test

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Device marking code

Maximum repetitive peak reverse voltage

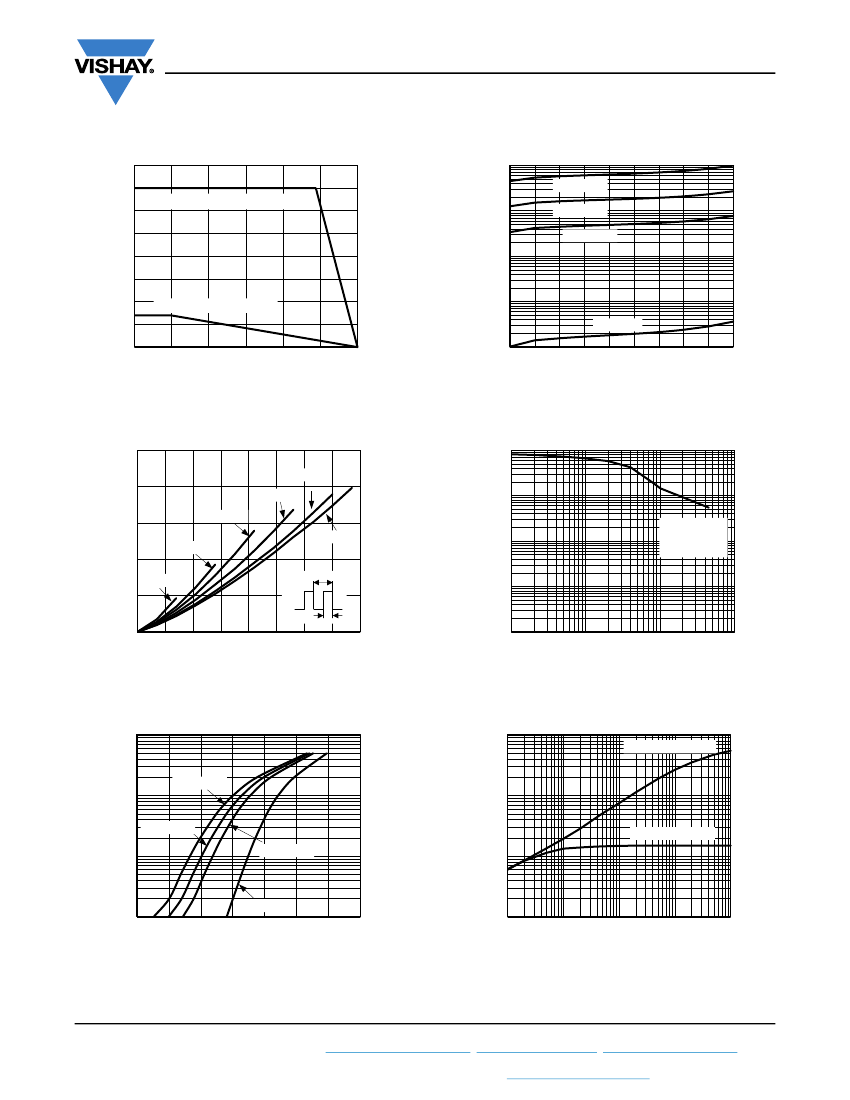

Maximum average forward rectified current (Fig. 1)

Peak forward surge current 8.3 ms single half sine-wave

superimposed on rated load

Operating junction temperature range

Storage temperature range

RRM

F(AV) (1)

FSM

J (2)

STG

SYMBOL

V35PW45

260

-40 to +150

-55 to +150

°C

UNIT

Notes

(1)

With infinite heatsink

(2)

The heat generated must be less than the thermal conductivity from junction to ambient: dP /dT < 1/R

θJA
