COMPONENTS PRODUCT INFORMATION
NEW
DisplayPort
TM
Standard Digital Interface Connector
CONNECTOR
MB-0192-1
October 2008
DP1 Series
RoHS Compliant

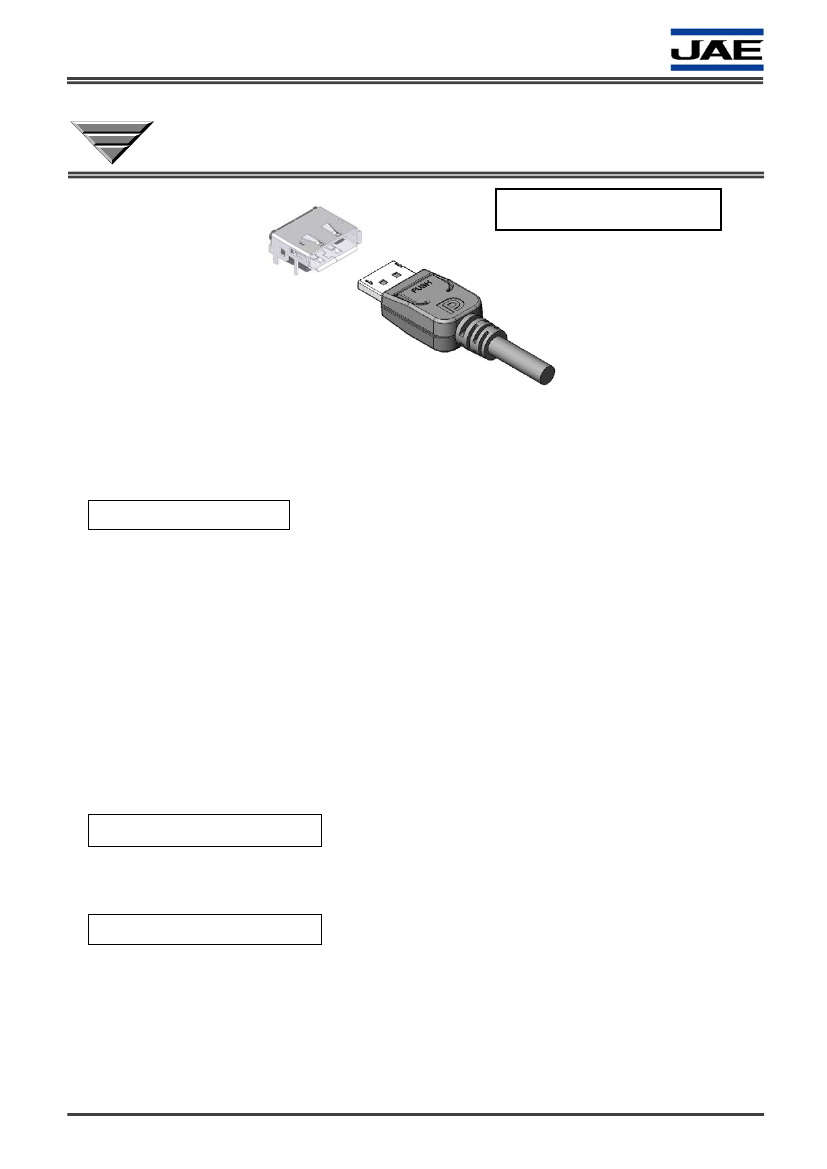

The DP1 Series is a high speed differential transmission board-to-cable connector
compatible with the Display Port v1.1a, the VESA standardized next-generation digital
display interface.
*VESA (Video Electronics Standard Association)
Features
Receptacle is available in reverse SMT type for reverse mounting, angle SMT with
flange, standard angle SMT(mating height 6.5mm, thickest area 6.65mm), and angle
through-hole types (soldered terminal area 1.9mm, applicable board thickness t1.6).
Reinforced-type receptacle available with enhanced metal shell structure, robust
against rough handling of cable during mating and unmating (DP1RD20JQ4).
Excellent transmission with three-row footprint for through-hole type receptacle.
Plugs are available as part of cables in 12.2mm height with latch (mechanical lock) for
increased retention, and 10mm height slim type without latch.
Cable assembly passed compliance test certification by VESA. (2m, 32 AWG)
Nickel and tin plating available for receptacle shell. With 0.3um min. gold plating for
contact.
Applicable Markets
Desktop PC, notebook PC, LCD monitor, graphic board, LCD projector,
LCD television, PDP, etc.
General Specifications
No. of Contacts: 20 pos.
Contact Resistance:
Contact area --- 50m ohm max.
Shell area --- 30m ohm max.
Dielectric Withstanding Voltage :
AC 500V rms per minute
Rated Current: 0.5A per contact
Insulation Resistance: 100M ohm min.
(after test)
Mating Cycles: 10,000 times
Operating Temperature:
-20 Deg. C to +85 Deg. C
1/12
JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd.
MB-0192-1
SJ Drawing No.
DP Cable Adapters
Drawing
Under
development
Under
development
Under
development
Products under
consideration
AWG
-
-
-
Product type
Type
Remarks
DVI is single link
DP source to DVI-D
DP source to HDMI
DP source to VGA
DP to DVI
DP to HDMI
DP to VGA
-
-
-
Materials / Finishes

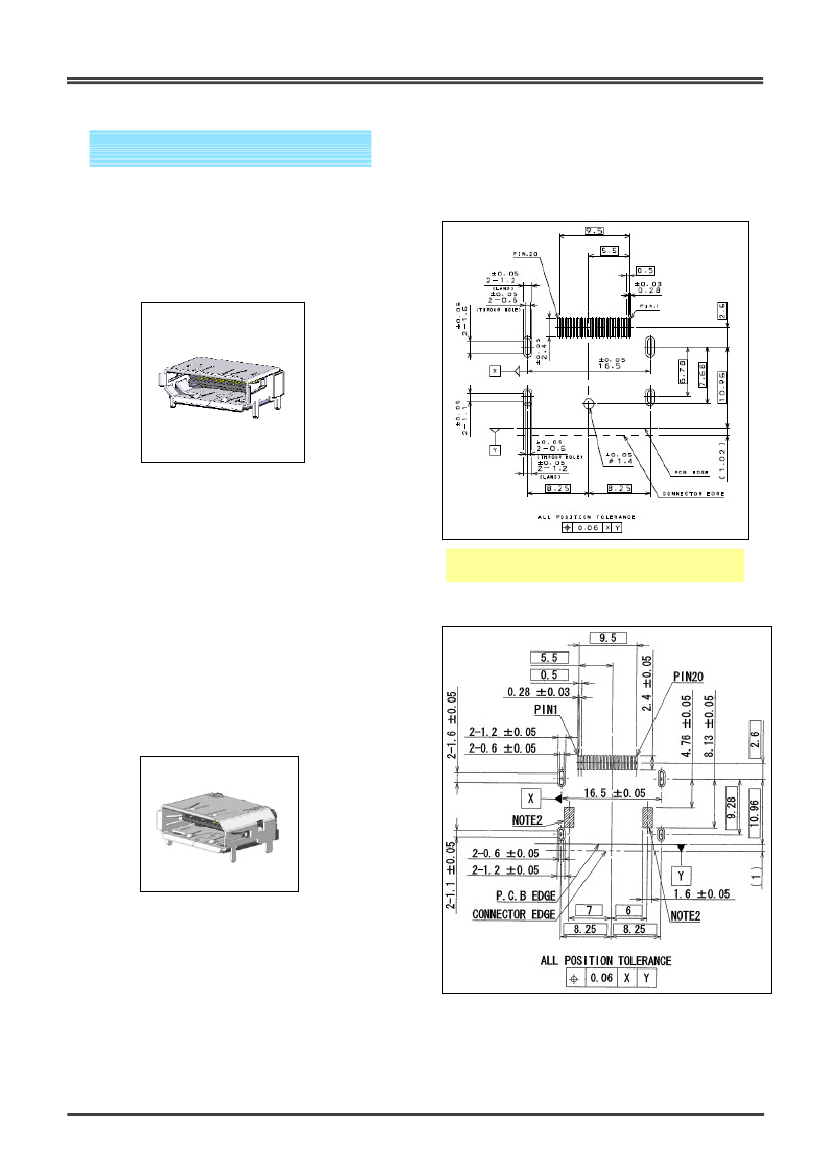

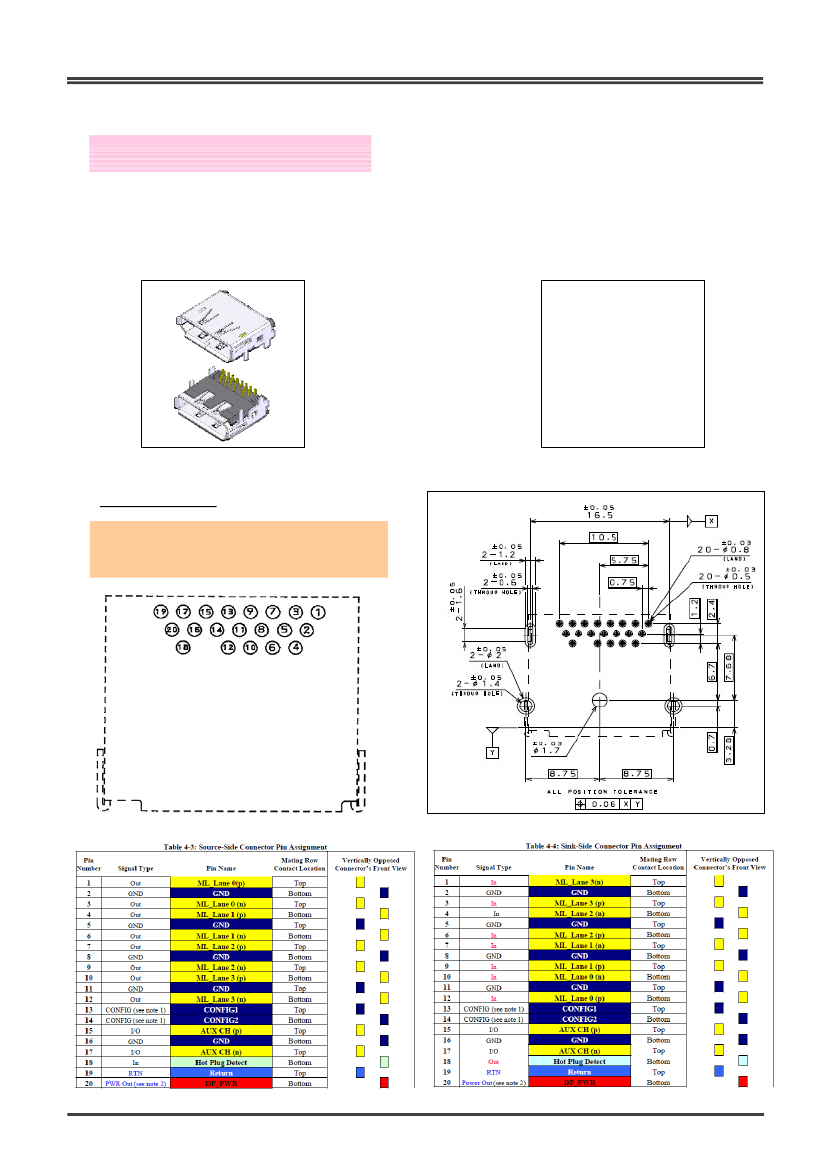

Board-side Receptacle
DP1R*20xxx
Component
Contact
Insulator
Shell
Material / Finish
Copper alloy/ Contact area: Au plating over Ni
Terminal area: Sn plating over Ni
Heat resistant plastic/ No
Copper alloy/ Ni plating (Sn plating)
Note) Halogen-free product ---- Now under consideration
Cable, Plug-side Connector (For Cable)
DP1P020ST*xxx Lx
Component
Contact
Shell
Insulator
Hood
Material / Finish
Copper alloy/ Contact area: Au plating over Ni
Terminal area: Sn plating over Ni
Steel/ Ni plating (Sn plating)
Heat resistant plastic/ No
PVC/ color black (UL94V-0)
Note) Halogen-free product ---- Now under consideration
JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd.
3/12
