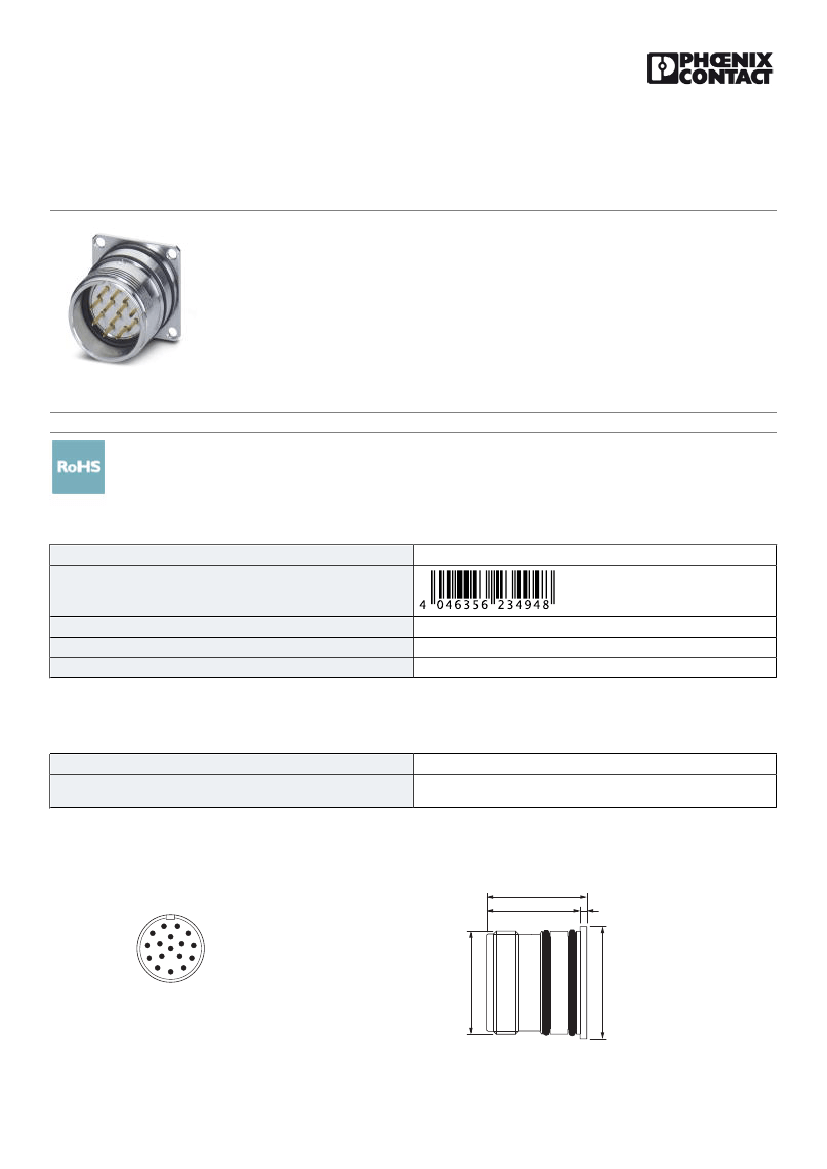

Device connector, rear mounting - RC-17P1N8A4300 - 1601479
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Device connector for rear wall, straight, Screw locking, M23, Number of positions: 17, Type of contact: Male
connector, Crimp connection, Radial O-ring, 4xM3, Panel thickness min.: 2.7 mm, Panel thickness max.: 3.5
mm
The figure shows the 12-pos.
product version
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
Note
4046356234948
85366990
Made to Order (non-returnable)
40 STK
Technical data
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Schematic diagram
N
1
11
12
2
10 16
13
3
9
15 17 14
4
8
PO
7
5
6
Dimensional drawing
22,3
20,8
1,5
M23x1
25
11/14/2016 Page 1 / 2
https://www.phoenixcontact.com/hq/products/1601479
Device connector, rear mounting - RC-17P1N8A4300 - 1601479
Dimensional drawing
20,5±0,1
Ø2,7/Ø3,2
M2,5
Ø23+0,1
2,7mm–3,5mm
3mm–10,5mm
1x15°
Drilling diagram
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EAC B.01742
