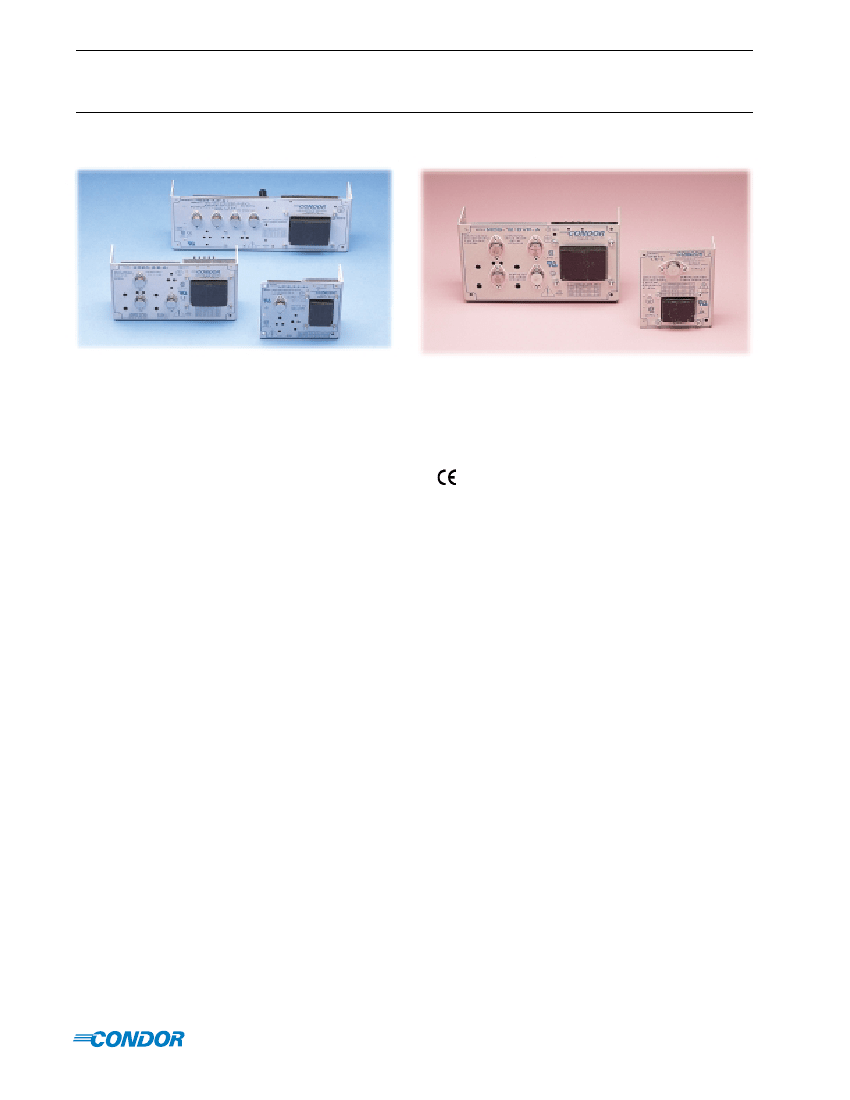

Commercial/Medical
International + Linears
Commercial
Medical
FEATURES
• World-wide ac input ranges and safety standards
• Industry standard packages
• Commercial UL/CSA TUV/IEC approved—68 models to
UL1950; CSA C22.2 No. 950 L3; TUV certified to EN60950
• Burn-in with cycling; 3-year warranty
• Capacitors have highest CV & ripple current ratings
• Medical Approved to UL2601-1, IEC60601-1 and
CSA601.1
•
•
•
•
•
•
Medical leakage current does not exceed 10 µA
MTBF 200,000+ hours per Mil Handbk 217D (most units)
All electrolytic caps rated at 105ºC
Transformer insulation meets Class F (155ºC)
Exceed FCC and CISPR22, Class B conducted emissions
marked to LVD
SPECIFICATIONS:
Ac Input
100, 120 and 240 Vac: +10%, -13%; 215 Vac: +12%, -11
%; 47 to 63Hz. Tolerance for 230 Vac operation is +15%,
-10%. Derate output current 10% for 50 Hz operation.
Dc Output
See voltage rating chart. Adjustment range ±5% minimum
except HA series.
Line Regulation
±0.05% for a 10% change.
Load Regulation
± 0.05% for a 50% load change.
Output Ripple
3 mV +0.05% of output voltage, peak to peak maximum.
All “3-terminal regulator” outputs: 3 mV +0.2% peak to
peak maximum.
Transient Response
<50 microseconds for 50% load change.
Short Circuit Protection
Automatic current limit/foldback.
Overvoltage Protection
Built-in on all 5 V models, set at 6.2 V ±0.4 V. Other models
use optional overvoltage protection.
Remote Sensing
Provided on all models; open sense lead protection built-in
(except HA series).
Stability
±0.05% for 24 hours after warmup.
Temperature Rating
0 to 50°C full rated, derated linearly to 40% at 70°C.
Temperature Coefficient
±0.01%/°C maximum.
Efficiency
5 V units: 45%; 12 and 15 V units: 55%; 20 and 24 V units: 60%.
Logic Inhibit and Current-Share
F & G models.
Medical Stock and Vibration
Per Mil-Std-810D, Method 514.3, Category 1, Procedure 1.
Per Mil-Std-810D, Method 516.3, Procedure III.
Storage
-40 to +85 °C.
116
Condor D.C. Power Supplies, Inc., 2311 Statham Parkway, Oxnard, CA 93033
800-235-5929 • 805-486-4565 • FAX 805-487-8911 • www.condorpower.com
Commercial/Medical
International + Linears
Commercial Model (Dual)
HAA5-1.5-OV-A+
HBB5-3-OV-A+
HCC5-6-OV-A+
HAA512-A+
HBB512-A+
HCC512-A+**
HAA524-A+**
HBB524-A+
HCC524-A+
HAD12-0.4-A+
MLL12-0.25-A
MLL15-0.2-A
HAD15-0.4-A+
HAA15-0.8-A+
HBB15-1.5-A+
HCC15-3-A+
HDD15-5-A+*
HAA24-0.6-A+
**May require fan cooling.
Medical Model
Output 1
5 V@ 1.5 A
5 V@ 3 A
5 V@ 6 A
Output 2
5 V@ 1.5 A
5 V@ 3 A
5 V@ 6 A
9-15 V@ 0.5 A
9-15 V@ 1.2 A
9-15 V@ 2.5 A
18-24 V@ 0.3 A
18-24 V@ 0.8 A
18-24 V@ 2 A
-12 V@ 0.4 A
-12 V @ 0.25 A
-15 V @ 0.020 A
-15 V@ 0.4 A
-12 to -15 V@ 1 A/0.8 A
-12 to -15 V@ 1.7 A/1.5 A
-12 to -15 V@ 3.4 A/3 A
-12 to -15 V@ 5 A
-18 to -24 V@ .04 A/0.6 A

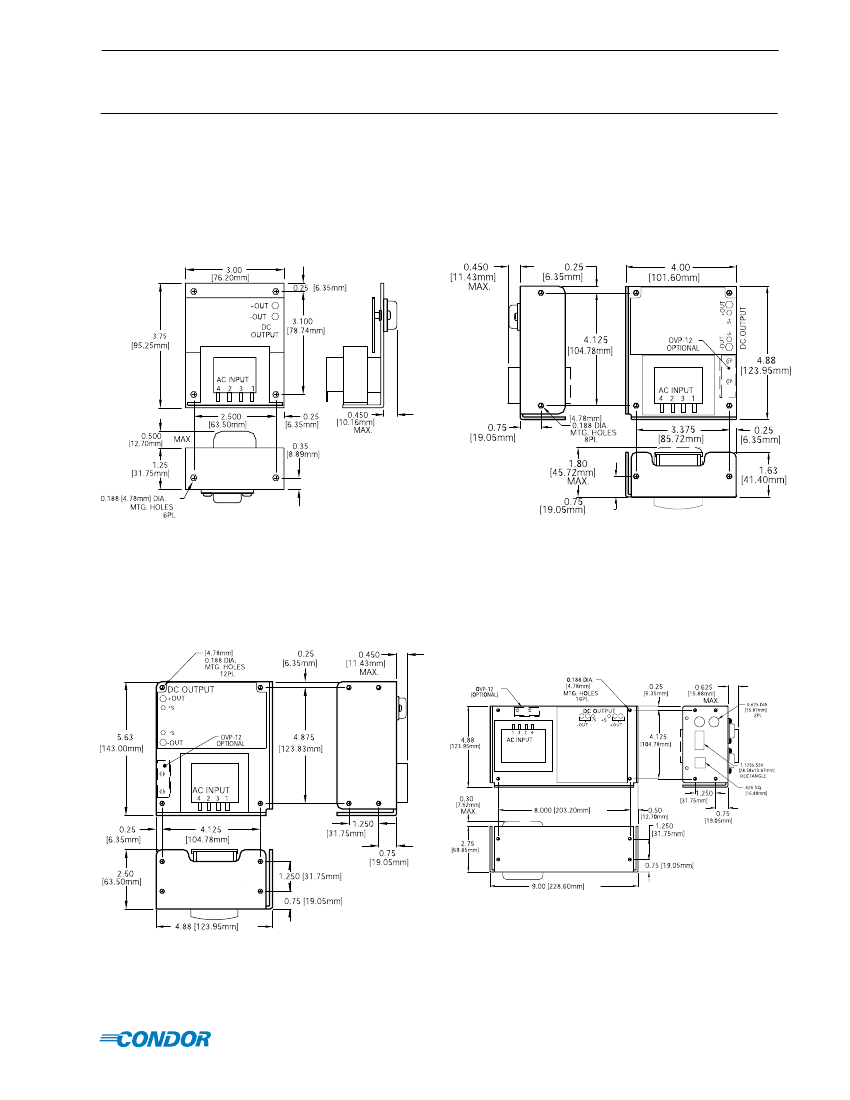

Case
AA
BB
CC
AA
BB
CC
AA
BB
CC
B
L
L
B
AA
BB
CC
E
A
MAA512-A
MBB512-A
MCC512-A
MAA524-A
MBB524-A
MCC524-A
5 V@ 2 A
5 V@ 3 A
5 V@ 6 A
5 V@ 2 A
5 V@ 3 A
5 V@ 6 A
+12 V@ 0.4 A
+12 V @ 0.25 A
+15 V @ 0.020 A
+15 V@ 0.4 A
+12 to 15 V@ 1 A/0.8 A
+12 to 15 V@ 1.7A/1.5 A
+12 to 15 V@ 3.4 A/3 A
+12 to 15 V@ 5 A
+18 to 24 V@ 0.4 A/0.6 A
MAA15-0.8-A
MBB15-1.5-A
MCC15-3-A
Commercial Model (Triple)
Medical Model
MTLL-5W-A
Output 1
5 V@ 5 A
5 V@ 2 A
5 V@ 3 A
5 V@ 3 A
5 V@ 6 A
5 V@ 6 A
5 V@ 8 A
24 V, 3 A (3.5PK)
5V@2A
5 V@ 12 A
5 V@ 12 A
Output 2
+12 to 15 V@ 0.1 A
+12 to 15 V@ 0.4/0.4 A
+12 to 15 V@ 1/0.8 A
+12 to 15 V@ 3.4/3.0 A
+12 to 15 V@ 1/0.8 A
+12 to 15 V@ 1.7/1.5 A
+12 to 15 V@ 1.7/1.5 A
5 V, 3 A
12 V @ 4 A
+12 to 15 V@ 1.7/1.5 A
+12 to 15 V@ 3.4/3 A
Output 3
-12 to 15V@ 0.1 A***
-12 to 15V@ 0.4/0.4A***
-12 to 15V@ 1/0.8A***
-12 to 15 V@ 3.4/3 A***
-12 to 15 V@ 1/0.8 A***
-12 to 15 V@ 1.7/1.5 A***
-12 to 15 V@ 1.7/1.5 A***
5 V, 1 A
N/A
-12 to 15 V@ 1.7/1.5 A***
-12 to 15 V@ 3.4/3 A***

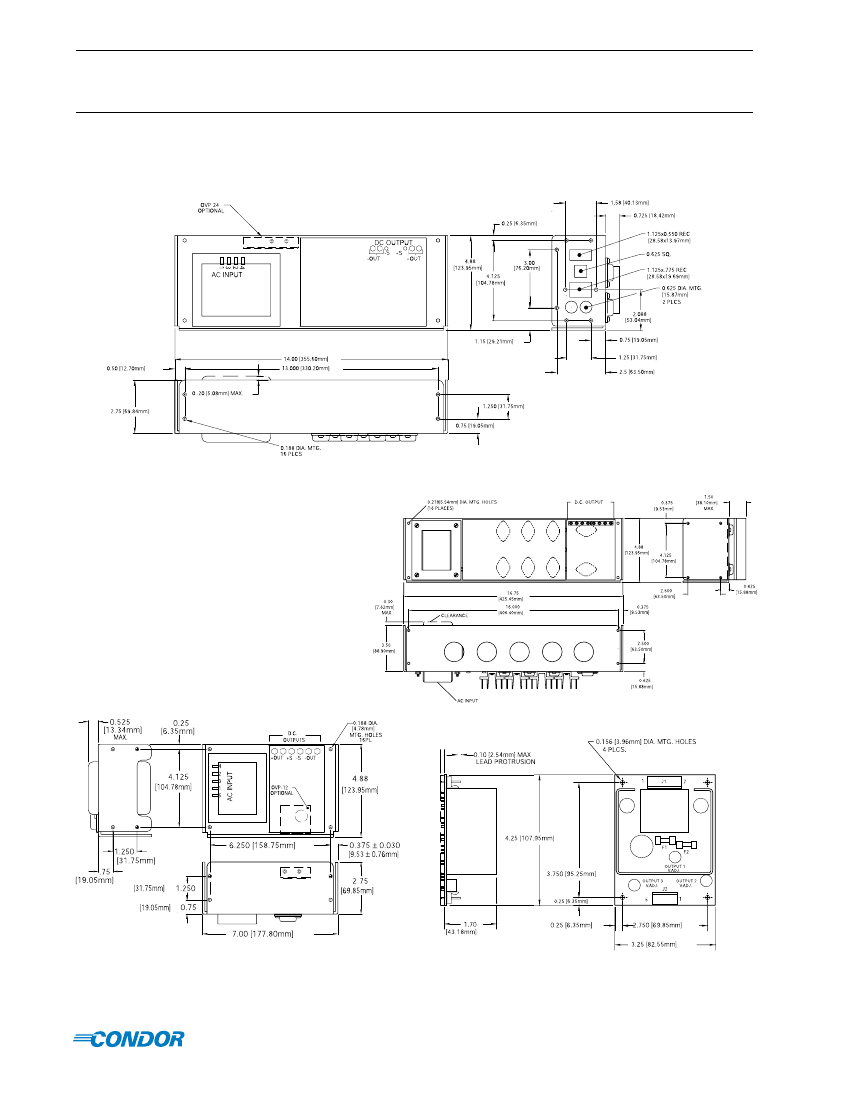

Case
L
AA
BAA
CBB
D
CBB
NBB
CBB
B
DBB
D
HTAA-16W-A+
HBAA40W-A+
HCBB105W-A+**
HCAA60W-A+
HCBB75-W-A+
CP131-A+
CP206-A+
CP323-A+
HDBB105W-A+*
HDCC150W-A+*
MTAA-16W-A
MBAA-40W-A
MCAA60W-A
MCBB75W-A
*Requires fan cooling.
**May require fan cooling.
***No. 3 output usable at -5V, rate at 1/2 of 15V current rating.
FIXED DISK SERIES
Commercial Model
CP379-A+
CP498-A+
Output 1
+5 V@6 A
+5 V@6 A
Output 2
+24 V@3.5/6 A PK
+12 V@5/10 A PK
Output 3
-5 or -12 V@1.2 A
-12 V@0.5 A
Case
NBB
NB
118
Condor D.C. Power Supplies, Inc., 2311 Statham Parkway, Oxnard, CA 93033
800-235-5929 • 805-486-4565 • FAX 805-487-8911 • www.condorpower.com
