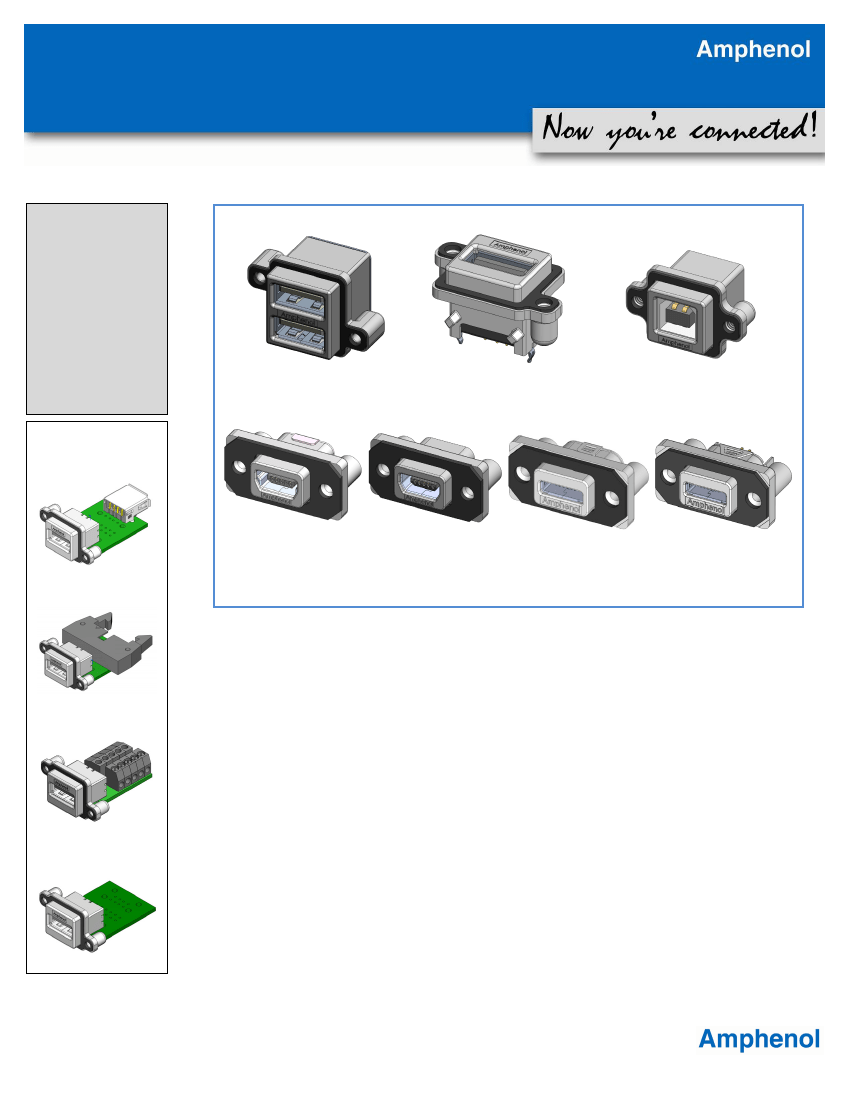

MUSB-C111-30
SERIES A, RIGHT
ANGLE, STACKED
MUSB-A511-00
SERIES A,
VERTICAL
MUSB-D111-30
SERIES B,
RIGHT ANGLE
Related Products
With matching USB
MUSB-B151-34
SERIES MINI-B,
RIGHT ANGLE
With Cable Header
MUSB-E151-04
SERIES MINI-AB,
RIGHT ANGLE
MUSB-K152-X0
SERIES MICRO-AB,
RIGHT ANGLE
MUSB-K552-X0
SERIES MICRO-AB,
VERTICAL
Overview
This Product Specification defines the general use and performance parameters for Amphenol’s
MUSB series of connector.
Availability: Series A (single & stacked), series B, series Mini-B, series Mini-AB, series Micro-AB
with right angle and vertical PCB tails. Right angle connectors mounted on a PCB with matching
USB, cable headers or terminal blocks are available for all series. Dust covers for enhanced mating
area protection are also available.
With Terminal Block
Usage
These connectors meet military shock & vibration levels and are IP67 rated per IEC 60529 in mated
and unmated conditions. The connector system is designed to provide a standard USB interface for
enclosures exposed to harsh environments. Connectors mate with any standard USB 2.0 plug.
Connectors achieve data rates of up to 480 Mb/s (USB 2.0).
With PCB for wiring
Applications
Intended for use in applications such as:
Medical equipment
Microwave transmitters
GPS, positioning equipment
Military vehicles, radios, computers
Revision Date: October 17
th
, 2017
Test equipment
Mobile entertainment systems
Traffic control & monitoring systems
Page 1 of 3
S6046C Rev 1.3
About Amphenol
Commercial Products
Amphenol’s commercial
connector products are
used in a variety of end
user applications
including networking,
telecom, server &
computer, storage &
HDD, consumer
electronics and
entertainment,
professional audio &
Industrial &
Military/Aerospace.
Connector Electrical Characteristics
Parameter
Series A & B
Current Rating:
1.5A per contact
Contact Resistance: 30 mΩ max
Insulation Resistance: 1000 MΩ min
DWV:
500V AC @ sea level
Series Mini-B & Mini-AB
1.0A per contact
50 mΩ max
100 MΩ min
100V AC @ sea level
Series Micro-AB
Up to 1.8A per contact (see dwg)
30 mΩ max
100 MΩ min
100V AC @ sea level
Connector Mechanical Characteristics
Thermal Shock: 5 cycles @ -40° to +125° C
Physical Shock: Per EIA364-27 Condition H (11ms 30G)
Humidity: Per EIA364-31 Condition C, Method III
Vibration: Per EIA364-28 per Condition V, Letter A
Salt Spray: Per EIA364-26, 250 Hrs

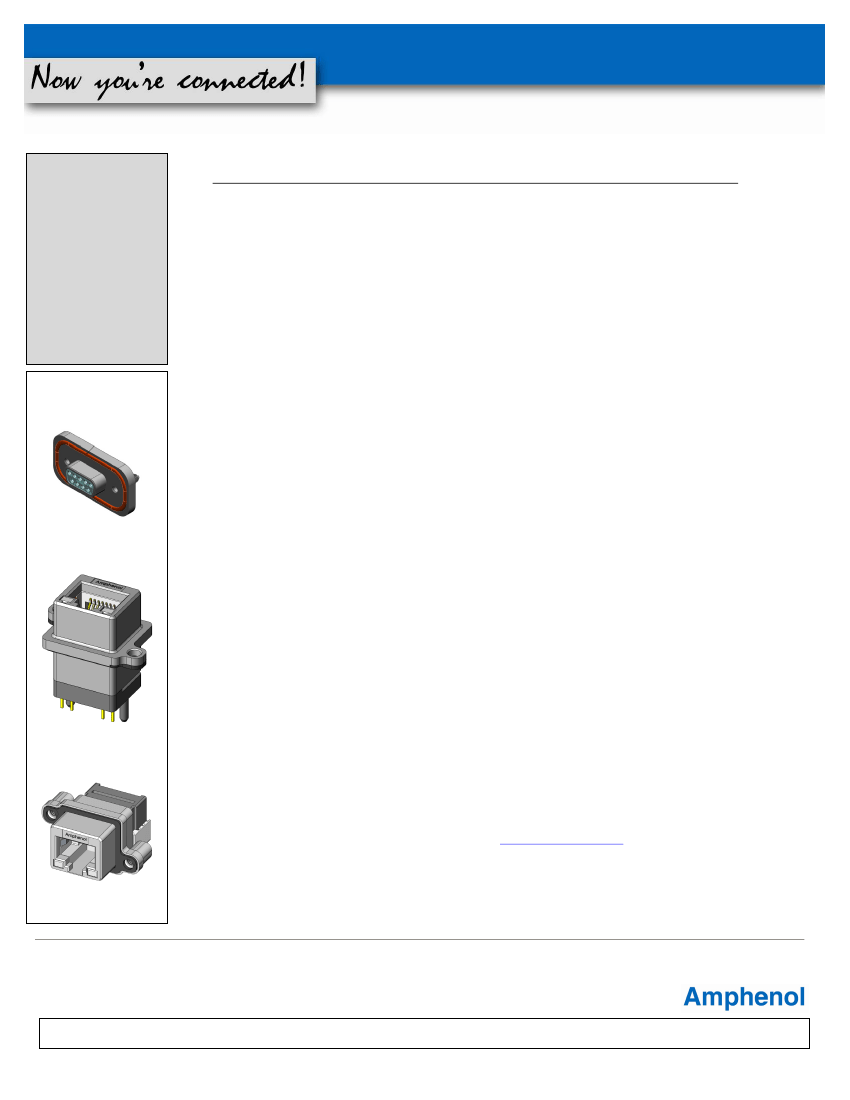

Related Products
MDB
Process Characteristics
Recommended Soldering Process: Hand or wave soldering peaked at 260°C for 8 seconds max.
Recommended Torque for #4-40 or M3 Panel Mount Screws: 0.45 to 0.65 Nm (4 – 5.75 in-lbs).
Recommended Torque for #2-56 or M2.5 Panel Mount Screws: 0.23 to 0.34 Nm (2 - 3 in-lbs).
Solder tails suitable for PCB thickness of 1.52mm (.062”).
Mating Cycles: 1500 (Series A & B)
5000 (Series Mini-B & Mini-AB)
10000 (Series Micro-AB)
9 POSITION CONNECTOR
SHOWN
Material Requirements
MUSB connectors are RoHS compliant.
Unless otherwise specified, the materials for each component shall be:
Contacts: Phosphor Bronze with 30µ” (0.76µm) min Gold over 50µ” (1.27µm) min Nickel
Housing: Engineering thermoplastic, UL94V-0 rated, black. White for series B.
Shell: Die-cast Zinc alloy, Nickel plating
Temperature rise: Meets the requirement of 30° C
ΔT
Operating temperature -40° to +105° C
MRJ
Available Documents
MRJ-5480-01 SHOWN
VERTICAL, PCB TAIL,
8 POSITION RJ45
Drawing Numbers:
P-MUSB-A211-XX MUSB Rugged Series A, R/A on PCB with R/A Cable Header, Thread & Dust Cover Options
P-MUSB-A511-XX MUSB Rugged Series A, Vertical PCB Mount
P-MUSB-B151-XX MUSB Rugged Series Mini-B, Right Angle PCB Tail
P-MUSB-CA11-XX MUSB Rugged Series A, Stacked, Right Angle on PCB, Thread & Dust Cover Options
P-MUSB-D411-3X MUSB Rugged Series B, Right Angle on PCB with Terminal Block
P-MUSB-E151-XX MUSB Rugged Series Mini-AB, Right Angle PCB Tail, Thread & Dust Cover Options
P-MUSB-K152-X0 MUSB Rugged Series Micro-AB, Right Angle PCB Tail, Thread & Dust Cover Options
P-MUSB-K552-XX MUSB Rugged Series Micro-AB, Vertical PCB Tail, Thread & Dust Cover Options
Contact factory, authorized Amphenol representative or website
www.amphenolcanada.com
for additional configurations.
Quality Test Reports
MRJ-5380-01 SHOWN
RIGHT ANGLE, PCB TAIL,
8 POSITION RJ45
QTR9300377
QTR9300378
QTR9300482
Series Mini-B & Mini-AB
Series A & B
Series Micro-AB
Amphenol Canada Corp.
605 Milner Avenue
Toronto, Ontario, Canada, M1B 5X6
+1 416 291 4401
www.amphenolcanada.com
Page 2 of 3
Copyright © Amphenol Corporation 2017 • All rights reserved
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
S6046C Rev 1.3
Product Numbering System
MUSB
Rugged USB Receptacle, Generation 1
Receptacle Type Per USB 2.0
A – Standard A Series
B – Mini B Series
C – Standard A Series Stacked
D – Standard B Series
E – Mini AB Series
K – Micro AB Series
1
Termination Style
1 – Right Angle
2 – Right Angle on PCB with Right Angle Cable Header
2
3 – Right Angle on PCB with Right Angle Matching USB Type Connector
2
4 – Right Angle on PCB with Terminal Blocks
2
5 – Vertical
2
8 – Right Angle on PCB with Vertical Cable Header
3
A – Right Angle on PCB with Holes for Wiring (Style 3 PCB)
2, 4
B – Right Angle on PCB with Vertical Single Row Isolated Header
5
D – Right Angle on PCB with Vertical Dual Row Isolated Header
6
E – Right Angle on PCB with Vertical Matching USB Type Connector
7
Number of Contacts
1 - Standard 4 per Port for Types A, C & D
5 - Standard 5 per Port for Types B, E & K
Insulator Housing Colour
1 – Black for Types A, B, C & E, White for Type D
2 – Grey for Type K
Rear Shield and Thread Options
8, 9
0 – No Rear Shield, Unified Thread
3 – With Rear Shield, Unified Thread
M – With Rear Shield, Metric Thread
N – No Rear Shield, Metric Thread
Dust Cover Options
10
0 – With No Dust Cover
11
1 – With Grey Dust Cover
5 – With Black Dust Cover
Unique Special Code
12
No Digit – Standard part defined by previous 10 digits
1 to 9 – Unique special feature
1)
2)
3)
4)
5)
6)
7)
8)
MUSB
-
X
X
X
X
-
X
X
X
Notes
Receptacle type K (Micro AB) is a generation 2 epoxy free design. It is currently available in right angle only.
Consult with Amphenol for the availability of the vertical version.
Termination styles 2, 3, 4, 5 & A are currently available for receptacle types A, B, C, D & E only.
Termination style 8 is currently available for receptacle types A, C & D only.
Termination style A uses the pcb from termination style 3.
Termination style B is currently available for receptacle types A & D only.
Termination style D is currently available for receptacle type C only.
Termination style E is currently available for receptacle types A & C only.
Rear shields are optional for receptacle types B & E (Mini B & Mini AB) with right angle termination style.
Rear shields are required for all other types with right angle terminations. Rear shields are not available for
vertical termination style.
9)
For receptacle types A, C & D (Standard A & B Series), the unified thread is #4-40UNC and the metric thread
is M3x0.5. For receptacle types B, E & K (Mini B, Mini AB & Micro AB), the unified thread is #2-56UNC
and the metric thread is M2.5x0.45.
10) When dust covers are supplied with the connector, they are not installed. They are supplied in bulk inside each
package of connectors. For receptacle type C (Standard A Series Stacked), two dust covers are supplied per
connector.
11) For receptacle types B & E (Mini B & Mini AB), dust cover code 4 is frequently used. Code 4 connectors are
identical to code 0. For example, part number MUSB-B151-34 is identical to MUSB-B151-30.
12) Consult with Amphenol for additional termination styles, solder cup contacts, mounting styles, conductive
gaskets or other requirements of interest. See catalogue Accessories pages for dust cover options.
Amphenol Canada Corp.
605 Milner Avenue
Toronto, Ontario, Canada, M1B 5X6
+1 416 291 4401
www.amphenolcanada.com
Page 3 of 3
Copyright © Amphenol Corporation 2017 • All rights reserved
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION AND SUCH INFORMATION MAY NOT BE DISCLOSED TO OTHERS FOR ANY PURPOSE OR USED FOR MANUFACTURING PURPOSES
WITHOUT WRITTEN PERMISSION FROM AMPHENOL CANADA CORP.
