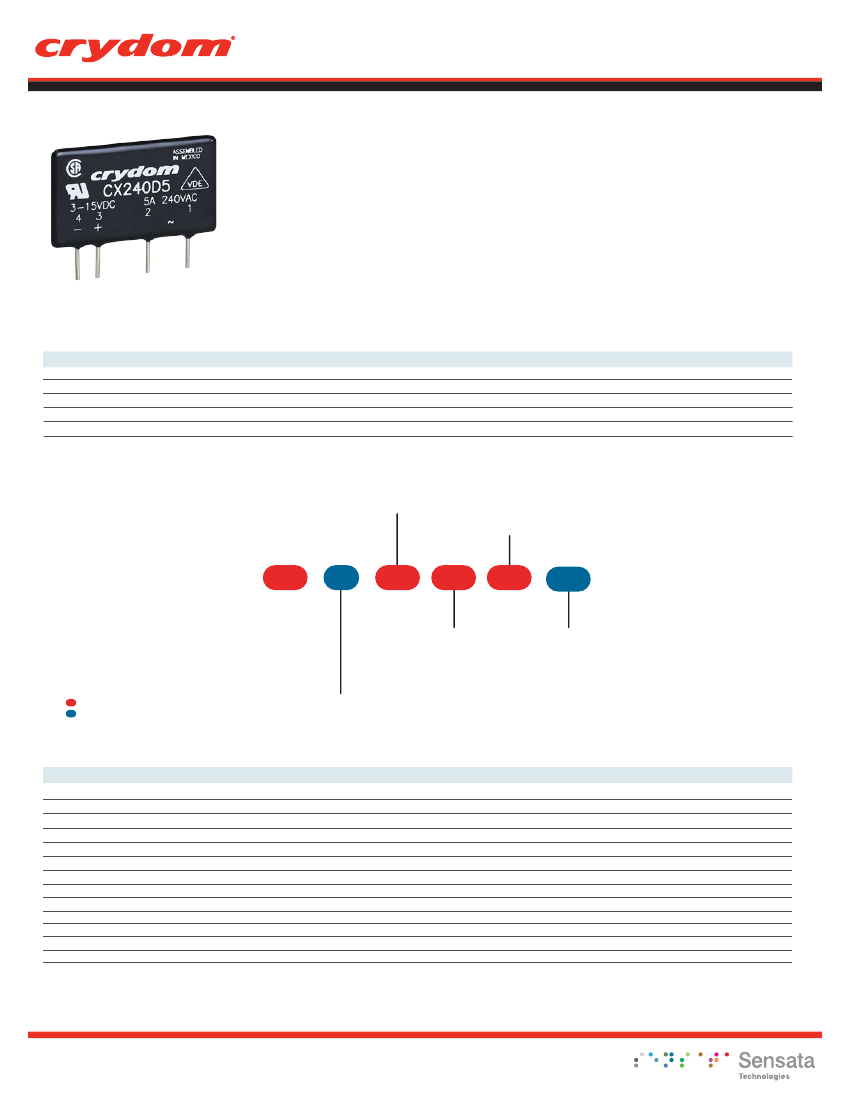

Datasheet
CX Series
•
SIP SSR
•
Ratings of 5 A @ 660 VAC
•
SCR output for heavy industrial loads
•
AC or DC control
•
Zero-crossing (resistive loads) or random-fire (inductive loads) output
•
CE Compliant to EN60950-1
PCB Mount
PRODUCT SELECTION
Control Voltage
3-15 VDC
4-15 VDC
15-32 VDC
18-36 VAC
90-140 VAC
5A
CX240D5
CXE240D5
CXE240A5
CX240A5
5A
CX380D5
CXE380D5
5A
CX480D5
CXE480D5
AVAILABLE OPTIONS
Operating Voltage
240:
12-280 VAC
380:
48-530 VAC
480:
48-660 VAC
Series
Operating Rating
5:
5 Amps
CX
E
240
D
5
R
Switching Mode
Blank:
Zero Voltage Turn-On
R:
Random Turn-on
Control Voltage
Blank:
3-15 VDC
(240 and D suffix only)
4-15 VDC
(380/480 and D suffix only)
90-140 VAC (A suffix only)
E:
15-32 VDC (D suffix only)
18-36 VAC (A suffix only)
Required for valid part number
For options only and not required for valid part number
Control Input Type
D:
DC Input
A:
AC Input
OUTPUT SPECIFICATIONS
(1)
Description
Operating Voltage (47-63Hz) [Vrms]
Transient Overvoltaje
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/µsec]
(2)
Maximum Load Current [Arms]
Minimum Load Current [Arms]
Maximum Surge Current (16.6msec) [Apk]
Maximum On-State Voltage Drop @ Rated Current [Vpk]
Maximum I² t for Fusing (8.3msec) [A² sec]
Minimum Power Factor (at Maximum load)
HP rating UL 508/IEC60947[HP/KW]: 240VAC
HP rating UL 508/IEC60947[HP/KW]: 380VAC
HP rating UL 508/IEC60947[HP/KW]: 480VAC
CX240x5
12-280
600
0.1
500
5
0.06
250
1.4
260
0.5
0.25/0.18
NA
NA
CX380x5
48-530
1200
0.1
500
5
0.06
250
1.4
260
0.5
0.25/0.18
0.33/0.25
NA
CX480x5
48-660
1200
0.1
500
5
0.06
250
1.4
260
0.5
0.25/0.18
0.33/0.25
0.5/0.37
FDE-07-01 REV. A
Do not forget to visit us at:
www.crydom.com
Copyright © 2017 Crydom Inc. Specifications subject to change without notice.
Datasheet
INPUT SPECIFICATIONS
(1)
Description
Nominal Voltage
Control Voltage Range
Minimum Turn-On Voltage
Drop Out Voltage
Typical Input Current
Nominal Input Impedance
Maximum Turn-On Time [msec]
(3)
Maximum Turn-Off Time [msec]
PCB Mount
CXE240A5
24 VAC
18-36 VAC
18.0 Vrms
2.0 Vrms
10 mArms
2.1K Ohm
10
40
CX240Dx
5 VDC
3-15 VDC
3.0 VDC
1.0 VDC
15 mAdc
300 Ohm
1/2 Cycle
1/2 Cycle
CX380/480Dx
5 VDC
4-15 VDC
4.0 VDC
1.0 VDC
15 mAdc
240 Ohm
1/2 Cycle
1/2 Cycle
CXExxxDx
24 VDC
15-32 VDC
15.0 VDC
1.0 VDC
15 mAdc
1500 Ohm
1/2 Cycle
1/2 Cycle
CX240A5
120 VAC
90-140 VAC
90.0 Vrms
10.0 Vrms
10 mArms
14.1K Ohm
10
40
GENERAL SPECIFICATIONS
(1)
Description
Dielectric Strength, Input/Output (50/60Hz)
Minimum Insulation Resistance (@ 500 VDC)
Maximum Capacitance, Input/Output
Ambient Operating Temperature Range
Ambient Storage Temperature Range
Weight (typical)
Encapsulation
Enclosure and PCB
Parameters
4000 Vrms
10
9
Ohm
10 pF
-30 to 80 °C
-30 to 125 °C
0.4 oz (11g)
Thermally Conductive Epoxy
Meets the requirements of IEC60335-1.
GENERAL NOTES
(1)
All parameters at 25°C unless otherwise specified.
(2)
Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
(3)
Turn-On time for random turn-on versions is 0.01 msec (DC control Models).
WIRING DIAGRAM
TRIGGER
CIRCUIT
4
-DC
3
+DC
B
2
LOAD
AC
1
LOAD
AC
A
Load can be wired in location A or B
TRIGGER
CIRCUIT
AC/DC
Converter
4
AC
3
AC
B
V
2
LOAD
AC
1
LOAD
AC
A
Do not forget to visit us at:
www.crydom.com
Copyright © 2017 Crydom Inc. Specifications subject to change without notice.
Datasheet

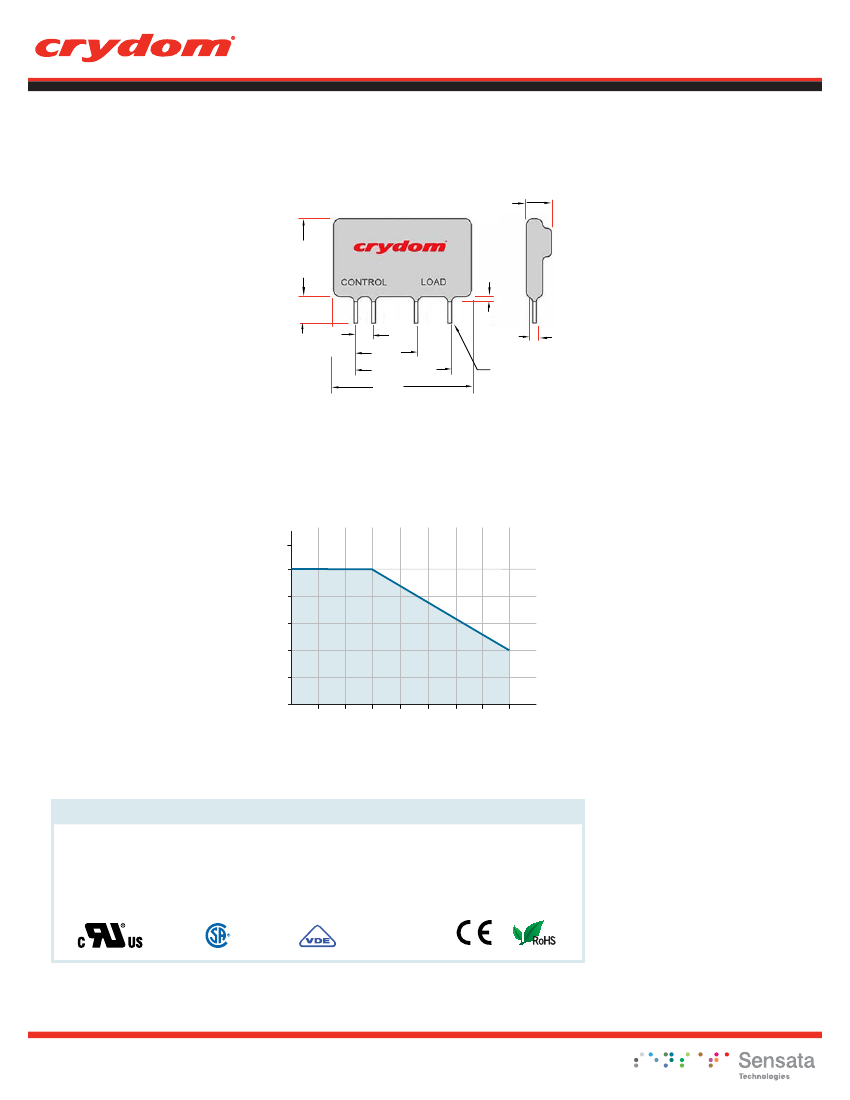

MECHANICAL SPECIFICATIONS
Tolerances: ±0.02 in / 0.5 mm
All dimensions are in: inches [millimeters]
PCB Mount
.30 MAX
(7.6)
1.0
MAX
(25.4)
.30 TYP.
(7.6)
.20
(5.1)
4
3
.70
(17.8)
2
1
.05
TYP.
(1.3)
.04 (1.0) DIA.
(4 PLACES)
.10
(2.5)
1.10
1.70 (27.9)
MAX
(43.1)
THERMAL DERATE INFORMATION
6.0
Load Current (Amps)
5.0
4.0
3.0
2.0
1.0
0
20
40
60
80
Ambient Temperature (ºC)
AGENCY APPROVALS
Designed in accordance with the requirements of IEC 62314
CE EN60950 : Meets the requirements of sections1.5: 1,7: 2.9: 2.10.5.3: 4.2: 4.5: 4.7
IEC60335-1: Resistance to heat and fire meets the requirements of section 30, evaluated by TUV SUD.
Glow Wire Test, per requirements of IEC/EN 60695-2-10 and IEC/EN 60695-2-11
Ball Pressure Test, per requirements of IEC/EN 60695-10-2
E116949
LR 81689
70938 (DC Control Only)
Rev. 072817
ECN 20288
