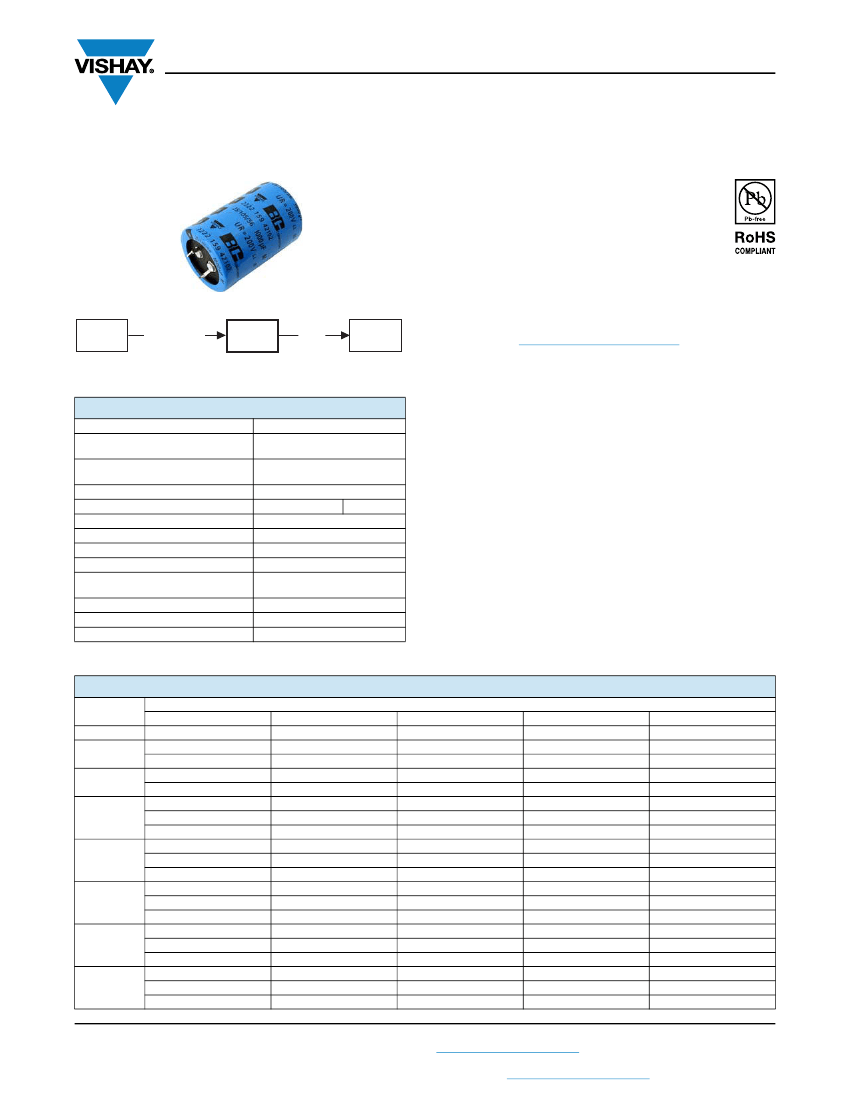

159 PUL-SI
www.vishay.com
Vishay BCcomponents
Aluminum Electrolytic Capacitors
Power Ultra Long Life Snap-In
FEATURES
• Useful life: 5000 h at 105
C
• Available up to 500 V
• Polarized aluminum electrolytic capacitors,
non-solid electrolyte
• Large types, very small dimensions, cylindrical
aluminum case, insulated with a blue sleeve
• Low ESR, high ripple current capability
• Keyed polarity snap-in version available
• High reliability
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
059
PLL-SI
miniaturized
159
PUL-SI
85
°C
157
PUM-SI
Fig. 1
APPLICATIONS
•
•
•
•
•
Solar PV inverters
General purpose, industrial and audio / video systems
Smoothing and filtering
Standard and switched mode power supplies
Energy storage in pulse systems
QUICK REFERENCE DATA
DESCRIPTION
Nominal case size
(Ø D x L in mm)
Rated capacitance range
(E6 / E12 series), C
R
Tolerance on C
R
Rated voltage range, U
R
Category temperature range
Endurance test at 105 °C
Load life at 105 °C
Useful life at 105 °C
Useful life at 40 °C and
1.6 x I
R
applied
Shelf life at 0 V, 105 °C
Based on sectional specification
Climatic category IEC 60068
VALUE
22 x 25 to 35 x 60
56 μF to 1800 μF
± 20 %
200 V to 450 V
500 V
-25 °C to +105 °C
2000 h
2000 h
5000 h
500 000 h
1000 h
IEC 60384-4 / EN130300
25 / 105 / 56
MARKING
The capacitors are marked (where possible) with the
following information:
• Rated capacitance (in μF)
• Tolerance code on rated capacitance, code letter in
accordance with IEC 60062 (M for ± 20 %)
• Rated voltage (in V)
• Date code (YYMM or in 2 digits according to IEC 60062)
• Name of manufacturer
• Code for factory of origin
• “-” sign to identify the negative terminal, visible from the
top and side of the capacitor
• Code number, last 8 digits 159 xxxxx
• Climatic category in accordance with IEC 60068
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(μF)
56
68
82
100
200
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
250
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
22 x 30
25 x 25
-
U
R
(V)
400
-
22 x 25
-
22 x 30
25 x 25
22 x 35
25 x 30
-
22 x 35
25 x 30
30 x 25
22 x 40
25 x 35
30 x 30
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
450
22 x 25
22 x 30
25 x 25
22 x 35
-
22 x 40
25 x 30
30 x 25
-
25 x 35
-
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
-
30 x 40
35 x 30
-
500
22 x 30
22 x 35
25 x 30
22 x 35
25 x 30
22 x 40
25 x 35
-
25 x 40
30 x 30
-
25 x 45
30 x 35
-
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
-
120
150
180
220
Revision: 31-Jan-17
Document Number: 28341
1
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
159 PUL-SI
www.vishay.com
Vishay BCcomponents
U
R
(V)
400
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
-
30 x 50
35 x 40
35 x 45
-
-
-
-
-
35 x 60
-
-
-
-
-
-
-
-
-
-
-
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(μF)
270
200
-
-
-
22 x 30
-
-
22 x 35
25 x 30
22 x 40
30 x 25
-
-
25 x 35
30 x 30
25 x 45
30 x 30
35 x 25
25 x 50
30 x 35
35 x 30
30 x 45
35 x 35
30 x 50
35 x 35
35 x 45
35 x 50
250
22 x 35
25 x 30
30 x 25
22 x 40
25 x 30
30 x 25
25 x 35
30 x 30
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
30 x 40
35 x 35
-
30 x 45
35 x 35
35 x 40
35 x 40
35 x 45
35 x 45
35 x 50
-
-
450
30 x 45
35 x 35
-
30 x 50
35 x 40
-
35 x 45
-
35 x 50
35 x 40
-
35 x 60
-
-
-
-
-
-
-
-
-
-
-
-
-
-
500
30 x 50
35 x 40
-
35 x 45
-
-
35 x 55
-
35 x 60
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
330
390
470
560
680
820
1000
1200
1500
1800

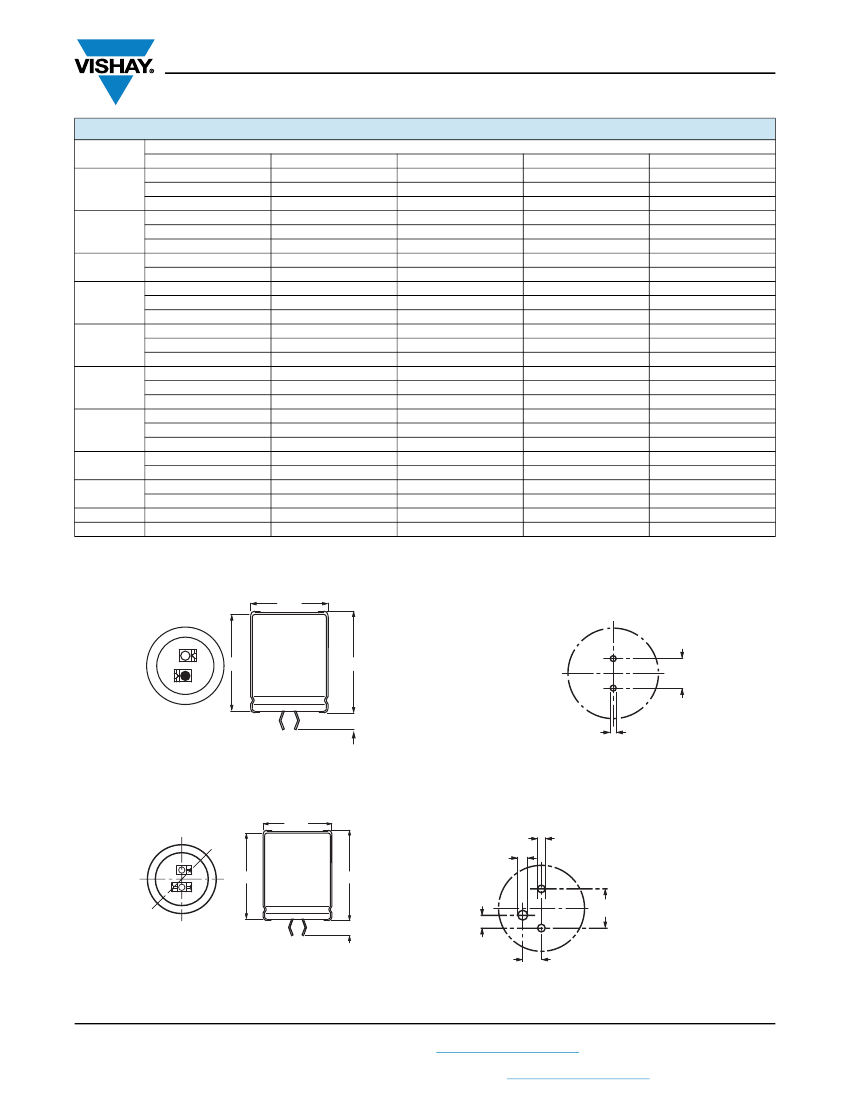

DIMENSIONS
in millimeters
AND AVAILABLE FORMS
TWO TERMINAL SNAP-IN
ØD
+ Terminal
- Terminal
L
L + 2 max.
10 ± 0.1
Bottom view
5.8
+0
- 1
mm
The minus terminal can be marked with a black dot
or with an imprinted “-”
sign.
Ø 2 ± 0.1 (2 x)
Fig. 2 - Two terminal snap-in
Fig. 3 - Mounting hole diagram
THREE TERMINAL SNAP-IN
ØD
Ø 2 ± 0.1 (2 x)
Ø 2.5 ± 0.1
+ Terminal
L
L + 2 max.
- Terminal
Minus pole
marking
Bottom view
4 ± 0.5
3.3 ± 0.1
The negative terminal has
TWO
pins which are
BOTH
electrically connected
4.75 ± 0.1
The 10 mm
spacing
of the 2 pin
snap-in
is used as the base layout
10 ± 0.1 and a third hole is added.
The third hole is closer to the
negative primary hole
so
that
polarization is always maintained,
together with added mechanical
stability.
Fig. 4 - Three terminal snap-in
Fig. 5 - Mounting hole diagram
Revision: 31-Jan-17
Document Number: 28341
2
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
159 PUL-SI
www.vishay.com
Table 1
Vishay BCcomponents
DIMENSIONS
in millimeters,
MASS AND PACKAGING QUANTITIES
NOMINAL
CASE SIZE
Ø
D x L
22 x 25
22 x 30
22 x 35
22 x 40
25 x 25
25 x 30
25 x 35
25 x 40
25 x 45
25 x 50
30 x 25
30 x 30
30 x 35
30 x 40
30 x 45
30 x 50
35 x 25
35 x 30
35 x 35
35 x 40
35 x 45
35 x 50
35 x 55
35 x 60
Ø D
max.
23
23
23
23
26
26
26
26
26
26
31
31
31
31
31
31
36
36
36
36
36
36
36
36
L
max.
27
32
37
42
27
32
37
42
47
52
27
32
37
42
47
52
27
32
37
42
47
52
57
62
MASS
(g)
12
16
20
23
20
22
24
27
32
38
25
30
35
40
45
50
33
40
48
55
63
72
80
84
PACKAGING
QUANTITIES
(units per box)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
50
50
50
50
50
50
50
50
CARDBOARD BOX
DIMENSIONS
LxWxH
260 x 250 x 39
260 x 250 x 44
260 x 250 x 49
260 x 250 x 54
290 x 280 x 39
290 x 280 x 44
290 x 280 x 49
290 x 280 x 54
290 x 280 x 59
290 x 280 x 64
340 x 330 x 39
340 x 330 x 44
340 x 330 x 49
340 x 330 x 54
340 x 330 x 59
340 x 330 x 64
390 x 198 x 39
390 x 198 x 44
390 x 198 x 49
390 x 198 x 54
390 x 198 x 59
390 x 198 x 64
390 x 198 x 69
390 x 198 x 74
ELECTRICAL DATA
SYMBOL
C
R
I
R
I
L5
ESR
Z
DESCRIPTION
Rated capacitance at 100 Hz
Rated RMS ripple current at 120 Hz, 105 °C
Max. leakage current after 5 min at U
R
Typ. / max. equivalent series resistance at 100 Hz
(1)
Typ. / max. impedance at 10 kHz
ORDERING EXAMPLE
Electrolytic capacitor 159 series
1000 μF / 200 V; ± 20 %
Nominal case size: Ø 30 mm x 45 mm
2-terminal snap-in:
Ordering code: MAL215942102E3
Former 12NC: 222215942102
3-terminal snap-in:
Ordering code: MAL215922102E3
Former 12NC: 222215922102
Notes
• Unless otherwise specified, all electrical values in Table 2 apply
at T
amb
= 20 °C, P = 86 kPa to 106 kPa, RH = 45 % to 75 %
(1)
ESR at 120 Hz is approximately 0.95 x ESR 100 Hz
Revision: 31-Jan-17
Document Number: 28341
3
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
159 PUL-SI
www.vishay.com
Table 2
Vishay BCcomponents
ELECTRICAL DATA AND ORDERING INFORMATION
U
R
(V)
C
R
100 Hz
(μF)
330
390
390
470
470
560
560
680
680
680
820
820
820
1000
1000
1200
1200
1500
1800
220
220
270
270
270
330
330
330
390
390
470
470
470
560
560
560
680
680
820
820
820
1000
1000
1200
1200
NOMINAL
CASE SIZE
Ø
D x L
(mm)
22 x 30
22 x 35
25 x 30
22 x 40
30 x 25
25 x 35
30 x 30
25 x 45
30 x 30
35 x 25
25 x 50
30 x 35
35 x 30
30 x 45
35 x 35
30 x 50
35 x 35
35 x 45
35 x 50
22 x 30
25 x 25
22 x 35
25 x 30
30 x 25
22 x 40
25 x 30
30 x 25
25 x 35
30 x 30
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
30 x 40
35 x 35
30 x 45
35 x 35
35 x 40
35 x 40
35 x 45
35 x 45
35 x 50
I
R
120 Hz
105
C
(A)
1.08
1.23
1.23
1.37
1.27
1.50
1.52
1.82
1.59
1.44
2.04
1.83
1.77
2.23
2.04
2.47
2.07
2.56
2.80
1.00
1.00
1.07
1.08
1.08
1.20
1.21
1.19
1.39
1.41
1.58
1.57
1.37
1.78
1.71
1.67
1.93
1.92
2.16
1.97
2.16
2.22
2.41
2.46
2.65
I
L5
5 min
(mA)
0.66
0.78
0.78
0.94
0.94
1.12
1.12
1.36
1.36
1.36
1.64
1.64
1.64
2.00
2.00
2.40
2.40
3.00
3.60
0.55
0.55
0.67
0.67
0.67
0.82
0.82
0.82
0.97
0.97
1.17
1.17
1.17
1.40
1.40
1.40
1.70
1.70
2.05
2.05
2.05
2.50
2.50
3.00
3.00
TYP. ESR
100 Hz
(1)
(m)
450
380
380
300
300
260
260
210
210
210
180
180
180
150
150
130
130
100
90
540
540
440
440
440
360
360
360
330
330
270
270
270
230
230
230
210
210
180
180
180
140
140
130
130
MAX. ESR
100 Hz
(1)
(m)
730
610
610
505
505
425
425
350
350
350
290
290
290
235
235
210
210
170
150
1080
1080
880
880
880
720
720
720
610
610
505
505
505
425
425
425
350
350
290
290
290
235
235
200
200
TYP. Z
10 kHz
(m)
300
280
280
240
240
235
235
205
205
205
145
145
145
135
135
115
115
95
80
420
420
335
335
335
255
255
255
245
245
240
240
240
185
185
185
155
155
125
125
125
105
105
95
95
MAX. Z
10 kHz
(m)
500
470
470
400
400
390
390
340
340
340
240
240
240
225
225
190
190
155
130
700
700
560
560
560
430
430
430
410
410
400
400
400
310
310
310
260
260
210
210
210
180
180
160
160
ORDERING CODE
MAL2159.......
2-TERM.
52331E3
42391E3
52391E3
32471E3
52471E3
42561E3
52561E3
42681E3
52681E3
62681E3
32821E3
42821E3
52821E3
42102E3
52102E3
42122E3
52122E3
52152E3
52182E3
43221E3
53221E3
43271E3
53271E3
63271E3
33331E3
43331E3
53331E3
43391E3
53391E3
33471E3
43471E3
53471E3
43561E3
53561E3
63561E3
43681E3
53681E3
43821E3
53821E3
63821E3
53102E3
63102E3
43122E3
53122E3
3-TERM.
72331E3
22391E3
72391E3
12471E3
72471E3
22561E3
72561E3
22681E3
72681E3
82681E3
12821E3
22821E3
72821E3
22102E3
72102E3
22122E3
72122E3
72152E3
72182E3
23221E3
73221E3
23271E3
73271E3
83271E3
13331E3
23331E3
73331E3
23391E3
73391E3
13471E3
23471E3
73471E3
23561E3
73561E3
83561E3
23681E3
73681E3
23821E3
73821E3
83821E3
73102E3
83102E3
23122E3
73122E3
200
250
(1)
Note
ESR at 120 Hz is approximately 0.95 x ESR 100 Hz
Revision: 31-Jan-17
Document Number: 28341
4
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
159 PUL-SI
www.vishay.com
Vishay BCcomponents
ORDERING CODE
MAL2159.......
2-TERM.
56689E3
46829E3
56829E3
46101E3
56101E3
46121E3
56121E3
66121E3
36151E3
46151E3
56151E3
36181E3
46181E3
56181E3
46221E3
56221E3
66221E3
46271E3
56271E3
66271E3
56331E3
66331E3
46391E3
56391E3
56471E3
56561E3
56681E3
57569E3
47689E3
57689E3
57829E3
37101E3
47101E3
57101E3
57121E3
47151E3
57151E3
67151E3
47181E3
57181E3
47221E3
57221E3
47271E3
57271E3
47331E3
57331E3
57391E3
90103E3D
57471E3
57561E3
3-TERM.
76689E3
26829E3
76829E3
26101E3
76101E3
26121E3
76121E3
86121E3
16151E3
26151E3
76151E3
16181E3
26181E3
76181E3
26221E3
76221E3
86221E3
26271E3
76271E3
86271E3
76331E3
86331E3
26391E3
76391E3
76471E3
76561E3
76681E3
77569E3
27689E3
77689E3
77829E3
17101E3
27101E3
77101E3
77121E3
27151E3
77151E3
87151E3
27181E3
77181E3
27221E3
77221E3
27271E3
77271E3
27331E3
77331E3
77391E3
-
77471E3
77561E3
ELECTRICAL DATA AND ORDERING INFORMATION
U
R
(V)
C
R
100 Hz
(μF)
68
82
82
100
100
120
120
120
150
150
150
180
180
180
220
220
220
270
270
270
330
330
390
390
470
560
680
56
68
68
82
100
100
100
120
150
150
150
180
180
220
220
270
270
330
330
390
470
470
560
NOMINAL
CASE SIZE
Ø
D x L
(mm)
22 x 25
22 x 30
25 x 25
22 x 35
25 x 30
22 x 35
25 x 30
30 x 25
22 x 40
25 x 35
30 x 30
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
35 x 30
25 x 50
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
35 x 50
35 x 60
22 x 25
22 x 30
25 x 25
22 x 35
22 x 40
25 x 30
30 x 25
25 x 35
25 x 40
30 x 30
35 x 25
25 x 45
30 x 35
30 x 40
35 x 30
30 x 45
35 x 35
30 x 50
35 x 40
35 x 45
35 x 40
35 x 50
35 x 60
I
R
120 Hz
105
C
(A)
0.51
0.60
0.60
0.69
0.70
0.76
0.76
0.77
0.86
0.89
0.92
1.01
0.99
0.96
1.15
1.15
1.14
1.31
1.30
1.21
1.47
1.40
1.63
1.57
1.72
1.84
2.24
0.48
0.56
0.56
0.64
0.74
0.71
0.73
0.82
0.95
0.93
0.91
1.07
1.06
1.21
1.14
1.37
1.32
1.54
1.49
1.61
1.90
1.72
2.11
I
L5
5 min
(mA)
0.27
0.33
0.33
0.40
0.40
0.48
0.48
0.48
0.60
0.60
0.60
0.72
0.72
0.72
0.88
0.88
0.88
1.08
1.08
1.08
1.32
1.32
1.56
1.56
1.88
2.24
2.72
0.25
0.30
0.30
0.36
0.45
0.45
0.45
0.54
0.67
0.67
0.67
0.81
0.81
0.99
0.99
1.21
1.21
1.48
1.48
1.75
1.50
2.11
2.52
TYP. ESR
100 Hz
(1)
(m)
1600
1200
1200
990
990
800
800
800
700
700
700
590
590
590
470
470
470
380
380
380
320
320
270
270
230
210
180
1600
1200
1200
1100
900
900
900
750
600
600
600
500
500
370
370
350
350
300
300
250
210
210
190
MAX. ESR
100 Hz
(1)
(m)
3200
2400
2400
1980
1980
1600
1600
1600
1400
1400
1400
1170
1170
1170
940
940
940
760
760
760
640
640
540
540
450
420
350
3200
2400
2400
2200
1800
1800
1800
1500
1200
1200
1200
1000
1000
740
740
700
700
600
600
500
300
420
380
TYP. Z
10 kHz
(m)
1170
910
910
740
740
660
660
660
510
510
510
420
420
420
350
350
350
330
330
330
270
270
240
240
200
170
130
1120
910
910
770
630
630
630
530
420
420
420
360
360
310
310
270
270
230
230
200
115
170
140
MAX. Z
10 kHz
(m)
1950
1520
1520
1240
1240
1100
1100
1100
860
860
860
700
700
700
590
590
590
550
550
550
450
450
410
410
330
280
230
1880
1530
1530
1290
1050
1050
1050
885
705
705
705
605
605
525
525
450
450
390
390
340
190
290
240
400
450
(1)
Note
ESR at 120 Hz is approximately 0.95 x ESR 100 Hz
Revision: 31-Jan-17
Document Number: 28341
5
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
