Data Sheet
Features
•
•
•
•
•
•
•
•
For GSM/EDGE applications
Usable bandwidth 180 KHz
Low loss
High attenuation
Single ended operation
Ceramic Surface Mount Package (SMP)
Hermetic
RoHS
compliant (2002/95/EC),
Pb-free
Part Number 856447

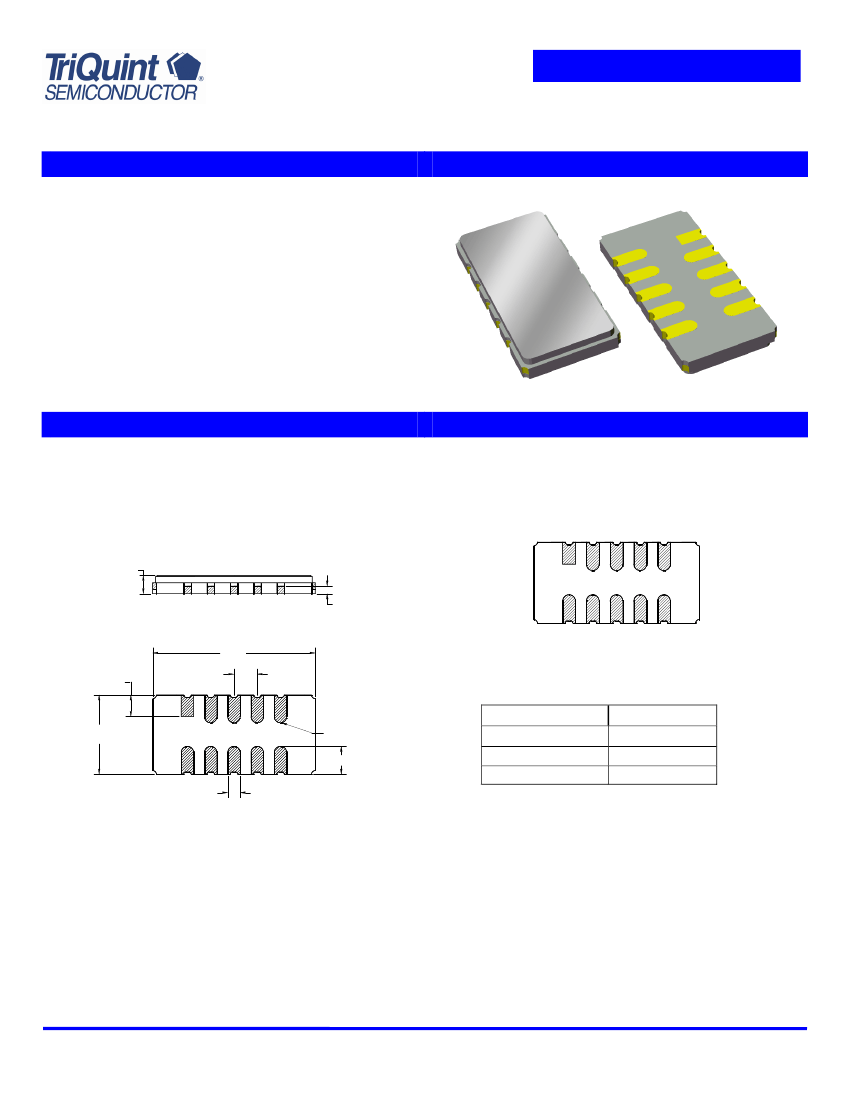

170.6 MHz SAW Filter
•
Package
Surface Mount 13.3 x 6.50 x 1.54 mm
SMP-53C
Pin Configuration
Bottom View
1
1.50 NOM.
1.65 MAX.
0.64
2
3
4
5
10
13.3
1.80
1.91
9
8
7
6
6.50
R0.51
2.31
1.02
Pin No.
10
5
1,2,3,4,6,7,8,9
Description
Input
Output
Case ground
Dimensions shown are nominal in millimeters
All tolerances are
±0.15mm
except overall
length and width
±0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 - 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev A
12/08
© TriQuint Semiconductor
Page 1 of 5
Data Sheet
Operating Temperature Range:
(2)
-20 to +85
°C
Part Number 856447
170.6 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Insertion Loss at Fo
1 dB Lower Frequency
1 dB Upper Frequency
13 dB Lower Frequency
13 dB Upper Frequency
27 dB Lower Frequency
27 dB Upper Frequency
40 dB Lower Frequency
40 dB Upper Frequency
43 dB Lower Frequency
43 dB Upper Frequency
47 dB Lower Frequency
47 dB Upper Frequency
Amplitude Variation
170.51 - 170.69 MHz
Group Delay Ripple
170.51 - 170.69 MHz
Minimum Rejection
171.4 - 171.6 MHz
Input Power Level
Passband Input IP3
Input/Output VSWR
Optimal Source Impedance:
(5)
Optimal Load Impedance:
(5)
Notes:
Minimum
-
-
-
170.69
170.2
-
170.0
-
169.8
-
169.0
-
167.4
-
-
-
40
-
30
-
-
-
Typical
(4)
170.6
5.59
170.44
170.75
170.27
170.95
170.11
171.11
170.00
171.23
169.94
171.28
169.85
171.60
0.29
421
-
-
-
-
50
50
Maximum
-
8
170.51
-
-
171.0
-
Unit
MHz
dB
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
MHz
dB p-p
nsec
dB
dBm
dBm
−
Ω
Ω
171.2
-
171.4
-
172.2
-
173.8
1
1000
-
20
-
2:1
-
-
1. All specifications are based on the TriQuint test circuit shown below
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. This is the optimum impedance in order to achieve the performance shown
Test Circuit:
Actual matching values may vary due to PCB layout and parasitics
220pF
10
5
15nH
50Ω
Ω
27nH
50
Ω
Single-ended
Input
50Ω
Ω
18nH
1,2,3,4
6,7,8,9
50
Ω
Single-ended
Output
Subject to change or obsolescence without notice
Rev A
12/08
© TriQuint Semiconductor
Page 2 of 5
Data Sheet
Part Number 856447
170.6 MHz SAW Filter

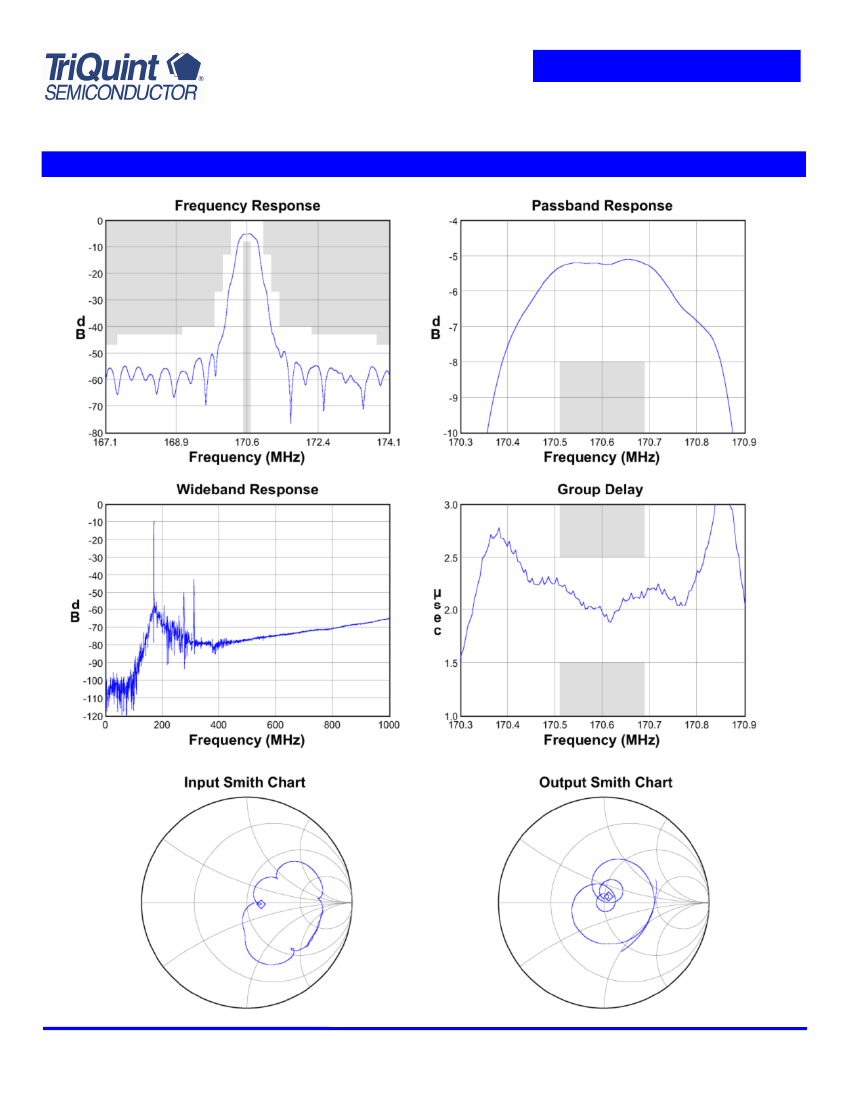

Typical Performance
(at +25
o
C)
Subject to change or obsolescence without notice
Rev A
12/08
© TriQuint Semiconductor
Page 3 of 5
Data Sheet
Actual matching values may vary due to PCB layout and parasitics
220pF
10
5
27nH
Part Number 856447
170.6 MHz SAW Filter

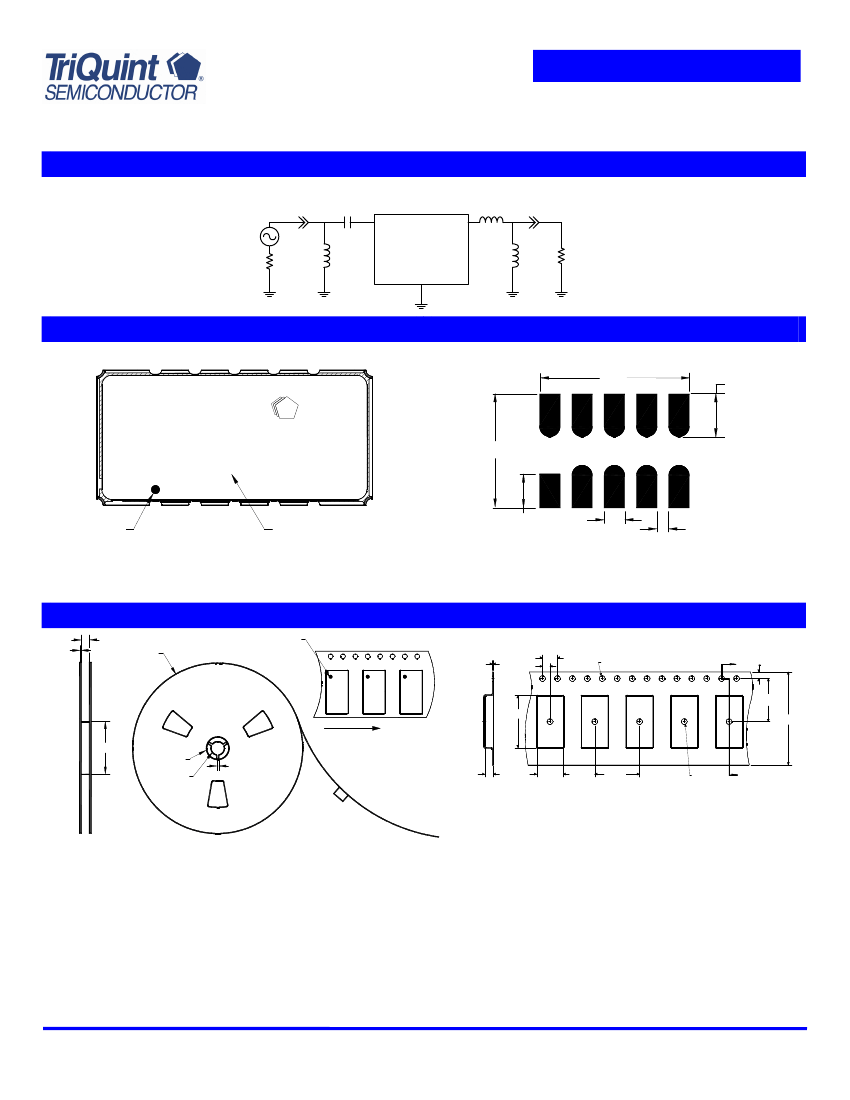

Matching Schematics
50
Ω
Single-ended
Input
50Ω
Ω
18nH
1,2,3,4
6,7,8,9
15nH
50Ω
Ω
50
Ω
Single-ended
Output
Marking
PCB Footprint
8.86
2.51
TriQuint
856447
JJJYHH
6.70
ID Dot
Date Code
2.00
1.22
.69
The date code consists of: day of the current year (Julian,
3 digits), last digit of the year (1 digit) and hour (2 digits)
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
24.8
2.7
Ø330
0.3
2.0
ID dot
4.0
Ø1.5
A
1.75
11.5
13.9
24
Ø102
Ø20.2
Ø13.0
2.0
Direction of travel
2.3
Section A-A
7.1
12.0
Ø1.5
A
Dimensions shown are nominal in millimeters
Packaging quantity:2000 units/reel
Subject to change or obsolescence without notice
Rev A
12/08
© TriQuint Semiconductor
Page 4 of 5
Data Sheet
Parameter
Operating Temperature Range
Storage Temperature Range
Part Number 856447
170.6 MHz SAW Filter
Maximum Ratings
Symbol
T
T
stg
Minimum
-20
-40
Maximum
+85
+85
Unit
o
o
C
C
Warnings
•
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
Material Content
Does not contain lead (Pb) or other RoHS restricted materials
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
Soldering Profile
Other Technical Information
TriQuint’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. TriQuint does not accept any liability
for applications, processes, circuits or assemblies, which are implemented using any TriQuint component described in this data sheet.
Contact Information
PO Box 609501
Orlando, FL 32860-9501
USA
Subject to change or obsolescence without notice
Phone: +1 (407) 886-8860
Fax: +1 (407) 886-7061
Email:
info-product@tqs.com
Web:
www.triquint.com
Or contact one of our worldwide
Network of
sales offices,
Representatives or distributors
Rev A
12/08
© TriQuint Semiconductor
Page 5 of 5
