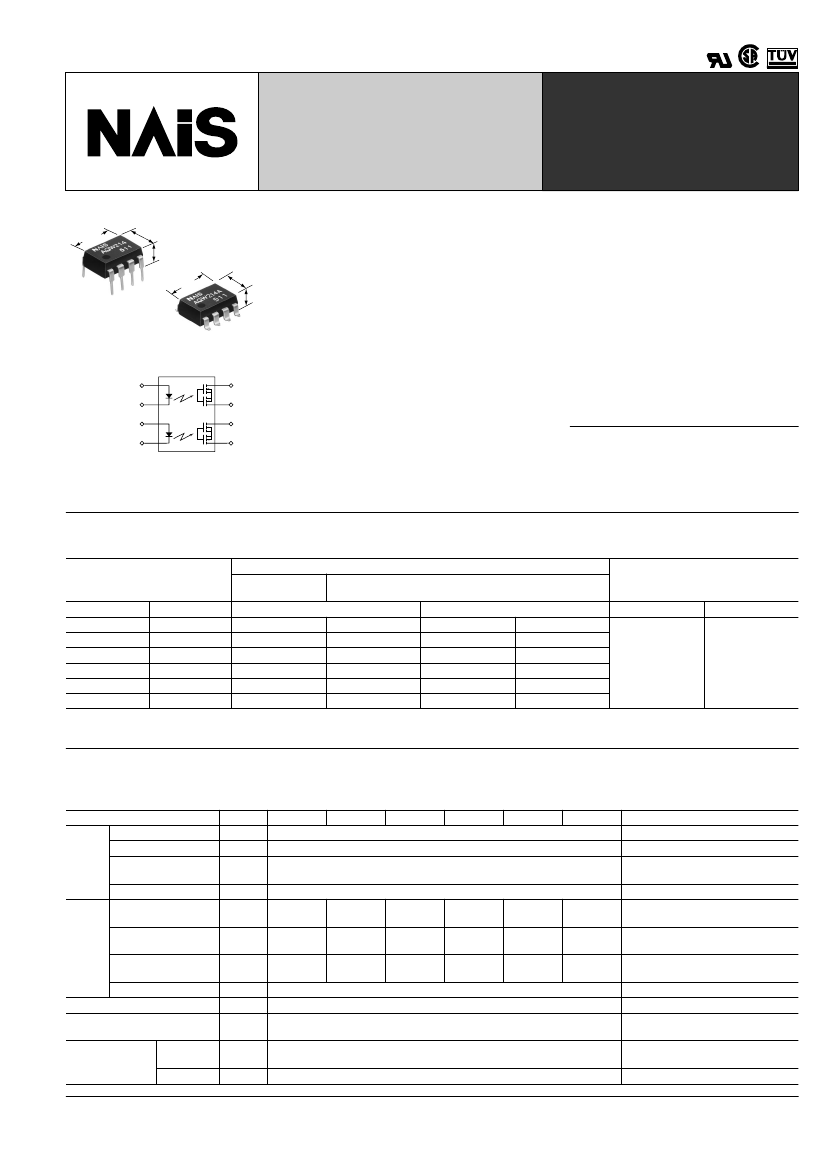

GU (General Use) Type
[2-Channel (Form A) Type]
PhotoMOS
RELAYS
5. Low-level off state leakage current
The SSR has an off state leakage current
of several milliamperes whereas the Pho-
toMOS relays has only 100 pA even with
the rated load voltage of 400 V
(AQW214).
6. Low-level thermal electromotive
force (Approx. 1
µ
V)
7. Eliminates the need for a counter
electromotive force protection diode in
the drive circuits on the input side
8. Stable ON resistance.
9. Eliminates the need for a power sup-
ply to drive the power MOSFET
FEATURES
9.78
.385
6.4
.252
3.9±0.2
.154±.008
9.78
.385
6.4
.252
3.6±0.2
.142±.008
mm
inch
1
2
3
4
8
7
6
5
1. Compact 8-pin DIP size
The device comes in a compact (W) 6.4
×
(L) 9.78
×
(H) 3.9 mm
(W) .252
×
(L)
.385
×
(H) .154 inch,
8-pin DIP size
(through hole terminal type).
2. Applicable for 2 Form A use as well
as two independent 1 Form A use
3. Controls low-level analog signals
PhotoMOS relays feature extremely low
closed-circuit offset voltage to enable
control of low-level analog signals without
distortion.
4. High sensitivity, high speed re-
sponse
Can control a maximum 0.13 A load cur-
rent with a 5 mA input current. Fast oper-
ation speed of 310
µ
s (typical). (AQW214)
TYPICAL APPLICATIONS
• High-speed inspection machines
• Telephones equipment
• Computer
TYPES
1. AC/DC type
Part No.
Through hole
Surface-mount terminal
terminal
Load voltage
Load current
Tube packing style
Tape and reel packing style
60V
500 mA
AQW212
AQW212A
AQW212AX
AQW212AZ
100 V
300 mA
AQW215
AQW215A
AQW215AX
AQW215AZ
200 V
160 mA
AQW217
AQW217A
AQW217AX
AQW217AZ
350 V
120 mA
AQW210
AQW210A
AQW210AX
AQW210AZ
400 V
100 mA
AQW214
AQW214A
AQW214AX
AQW214AZ
600 V
40 mA
AQW216
AQW216A
AQW216AX
AQW216AZ
*Indicate the peak AC and DC values.
Note: For space reasons, the package type indicator "X" and "Z" are omitted from the seal.
Output rating*
Packing quantity
Tube
1 tube contains
40 pcs.
1 batch contains
400 pcs.
Tape and reel
1,000 pcs.
RATING
1. AC/DC type
1. Absolute maximum ratings (Ambient temperature: 25
°
C
77
°
F)
Item
LED forward current
LED reverse voltage
Input
Peak forward current
Symbol
AQW212(A) AQW215(A) AQW217(A) AQW210(A) AQW214(A) AQW216(A)
I
F
50 mA
3V
V
R
I
FP
P
in
V
L
I
L
I
peak
P
out
P
T
V
iso
T
opr
T
stg
60 V
0.50 A
(0.60A)
1.0 A
100 V
0.30 A
(0.35 A)
0.9 A
1A
75 mW
200 V
0.16 A
(0.2 A)
0.48 A
350 V
0.12 A
(0.14 A)
0.36 A
400 V
0.10 A
(0.13 A)
0.3 A
600 V
0.04 A
(0.05 A)
0.12 A
( ): in case of using only 1 channel
A connection: Peak AC, DC
A connection: 100 ms (1 shot),
V
L
= DC
Remarks
f = 100 Hz,
Duty factor = 0.1%
Power dissipation
Load voltage
(peak AC)
Continuous load
Output current
Peak load current
Power dissipation
Total power dissipation
I/O isolation voltage
Temperature
limits
Operating
Storage
800 mW
850 mW
1,500 V AC
–40
°
C to +85
°
C
–40
°
F to +185
°
F
–40
°
C to +100
°
C
–40
°
F to +212
°
F
Between input and output/
between contact sets
Non-condensing at low
temperatures
57
AQW21
r
2. Electrical characteristics (Ambient temperature: 25
°
C
77
°
F)
Item
LED operate
current
Input
LED turn off
current
LED dropout
voltage
On resistance
Output
Typical
Maximum
Minimum
Typical
Typical
Maximum
Typical
Maximum
Symbol
AQW212(A) AQW215(A) AQW217(A) AQW210(A) AQW214(A) AQW216(A)
I
Fon
I
Foff
V
F
0.83
Ω
R
on
I
Leak
T
on
T
off
C
iso
R
iso
0.65 ms
2 ms
0.08 ms
0.60 ms
2 ms
0.06 ms
2.5
Ω
2.3
Ω
4.0
Ω
0.9 mA
3 mA
0.4 mA
0.8 mA
1.14 V (1.25 V at I
F
= 50 mA)
1.5 V
11
Ω
15
Ω
1
µ
A
0.25 ms
1.0 ms
0.05 ms
0.25 ms
0.5 ms
0.05 ms
0.31 ms
0.5 ms
0.05 ms
0.28 ms
0.5 ms
0.04 ms
23
Ω
35
Ω
30
Ω
50
Ω
70
Ω
120
Ω
Condition
I
L
= Max.
I
L
= Max.
I
F
= 5 mA
I
F
= 5 mA
I
L
= Max.
Within 1 son time
I
F
= 0
V
L
= Max.
I
F
= 5 mA
I
L
= Max.
I
F
= 5 mA
I
L
= Max.
f = 1 MHz
V
B
= 0
500 V DC
For type of connection, see page 32.
Off state leakage
Maximum
current
Turn on time*
Turn off time*
I/O capacitance
Typical
Maximum
Typical
Maximum
Typical
Maximum
Transfer
characteristics
0.2 ms
0.8 pF
1.5 pF
1,000 M
Ω
Initial I/C isolation
Minimum
resistance
Note: Recommendable LED forward current I
F
= 5mA.
*Turn on/Turn off time
Input
90%
Output
Ton
Toff
10%

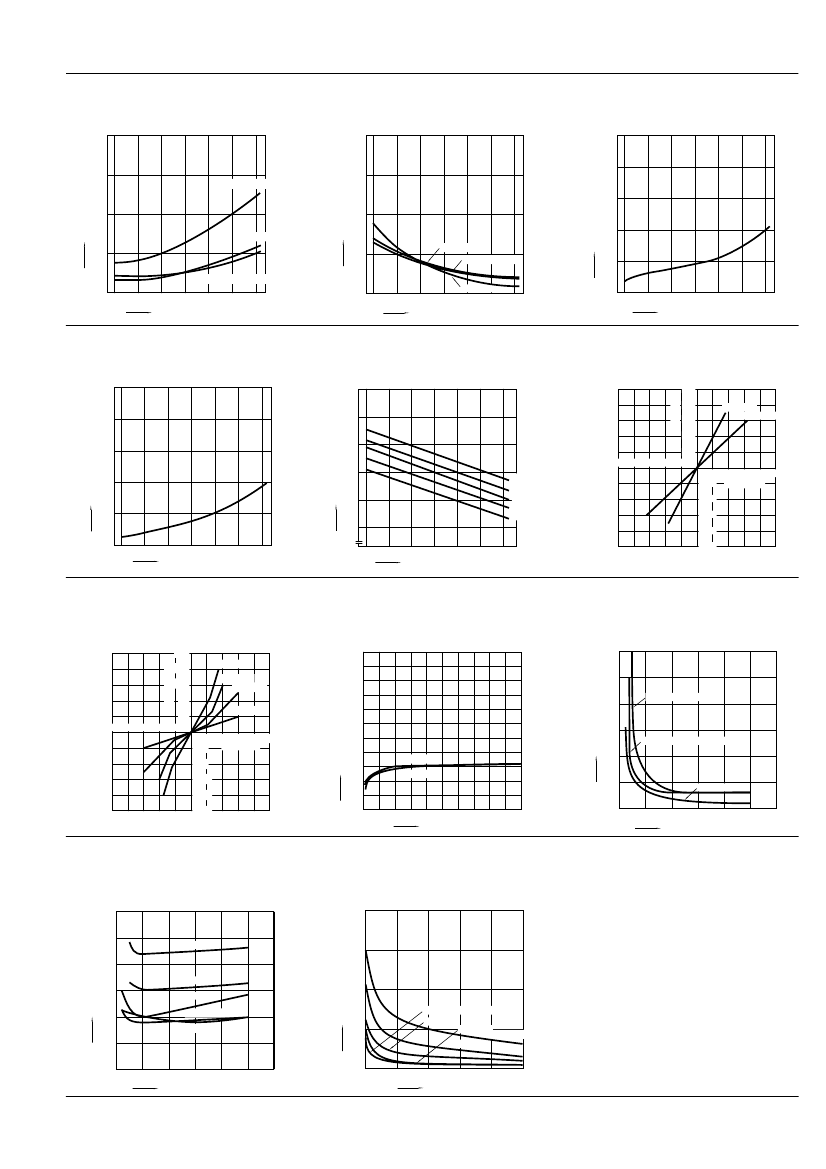

REFERENCE DATA
1. Load current vs. ambient temperature char-
acteristics
Allowable ambient temperature: –40
°
C to +85
°
C
–40
°
F to +185
°
F
500
2.-(1) On resistance vs. ambient temperature
characteristics
Measured portion: between terminals 5 and 6, 7 and 8;
LED current: 5 mA; Load voltage: Max. (DC);
Continuous load current: Max. (DC)
5
2.-(2) On resistance vs. ambient temperature
characteristics
Measured portion: between terminals 5 and 6, 7 and 8;
LED current: 5 mA; Load voltage: Max. (DC);
Continuous load current: Max. (DC)
120
100
AQW216
Load current, mA
AQW212
300
AQW215
On resistamce,
Ω
AQW215
3
On resistamce,
Ω
400
4
80
60
AQW214
40
AQW210
20
0
AQW217
–40
–20
0
20
40
60
8085
Ambient temperature,
°C
200
AQW217
AQW210
AQW214
AQW216
2
AQW212
1
100
0
–40 –20
8085 100
0
20
40
60
Ambient temperature,
°C
0
–40
–20
0
20
40
60
8085
Ambient temperature,
°C
58
AQW21
r
3. Turn on time vs. ambient temperature char-
acteristics
LED current: 5 mA; Load voltage: Max. (DC);
Continuous load current: Max. (DC)
2.0
4. Turn off time vs. ambient temperature char-
acteristics
LED current: 5 mA; Load voltage: Max. (DC);
Continuous load current: Max. (DC)
0.4
5. LED operate current vs. ambient tempera-
ture characteristics
Sample: All types; Load voltage: Max. (DC);
Continuous load current: Max. (DC)
5
LED operate ourrent, mA
4
Turn on time, ms
AQW212,AQW215
Turn off time, ms
1.5
0.3
3
1.0
AQW214
0.5
AQW216,AQW210,AQW217
0
–40
–20
0
20
40
60
8085
0.2
2
0.1
AQW212,215
AQW216,210,217
1
0
–40
–20
0
20
AQW214
40
60
8085
0
–40
–20
0
20
40
60
8085
Ambient temperature,
°C
Ambient temperature,
°C
Ambient temperature,
°C
6. LED turn off current vs. ambient temperature
characteristics
Sample: All types; Load voltage: Max. (DC);
Continuous load current: Max. (DC)
5
LED turn off current, mA
7. LED dropout voltage vs. ambient tempera-
ture characteristics
Sample: All types;
LED current: 5 to 50 mA
1.5
8.-(1) Voltage vs. current characteristics of out-
put at MOS portion
Measured portion: between terminals 5 and 6, 7 and 8;
Ambient temperature: 25
°
C
77
°
F
0.5
Current, A
0.4
0.3
0.2
AQW212
AQW215
LED dropout voltage, V
4
1.4
1.3
1.2
1.1
1.0
3
0.1
–1.0 –0.8 –0.6 –0.4 –0.2
50mA
30mA
20mA
10mA
5mA
0 0.2 0.4 0.6 0.8 1.0
–0.1 Voltage, V
–0.2
–0.3
–0.4
–40
–20
0
20
40
60
8085
Ambient temperature,
°C
–0.5
2
1
0
–40
–20
0
20
40
60
8085
Ambient temperature,
°C
0
8.-(2) Voltage vs. current characteristics of out-
put at MOS portion
Measured portion: between terminals 5 and 6, 7 and 8;
Ambient temperature: 25
°
C
77
°
F
200
9. Off state leakage current
Measured portion: between terminals 5 and 6, 7 and 8;
Ambient temperature: 25
°
C
77
°
F
10. LED forward current vs. turn on time char-
acteristics
Measured portion: between terminals 5 and 6, 7 and 8;
Load voltage: Max. (DC); Continuous load current:
Max. (DC); Ambient temperature: 25
°
C
77°F
1.2
Current, mA
Off state leakage current, A
160
120
80
40
AQW217
AQW210
AQW214
AQW216
1
–40
–80
–120
–160
–200
2 3 4 5
Voltage, V
10
–3
1.0
Turn on time, ms
0.8
0.6
AQW210,AQW216,AQW217
0.4
0.2
0
AQW212,AQW215
10
–6
–5 –4 –3 –2 –1
10
–9
AQW216
AQW214
10
–12
0
20
60
40
80
Load voltage, V
100
10
20
AQW214
30
40
50
LED forward current, mA
11. LED forward current vs. turn off time char-
acteristics
Measured portion: between terminals 5 and 6, 7 and 8;
Load voltage: Max. (DC); Continuous load current:
Max. (DC); Ambient temperature: 25°C
77°F
0.12
0.10
AQW212
Turn off time, ms
0.08
AQW215
0.06
0.04
0.02
0
AQW216
AQW210,217
AQW214
12. Applied voltage vs. output capacitance
characteristics
Measured portion: between terminals 5 and 6, 7 and 8;
Frequency: 1 MHz;
Ambient temperature: 25°C
77°F
200
Output capacitamce, pF
150
100
AQW216,AQW210
AQW217
AQW214
AQW212
AQW215
50
0
10
20
30
40
50
0
0
10
20
30
40
50
LED forward current, mA
Applied voltage, V
