MICRO SWITCH™ Standard Basic Switches
V15 Series
004945
Datasheet
Issue 8
FEATURES
• Broad range of electrical loads:
0.1 A, 5 A, 10 A, 16 A, 22 A, 26 A
• Long service life: over one million mechanical operations
• Gold contacts are also available for controlling logic level/low
energy circuits
• World-wide package size acceptance
• UL/CSA, cUL, ENEC, and CQC approvals
POTENTIAL APPLICATIONS
• Appliances
• Furnaces
• Gaming machines
• Ice makers
• Power washers
• Vending machines
PORTFOLIO
Honeywell offers a broad range of MICRO SWITCH™ basic
switches including large, V-Basic, miniature, watertight, and
special application switches.
DESCRIPTION

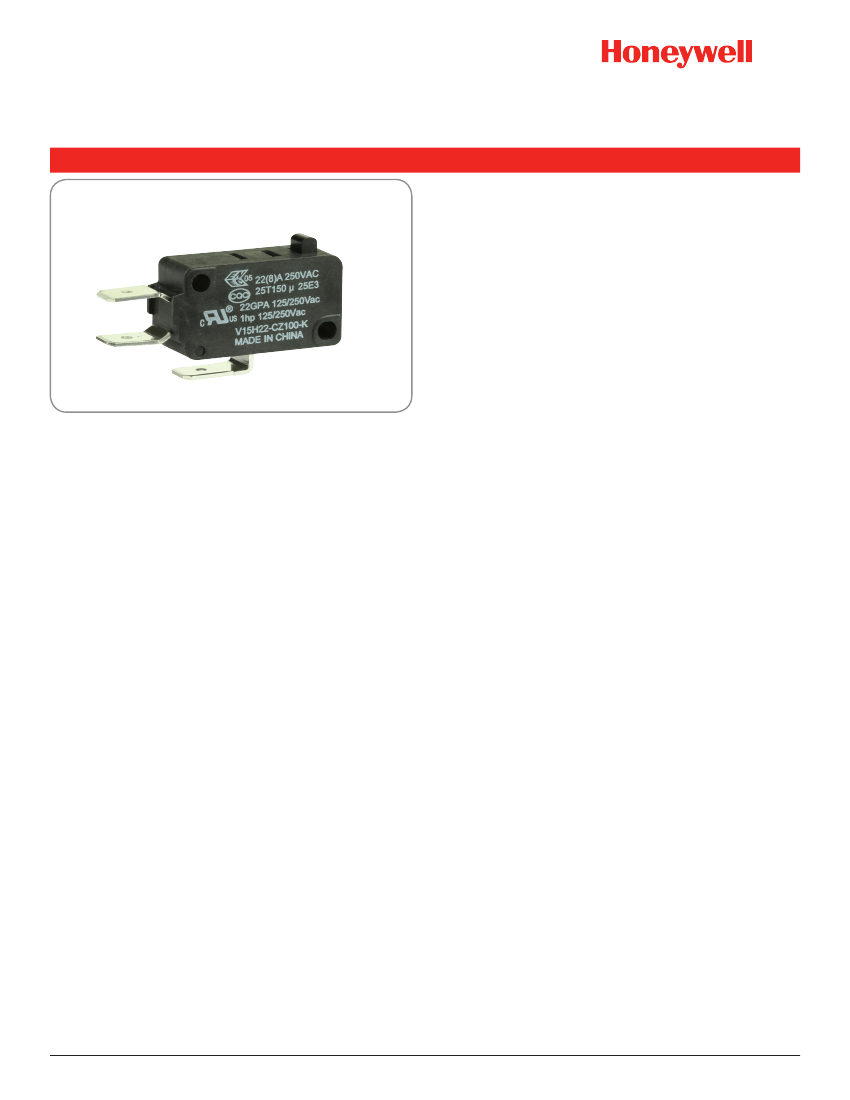

Honeywell’s MICRO SWITCH™ V-Basic Standard Switch, V15
Series is an electromechanical switch designed to provide
outstanding value in a reliable global package. This switch is
often ideal for “low-cost-of-failure” applications, where the cost
is minimal to replace or service any failure related to the switch.
With a wide variety of operating forces, and amperage ratings,
the V15 is designed for numerous types of applications.
Available in both pin plunger and levered styles, the V15 Series
also offers a multitude of termination styles to fit almost any
application.
VALUE TO CUSTOMERS
• Wide choice of electrical ratings: 0.1 A, 5 A, 10 A, 16 A,
22 A, 26 A
• Certified for global use: UL/cUL, ENEC, CQC
• Available with pin plungers or integral levers to meet multiple
application and equipment requirements
DIFFERENTIATION
• Choice of actuation, termination, and operating characteristics
that can allow for flexibility in numerous types of applications
• With a broad current capacity, one switch package can control
a wide range of electrical loads
Sensing and Productivity Solutions
MICRO SWITCH™ Standard Basic Switches, V15 Series
Table 1. Specifications
Characteristic
Circuitry
Operating force
Parameter
SPDT, SPNO, SPNC
0,15 N to 3,92 N [15g to 400 g]
quick connect; 6,35 mm x 0,80 mm [0.250 in x 0.032 in]
quick connect 4,80 mm x 0,80 mm [ 0.187 in x 0.032 in]
quick connect 4,80 mm x 0,50 mm [0.187 in x 0.020 in]
push-in terminals; RAST-5 250#; RAST-7 250#; short solder; slot-hole solder; solder;
right side PCB; left side PCB; straight PCB; screw; oblique screw
pin plunger, integral lever options
ENEC, CQC, UL, cUL
code S: -25 °C to 85 °C [-13 °F to 185 °F]
code T: -25 °C to 125 °C [-13 °F to 257 °F]
code H: -25 °C to 150 °C [-13 °F to 302 °F]
1 million cycles (except for 200g versions of V15S05 and V15T10 which are 500,000 cycles)
silver, gold-plated
PBT thermoplastic polyester (standard)
PET thermoplastic polyester (V15H high temperature, 150 °C [302 °F])
Termination
Actuators
Agency certification
Operating temperature
(manufacturer specified)
Mechanical life (cycles)
Contact material
Housing material
Table 2. Electrical Ratings
Rating/Nomenclature Code
UL/cUL (CUL 61058-1, File 12252)
Americas
ENEC (IEC 61058-1) Europe
CQC (GB15092-1) Asia-Pacific
05
5 GPA 125/250 Vac; 0.1 GPA 125/250 Vac
1/10 HP 125/250 Vac
0.1 RA 48 Vdc
10,000 cycles
10 GPA 125/250 Vac
1/2 HP 125/250 Vac
1.0 RA 30 Vdc
100,000 cycles
11 GPA 125/250 Vac
1/3 HP 125/250 Vac
0.5 RA 125 Vdc
0.25 RA 250 Vdc
10,000 cycles
11 (3) 125/250 Vac
50,000 cycles
16 GPA 125/250 Vac
1/2 HP 125/250 Vac
10,000 cycles
22 GPA 125/250 Vac
1 HP 125/250 Vac
10,000 cycles
n/a
• RA = Resistive Amps (Resistive Load)
• GPA = General Purpose Amps (Inductive Load,
75 % to 80 % power factor)
• VL = Lamp Load
0.1 A 125/250 Vac; 0.1 A 48 Vdc
5 (2.5) A 125/250 Vac
50,000 cycles
H10
n/a
T10
0.5 A 125 Vdc; 0.25 A 250 Vdc
10 (3) A 125/250 Vac
50,000 cycles
11 (3) 125/250 Vac
50,000 cycles
(ENEC only)
16 (4) A 250 Vac
50,000 cycles
22 (8) A 250 Vac
25,000 cycles
0.02 A 250 Vac
26 (10) A 250 Vac
50,000 cycles
• XX (Y) = XX max. resistive value (Amps) and (Y) max.
inductive value (Amps)
S11
16
22
26
2
sensing.honeywell.com
MICRO SWITCH™ Standard Basic Switches, V15 Series
V15S05 PRODUCT NOMENCLATURE
V15
Switch Type
S
Temperature
Grade
05
Electrical
Rating
—
C
Terminal
Type
1
Housing
Type
Basic
(blank)
Z
Circuit
Code
200
(at pin plunger max)
A
Lever
Position
Pin plunger,
no lever
(blank)
06
Lever
Type
No Lever
(blank)
—
K
Mounting
Holes
Metric
Ø 3,1 mm
(blank)
A
Special
Designator
A special designator
letter is used only
when there is a
special modification
to the switch.
Review Product
Specification to
determine the exact
differences. Below
is an example.
Operating Force
15 gf; 0,15 N
25 gf; 0,25 N
50 gf; 0,49 N
100 gf; 0,96 N
200 gf; 1,96 N
V15
Series
Standard
Basic
Switch
S
85 °C [185 °F]
(for “05” and “11”
ratings only)
05
0.1 A 48 Vdc/
125 Vac/250 Vac
5 A 125 Vac/250 Vac
C
D
E
F
U
Quick connect
6,30 mm x 0,80 mm
[0.250 in x 0.032 in]
Quick connect
4,70 mm x 0,80 mm
[0.187 in x 0.032 in]
Quick connect
4,70 mm x 0,50 mm
[0.187 in x 0.020 in]
Screw terminal
w/ pressure plate
Push-in terminal
(used only in combination
with “S11”)
Z
P
C
SPDT
SPST-NO
SPST-NC
015
025
050
100
200
11
*
11 A 125 Vac/250 Vac
1
2
Flat
Fully
flat
A
B
Far from
pin plunger
Near pin
plunger
01
02
03
04
05
06
**
Short
straight lever
Standard
straight lever
Long
straight lever
Simulated
roller lever
Roller lever
Long
roller lever
Special
K
USA
Ø 2,9 mm
A
Contact
gold-plated
* Type “11” rating only available with U terminal type and 200 gf operating force.
** Additional code assigned for specials
V15T10 PRODUCT NOMENCLATURE
V15
Switch Type
T
Temperature
Grade
10
Electrical
Rating
—
C
Terminal
Type
1
Housing
Type
Basic
(blank)
Z
Circuit
Code
200
(at pin plunger max)
A
Lever
Position
Pin plunger,
no lever
(blank)
06
Lever
Type
No Lever
(blank)
—
K
Mounting
Holes
Metric
Ø 3,1 mm
(blank)
A
Special
Designator
A special designator
letter is used only
when there is a
special modification
to the switch.
Review Product
Specification to
determine the exact
differences. Below
is an example.
Operating Force
V15
Series
Standard
Basic
Switch
T
125 °C [257 °F]
10
0.5 A 125 Vdc
0.25 A 250 Vdc
4 A 125 Vac
(lamp load)
10 A 125 Vac/250 Vac
C
D
E
F
Quick connect
6,30 mm x 0,80 mm
[0.250 in x 0.032 in]
Quick connect
4,70 mm x 0,80 mm
[0.187 in x 0.032 in]
Quick connect
4,70 mm x 0,50 mm
[0.187 in x 0.020 in]
Screw terminal
w/ pressure plate
Z
P
C
SPDT
SPST-NO
SPST-NC
050
100
200
50 gf; 0,49 N
100 gf; 0,96 N
200 gf; 1,96 N
1
2
Flat
Fully
flat
A
B
Far from
pin plunger
Near pin
plunger
01
02
03
04
05
06
**
Short
straight lever
Standard
straight lever
Long
straight lever
Simulated
roller lever
Roller lever
Long
roller lever
Special
K
USA
Ø 2,9 mm
A
Contact
gold-plated
V15H16/T16/T22/H22/T26 PRODUCT NOMENCLATURE
V15
Switch Type
** Additional code assigned for specials
H
Temperature
Grade
16
Electrical
Rating
—
C
Terminal
Type
1
Housing
Type
(blank)
Z
Circuit
Code
200
(at pin plunger max)
A
Lever
Position
Pin plunger,
no lever
(blank)
06
Lever
Type
No Lever
(blank)
—
K
Mounting
Holes
(blank)
A
Special
Designator
A special designator
letter is used only
when there is a
special modification
to the switch.
Review Product
Specification to
determine the exact
differences. Below
is an example.
Operating Force
V15
Series
Standard
Basic
Switch
T
125 °C [257 °F]
H
150 °C [302 °F]
∆
10
16
22
26
1 A 30 Vdc
10 A 1/2 HP 125/250 Vac
(H temperature grade only)
C
D
E
F
H
K
L
Quick connect
6,30 mm x 0,80 mm
[0.250 in x 0.032 in]
Quick connect
4,70 mm x 0,80 mm
[0.187 in x 0.032 in]
Quick connect
4,70 mm x 0,50 mm
[0.187 in x 0.020 in]
Screw terminal
w/ pressure plate
RAST-5 250#
connector
Slot hole,
solder terminal
Left side,
PCB terminal
∆
1
Basic
Z
SPDT
P
SPST-NO
C
SPST-NC
100
1
100 gf; 0,96 N
200 gf; 1,96 N
300 gf; 2,84 N
400 gf; 3,92 N
Metric
Ø 3,1 mm
USA
Ø 2,9 mm
16 A 125 Vac/250 Vac
22 A 125 Vac/250 Vac
0.02 A 250 Vac
26 A 250 Vac
1
2
Flat
Fully
flat
200
300
400
A
B
Far from
pin plunger
Near pin
plunger
01
Short
straight lever
Standard
K
02
straight lever
03
Long lever
straight
04
Simulated
roller lever
05
Roller lever
06
roller lever
**
Special
Long
A
Contact
gold-plated
“H” temperature grade not allowed with “26” electrical rating
“100” gf not allowed with “26” electrical rating
** Additional code assigned for specials
M
Short sholder
terminal
N
P
R
S
T
**
RAST-7 250#
connector
Straight
PCB terminal
Right side,
PCB terminal
Solder
terminal
Screw
terminal
Special
terminal
Sensing and Productivity Solutions
3
MICRO SWITCH™ Standard Basic Switches, V15 Series
PRODUCT SPECIFICATIONS AND LISTINGS
Contact your Honeywell rep or distributor for additional listings
Temperature
Rating
UL/cUL (ENEC)
O.F. • Operating force
R.F. • Release force
P.T. • Pretravel
O.T. • Overtravel
D.T. • Differential travel
O.P. • Operating position
O.T. max.
mm [in]
0,8
[0.03]
0,8
[0.03]
0,8
[0.03]
0,8
[0.03]
0,8
[0.03]
0,8
[0.03]
0,8
[0.03]
0,8
[0.03]
0,8
[0.03]
0,8
[0.03]
0,8
[0.03]
0,8
[0.03]
0,8
[0.03]
0,8
[0.03]
0,8
[0.03]
0,8
[0.03]
0,8
[0.03]
0,8
[0.03]
0,8
[0.03]
R. F. max.
g [oz]
Catalog Listing
V15S05-CP100
V15S05-CZ015
V15S05-CZ100
V15S05-EZ100-K
V15H10-CP100
V15H10-CZ100
V15H10-EZ100
V15T10-CZ100
V15T16-CP100
V15T16-CZ100-K
5A
(5 A)
5A
(5 A)
5A
(5 A)
5A
(5 A)
10 A
(---)
10 A
(---)
10 A
(---)
11 A
(10 A)
16 A
(16 A)
16 A
(16 A)
16 A
(16 A)
16 A
(16 A)
16 A
(16 A)
22 A
(22 A)
22 A
(22 A)
22 A
(22 A)
22 A
(22 A)
---
(26 A)
---
(26 A)
05
05
05
05
H10
H10
H10
T10
16
16
16
16
16
22
22
22
22
26
26
85 °C
85 °C
85 °C
85 °C
150 °C
150 °C
150 °C
125 °C
125 °C
125 °C
125 °C
150 °C
150 °C
125 °C
125 °C
150 °C
150 °C
125 °C
125 °C
SPNO
SPDT
SPDT
SPDT
SPNO
SPDT
SPDT
SPDT
SPNO
SPDT
SPDT
SPDT
SPDT
SPNO
SPDT
SPNO
SPDT
SPNO
SPDT
100
[3.53]
15
[0.53]
100
[3.53]
100
[3.53]
100
[3.53]
100
[3.53]
100
[3.53]
100
[3.53]
100
[3.53]
100
[3.53]
100
[3.53]
100
[3.53]
100
[3.53]
100
[3.53]
100
[3.53]
100
[3.53]
100
[3.53]
200
[7.05]
200
[7.05]
25
[0.88]
3
[0.11]
25
[0.88]
25
[0.88]
25
[0.88]
25
[0.88]
25
[0.88]
25
[0.88]
25
[0.88]
25
[0.88]
25
[0.88]
25
[0.88]
25
[0.88]
25
[0.88]
25
[0.88]
25
[0.88]
25
[0.88]
50
[1.76]
50
[1.76]
14,7
[0.58]
14,7
[0.58]
14,7
[0.58]
14,7
[0.58]
14,7
[0.58]
14,7
[0.58]
14,7
[0.58]
14,7
[0.58]
14,7
[0.58]
14,7
[0.58]
14,7
[0.58]
14,7
[0.58]
14,7
[0.58]
14,7
[0.58]
14,7
[0.58]
14,7
[0.58]
14,7
[0.58]
14,7
[0.58]
14,7
[0.58]
1,6
[0.06]
1,6
[0.06]
1,6
[0.06]
1,6
[0.06]
1,6
[0.06]
1,6
[0.06]
1,6
[0.06]
1,6
[0.06]
1,6
[0.06]
1,6
[0.06]
1,6
[0.06]
1,6
[0.06]
1,6
[0.06]
1,6
[0.06]
1,6
[0.06]
1,6
[0.06]
1,6
[0.06]
1,6
[0.06]
1,6
[0.06]
0,4
[0.02]
0,4
[0.02]
0,4
[0.02]
0,4
[0.02]
0,4
[0.02]
0,4
[0.02]
0,4
[0.02]
0,4
[0.02]
0,4
[0.02]
0,4
[0.02]
0,4
[0.02]
0,4
[0.02]
0,4
[0.02]
0,4
[0.02]
0,4
[0.02]
0,4
[0.02]
0,4
[0.02]
0,4
[0.02]
0,4
[0.02]
Metric
Metric
Metric
USA
Metric
Metric
Metric
Metric
Metric
USA
USA
Metric
Metric
USA
USA
Metric
Metric
USA
Metric
Pin Plunger
V15T16-EZ100-K
V15H16-CZ100
V15H16-EZ100
V15T22-CP100-K
V15T22-CZ100-K
V15H22-CP100
V15H22-CZ100
V15T26-CP200-K
V15T26-CZ200
4
sensing.honeywell.com
Mounting
holes
Electrical
Rating
O.F. max.
g [oz]
(see page 5)
P.T. max.
mm [in]
D.T. min.
mm [in]
Circuitry
O.P.
nominal
mm [in]
Elec.
Rating
MICRO SWITCH™ Standard Basic Switches, V15 Series
PRODUCT SPECIFICATIONS AND LISTINGS
Contact your Honeywell rep or distributor for additional listings
Temperature
Rating
UL/cUL (ENEC)
O.F. • Operating force
R.F. • Release force
P.T. • Pretravel
O.T. • Overtravel
D.T. • Differential travel
O.P. • Operating position
O.T. max.
mm [in]
1,2
[0.05]
0,8
[0.03]
0,8
[0.03]
0,8
[0.03]
0,8
[0.03]
0,8
[0.03]
0,8
[0.03]
0,8
[0.03]
0,8
[0.03]
2,2
[0.086]
1,3
[0.051]
1,3
[0.051]
1,3
[0.051]
1,3
[0.051]
1,3
[0.051]
1,3
[0.051]
1,3
[0.051]
2,2
[0.09]
1,3
[0.051]
1,3
[0.051]
1,3
[0.051]
1,3
[0.051]
1,3
[0.051]
1,3
[0.051]
1,3
[0.051]
1,3
[0.051]
R. F. max.
g [oz]
Catalog Listing
V15H10-EZ200B01
V15T10-CZ100A01
V15H16-EZ100A01
V15H16-EZ400A01
V15T16-CC100A01
10 A
(---)
11 A
(10 A)
16 A
(16 A)
16 A
(16 A)
16 A
(16 A)
16 A
(16 A)
16 A
(16 A)
16 A
(16 A)
16 A
(16 A)
5A
(5 A)
5A
(5 A)
10 A
(---)
11 A
(10 A)
16 A
(16 A)
16 A
(16 A)
16 A
(16 A)
16 A
(16 A)
16 A
(16 A)
16 A
(16 A)
16 A
(16 A)
16 A
(16 A)
16 A
(16 A)
22 A
(22 A)
22 A
(22 A)
22 A
(22 A)
22 A
(22 A)
H10
T10
16
16
16
16
16
16
16
05
05
H10
T10
16
16
16
16
16
16
16
16
16
22
22
22
22
150 °C
125 °C
150 °C
150 °C
125 °C
125 °C
125 °C
125 °C
125 °C
85 °C
85 °C
150 °C
125 °C
150 °C
150 °C
150 °C
150 °C
150 °C
125 °C
125 °C
125 °C
125 °C
125 °C
150 °C
150 °C
125 °C
SPDT
SPDT
SPDT
SPDT
SPNC
SPNO
SPDT
SPNO
SPDT
SPDT
SPDT
SPNC
SPDT
SPNO
SPDT
SPDT
SPNO
SPDT
SPNO
SPDT
SPDT
SPDT
SPDT
SPNO
SPDT
SPNC
140 [4.94]
100 [3.53]
100 [3.53]
400
[14.11]
100 [3.53]
300
[10.58]
100 [3.53]
200 [7.05]
200 [7.05]
10
[0.35]
15
[0.53]
120
[4.23]
30
[1.06]
60
[2.12]
60
[2.12]
120
[4.23]
240
[8.47]
80
[2.82]
180
[6.35]
60
[2.12]
60
[2.12]
120
[4.23]
180
[6.35]
60
[2.12]
60
[2.12]
120
[4.23]
20
[0.71]
25
[0.88]
25
[0.88]
100
[3.53]
25
[0.88]
75
[2.65]
25
[0.88]
50
[1.76]
50
[1.76]
2 [0.07]
2 [0.07]
20
[0.71]
5
[0.18]
10
[0.35]
10
[0.35]
20
[0.71]
40
[1.41]
16
[0.56]
30
[1.06]
10
[0.35]
10
[0.35]
20
[0.71]
30
[1.06]
10
[0.35]
10
[0.35]
20
[0.71]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
15,3
[0.60]
2,4
[.09]
1,6
[0.06]
1,6
[0.06]
1,6
[0.06]
1,6
[0.06]
1,6
[0.06]
1,6
[0.06]
1,6
[0.06]
1,6
[0.06]
6,0
[0.24]
3,2
[0.126]
3,2
[0.126]
3,2
[0.126]
3,2
[0.126]
3,2
[0.126]
3,2
[0.126]
3,2
[0.126]
6,0
[0.24]
3,2
[0.126]
3,2
[0.126]
3,2
[0.126]
3,2
[0.126]
3,2
[0.126]
3,2
[0.126]
3,2
[0.126]
3,2
[0.126]
0,6
[0.023]
0,4
[0.02]
0,4
[0.02]
0,4
[0.02]
0,4
[0.02]
0,4
[0.02]
0,4
[0.02]
0,4
[0.02]
0,4
[0.02]
1,65
[0.064]
1,2
[0.047]
1,2
[0.047]
1,2
[0.047]
1,2
[0.047]
1,2
[0.047]
1,2
[0.047]
1,2
[0.047]
1,65
[0.064]
1,2
[0.047]
1,2
[0.047]
1,2
[0.047]
1,2
[0.047]
1,2
[0.047]
1,2
[0.047]
1,2
[0.047]
1,2
[0.047]
Metric
Metric
Metric
Metric
Metric
Metric
USA
Metric
USA
Metric
Metric
Metric
Metric
Metric
Metric
Metric
USA
Metric
Metric
Metric
Metric
Metric
Metric
Metric
Metric
Metric
Short
Straight
Lever
V15T16-CP300A01
V15T16-E1Z100A01-K
V15T16-EP200A01
V15T16-EZ200A01-K
V15S05-CZ025B02
V15S05-EZ025A02
V15H10-CC200A02
V15T10-CZ050A02
V15H16-CP100A02
V15H16-CZ100A02
V15H16-CZ200A02
V15H16-EP400A02-K
V15H16-EZ200B02
Standard
Straight
Lever
V15T16-CP300A02
V15T16-CZ100A02
V15T16-DZ100A02
V15T16-MZ200A02
V15T22-CZ300A02
V15H22-CP100A02
V15H22-CZ100A02
V15T22-KC200A02
Sensing and Productivity Solutions
Mounting
holes
Electrical
Rating
O.F. max.
g [oz]
(see page 5)
P.T. max.
mm [in]
D.T. min.
mm [in]
Circuitry
O.P.
nominal
mm [in]
Elec.
Rating
5
京公网安备 11010802033920号
EEWORLD
