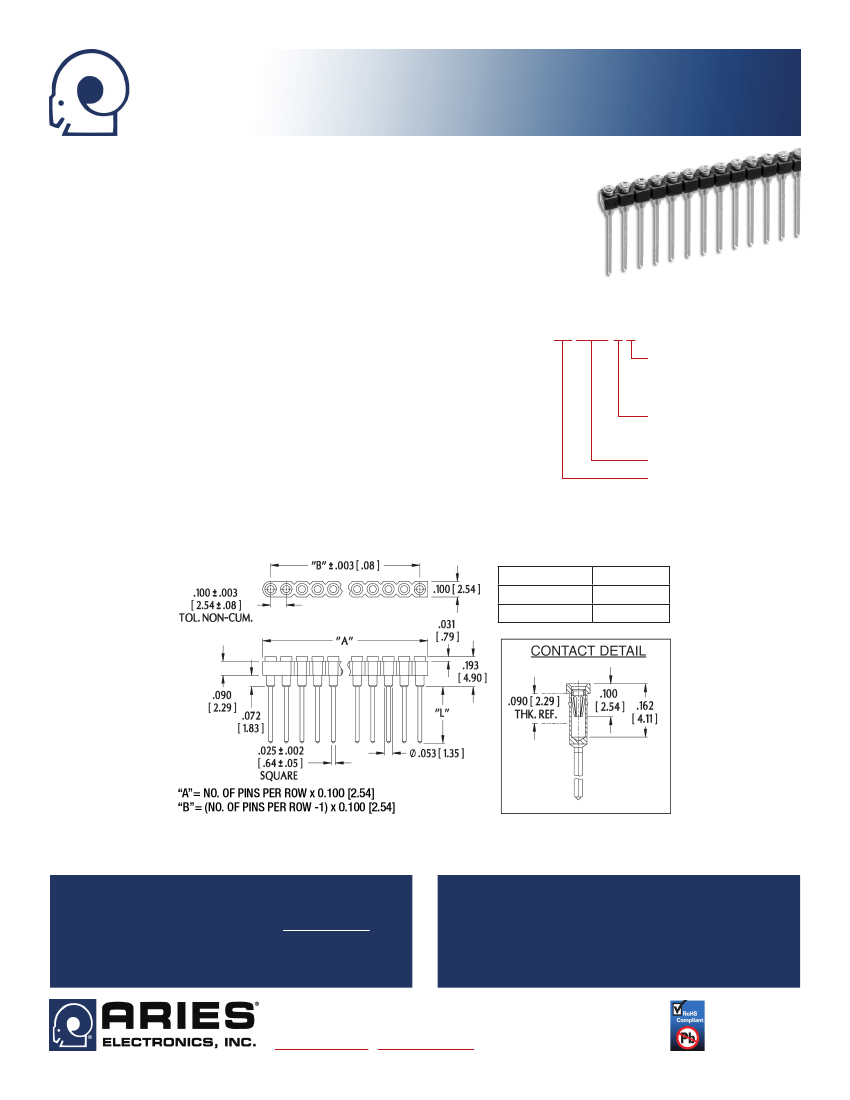

Series 0503 Pin-Line Socket
w/Collet Contacts & Wire Wrap Pins
™
FEATURES
• Rows of Socket Strips may be Mounted on Any Centers and are End-to-end or Side-to-side Stack-
able for 0.100 [2.54] Grid or Matrix Patterns
• Available with Solder Pin Tails or Wire Wrap Pins
• Socket Strips can be Cut to the Desired Number of Positions with “break” Feature
GENERAL SPECIFICATIONS
•
BODY MATERIAL: Red UL 94-HB Glass-filled Nylon – Consult factory for UL 94V-0 material
•
PIN BODY: Brass 360 1/2-hard per UNS C36000 ASTM B16-85
•
PIN BODY PLATING: 10µ [0.25µ] min. Au per MIL-G-45204 –OR–
200µ [5.08µ] min.
ORDERING INFORMATION
93/7 Sn/Pb per MIL-P-81728 over 100µ [2.54µ] min. Ni per QQ-N-290
XX 0503-X X
•
4-FINGER COLLET CONTACT: BeCu per UNS C17200 ASTM B194-92
•
CONTACT PLATING: 30µ [0.76µ] min. Au per MIL-G-45204 over 50µ min. [1.27µ] Ni per
Plating
QQ-N-290
0 = Au Collet, Sn Shell
•
CONTACT CURRENT RATING: 3 amps
0TL = Au Collet, Sn/Pb Shell
1 = Au Collet & Shell
•
OPERATING TEMPERATURE: 221°F [105°C] Sn plating; 257°F [125°C] Au plating
•
INSERTION FORCE: 180g/pin, based on 0.018 [0.46] dia. test lead
Termination
•
WITHDRAWAL FORCE: 90g/pin, based on 0.018 [0.46] dia. test lead
2 = 2-level Wire Wrap Pins
3 = 3-level Wire Wrap Pins
•
NORMAL FORCE: 140g/pin, based on 0.018 [0.46] dia. test lead
•
ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] dia., 0.110-0.162 [2.79-4.11] long
Series
No. of Pins
1 to 25
MOUNTING CONSIDERATIONS
•
SUGGESTED PCB HOLE SIZE: 0.045 ±0.002 [1.14 ±0.05] dia.
Wire Wrap Levels
2-level
3-level
Dim. “L”
0.360 [9.14]
0.500 [12.70]
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
FOR STRIP SOCKETS WITH SOLDER PIN TAILS, SEE DATA SHEETS 12013
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
CUSTOMIZATION: ARIES SPECIALIZES IN CUSTOM DESIGN AND PRODUCTION.
SPECIAL MATERIALS, PLATINGS, SIZES, AND CONFIGURATIONS CAN BE
FURNISHED, DEPENDING ON QUANTITY.
ARIES RESERVES THE RIGHT TO CHANGE PRODUCT GENERAL SPECIFICATIONS
WITHOUT NOTICE
PRINTOUTS OF THIS DOCUMENT MAY BE OUT-OF-DATE AND SHOULD BE
CONSIDERED UNCONTROLLED
2609 Bartram Road
•
Bristol, PA 19007-6810 USA
TEL 215-781-9956
•
FAX 215-781-9845
WWW.ARIESELEC.COM
•
INFO@ARIESELEC.COM
12014
Rev. 5.1
1 of 1
