GP10A THRU GP10Y
GLASS PASSIVATED JUNCTION RECTIFIER
Reverse Voltage -
50 to 1600 Volts
*
D
DO-204AL
Forward Current -
1.0 Ampere
FEATURES
♦
Plastic package has
Underwriters
Laboratory Flammability
Classification 94V-0
♦
High temperature metallurgically bonded construction
♦
Glass passivated cavity-free junction
♦
Capable of meeting environmental standards of
MIL-S-19500
♦
1.0 Ampere operation at T
A
=75°C and 55°C
with no thermal runaway
♦
Typical I
R
less than 0.1µA
♦
High temperature soldering guaranteed:
350°C/10 seconds, 0.375" (9.5mm) lead length,
5 lbs. (2.3kg) tension
N
T
E
P
A
T
1.0 (25.4)
MIN.
0.107 (2.7)
0.080 (2.0)
DIA.
E
0.205 (5.2)
0.160 (4.1)
1.0 (25.4)
MIN.
0.034 (0.86)
0.028 (0.71)
DIA.
NOTE:
Lead diameter is
0.026 (0.66)
0.023 (0.58)
for suffix "E" part numbers
*
Glass-plastic encapsulation is covered by
Patent No. 3,996,602 and brazed-lead assembly by Patent No. 3,930,306
Dimensions in inches and (millimeters)
MECHANICAL DATA
Case:
JEDEC DO-204AL molded plastic over glass body
Terminals:
Plated axial leads, solderable per MIL-STD-750,
Method 2026
Polarity:
Color band denotes cathode end
Mounting Position:
Any
Weight:
0.012 ounce, 0.3 gram
®
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
SYMBOLS
A
B
D
G
J
K
M
N
Q
T
V
W
Y
UNITS
Maximum repetitive peak reverse voltage
Maximum average forward rectified current
0.375" (9.5mm) lead length (
SEE FIG. 1
)
Peak forward surge current
8.3ms single half sine-wave superimposed
on rated load (JEDEC Method)
Maximum instantaneous forward voltage at 1.0A
Maximum full load reverse current, full cycle
average, 0.375" (9.5mm) lead lengths at T
A
=75°C
Maximum DC reverse current
at rated DC blocking voltage
Typical reverse recovery time
(NOTE 1)
Typical junction capacitance
(NOTE 2)
Typical thermal resistance
(NOTE 3)
Operating junction and storage temperature range
T
A
=25°C
T
A
=125°C
V
RRM
I
(AV)
50 to 1600 Volts
(SEE FIG. 5)
1.0
Volts
Amp
I
FSM
V
F
I
R(AV)
I
R
trr
C
J
R
ΘJA
T
J
, T
STG
30.0
1.1
1.2
30.0
5.0
50.0
2.0
8.0
-65 to +175
7.0
55.0
25.0
1.3
Amps
Volts
µA
µA
µs
5.0
pF
°C/W
°C
-65 to +150
NOTES:
(1) Reverse recovery test condition: I
F
=0.5A, I
R
=1.0A, I
rr
=0.25A
(2) Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts
(3) Thermal resistance from junction to ambient at 0.375" (9.5mm) lead lengths, P.C.B. mounted
4/98

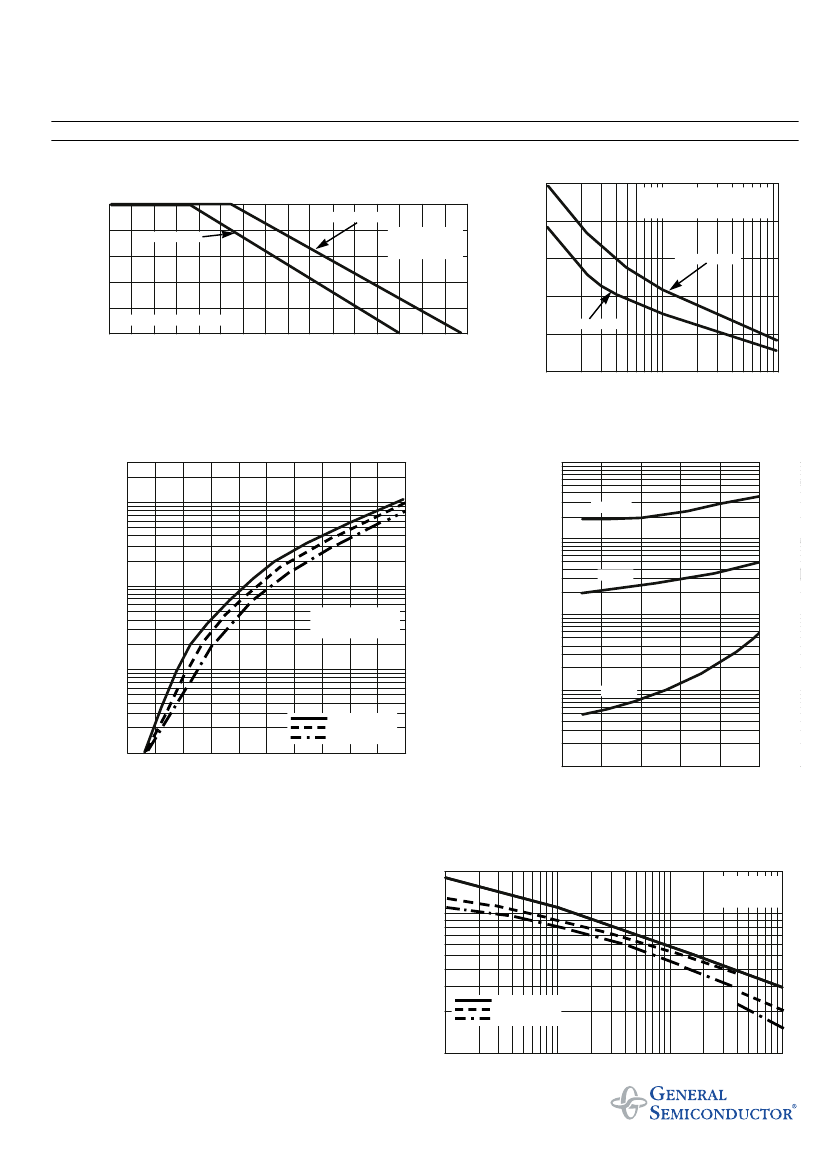

RATINGS AND CHARACTERISTIC CURVES GP10A THRU GP10Y
FIG. 2 - MAXIMUM NON-REPETITIVE
PEAK FORWARD SURGE CURRENT
AVERAGE FORWARD RECTIFIED CURRENT,
AMPERES
PEAK FORWARD SURGE CURRENT,
AMPERES
FIG. 1 - FORWARD CURRENT DERATING CURVE
30
1.0
GP10A - GP10M
T
J
=T
J
max.
8.3ms SINGLE HALF SINE-WAVE
(JEDEC Method)
0.8
0.6
0.4
0.2
25
GP10N - GP10Y
60 H
Z
RESISTIVE OR
INDUCTIVE LOAD
20
GP10A - GP10M
15
GP10N - GP10Y
0.375" (9.5mm) LEAD LENGTH
0
20
40
60
80
100
120
140
160
180
10
AMBIENT TEMPERATURE, °C
5.0
1
10
NUMBER OF CYCLES AT 60 H
Z
100
FIG. 3 - TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
FIG. 4 - TYPICAL REVERSE
CHARACTERISTICS
20
INSTANTANEOUS FORWARD CURRENT, AMPERES
10
INSTANTANEOUS REVERSE LEAKAGE CURRENT,
MICROAMPERES
10
T
J
=125°C
1
T
J
=75°C
1
T
J
=25°C
PULSE WIDTH=300µs
1% DUTY CYCLE
0.1
0.1
0.01
T
J
=25°C
GP10A to GP10J
GP10K to GP10Q
GP10T to GP10Y
0.01
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
0.001
0
20
40
60
80
100
INSTANTANEOUS FORWARD VOLTAGE, VOLTS
PERCENT OF RATED PEAK REVERSE VOLTAGE, %
FIG. 5 - MAXIMUM REPETITIVE PEAK
REVERSE VOLTAGE, V
RRM
GP10A
GP10B
GP10D
GP10G
GP10J
GP10K
GP10M
GP10N
GP10Q
GP10T
GP10V
GP10W
GP10Y
. . . . . . .50V
. . . . . .100V
. . . . . .200V
. . . . . .400V
. . . . . .600V
. . . . . .800V
. . . . .1000V
. . . . .1100V
. . . . .1200V
. . . . .1300V
. . . . .1400V
. . . .1500V
. . . . .1600V
JUNCTION CAPACITANCE pF
FIG. 6 - TYPICAL JUNCTION CAPACITANCE
20
10
T
J
=25°C
f=1.0 MH
Z
Vsig=50mVp-p
GP10A to GP10J
GP10K to GP10Q
GP10T to GP10Y
1.0
0.1
1
10
100
REVERSE VOLTAGE, VOLTS
