AZ1117T-33E1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Power management> AZ1117T-33E1

AZ1117T-33E1: DescriptionLDO Voltage Regulators LDO BJT HiCurr 1A LDO Reg; Categorysemiconductor Power management; File Size417KB，24 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric View All

AZ1117T-33E1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	AZ1117T-33E1	-	-	View	Buy Now

AZ1117T-33E1 Overview

LDO Voltage Regulators LDO BJT HiCurr 1A LDO Reg

AZ1117T-33E1 Parametric

Parameter Name	Attribute value
Product Category	LDO Voltage Regulators
Manufacturer	Diodes
RoHS	Details
Packaging	Tube
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

Data Sheet

1A LOW DROPOUT LINEAR REGULATOR

General Description

The AZ1117 is a series of low dropout three-terminal

regulators with a dropout of 1.15V at 1A output cur-

rent.

The AZ1117 series provides current limiting and ther-

mal shutdown. Its circuit includes a trimmed bandgap

reference to assure output voltage accuracy to be

within 1% for 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, 5.0V and

adjustable versions or 2% for 1.2V version. Current

limit is trimmed to ensure specified output current and

controlled short-circuit current. On-chip thermal shut-

down provides protection against any combination of

overload and ambient temperature that would create

excessive junction temperature.

The AZ1117 has an adjustable version, that can pro-

vide the output voltage from 1.25V to 12V with only 2

external resistors.

The AZ1117 series is available in the industry standard

SOT-223, SOT-89, TO-220-3, TO-252-2 (1) and TO-

263-3 power packages.

AZ1117

Features

Low Dropout Voltage: 1.15V at 1A Output Cur-

rent

Trimmed Current Limit

On-chip Thermal Shutdown

Three-terminal Adjustable or Fixed 1.2V, 1.5V,

1.8V, 2.5V, 2.85V, 3.3V, 5.0V

Operation Junction Temperature: -40 to 125

Applications

PC Motherboard

LCD Monitor

Graphic Card

DVD-video Player

NIC/Switch

Telecom Equipment

ADSL Modem

Printer and other Peripheral Equipment

SOT-223

SOT-89

TO-220-3

TO-252-2 (1)

TO-263-3

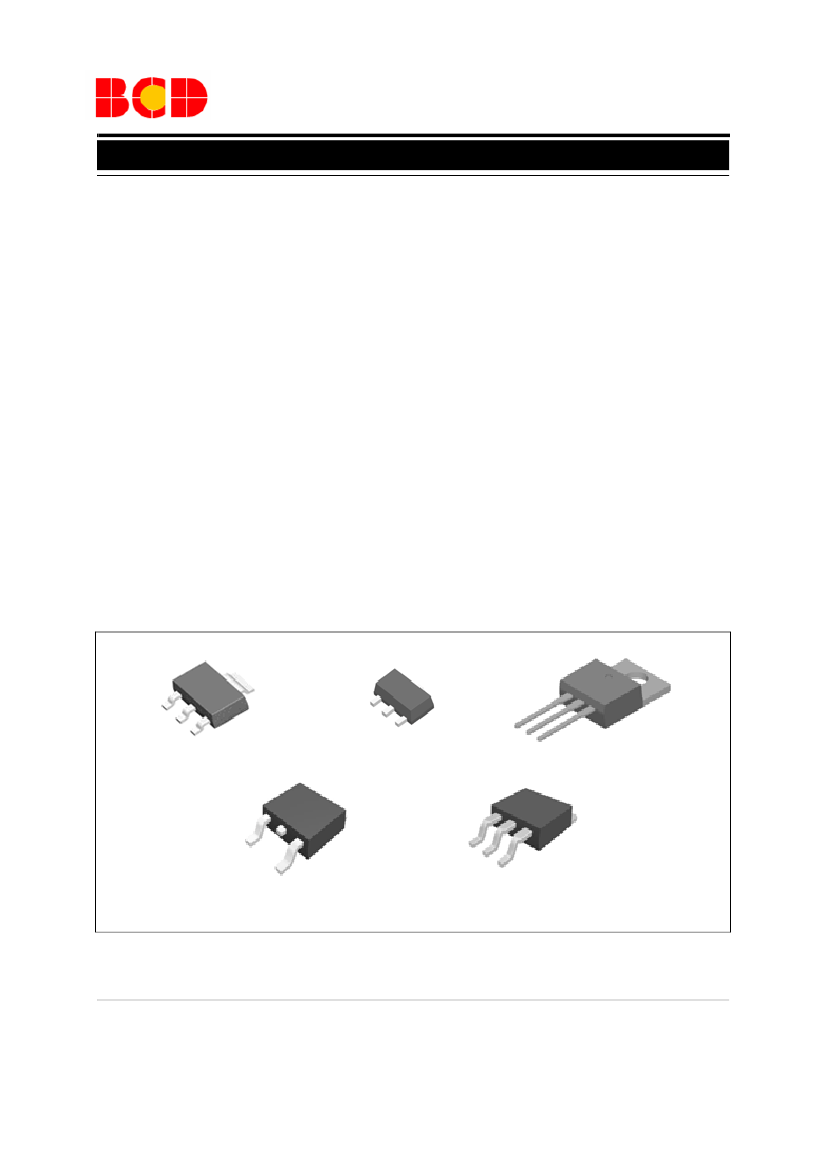

Figure 1. Package Types of AZ1117

Mar. 2008 Rev. 2. 1
