RLB9012-101KL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> RLB9012-101KL

RLB9012-101KL: Description8-bit Microcontrollers - MCU 32KB In-system Flash 20MHz 1.8V-5.5V; CategoryPassive components inductor; File Size622KB，2 Pages; ManufacturerBourns; Websitehttp://www.bourns.com; Environmental Compliance

Download Datasheet Parametric View All

RLB9012-101KL Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RLB9012-101KL	-	-	View	Buy Now

RLB9012-101KL Overview

8-bit Microcontrollers - MCU 32KB In-system Flash 20MHz 1.8V-5.5V

RLB9012-101KL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Bourns
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	18 weeks
Samacsys Description	Bourns 100 μH ±10% Ferrite DR Power Inductor, Max SRF:3.7MHz, Q:20, 1.4A Idc, 280mΩ Rdc RLB9012
structure	Cylindrical
core material	Ferrite
DC Resistance	0.28 Ω
Nominal inductance(L)	100 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Lead diameter	0.65 mm
Lead length	25 mm
lead spacing	5 mm
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package diameter	9 mm
Package length	12.2 mm
Package form	Radial
method of packing	Bulk
Maximum rated current	1.4 A
self resonant frequency	3.7 MHz
Shape/Size Description	CYLINDRICAL PACKAGE
shield	NO
surface mount	NO
Terminal surface	Tin (Sn)
Terminal location	RADIAL
Terminal shape	WIRE
Test frequency	0.001 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

Features

Available in E12 series

Inductance range: 1.0

μH

to 47 mH

RoHS compliant*

Applications

Power supplies

DC/DC converters

General use

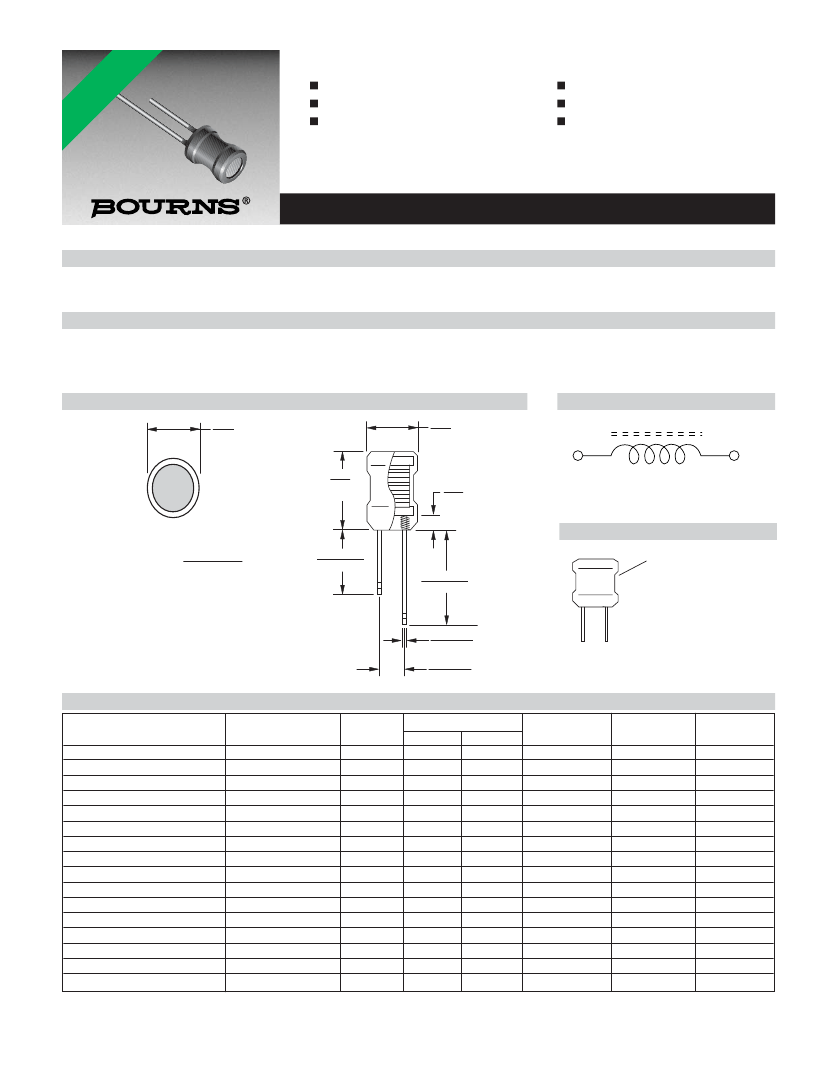

RLB9012 Radial Inductor

General Specifications

Inductance Drop at Rated Current (IDC).................................................................................................................................................5 %

Operating Temperature ......................................................................................................................................................-55 °C to +125 °C

Storage Temperature ........................................................................................................................................................-55 °C to +105 °C

Materials

Core Material.........................................................................................................................................................................Ferrite DR core

Wire............................................................................................................................................................................Enameled copper wire

Terminal .........................................................................................................................................................................................Cu/AG/Sn

Tube ..............................................................................................................................................................Shrinkable tube 125 °C, 600 V

Product Dimensions

9.0

(.354)

MAX.

12.2

(.480)

MAX.

9.0

(.354)

MAX.

Electrical Schematic

2.5

(.098)

MAX.

Typical Part Marking

DIMENSIONS ARE:

(INCHES)

18.0 ± 5.0

(.709 ± .197)

25.0 ± 5.0

(.984 ± .197)

470

Inductance Code:

- First two digits are significant

- Third digit represents the

number of zeroes to follow

0.65 ± 0.05

(.026 ± .002)

5.0 ± 0.8

(.197 ± .031)

Electrical Characteristics

BOURNS Part No.

RLB9012-1R0ML

RLB9012-1R5ML

RLB9012-2R2ML

RLB9012-3R3ML

RLB9012-4R7ML

RLB9012-6R8ML

RLB9012-100KL

RLB9012-120KL

RLB9012-150KL

RLB9012-180KL

RLB9012-220KL

RLB9012-270KL

RLB9012-330KL

RLB9012-390KL

RLB9012-470KL

RLB9012-560KL

Inductance

(µH)

1.0 ± 20 %

1.5 ± 20 %

2.2 ± 20 %

3.3 ± 20 %

4.7 ± 20 %

6.8 ± 20 %

10.0 ± 10 %

12.0 ± 10 %

15.0 ± 10 %

18.0 ± 10 %

22.0 ± 10 %

27.0 ± 10 %

33.0 ± 10 %

39.0 ± 10 %

47.0 ± 10 %

56.0 ± 10 %

ref.

Test freq. (MHz)

7.96

2.52

SRF

(MHz) min.

150.00

100.00

90.00

65.00

51.00

29.00

14.00

13.00

12.00

11.00

9.20

8.50

7.80

6.90

6.50

5.40

RDC

(ohms) max.

0.013

0.016

0.021

0.025

0.030

0.035

0.045

0.050

0.056

0.061

0.070

0.080

0.090

0.100

0.160

0.180

IDC

(A) max.

10.0

8.50

6.50

5.50

4.60

4.10

3.40

3.10

2.90

2.66

2.40

2.22

2.05

1.85

1.77

1.48

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Specifications are subject to change without notice.

The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.

Users should verify actual device performance in their specific applications.

Packaging: 200 pieces per bag
