(2/9)
C A P A C I T O R S
REMINDERS FOR USING THESE PRODUCTS
Before using these products, be sure to request the delivery specifications.
SAFETY REMINDERS
Please pay sufficient attention to the warnings for safe designing when using these products.
REMINDERS
Do not use or store in locations where there are conditions such as gas corrosion (salt, acid, alkali, etc.).
Before soldering, be sure to preheat components.
The preheating temperature should be set so that the temperature difference between the solder temperature and product temperature
does not exceed 150°C.
Soldering corrections after mounting should be within the range of the conditions determined in the specifications.
If overheated, a short circuit, performance deterioration, or lifespan shortening may occur.
Self heating (temperature increase) occurs when the power is turned ON, so the tolerance should be sufficient for the set thermal
design.
Do not use for a purpose outside of the contents regulated in the delivery specifications.
The products listed on this catalog are intended for use in general electronic equipment (AV equipment, telecommunications
equipment, home appliances, amusement equipment, computer equipment, personal equipment, office equipment, measurement
equipment, industrial robots) under a normal operation and use condition.
The products are not designed or warranted to meet the requirements of the applications listed below, whose performance and/or
quality require a more stringent level of safety or reliability, or whose failure, malfunction or trouble could cause serious damage to
society, person or property.
If you intend to use the products in the applications listed below or if you have special requirements exceeding the range or conditions
set forth in the each catalog, please contact us.
(1) Aerospace/Aviation equipment
(2) Transportation equipment (cars, electric trains, ships, etc.)
(3) Medical equipment
(4) Power-generation control equipment
(5) Atomic energy-related equipment
(6) Seabed equipment
(7) Transportation control equipment
(8) Public information-processing equipment
(9) Military equipment
(10) Electric heating apparatus, burning equipment
(11) Disaster prevention/crime prevention equipment
(12) Safety equipment
(13) Other applications that are not considered general-purpose
applications
Please refer to the guideline of notabilia for fixed ceramic capacitors issued by JEITA(Japan Electronics and Information Technology
Association, EIAJ RCR-2335).
When designing your equipment even for general-purpose applications, you are kindly requested to take into consideration securing
protection circuit/device or providing backup circuits in your equipment.
20160219 / leaddisc_commercial_cc45_en.fm
(3/9)
C A P A C I T O R S
Disc Type Capacitors with Lead
Product compatible with RoHS directive
Halogen-free
High Voltage Ceramic Capacitors, Commercial Grade, Low dissipation at high frequency
Overview of CC45 Series
FEATURES
Low dissipation factor, and decreased self-heating temperature in the high frequency, and high voltage application.
The rated voltage of 6kV series have been added the rated voltage of 3kV series.
These products shall conform to RoHS Directive due to lead(Pb) free of lead wire and internal solder material.
Compatible with halogen-free external resin coating.
APPLICATION
For use in snubber circuit protection for power supplies
PART NUMBER CONSTRUCTION
CC45
Series
name
SL
Temperature
characteristics
SL
+350 to
–1000ppm/°C
3AD
Rated
voltage
3AD
3DD
3FD
3JD
1kV
2kV
3kV
6kV
101
Nominal
capacitance
030
220
471
3pF
22pF
470pF
J
Capacitance
tolerance
C ±0.25pF
D ±0.5pF
J
±5%
Y
Class
G
N
V
□
Lead type
Long lead
Short lead
Taping
N
Application
classification
N General use
A
Internal code
A Halogen-free
Please refer to P-5~8 about the product dimensions.
OPERATING TEMPERATURE RANGE
Temperature
characteristics
SL
Temperature range
Operating temperature
（°C）
–25 to +125
Storage temperature
（°C）
–25 to +125
The maximum operating temperature of 125°C includes capacitor self-generated heat of up to 20°C.
The storage temperature range applies to after MLCC is mounted on board.
PACKAGE QUANTITY
Package quantity
Type
CC45
Taping (pieces / box)
1000
Bulk (pieces / bag)
1000
RoHS Directive Compliant Product: See the following for more details related to RoHS Directive compliant products. http://product.tdk.com/en/environment/rohs/
Halogen-free: Indicates that Cl content is less than 900ppm, Br content is less than 900ppm, and that the total Cl and Br content is less than 1500ppm.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20160219 / leaddisc_commercial_cc45_en.fm
(5/9)
C A P A C I T O R S
CC45 Type

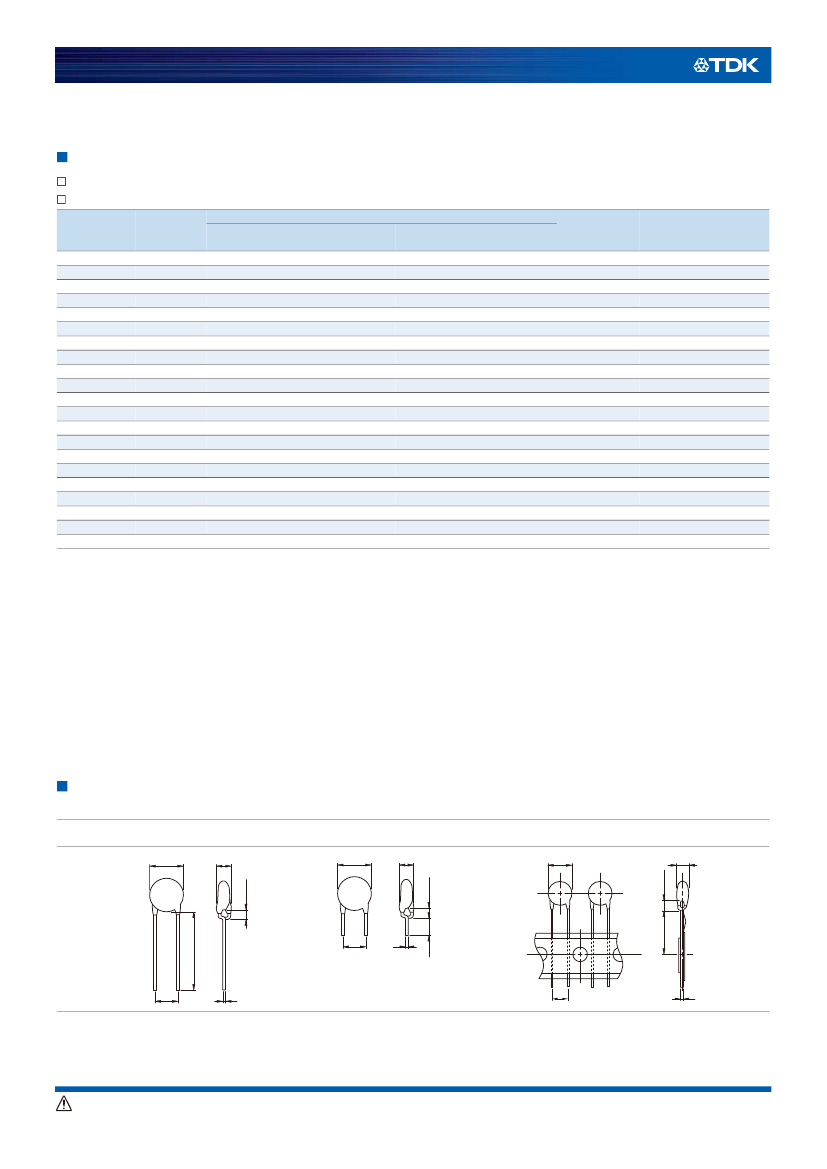

CAPACITANCE AND DIMENSIONS
Temperature Characteristics: SL (+350 to –1000ppm/°C)
Rated Voltage Edc: 1kV
Capacitance
(pF)
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
Dimensions (mm)
Capacitance
F
tolerance
D max. T max.
(Applied to bulk)
±5%
5.5
5.0
5.0±1.5
±5%
5.5
5.0
5.0±1.5
±5%
5.5
5.0
5.0±1.5
±5%
5.5
5.0
5.0±1.5
±5%
5.5
5.0
5.0±1.5
±5%
5.5
5.0
5.0±1.5
±5%
5.5
5.0
5.0±1.5
±5%
5.5
5.0
5.0±1.5
±5%
5.5
5.0
5.0±1.5
±5%
5.5
5.0
5.0±1.5
±5%
5.5
5.0
5.0±1.5
±5%
6.0
5.0
5.0±1.5
±5%
6.5
5.0
5.0±1.5
±5%
7.0
5.0
5.0±1.5
±5%
7.5
5.0
5.0±1.5
±5%
8.0
5.0
5.0±1.5
±5%
8.5
5.0
5.0±1.5
±5%
9.0
5.0
5.0±1.5
±5%
10.0
5.0
5.0±1.5
±5%
10.5
5.0
5.0±1.5
±5%
11.5
5.0
7.5±1.5
F
(Applied to taping)
5.0+0.8, –0.2
5.0+0.8, –0.2
5.0+0.8, –0.2
5.0+0.8, –0.2
5.0+0.8, –0.2
5.0+0.8, –0.2
5.0+0.8, –0.2
5.0+0.8, –0.2
5.0+0.8, –0.2
5.0+0.8, –0.2
5.0+0.8, –0.2
5.0+0.8, –0.2
5.0+0.8, –0.2
5.0+0.8, –0.2
5.0+0.8, –0.2
5.0+0.8, –0.2
5.0+0.8, –0.2
5.0+0.8, –0.2
5.0+0.8, –0.2
5.0+0.8, –0.2
7.5±0.8
d
0.6±0.05
0.6±0.05
0.6±0.05
0.6±0.05
0.6±0.05
0.6±0.05
0.6±0.05
0.6±0.05
0.6±0.05
0.6±0.05
0.6±0.05
0.6±0.05
0.6±0.05
0.6±0.05
0.6±0.05
0.6±0.05
0.6±0.05
0.6±0.05
0.6±0.05
0.6±0.05
0.6±0.05
Taping
Part No.
dimensions
V1
V1
V1
V1
V1
V1
V1
V1
V1
V1
V1
V1
V1
V1
V1
V1
V1
V1
V1
V1
V2
CC45SL3AD100JY□NA
CC45SL3AD120JY□NA
CC45SL3AD150JY□NA
CC45SL3AD180JY□NA
CC45SL3AD220JY□NA
CC45SL3AD270JY□NA
CC45SL3AD330JY□NA
CC45SL3AD390JY□NA
CC45SL3AD470JY□NA
CC45SL3AD560JY□NA
CC45SL3AD680JY□NA
CC45SL3AD820JY□NA
CC45SL3AD101JY□NA
CC45SL3AD121JY□NA
CC45SL3AD151JY□NA
CC45SL3AD181JY□NA
CC45SL3AD221JY□NA
CC45SL3AD271JY□NA
CC45SL3AD331JY□NA
CC45SL3AD391JY□NA
CC45SL3AD471JY□NA
* The part numbers are TDK’s standard specification products.
The "
□
" of the Part Number contains the lead type, G, N or V. Please refer to the details of each shape is shown below.
Please refer to P-9 about the taping dimemsions.
LIST OF STANDARD LEAD SHAPES
Dimemsions in mm
Symbol G
Bulk/Long lead
D
T
Symbol N
Bulk/Short lead
D
4max.
Symbol V
Taping
D
4max.
T
T
4max.
Vertical kink
25min.
5±1
F
d
F
d
F
16
+1.5
–0.5
d
• TDK’s standard product is vertical kink.
• TDK’s recommendation is short lead type with the symbol N for bulk products.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20160219 / leaddisc_commercial_cc45_en.fm
